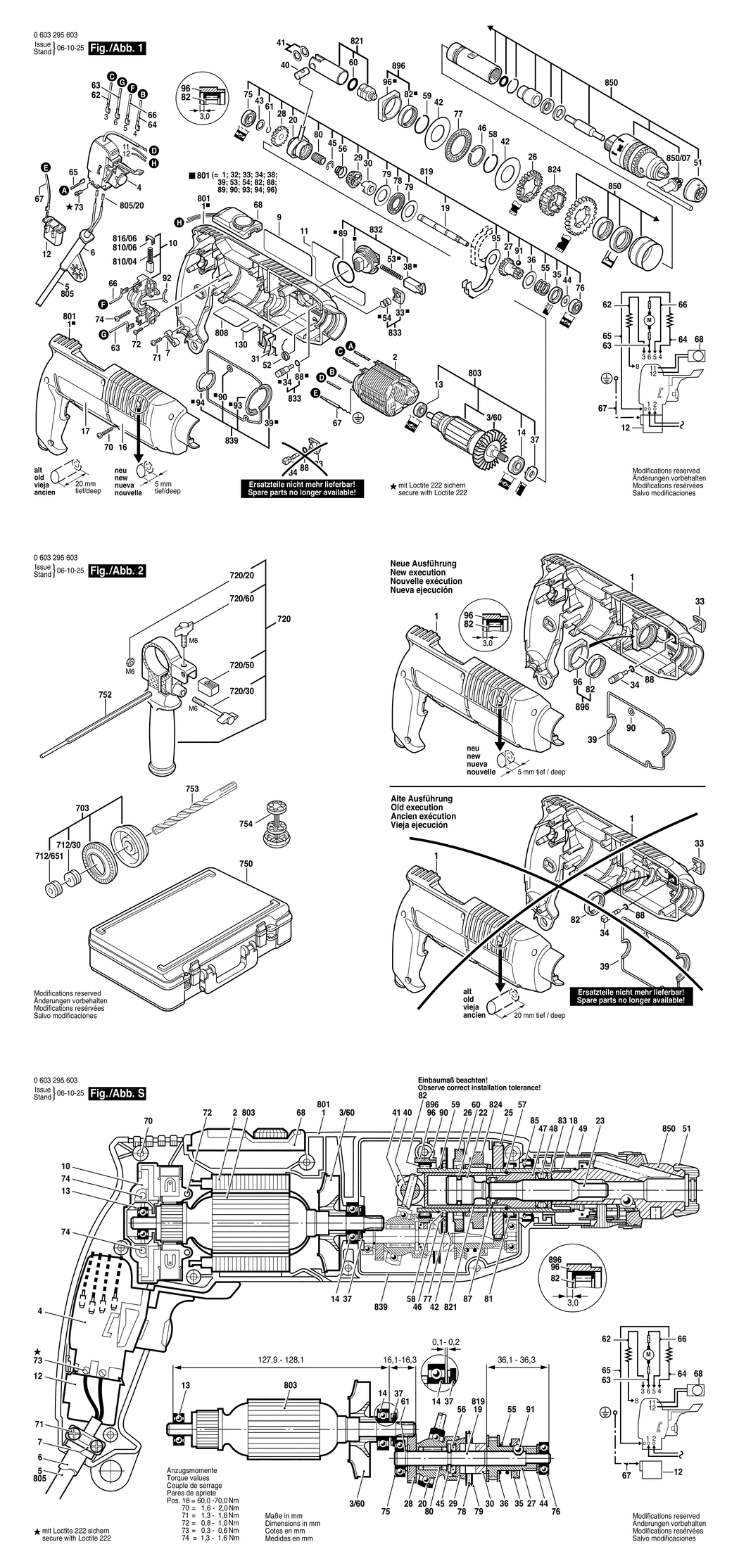

1 - HOUSING SECTION
BSD-1615104006.A3
1615104006
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-1614220115.A11
1614220115
|
£21.52
|
£25.83
|
|
|
3/60 - FAN
BSD-2606610029.A170
2606610029
|
£2.61
|
£3.13
|
|
|
4 - ON-OFF SWITCH
BSD-2607200237.A2
2607200237
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H07 RN-F
BSD-1604460125.A9
1604460125
|
-
|
|
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A224
2600707061
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A92
2600707060
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A403
2600707059
|
£3.72
|
£4.47
|
|
|
7 - CABLE CLIP
BSD-1611035005.A273
1611035005
|
£2.16
|
£2.59
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110619.A3
1611110619
|
-
|
|
|
|
10 - BRUSH PLATE
BSD-2605807060.A211
2605807060
|
-
|
|
|
|
11 - REFERENCE PLATE
BSD-1611110913.A0
1611110913
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328040.A46
1607328040
|
£6.52
|
£7.83
|
|
|
13 - GROOVE BALL BEARING 7x19x6
BSD-1610905032.A127
1610905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-1610905017.A7
1610905017
|
£13.12
|
£15.75
|
|
|
16 - REFERENCE PLATE
BSD-1611110613.A7
1611110613
|
-
|
|
|
|
17 - MANUFACTURER'S NAMEPLATE
BSD-1611110614.A0
1611110614
|
-
|
|
|
|
19 - JACK SHAFT
BSD-1613022027.A5
1613022027
|
-
|
|
|
|
20 - DRIVE BEARING
BSD-1615819019.A7
1615819019
|
-
|
|
|
|
26 - CYLINDRICAL GEAR Z=43
BSD-1616317604.A0
1616317604
|
-
|
|
|
|
27 - CYLINDRICAL GEAR Z=11/22
BSD-1616317605.A7
1616317605
|
-
|
|
|
|
28 - CYLINDRICAL GEAR Z=31
BSD-1616317606.A0
1616317606
|
-
|
|
|
|
29 - CLUTCH RING
BSD-1616409008.A7
1616409008
|
-
|
|
|
|
30 - COLLAR
BSD-1616409009.A0
1616409009
|
-
|
|
|
|
31 - CONTROL FORK
BSD-1611329015.A0
1611329015
|
-
|
|
|
|
35 - BACKUP RING
BSD-1610250008.A0
1610250008
|
-
|
|
|
|
36 - SUPPORTING DISC 1.0 MM
BSD-1610101626.A7
1610101626
|
£1.75
|
£2.10
|
|
|
37 - SEALING DISK
BSD-1610190015.A0
1610190015
|
-
|
|
|
|
38 - CATCH SLIDE
BSD-1613231004.A5
1613231004
|
-
|
|
|
|
40 - PISTON PIN
BSD-1613103006.A2
1613103006
|
-
|
|
|
|
41 - SHIM WASHER 1.2 MM
BSD-1610100608.A61
1610100608
|
£1.75
|
£2.10
|
|
|
42 - SUPPORT DISC 1.0 MM
BSD-1610102631.A0
1610102631
|
-
|
|
|
|
43 - SUPPORTING DISC 1.0 MM
BSD-1610100610.A0
1610100610
|
-
|
|
|
|
44 - SHIM WASHER 1.0 MM
BSD-1610100611.A7
1610100611
|
-
|
|
|
|
45 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A294
2916080910
|
£2.16
|
£2.59
|
|
|
46 - RETAINING RING
BSD-1610116005.A7
1610116005
|
-
|
|
|
|
51 - PROTECTIVE CAP
BSD-1610508020.A8
1610508020
|
£2.33
|
£2.80
|
|
|
52 - COILED SPRING
BSD-1614651015.A5
1614651015
|
-
|
|
|
|
53 - COMPRESSION SPRING
BSD-1614611004.A5
1614611004
|
-
|
|
|
|
55 - COMPRESSION SPRING
BSD-1614603002.A2
1614603002
|
-
|
|
|
|
56 - COMPRESSION SPRING
BSD-1614643005.A2
1614643005
|
-
|
|
|
|
58 - RETAINING RING
BSD-1614601013.A5
1614601013
|
-
|
|
|
|
59 - RETAINING RING
BSD-1614601014.A2
1614601014
|
-
|
|
|
|
60 - O-RING 13.0x2.5 MM
BSD-1610210086.A8
1610210086
|
-
|
|
|
|
61 - RETAINING RING
BSD-1614601015.A5
1614601015
|
-
|
|
|
|
62 - CONNECTING CABLE L=136MM
BSD-2604448049.A0
2604448049
|
-
|
|
|
|
63 - CONNECTING CABLE L=80 MM
BSD-1614448014.A9
1614448014
|
£2.61
|
£3.13
|
|
|
64 - CONNECTING CABLE L=88 MM
BSD-2604448034.A181
2604448034
|
£1.75
|
£2.10
|
|
|
65 - CONNECTING CABLE L=184 MM
BSD-2604448001.A83
2604448001
|
£1.95
|
£2.34
|
|
|
66 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A77
1614431025
|
£2.61
|
£3.13
|
|
|
68 - TORQUE CONTROL 230-240V
BSD-2607233005.A1
2607233005
|
-
|
|
|
|
70 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z
BSD-2912401022.A122
2912401022
|
£1.75
|
£2.10
|
|
|
71 - TAPPING SCREW DIN7981-ST3.9x16-C-Z
BSD-2912401019.A20
2912401019
|
£1.75
|
£2.10
|
|
|
72 - TAPPING SCREW DIN7981-ST2.9x13-C-Z
BSD-2912401006.A4
2912401006
|
£1.75
|
£2.10
|
|
|
73 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A386
2603410001
|
£1.75
|
£2.10
|
|
|
74 - TAPPING SCREW DIN7981-ST3.9x22-C-Z
BSD-2912401021.A17
2912401021
|
£1.75
|
£2.10
|
|
|
75 - GROOVE BALL BEARING 8x22x7
BSD-1900900228.A7
1900900228
|
£6.61
|
£7.93
|
|
|
76 - GROOVE BALL BEARING 6x19x6
BSD-1610900024.A6
1610900024
|
-
|
|
|
|
77 - ROLLER THRUST BEARING
BSD-1610920012.A18
1610920012
|
£3.34
|
£4.01
|
|
|
78 - THRUST NEEDLE RIM
BSD-1610920001.A1
1610920001
|
£3.72
|
£4.47
|
|
|
79 - THRUST BEARING DISC
BSD-1610101608.A67
1610101608
|
£2.16
|
£2.59
|
|
|
80 - NEEDLE-ROLLER ASSEMBLY
BSD-1610913008.A41
1610913008
|
-
|
|
|
|
82 - NEEDLE BEARING
BSD-1610910075.A1
1610910075
|
-
|
|
|
|
88 - O-RING 4.0x1.5 MM
BSD-1610210043.A118
1610210043
|
£1.75
|
£2.10
|
|
|
89 - O-RING 25.0x2.5 MM
BSD-1610210112.A6
1610210112
|
-
|
|
|
|
91 - BALL DIN 5401-6 G28
BSD-1903230011.A162
1903230011
|
£2.61
|
£3.13
|
|
|
92 - DAMPING RUBBER
BSD-1610026001.A44
1610026001
|
£1.75
|
£2.10
|
|
|
95 - GUIDE PLATE
BSD-1611321013.A7
1611321013
|
-
|
|
|
|
96 - BEARING FLANGE
BSD-1615719023.A1
1615719023
|
-
|
|
|
|
96 - BEARING FLANGE
BSD-1615719022.A2
1615719022
|
-
|
|
|
|
703 - DUST TRAY
BSD-1615439003.A12
1615439003
|
-
|
|
|
|
712/30 - RUBBER BUSHING dia5-7 MM
BSD-1610312001.A99
1610312001
|
-
|
|
|
|
712/651 - RUBBER BUSHING dia8-10 MM
BSD-1610312002.A40
1610312002
|
-
|
|
|
|
720 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A418
1619P10682
|
£12.49
|
£14.99
|
|
|
720 - AUXILIARY HANDLE dia 43 MM
BSD-1612025034.A11
1612025034
|
-
|
|
|
|
720/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1295
2915011007
|
-
|
|
|
|
720/30 - WING SCREW M6x(15)55
BSD-1613480007.A207
1613480007
|
£1.75
|
£2.10
|
|
|
720/50 - CLAMPING PLATE M6
BSD-2608040014.A198
2608040014
|
-
|
|
|
|
720/60 - WING SCREW M6x20 MM
BSD-1613480008.A220
1613480008
|
£1.75
|
£2.10
|
|
|
750 - CARRYING CASE
BSD-2605438291.A6
2605438291
|
-
|
|
|
|
752 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001006.A24
1613001006
|
-
|
|
|
|
753 - ROTARY HAMMER BIT dia6x50 MM
BSD-1618596166.A42
1618596166
|
-
|
|
|
|
754 - DRILL HOLDER
BSD-2607000122.A132
2607000122
|
-
|
|
|
|
801 - MOTOR HOUSING
BSD-1617000801.A3
1617000801
|
-
|
|
|
|
803 - ARMATURE WITH FAN 240V
BSD-1614010121.A0
1614010121
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H5.A341
160111A3H5
|
£2.61
|
£3.13
|
|
|
810/04 - CARBON-BRUSH SET
BSD-1617014136.A30
1617014136
|
£12.04
|
£14.45
|
|
|
810/06 - RATCHET CAP
BSD-2601322017.A141
2601322017
|
£1.75
|
£2.10
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A27
2601322013
|
£1.75
|
£2.10
|
|
|
819 - JACK SHAFT
BSD-1617000986.A0
1617000986
|
-
|
|
|
|
821 - PARTS SET
BSD-1617000187.A7
1617000187
|
-
|
|
|
|
824 - CLUTCH SLEEVE
BSD-1610290020.A6
1610290020
|
-
|
|
|
|
832 - PARTS SET
BSD-1617000191.A0
1617000191
|
-
|
|
|
|
833 - PARTS SET
BSD-1617000268.A0
1617000268
|
-
|
|
|
|
839 - SEALING FRAME
BSD-1617000267.A7
1617000267
|
-
|
|
|
|
850 - KEY CHUCK dia1.5-dia13MM.M22x1MM
BSD-1617000961.A7
1617000961
|
-
|
|
|
|
850/07 - CHUCK WRENCH SG2
BSD-2607950007.A1552
2607950007
|
£6.52
|
£7.83
|
|
|
896 - BEARING FLANGE
BSD-1617000802.A0
1617000802
|
-
|
|
|
