Bosch PBH 3000-2 FRE / 3603C94270 / GB 230 Volt Spare Parts

Home Details Reviews Delivery

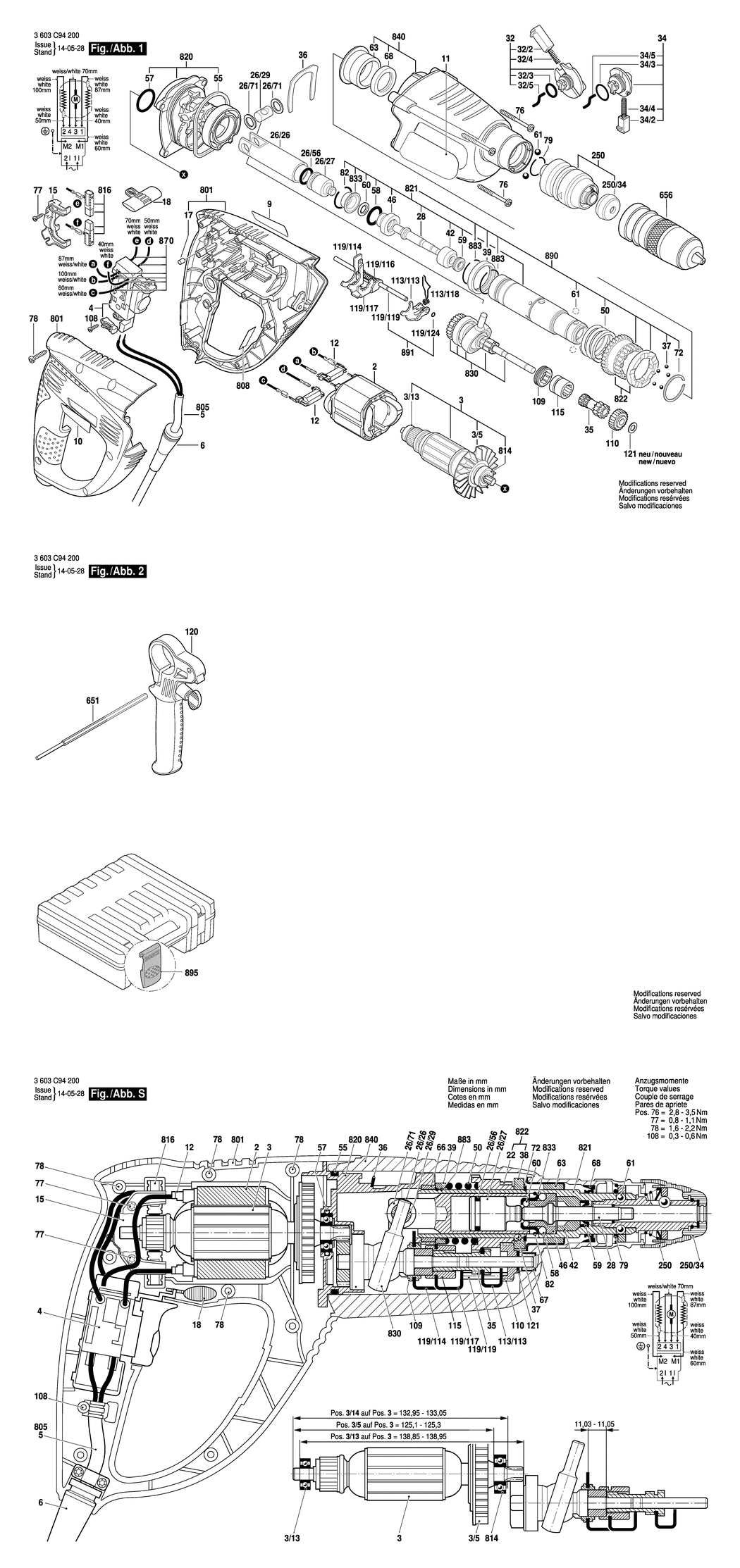

An exploded drawing and listing for the Bosch PBH 3000-2 FRE / 3603C94270 / GB 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1614220193.A13 1614220193	£21.68	£26.01
3 - ARMATURE 230V BSD-1614010251.A2 1614010251	£57.02	£68.42
3/5 - FAN BSD-1616610094.A22 1616610094	£2.16	£2.59
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A91 1610905032	£5.30	£6.36
4 - SWITCH BSD-1617200111.A8 1617200111	£27.23	£32.68
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-3604460084.A75 3604460084	£21.68	£26.01
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A69 2600703018	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE PBH 3000-2 FRE BSD-1611110Z11.A1 1611110Z11	£2.61	£3.13
10 - MANUFACTURER'S NAMEPLATE PBH 3000-2 FRE BSD-1611110Z12.A2 1611110Z12	£2.61	£3.13
11 - REFERENCE PLATE BSD-1611110Z13.A4 1611110Z13	£2.61	£3.13
12 - SUPPRESSION FILTER BSD-1617328032.A67 1617328032	£7.36	£8.83
15 - BEARING BRACKET BSD-1615808099.A11 1615808099	£3.72	£4.47
17 - DAMPING RUBBER BSD-2603100056.A288 2603100056	£1.75	£2.10
18 - CHANGE-OVER SWITCH BSD-1613231025.A11 1613231025	£1.75	£2.10
26/26 - HAMMER PISTON BSD-1618700089.A4 1618700089	£14.91	£17.89
26/27 - STRIKER BSD-1610311018.A100 1610311018	£18.96	£22.75
26/29 - PISTON PIN BSD-1613105012.A105 1613105012	£3.72	£4.47
26/56 - O-RING BSD-1610210187.A26 1610210187	£2.16	£2.59
26/71 - SHIM WASHER 1.2 MM BSD-1610101011.A383 1610101011	£1.75	£2.10
28 - STRIKER PIN BSD-1613124091.A2 1613124091	£8.67	£10.41
32 - CLAMP HANDLE BSD-1612026134.A1 1612026134	£5.58	£6.70
32/2 - SWITCH BUTTON BSD-1612026035.A335 1612026035	£1.75	£2.10
32/3 - O-RING 12.5x2.5 MM BSD-1610210200.A4 1610210200	£1.75	£2.10
32/4 - COMPRESSION SPRING BSD-1614611006.A121 1614611006	£3.72	£4.47
32/5 - DRIVER PIN BSD-1614690006.A3 1614690006	£1.75	£2.10
34 - CLAMP HANDLE BSD-1612026132.A3 1612026132	£5.58	£6.70
34/2 - SWITCH BUTTON BSD-1612026138.A2 1612026138	£1.75	£2.10
34/3 - O-RING 17.0x2.0 MM BSD-1610210201.A3 1610210201	£1.75	£2.10
34/4 - COMPRESSION SPRING BSD-1614643020.A0 1614643020	£3.72	£4.47
34/5 - DRIVER PIN BSD-1614690007.A1 1614690007	£1.75	£2.10
35 - GEAR SLEEVE BSD-1616328050.A1 1616328050	£10.10	£12.12
36 - HOLDING PLATE BSD-1611016003.A27 1611016003	£2.16	£2.59
37 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A373 1903230007	£1.75	£2.10
39 - FRICTION WASHER BSD-1610102078.A4 1610102078	£2.80	£3.36
42 - THRUST RING BSD-1610290099.A4 1610290099	£5.30	£6.36
46 - GUIDE BUSHING BSD-1610390066.A16 1610390066	£12.04	£14.45
50 - COMPRESSION SPRING BSD-1614643019.A15 1614643019	£2.61	£3.13
55 - O-RING BSD-1610290108.A15 1610290108	£1.75	£2.10
57 - O-RING 24.0x2.5 MM BSD-1610210068.A432 1610210068	£1.75	£2.10
58 - O-RING BSD-1610210178.A56 1610210178	£1.75	£2.10
59 - SHAFT SEAL BSD-1600A009VC.A4 1600A009VC	£2.80	£3.36
60 - O-RING 9.0x3.5 MM BSD-1610210176.A63 1610210176	£1.75	£2.10
61 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A425 1903230010	£1.75	£2.10
63 - PLAIN BEARING BSD-1610202026.A27 1610202026	£5.30	£6.36
68 - SHAFT SEAL BSD-1610283019.A144 1610283019	£7.36	£8.83
72 - RETAINING RING BSD-1604601027.A3 1604601027	£1.75	£2.10
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A62 160343000A	£1.75	£2.10
77 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A238 1613435034	£1.75	£2.10
78 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A944 2603490023	£1.75	£2.10
79 - RETAINING RING BSD-1614601026.A41 1614601026	£1.75	£2.10
82 - RETAINING RING BSD-1614601057.A42 1614601057	£1.75	£2.10
108 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A237 1613435034	£1.75	£2.10
109 - SWITCHING ELEMENT BSD-1615820098.A4 1615820098	£2.16	£2.59
110 - CYLINDRICAL GEAR BSD-1616312008.A3 1616312008	£5.58	£6.70
113/113 - SHIFT PLATE BSD-1601021006.A0 1601021006	£2.16	£2.59
113/118 - SWITCH SPRING BSD-1614651020.A0 1614651020	£3.72	£4.47
115 - SWITCHING ELEMENT BSD-1615820099.A11 1615820099	£3.72	£4.47
119/114 - SHIFT PLATE BSD-1601021007.A4 1601021007	£2.16	£2.59
119/116 - COMPRESSION SPRING BSD-1614643021.A7 1614643021	£1.75	£2.10
119/117 - SHIFT PLATE BSD-1601021008.A11 1601021008	£2.16	£2.59
119/119 - GUIDE ROD BSD-1613023002.A3 1613023002	£2.80	£3.36
119/124 - RETAINING RING BSD-1614601063.A4 1614601063	£1.75	£2.10
120 - AUXILIARY HANDLE BSD-2602025125.A17 2602025125	£10.10	£12.12
121 - SHIM BSD-1610100613.A0 1610100613	£1.75	£2.10
250 - QUICK-CHANGE COLLET CHUCK BSD-1617000663.A4 1617000663	£63.50	£76.20
250/34 - PROTECTIVE CAP BSD-1610508047.A190 1610508047	£2.29	£2.75
651 - DEPTH-GAUGE BSD-2609005615.A102 2609005615	£4.26	£5.11
656 - KEYLESS CHUCK BSD-1608572032.A4 1608572032	£63.50	£76.20
801 - MOTOR HOUSING BSD-1617000V97.A15 1617000V97	£27.23	£32.68
808 - NAMEPLATE BSD-160111A3H6.A25 160111A3H6	£2.61	£3.13
814 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A72 1610905048	£8.67	£10.41
816 - CARBON-BRUSH SET BSD-1617014146.A15 1617014146	£12.04	£14.45
820 - INTERMEDIATE FLANGE BSD-1617000V98.A0 1617000V98	£21.68	£26.01
821 - HAMMER PIPE BSD-1617000607.A2 1617000607	£68.42	£82.10
822 - CLUTCH SET BSD-1617000A41.A0 1617000A41	£11.30	£13.56
830 - DRIVE BEARING BSD-1617000600.A3 1617000600	£46.82	£56.18
833 - HOLDING JACKET BSD-1610590018.A30 1610590018	£4.75	£5.70
840 - GEAR HOUSING BSD-1617000603.A2 1617000603	£31.64	£37.97
870 - CONNECTING CABLE BSD-1619P01776.A60 1619P01776	£5.58	£6.70
883 - RETAINING RING A22 DIN 7993 BSD-1604601028.A274 1604601028	£1.75	£2.10
890 - HAMMER PIPE BSD-1617000609.A4 1617000609	£93.88	£112.65
891 - GUIDE ROD BSD-1617000602.A4 1617000602	£3.72	£4.47
895 - LOCKING HOOK BSD-1615438457.A0 1615438457	£6.52	£7.83
