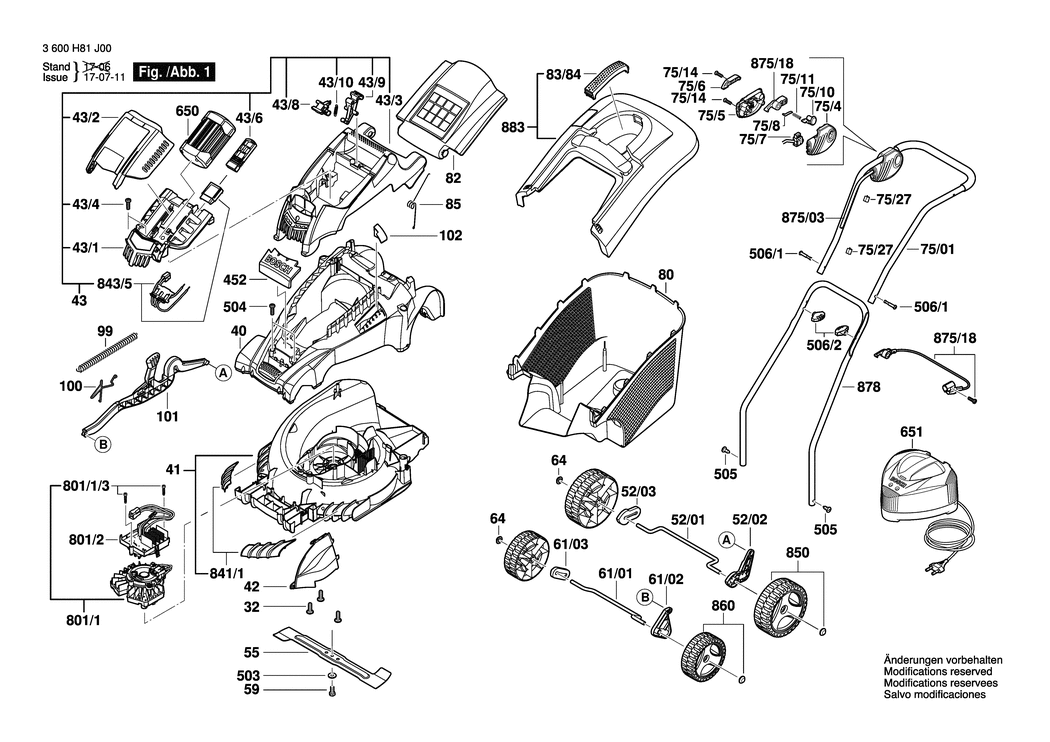

An exploded drawing and listing for the Bosch ROTAK 37 LI / 3600H81JB0 / --- 36 Volt
Ex VAT Inc VAT
32 - SCREW BSD-F016L66162.A9 F016L66162 £1.75 £2.10
40 - MOWER DECK BSD-F016L66158.A3 F016L66158 £33.74 £40.49
41 - HOUSING BSD-F016L66003.A13 F016L66003 £37.72 £45.27
42 - COVER PANEL BSD-F016L66039.A13 F016L66039 £3.34 £4.01
43 - MOTOR HOOD BSD-F016L66780.A30 F016L66780 £80.61 £96.73
43/1 - BATTERY TRAY BSD-F016L65952.A14 F016L65952 £36.62 £43.95
43/2 - BATTERY COVER BSD-F016L66663.A32 F016L66663 £7.92 £9.50
43/3 - MOTOR HOOD BSD-F016L66779.A3 F016L66779 -
43/4 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A500 F016T49429 £1.75 £2.10
43/6 - INSULATOR BSD-F016L66669.A4 F016L66669 -
43/8 - RELEASE LEVER BSD-F016L66107.A30 F016L66107 £3.34 £4.01
43/9 - LOCKING DEVICE BSD-F016L65988.A30 F016L65988 £1.95 £2.34
43/10 - SPRING BSD-F016L66108.A20 F016L66108 £1.75 £2.10
52/01 - AXLE BSD-F016L66465.A14 F016L66465 £3.34 £4.01
52/02 - LEVER BSD-F016L90582.A60 F016L90582 -
52/03 - SPACER BSD-F016L90583.A132 F016L90583 £2.33 £2.80
55 - CUTTER BLADE BSD-F016L66005.A10 F016L66005 £31.64 £37.97
59 - BOLT M10x30 BSD-F016L66141.A72 F016L66141 £2.61 £3.13
61/01 - AXLE BSD-F016L66464.A39 F016L66464 £4.75 £5.70
61/02 - LEVER BSD-F016L90581.A131 F016L90581 £7.78 £9.33
61/03 - SPACER BSD-F016L90585.A61 F016L90585 £1.75 £2.10
64 - RATCHET CAP 9 MM BSD-F016F05700.A36 F016F05700 £1.95 £2.34
75/01 - HANDLE BSD-F016L66182.A17 F016L66182 £33.74 £40.49
75/4 - SWITCH HOUSING BSD-F016L66619.A5 F016L66619 £4.75 £5.70
75/5 - SWITCH HOUSING BSD-F016L66235.A43 F016L66235 £3.34 £4.01
75/6 - CLAMPING PIECE BSD-F016L66447.A22 F016L66447 £1.95 £2.34
75/7 - ON-OFF SWITCH BSD-F016F05717.A65 F016F05717 £14.91 £17.89
75/8 - LEAF SPRING BSD-F016L66416.A39 F016L66416 £1.66 £1.99
75/10 - PUSH-BUTTON BSD-F016F05705.A29 F016F05705 £3.75 £4.50
75/11 - COMPRESSION SPRING BSD-F016L66240.A19 F016L66240 £1.75 £2.10
75/14 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A499 F016T49429 £1.75 £2.10
75/27 - CABLE CLIP BSD-F016L90575.A53 F016L90575 £1.75 £2.10
80 - COLLECTOR BOX BOTTOM BSD-F016L65674.A23 F016L65674 £40.80 £48.96
82 - GUARD FLAP BSD-F016L66137.A74 F016L66137 £13.32 £15.99
83/84 - HANDLE BSD-F016L66441.A31 F016L66441 £4.75 £5.70
85 - SPRING BSD-F016L66165.A200 F016L66165 £2.82 £3.39
99 - SPRING BSD-F016L59327.A11 F016L59327 £2.80 £3.36
100 - SPRING BSD-F016L65790.A12 F016L65790 £1.95 £2.34
101 - LINKAGE PART BSD-F016L67260.A14 F016L67260 -
102 - RESTRICTOR BSD-F016L66111.A30 F016L66111 £3.80 £4.56
452 - COMPANY LOGO ROTAK 37 LI BSD-F016L66286.A17 F016L66286 £4.75 £5.70
503 - SPRING WASHER 1/2 BSD-F016L66173.A9 F016L66173 £1.75 £2.10
504 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A501 F016T49429 £1.75 £2.10
505 - SCREW BSD-F016L65803.A59 F016L65803 -
506/1 - BOLT M6x50 BSD-F016L59277.A55 F016L59277 £3.80 £4.56
506/2 - WING NUT BSD-F016L66136.A41 F016L66136 £4.26 £5.11
650 - SLIDE-IN ACCU PACKAGE PBA 36V 2.6Ah H-B Li BSD-2607336107.A14 2607336107 -
651 - FAST CHARGER ROK 220/18-36V. 1h BSD-2607225111.A6 2607225111 £103.14 £123.77
801/1 - DC MOTOR BSD-F016104031.A8 F016104031 £218.41 £262.09
801/1/3 - PAN HEAD SCREW 4x35 BSD-F016L69251.A38 F016L69251 £1.75 £2.10
801/1/3 - SCREW M4x35 BSD-F016L66662.A5 F016L66662 £1.75 £2.10
801/2 - PRINTED-BOARD ASSEMBLY BSD-F016104888.A8 F016104888 £93.88 £112.65
841/1 - COVER BSD-F016104316.A23 F016104316 £8.49 £10.19
843/5 - WIRING HARNESS BSD-F016104244.A9 F016104244 -
850 - WHEEL BSD-F016103992.A50 F016103992 -
860 - WHEEL BSD-F016103994.A36 F016103994 -
875/03 - CONNECTING CABLE BSD-F016104140.A3 F016104140 £10.82 £12.99
875/18 - CONTROL BAR BSD-F016103601.A40 F016103601 -
878 - BOTTOM HANDLE BSD-F016L65571.A13 F016L65571 £21.52 £25.83
883 - COVER BSD-F016103608.A64 F016103608 £27.23 £32.68
