Bosch EasyGrassCut 18 / 3600HC1C01 / EU 18 Volt Spare Parts

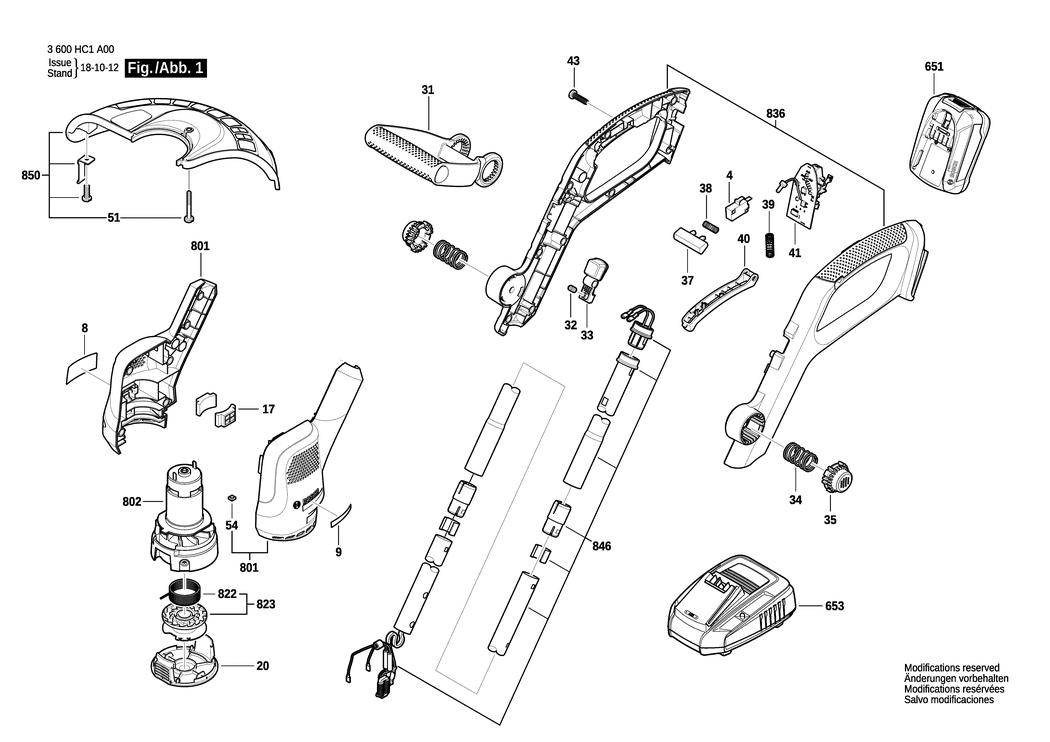

An exploded drawing and listing for the Bosch EasyGrassCut 18 / 3600HC1C01 / EU 18 Volt

	Ex VAT	Inc VAT
4 - SWITCH BSD-F016F05315.A3 F016F05315	-
8 - NAMEPLATE BSD-F016F05337.A0 F016F05337	-
9 - MANUFACTURER'S NAMEPLATE BSD-F016F05316.A3 F016F05316	-
17 - RUBBER PAD BSD-F016F05319.A2 F016F05319	-
20 - SPOOL COVER BSD-F016F05320.A1 F016F05320	£3.49	£4.19
31 - AUXILIARY HANDLE BSD-F016F05321.A7 F016F05321	-
32 - SPRING BSD-F016F05322.A1 F016F05322	-
33 - BUTTON BSD-F016F05323.A2 F016F05323	-
34 - BUTTON SPRING BSD-F016F05324.A1 F016F05324	-
35 - BUTTON BSD-F016F05325.A2 F016F05325	-
37 - BUTTON BSD-F016F05326.A1 F016F05326	-
38 - SPRING BSD-F016F05327.A2 F016F05327	-
39 - SPRING BSD-F016F05328.A1 F016F05328	-
40 - TRIGGER BSD-F016F05329.A2 F016F05329	-
41 - ELECTRONIC ASSEMBLY BSD-F016F05330.A1 F016F05330	-
43 - SCREW BSD-F016F05331.A2 F016F05331	-
51 - SCREW BSD-F016F05332.A1 F016F05332	-
54 - SQUARE NUT BSD-F016F05317.A1 F016F05317	-
651 - BATTERY PACK PBA 18V 2.5Ah W-B BSD-2607337199.A19 2607337199	£81.81	£98.17
653 - CHARGER GB AL 1830 CV 230/14.4-18V 1h BSD-2607225967.A3 2607225967	£68.42	£82.10
653 - FAST CHARGER EU AL 1830 CV 230/14.4-18V 1h BSD-2607225965.A34 2607225965	£48.38	£58.06
801 - MOTOR HOUSING BSD-F016F05333.A1 F016F05333	-
802 - MOTOR ASSEMBLY BSD-F016F05334.A2 F016F05334	£31.64	£37.97
822 - ACCESSORY SET BSD-F016F05340.A0 F016F05340	£3.28	£3.94
823 - SPOOL BSD-F016F05341.A8 F016F05341	£4.37	£5.24
836 - HANDLE BSD-F016F05342.A0 F016F05342	£10.10	£12.12
846 - PIPE FRAME BSD-F016F05343.A3 F016F05343	-
850 - PROTECTIVE GUARD BSD-F016F05345.A3 F016F05345	-
