Bosch ---- / 0602302008 / --- 72 Volt Spare Parts

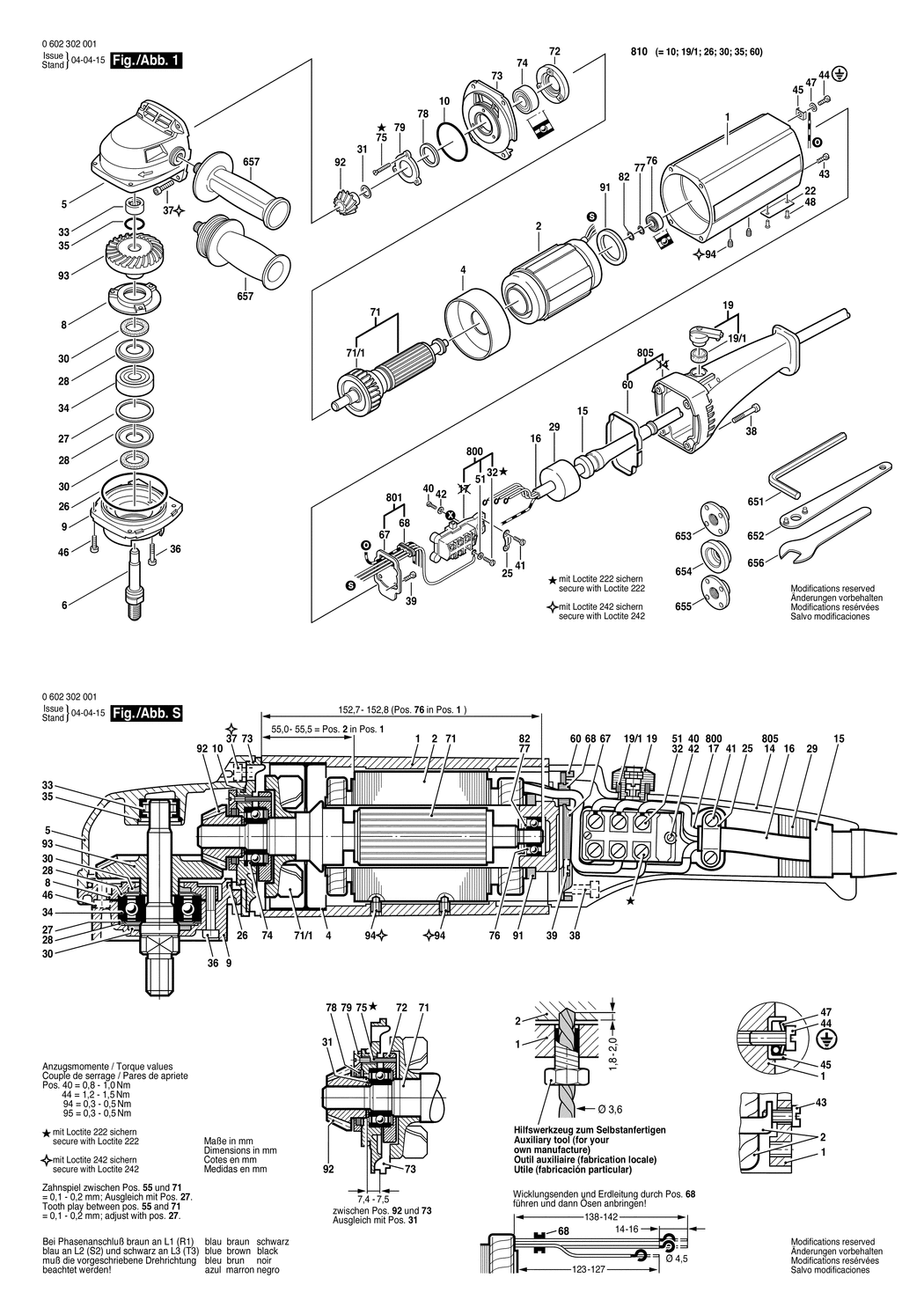

An exploded drawing and listing for the Bosch ---- / 0602302008 / --- 72 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605102081.A19 3605102081	£156.22	£187.46
2 - STATOR 72V/200HZ BSD-1604229100.A13 1604229100	-
4 - AIR-DEFLECTOR RING BSD-1600209002.A52 1600209002	£5.30	£6.36
5 - GEAR HOUSING BSD-3605806104.A25 3605806104	-
6 - GRINDING SPINDLE M14x1.5 MM BSD-1603523032.A200 1603523032	£37.27	£44.72
8 - CONICAL SPRING WASHER BSD-1600521013.A4 1600521013	-
9 - BEARING FLANGE BSD-3607030375.A47 3607030375	£195.26	£234.31
10 - O-RING 45x3MM BSD-1900210146.A93 1900210146	£4.26	£5.11
15 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A623 1600703009	£5.58	£6.70
16 - ELEC. CABLE W/CONNECTION BSD-3607030236.A97 3607030236	£61.98	£74.38
19 - CONTROL LEVER BSD-1602026030.A90 1602026030	£10.10	£12.12
19/1 - FELT WASHER BSD-1600205008.A191 1600205008	£1.75	£2.10
22 - NAMEPLATE BSD-3601106053.A492 3601106053	£5.30	£6.36
25 - FASTENING CLAMP BSD-1601303003.A408 1601303003	£2.16	£2.59
26 - O-RING 66.0x3.0 MM BSD-1600210005.A257 1600210005	£2.80	£3.36
27 - SHIM 0.05 MM BSD-1600102638.A192 1600102638	£3.34	£4.01
27 - SHIM 0.1 MM BSD-1600102639.A42 1600102639	-
27 - SHIM 0.15 MM BSD-1600102640.A192 1600102640	-
28 - PLAIN WASHER BSD-2100551000.A3 2100551000	-
29 - SEALING PLATE BSD-1600113003.A167 1600113003	£2.80	£3.36
30 - SEALING DISK BSD-1600108048.A82 1600108048	£1.75	£2.10
31 - SHIM 0.1 MM BSD-1600101616.A127 1600101616	£2.61	£3.13
31 - SHIM 0.2 MM BSD-1600101617.A71 1600101617	£1.75	£2.10
31 - SHIM 0.3 MM BSD-1600101618.A183 1600101618	£2.61	£3.13
31 - SHIM 0.05 MM BSD-1600101619.A69 1600101619	£2.16	£2.59
32 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A419 2910091118	£1.75	£2.10
33 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A200 1600910010	£45.67	£54.80
34 - GROOVE BALL BEARING 17x47x14 BSD-1900900352.A218 1900900352	£27.23	£32.68
35 - RETAINING RING dia22 MM BSD-2916620011.A287 2916620011	£1.75	£2.10
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A26 2910141164	£2.16	£2.59
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8 BSD-2910141162.A8 2910141162	£2.16	£2.59
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A172 2910141166	£1.75	£2.10
39 - SOCKET HEAD CAP SCREW BSD-3603450008.A34 3603450008	£2.16	£2.59
40 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A602 2910211006	£1.75	£2.10
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1300 2910021118	£1.75	£2.10
42 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A385 2916011005	£1.75	£2.10
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A47 2910021120	£1.75	£2.10
44 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A111 2910110120	£1.75	£2.10
45 - CLAMPING SADDLE BSD-3601321001.A485 3601321001	£3.72	£4.47
46 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A19 2910141158	£1.75	£2.10
47 - SPRING WASHER dia4.2 MM BSD-3600150006.A890 3600150006	£2.61	£3.13
48 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A480 3603133001	£2.61	£3.13
51 - SPRING WASHER DIN 137-A4 BSD-1600150006.A260 1600150006	-
60 - SEALING CORD BSD-1601014000.A38 1601014000	£2.80	£3.36
67 - SEALING PLATE BSD-1602388006.A99 1602388006	£5.58	£6.70
68 - GROMMET BSD-1600306001.A312 1600306001	£2.61	£3.13
71 - ROTOR WITHOUT WINDING BSD-1604080032.A61 1604080032	£195.26	£234.31
72 - BEARING COVER BSD-1600501019.A525 1600501019	£23.86	£28.63
73 - BEARING FLANGE BSD-3605820064.A68 3605820064	£68.42	£82.10
74 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A129 1900905234	£31.64	£37.97
75 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x20-8.8 BSD-2910511130.A118 2910511130	-
76 - BALL BEARING 7x22x7 BSD-1900905018.A627 1900905018	£18.96	£22.75
77 - SHIM 0.2 MM BSD-1600100632.A82 1600100632	£1.75	£2.10
78 - FELT DISC BSD-1600108018.A149 1600108018	£2.61	£3.13
79 - COVER DISC BSD-1600501024.A6 1600501024	£16.41	£19.69
82 - SHIM 0.10 MM BSD-1420100023.A41 1420100023	-
91 - SEAL RING BSD-1600209004.A70 1600209004	£2.80	£3.36
92 - BEVEL GEAR Z=30 BSD-1606333084.A4 1606333084	-
93 - BEVEL GEAR Z=33 BSD-1606333083.A1 1606333083	-
94 - SET SCREW BSD-1603402002.A138 1603402002	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601119236.A1180 3601119236	£3.72	£4.47
651 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A476 1907950007	£5.30	£6.36
652 - PIN-TYPE FACE-WRENCH BSD-1607950061.A82 1607950061	£5.42	£6.50
654 - CLAMPING-FLANGE dia45 MM BSD-2600501006.A278 2600501006	£16.43	£19.72
655 - ROUND NUT M14 BSD-2603345004.A293 2603345004	£6.52	£7.83
656 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A694 2607950511	£4.26	£5.11
657 - AUXILIARY HANDLE M14 BSD-1602025022.A65 1602025022	£13.41	£16.09
657 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A601 1602025030	£18.96	£22.75
800 - SWITCH KIT BSD-1607000036.A83 1607000036	-
801 - SEALING PLATE BSD-1602388007.A155 1602388007	£12.04	£14.45
805 - HANDLE BSD-3605132048.A48 3605132048	£63.50	£76.20
810 - SEAL KIT BSD-1607000039.A25 1607000039	£13.12	£15.75
