Bosch ---- / 0602304010 / --- Spare Parts

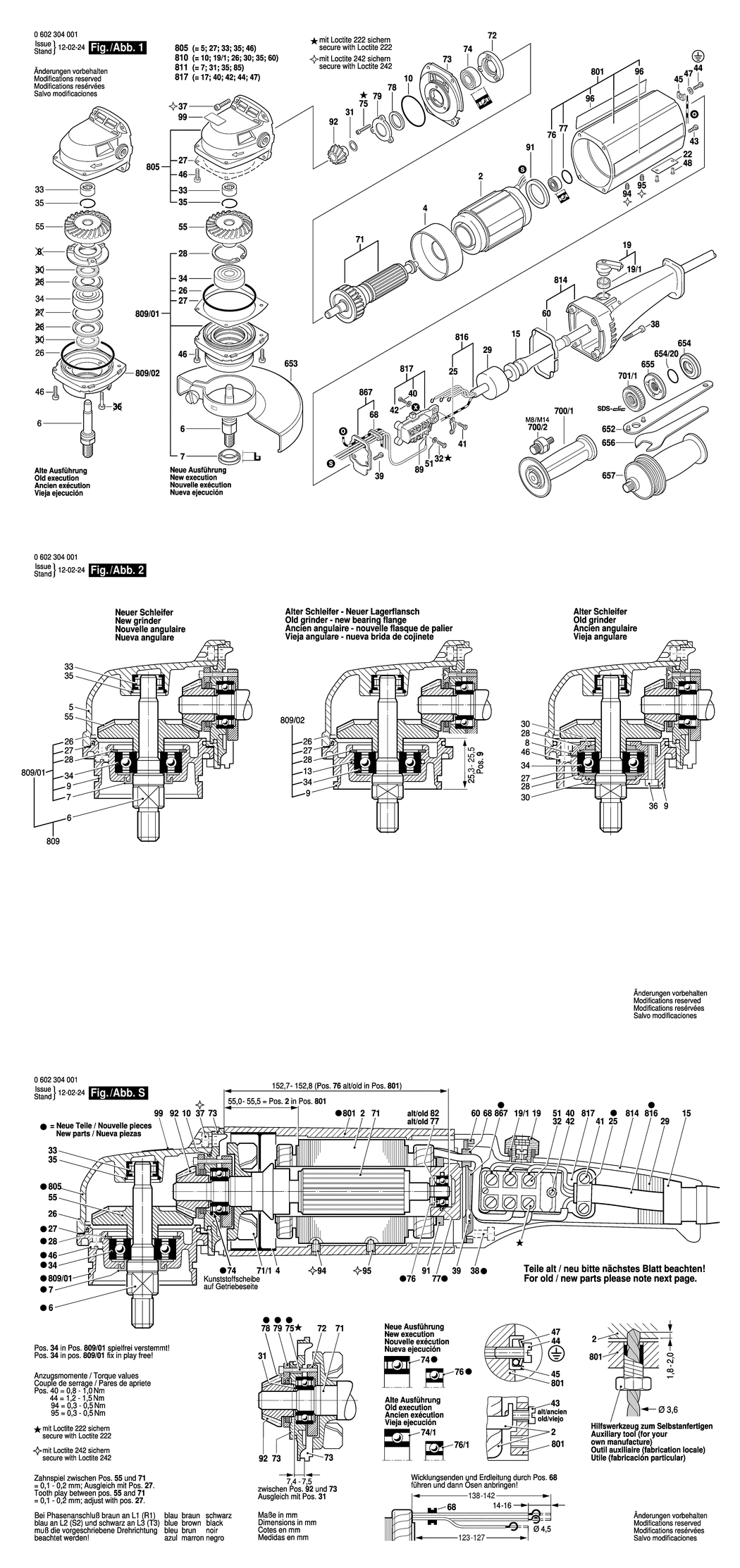

An exploded drawing and listing for the Bosch ---- / 0602304010 / ---

	Ex VAT	Inc VAT
2 - STATOR 72V/300HZ BSD-1604229101.A1 1604229101	£357.27	£428.72
4 - AIR-DEFLECTOR RING BSD-1600209002.A16 1600209002	£5.30	£6.36
6 - GRINDING SPINDLE BSD-3603523032.A0 3603523032	£54.42	£65.30
7 - SEAL RING BSD-1600290020.A198 1600290020	£1.75	£2.10
10 - O-RING 45x3MM BSD-1900210146.A79 1900210146	£4.26	£5.11
15 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A571 1600703009	£5.58	£6.70
19 - CONTROL LEVER BSD-1602026030.A67 1602026030	£10.10	£12.12
19/1 - FELT WASHER BSD-1600205008.A178 1600205008	£1.75	£2.10
22 - NAMEPLATE BSD-3601106053.A468 3601106053	£5.30	£6.36
25 - FASTENING CLAMP BSD-1601303003.A308 1601303003	£2.16	£2.59
26 - O-RING 66.0x3.0 MM BSD-1600210005.A275 1600210005	£2.80	£3.36
27 - SHIM BSD-3600100075.A47 3600100075	£11.30	£13.56
27 - SHIM BSD-3600100076.A1 3600100076	£11.30	£13.56
27 - SHIM BSD-3600100077.A47 3600100077	£12.04	£14.45
28 - SPRING RETAINING RING BSD-3603435038.A32 3603435038	£2.61	£3.13
29 - SEALING PLATE BSD-1600113003.A143 1600113003	£2.80	£3.36
30 - SEALING DISK BSD-1600108055.A151 1600108055	£1.75	£2.10
31 - SHIM 0.1 MM BSD-1600101616.A112 1600101616	£2.61	£3.13
31 - SHIM 0.2 MM BSD-1600101617.A86 1600101617	£1.75	£2.10
31 - SHIM 0.3 MM BSD-1600101618.A168 1600101618	£2.61	£3.13
31 - SHIM 0.05 MM BSD-1600101619.A84 1600101619	£2.16	£2.59
32 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A21 2910110120	£1.75	£2.10
33 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A216 1600910010	£45.67	£54.80
34 - GROOVE BALL BEARING 6303-2RS1 BSD-3608870382.A8 3608870382	£31.64	£37.97
35 - RETAINING RING dia22 MM BSD-2916620011.A295 2916620011	£1.75	£2.10
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A47 2910141164	£2.16	£2.59
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8 BSD-2910141162.A26 2910141162	£2.16	£2.59
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A146 2910141166	£1.75	£2.10
39 - SOCKET HEAD CAP SCREW BSD-3603450008.A0 3603450008	£2.16	£2.59
40 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A638 2910211006	£1.75	£2.10
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1419 2910021118	£1.75	£2.10
42 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A462 2916011005	£1.75	£2.10
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A32 2910021120	£1.75	£2.10
44 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A20 2910110120	£1.75	£2.10
45 - CLAMPING SADDLE BSD-3601321001.A371 3601321001	£3.72	£4.47
46 - THREAD-FORMING TAP. SCREW BSD-3603435004.A30 3603435004	£2.80	£3.36
47 - SPRING WASHER dia4.2 MM BSD-3600150006.A687 3600150006	£2.61	£3.13
48 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A415 3603133001	£2.61	£3.13
51 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A461 2916011005	£1.75	£2.10
55 - BEVEL GEAR Z=46 BSD-1606333051.A25 1606333051	£93.88	£112.65
60 - SEALING CORD BSD-1601014000.A6 1601014000	£2.80	£3.36
68 - GROMMET BSD-1600306001.A249 1600306001	£2.61	£3.13
71 - ROTOR WITHOUT WINDING BSD-1604080032.A57 1604080032	£195.26	£234.31
72 - BEARING COVER BSD-1600501019.A512 1600501019	£23.86	£28.63
73 - BEARING FLANGE BSD-3605820064.A92 3605820064	£68.42	£82.10
74 - GROOVE BALL BEARING BSD-3600905095.A48 3600905095	£21.52	£25.83
75 - TORX FLAT-HEAD SCREW M4x20 BSD-3603435051.A15 3603435051	£1.75	£2.10
76 - GROOVE BALL BEARING 7x22x7 BSD-3600905147.A75 3600905147	£13.12	£15.75
77 - O-RING 22x2 MM BSD-1900210321.A99 1900210321	£5.30	£6.36
78 - FELT DISC BSD-1600108018.A160 1600108018	£2.61	£3.13
79 - COVER DISC BSD-1600501024.A18 1600501024	£16.41	£19.69
91 - SEAL RING BSD-1600209004.A34 1600209004	£2.80	£3.36
92 - BEVEL GEAR Z=22 BSD-1606333050.A26 1606333050	£410.78	£492.94
94 - SET SCREW BSD-1603402002.A107 1603402002	£1.75	£2.10
95 - SET SCREW BSD-1603402004.A138 1603402004	£2.61	£3.13
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A255 3601110047	£2.80	£3.36
99 - REFERENCE PLATE BSD-3601119236.A1135 3601119236	£3.72	£4.47
652 - PIN-TYPE FACE-WRENCH BSD-1607950061.A97 1607950061	£5.42	£6.50
653 - PROTECTIVE COVER dia180 MM BSD-1600A00XL9.A58 1600A00XL9	£21.52	£25.83
654 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A712 2605703014	£7.36	£8.83
655 - ROUND NUT M14 BSD-1603345043.A492 1603345043	£8.67	£10.41
656 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A651 2607950511	£4.26	£5.11
657 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A645 1602025030	£18.96	£22.75
700/1 - AUXILIARY HANDLE BSD-160202507H.A532 160202507H	£11.30	£13.56
700/2 - ADAPTER M8/M14 BSD-3603523013.A121 3603523013	£16.41	£19.69
701/1 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A385 1603340027	£46.82	£56.18
801 - MOTOR HOUSING BSD-3605102079.A60 3605102079	£179.37	£215.24
805 - GEAR HOUSING BSD-3607030321.A13 3607030321	£283.50	£340.20
809/01 - BEARING FLANGE BSD-3607030376.A41 3607030376	£120.11	£144.13
809/02 - BEARING FLANGE BSD-3607030375.A33 3607030375	£195.26	£234.31
810 - SEAL KIT BSD-1607000039.A6 1607000039	£13.12	£15.75
811 - SEAL KIT BSD-1607000044.A23 1607000044	£9.49	£11.39
814 - HANDLE BSD-3605132048.A24 3605132048	£63.50	£76.20
816 - ELEC. CABLE W/CONNECTION BSD-3607030236.A38 3607030236	£61.98	£74.38
817 - SWITCH KIT BSD-1607000036.A147 1607000036	-
867 - SEALING PLATE BSD-1602388007.A239 1602388007	£12.04	£14.45
