Bosch ---- / 0602309032 / --- Spare Parts

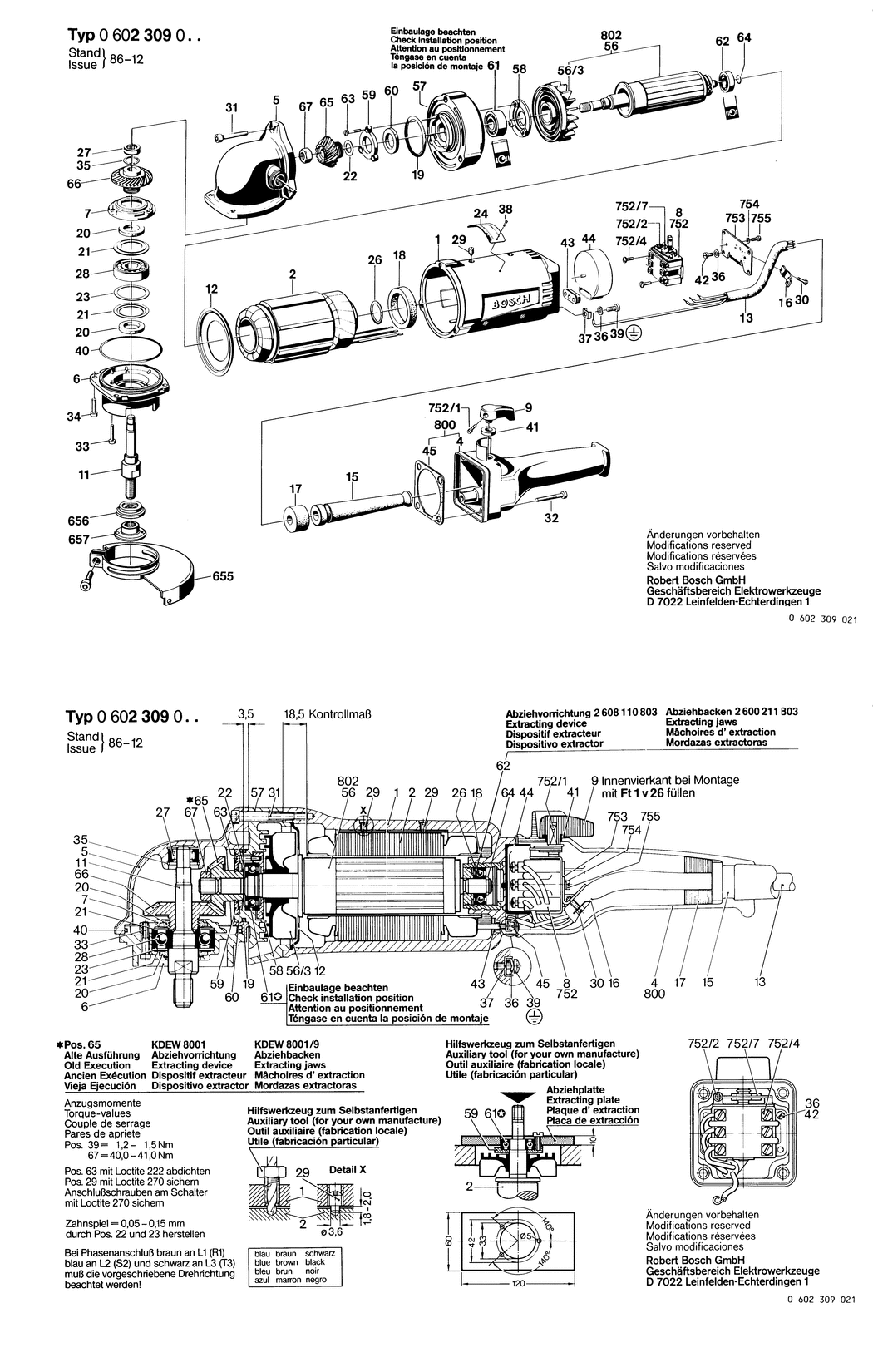

An exploded drawing and listing for the Bosch ---- / 0602309032 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605102106.A70 1605102106	-
2 - STATOR 200V/300HZ BSD-1604229161.A19 1604229161	-
4 - HANDLE BSD-3605132035.A99 3605132035	£40.80	£48.96
5 - GEAR HOUSING BSD-1605806159.A47 1605806159	-
6 - BEARING FLANGE BSD-1605805022.A1 1605805022	-
7 - CONICAL SPRING WASHER BSD-1600521013.A133 1600521013	-
8 - ON-OFF SWITCH BSD-1607200017.A54 1607200017	£102.57	£123.08
8 - FIXING PLATE BSD-3601023015.A80 3601023015	£21.68	£26.01
9 - CONTROL LEVER BSD-1602026038.A7 1602026038	£5.30	£6.36
11 - GRINDING SPINDLE M14 BSD-1603523029.A12 1603523029	-
12 - GUIDE PULLEY BSD-1600500014.A35 1600500014	-
13 - ELEC. CABLE W/CONNECTION BSD-3607030236.A135 3607030236	£61.98	£74.38
15 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A199 1600703009	£5.58	£6.70
16 - FASTENING CLAMP BSD-1601303003.A104 1601303003	£2.16	£2.59
17 - SEALING PLATE BSD-1600113003.A241 1600113003	£2.80	£3.36
18 - SEAL RING BSD-1600209009.A7 1600209009	£6.52	£7.83
19 - O-RING 45x3MM BSD-1900210146.A190 1900210146	£4.26	£5.11
20 - SEALING DISK BSD-1600108048.A137 1600108048	£1.75	£2.10
21 - PLAIN WASHER BSD-2100551000.A198 2100551000	-
22 - SHIM 0.1 MM BSD-1600101616.A36 1600101616	£2.61	£3.13
22 - SHIM 0.2 MM BSD-1600101617.A160 1600101617	£1.75	£2.10
22 - SHIM 0.3 MM BSD-1600101618.A36 1600101618	£2.61	£3.13
22 - SHIM 0.05 MM BSD-1600101619.A157 1600101619	£2.16	£2.59
23 - SHIM 0.05 MM BSD-1600102638.A26 1600102638	£3.34	£4.01
23 - SHIM 0.1 MM BSD-1600102639.A208 1600102639	-
23 - SHIM 0.15 MM BSD-1600102640.A26 1600102640	-
24 - NAMEPLATE BSD-3601106053.A1168 3601106053	£5.30	£6.36
26 - O-RING BSD-1120210000.A73 1120210000	-
27 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A397 1600910010	£45.67	£54.80
28 - GROOVE BALL BEARING 17x47x14 BSD-1900900352.A134 1900900352	£27.23	£32.68
29 - SET SCREW BSD-1603402004.A156 1603402004	£2.61	£3.13
30 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A633 2910021118	£1.75	£2.10
31 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x50-8.8 BSD-2910141213.A59 2910141213	£2.61	£3.13
32 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x40-8.8 BSD-2910141209.A107 2910141209	£2.61	£3.13
33 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A181 2910141164	£2.16	£2.59
34 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A196 2910141158	£1.75	£2.10
35 - RETAINING RING dia22 MM BSD-2916620011.A12 2916620011	£1.75	£2.10
36 - SPRING WASHER dia4.2 MM BSD-3600150006.A29 3600150006	£2.61	£3.13
37 - CLAMPING SADDLE BSD-3601321001.A41 3601321001	£3.72	£4.47
38 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A313 3603133001	£2.61	£3.13
39 - PAN HEAD SCREW DIN 85-MS-M 4x12 BSD-2910110122.A1 2910110122	£1.75	£2.10
40 - O-RING 74.0x3.0 MM BSD-1600210006.A206 1600210006	£1.75	£2.10
41 - FELT WASHER BSD-1600205027.A30 1600205027	£1.75	£2.10
42 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A632 2910021118	£1.75	£2.10
43 - GROMMET BSD-1600306000.A160 1600306000	£1.95	£2.34
44 - PROTECTIVE COVER BSD-1600502004.A148 1600502004	£4.26	£5.11
45 - SEAL BSD-1601015011.A176 1601015011	£3.80	£4.56
56 - ROTOR WITHOUT WINDING BSD-3604080004.A23 3604080004	-
56/3 - FAN BSD-1606610069.A1 1606610069	£31.64	£37.97
57 - BEARING HOUSING BSD-1605820145.A23 1605820145	-
58 - BEARING COVER BSD-1600501019.A31 1600501019	£23.86	£28.63
59 - COVER DISC BSD-1600501024.A352 1600501024	£16.41	£19.69
60 - FELT DISC BSD-1600108018.A308 1600108018	£2.61	£3.13
61 - GROOVE BALL BEARING BSD-3600900022.A15 3600900022	£21.68	£26.01
62 - GROOVE BALL BEARING 12x28x8 BSD-1900905121.A178 1900905121	£18.96	£22.75
63 - TORX FLAT-HEAD SCREW M4x20 BSD-3603435051.A113 3603435051	£1.75	£2.10
64 - RETAINING RING 12 DIN 9045 BSD-2916600007.A19 2916600007	£2.80	£3.36
65 - BEVEL GEAR Z=15 BSD-1606333053.A3 1606333053	-
66 - BEVEL GEAR Z=46 BSD-3606333031.A2 3606333031	-
67 - HEX NUT M12x1.5 MM BSD-1603300009.A75 1603300009	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601119236.A199 3601119236	£3.72	£4.47
651 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A147 1907950007	£5.30	£6.36
652 - PIN-TYPE FACE-WRENCH BSD-1607950061.A725 1607950061	£5.42	£6.50
653 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A93 2607950511	£4.26	£5.11
654 - AUXILIARY HANDLE M14 BSD-1602025022.A1068 1602025022	£13.41	£16.09
654 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A947 1602025030	£18.96	£22.75
655 - PROTECTIVE COVER dia 230 MM BSD-2605510082.A24 2605510082	-
656 - CLAMPING-FLANGE dia45 MM BSD-2600501006.A12 2600501006	£16.43	£19.72
657 - ROUND NUT M14 BSD-2603345004.A109 2603345004	£6.52	£7.83
752 - ON-OFF SWITCH BSD-1607200006.A48 1607200006	£81.81	£98.17
752/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8 BSD-2910001052.A219 2910001052	£2.16	£2.59
752/2 - EXTENSION SPRING BSD-1604650009.A116 1604650009	£1.75	£2.10
752/3 - COMPRESSION SPRING BSD-1604617001.A79 1604617001	£2.80	£3.36
752/4 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A233 2910091118	£1.75	£2.10
752/5 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A82 2916080005	-
752/7 - DETENT ROLLER BSD-1603200007.A113 1603200007	-
753 - FIXING PLATE BSD-3601023015.A81 3601023015	£21.68	£26.01
754 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A1155 2916690003	£1.75	£2.10
755 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A631 2910021118	£1.75	£2.10
800 - HANDLE BSD-1605132067.A27 1605132067	-
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031146.A44 3607031146	-
