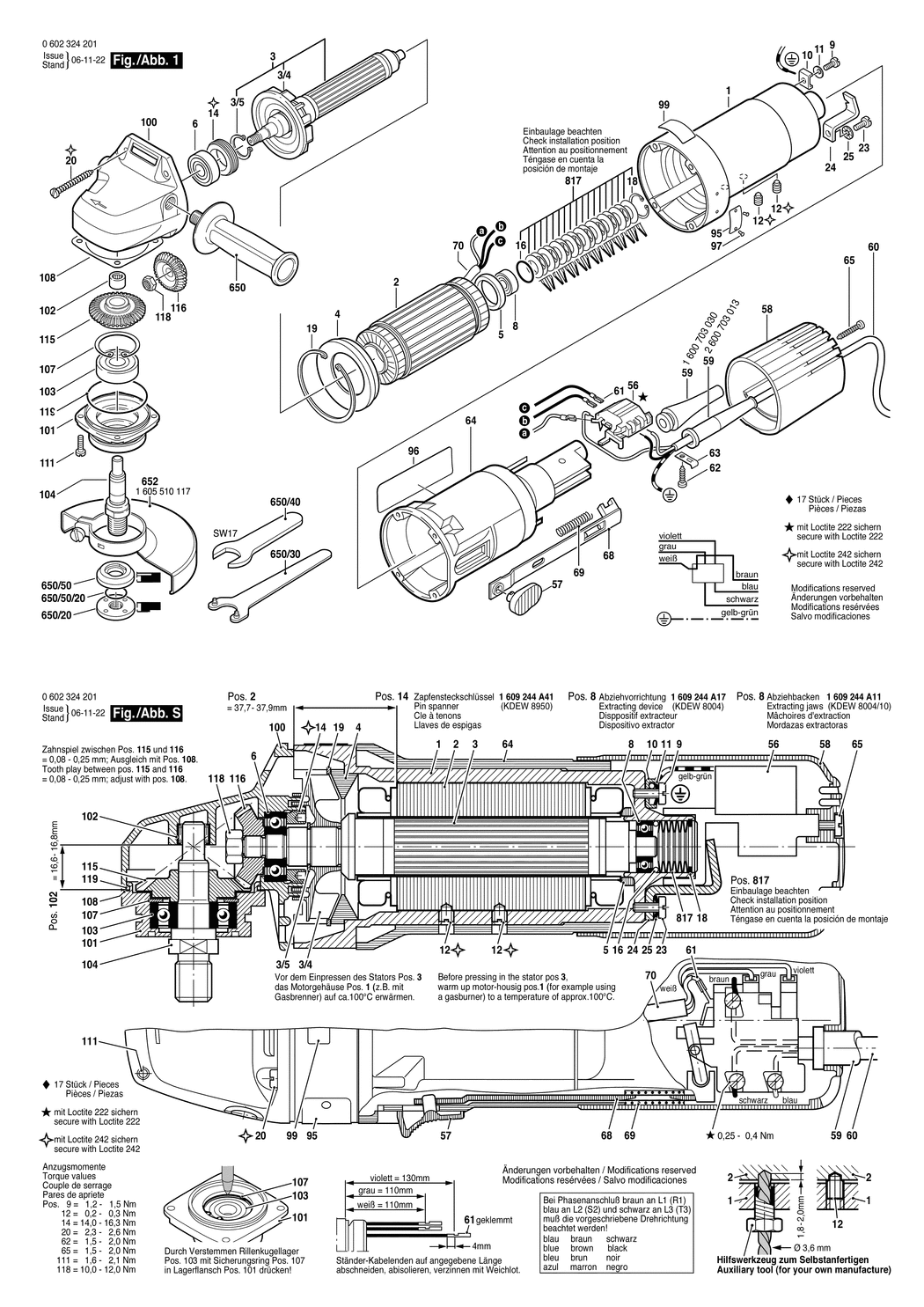

1 - MOTOR HOUSING
BSD-3605102069.A11
3605102069
|
£195.26
|
£234.31
|
|
|
2 - STATOR 72V/200HZ. 110V/300HZ. 135V/200HZ
BSD-3604229101.A0
3604229101
|
-
|
|
|
|
3 - ROTOR WITHOUT WINDING
BSD-3604080039.A4
3604080039
|
-
|
|
|
|
3/4 - FAN
BSD-3606610008.A6
3606610008
|
-
|
|
|
|
3/5 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A65
2916650006
|
£1.75
|
£2.10
|
|
|
4 - AIR-DEFLECTOR RING
BSD-3600209009.A7
3600209009
|
£2.80
|
£3.36
|
|
|
5 - SEAL RING
BSD-1600209011.A211
1600209011
|
£2.80
|
£3.36
|
|
|
6 - GROOVE BALL BEARING
BSD-3600905070.A5
3600905070
|
-
|
|
|
|
8 - GROOVE BALL BEARING
BSD-3600905068.A5
3600905068
|
-
|
|
|
|
9 - PAN HEAD SCREW DIN 85-AM4x8-MS
BSD-2910110118.A99
2910110118
|
£1.75
|
£2.10
|
|
|
10 - CLAMPING SADDLE
BSD-3601321001.A234
3601321001
|
£3.72
|
£4.47
|
|
|
11 - SPRING WASHER dia4.2 MM
BSD-3600150006.A355
3600150006
|
£2.61
|
£3.13
|
|
|
12 - SET SCREW
BSD-3603402000.A396
3603402000
|
£1.75
|
£2.10
|
|
|
14 - THREADED RING
BSD-3603344015.A4
3603344015
|
£40.80
|
£48.96
|
|
|
16 - O-RING 15x2 MM
BSD-1900210112.A157
1900210112
|
£2.61
|
£3.13
|
|
|
18 - SPRING RETAINING RING DIN 472-19x1MM
BSD-2916660005.A8
2916660005
|
£1.75
|
£2.10
|
|
|
19 - SPRING RETAINING RING
BSD-3600224032.A5
3600224032
|
-
|
|
|
|
20 - SLOTTED SHOULDER SCREW
BSD-3603412003.A4
3603412003
|
-
|
|
|
|
23 - PAN HEAD SCREW DIN 85-AM4x8-8.8
BSD-2910101118.A3
2910101118
|
-
|
|
|
|
24 - RETAINING BRACKET
BSD-3601303006.A6
3601303006
|
-
|
|
|
|
25 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST
BSD-2916030006.A4
2916030006
|
£1.75
|
£2.10
|
|
|
56 - SWITCH
BSD-3607200024.A4
3607200024
|
£23.86
|
£28.63
|
|
|
57 - SWITCH HANDLE
BSD-1602026057.A112
1602026057
|
£1.97
|
£2.36
|
|
|
58 - HOUSING COVER
BSD-3600508025.A10
3600508025
|
-
|
|
|
|
59 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A440
2600703013
|
£2.61
|
£3.13
|
|
|
60 - ELEC. CABLE W/CONNECTION
BSD-3604462050.A26
3604462050
|
£27.23
|
£32.68
|
|
|
61 - RECEPTACLE B2.8-1DIN46 247BZ-BD
BSD-1904478007.A40
1904478007
|
-
|
|
|
|
62 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A532
2910211018
|
£1.75
|
£2.10
|
|
|
63 - FASTENING CLAMP
BSD-1601302017.A35
1601302017
|
£1.75
|
£2.10
|
|
|
64 - HOUSING
BSD-3605108108.A10
3605108108
|
£63.50
|
£76.20
|
|
|
65 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A148
2910211021
|
£1.75
|
£2.10
|
|
|
68 - ADJUSTING SLIDE
BSD-1602319002.A224
1602319002
|
£2.61
|
£3.13
|
|
|
69 - COMPRESSION SPRING
BSD-1604611026.A14
1604611026
|
£1.75
|
£2.10
|
|
|
70 - SHRINKABLE TUBE
BSD-1610712034.A20
1610712034
|
£1.66
|
£1.99
|
|
|
95 - NAMEPLATE
BSD-1611104002.A13
1611104002
|
£1.32
|
£1.58
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110162.A3
3601110162
|
-
|
|
|
|
97 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A20
3603133001
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A589
3601119236
|
£3.72
|
£4.47
|
|
|
100 - GEAR HOUSING
BSD-3605806136.A11
3605806136
|
-
|
|
|
|
101 - BEARING FLANGE
BSD-1607000936.A105
1607000936
|
£27.23
|
£32.68
|
|
|
102 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A106
1600910018
|
£5.30
|
£6.36
|
|
|
103 - GROOVE BALL BEARING
BSD-3600905069.A71
3600905069
|
£16.41
|
£19.69
|
|
|
104 - ASSEMBLY OF SERVICE PARTS M14
BSD-1607000933.A3
1607000933
|
-
|
|
|
|
107 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A724
2916660013
|
£2.16
|
£2.59
|
|
|
108 - SHIM 0.1 MM
BSD-1600136012.A229
1600136012
|
£1.75
|
£2.10
|
|
|
108 - SHIM 0.2 MM
BSD-1600136010.A236
1600136010
|
£2.61
|
£3.13
|
|
|
108 - SHIM 0.3 MM
BSD-1600136011.A93
1600136011
|
£2.16
|
£2.59
|
|
|
111 - THREAD-FORMING TAP. SCREW DIN 7500-TM4x12
BSD-2914471401.A3
2914471401
|
£1.75
|
£2.10
|
|
|
115 - CROWN GEAR Z=37
BSD-3606334075.A3
3606334075
|
-
|
|
|
|
116 - BEVEL GEAR Z=16
BSD-3606333049.A4
3606333049
|
-
|
|
|
|
118 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A211
2915011009
|
£2.61
|
£3.13
|
|
|
119 - O-RING 46.0x1.1 MM
BSD-3600210124.A5
3600210124
|
£2.80
|
£3.36
|
|
|
650 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A162
160202509T
|
£3.72
|
£4.47
|
|
|
650/20 - ROUND NUT
BSD-2603340013.A31
2603340013
|
-
|
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A647
1607950052
|
£3.72
|
£4.47
|
|
|
650/40 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A346
2607950511
|
£4.26
|
£5.11
|
|
|
650/50 - FASTENING FLANGE
BSD-2605703023.A34
2605703023
|
-
|
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1165
1600210039
|
£2.16
|
£2.59
|
|
|
652 - PROTECTIVE COVER
BSD-1600A0136N.A39
1600A0136N
|
£23.86
|
£28.63
|
|
|
817 - ASSEMBLY OF SERVICE PARTS
BSD-3607031284.A3
3607031284
|
-
|
|
|
