Bosch ---- / 0602324254 / --- Spare Parts

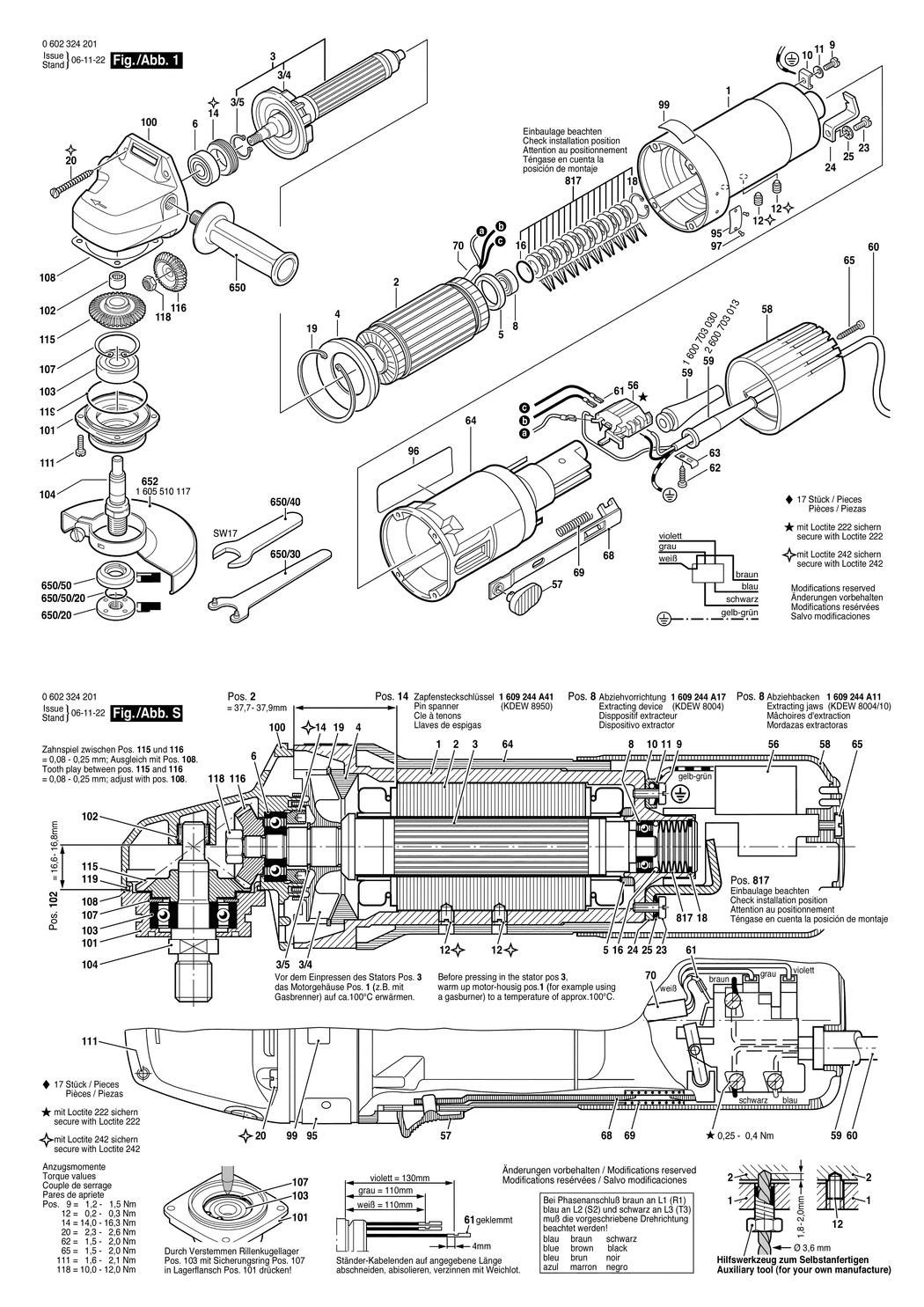

An exploded drawing and listing for the Bosch ---- / 0602324254 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605102069.A2 3605102069	£195.26	£234.31
2 - STATOR 135V/200HZ. 200V/300HZ BSD-3604229098.A4 3604229098	£263.33	£316.00
3 - ROTOR WITHOUT WINDING BSD-3604080039.A9 3604080039	-
3/4 - FAN BSD-3606610008.A15 3606610008	-
3/5 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A79 2916650006	£1.75	£2.10
4 - AIR-DEFLECTOR RING BSD-3600209009.A13 3600209009	£2.80	£3.36
5 - SEAL RING BSD-1600209011.A244 1600209011	£2.80	£3.36
6 - GROOVE BALL BEARING BSD-3600905070.A11 3600905070	-
8 - GROOVE BALL BEARING BSD-3600905068.A11 3600905068	-
9 - PAN HEAD SCREW DIN 85-AM4x8-MS BSD-2910110118.A110 2910110118	£1.75	£2.10
10 - CLAMPING SADDLE BSD-3601321001.A219 3601321001	£3.72	£4.47
11 - SPRING WASHER dia4.2 MM BSD-3600150006.A324 3600150006	£2.61	£3.13
12 - SET SCREW BSD-3603402000.A413 3603402000	£1.75	£2.10
14 - THREADED RING BSD-3603344015.A13 3603344015	£40.80	£48.96
16 - O-RING 15x2 MM BSD-1900210112.A152 1900210112	£2.61	£3.13
18 - SPRING RETAINING RING DIN 472-19x1MM BSD-2916660005.A2 2916660005	£1.75	£2.10
19 - SPRING RETAINING RING BSD-3600224032.A11 3600224032	-
20 - SLOTTED SHOULDER SCREW BSD-3603412003.A13 3603412003	-
23 - PAN HEAD SCREW DIN 85-AM4x8-8.8 BSD-2910101118.A11 2910101118	-
24 - RETAINING BRACKET BSD-3601303006.A11 3601303006	-
25 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST BSD-2916030006.A9 2916030006	£1.75	£2.10
56 - SWITCH BSD-3607200024.A11 3607200024	£23.86	£28.63
57 - SWITCH HANDLE BSD-1602026057.A118 1602026057	£1.97	£2.36
58 - HOUSING COVER BSD-3600508025.A4 3600508025	-
59 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A451 2600703013	£2.61	£3.13
60 - ELEC. CABLE W/CONNECTION BSD-3604462050.A18 3604462050	£27.23	£32.68
61 - RECEPTACLE B2.8-1DIN46 247BZ-BD BSD-1904478007.A31 1904478007	-
62 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A521 2910211018	£1.75	£2.10
63 - FASTENING CLAMP BSD-1601302017.A26 1601302017	£1.75	£2.10
64 - HOUSING BSD-3605108108.A6 3605108108	£63.50	£76.20
65 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A151 2910211021	£1.75	£2.10
68 - ADJUSTING SLIDE BSD-1602319002.A222 1602319002	£2.61	£3.13
69 - COMPRESSION SPRING BSD-1604611026.A16 1604611026	£1.75	£2.10
70 - SHRINKABLE TUBE BSD-1610712034.A5 1610712034	£1.66	£1.99
95 - NAMEPLATE BSD-1611104002.A18 1611104002	£1.32	£1.58
96 - MANUFACTURER'S NAMEPLATE BSD-3601110162.A8 3601110162	-
97 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A12 3603133001	£2.61	£3.13
99 - REFERENCE PLATE BSD-3601119236.A520 3601119236	£3.72	£4.47
100 - GEAR HOUSING BSD-3605806136.A1 3605806136	-
101 - BEARING FLANGE BSD-1607000936.A101 1607000936	£27.23	£32.68
102 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A111 1600910018	£5.30	£6.36
103 - GROOVE BALL BEARING BSD-3600905069.A65 3600905069	£16.41	£19.69
104 - ASSEMBLY OF SERVICE PARTS M14 BSD-1607000933.A8 1607000933	-
107 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A742 2916660013	£2.16	£2.59
108 - SHIM 0.1 MM BSD-1600136012.A233 1600136012	£1.75	£2.10
108 - SHIM 0.2 MM BSD-1600136010.A239 1600136010	£2.61	£3.13
108 - SHIM 0.3 MM BSD-1600136011.A90 1600136011	£2.16	£2.59
111 - THREAD-FORMING TAP. SCREW DIN 7500-TM4x12 BSD-2914471401.A8 2914471401	£1.75	£2.10
115 - CROWN GEAR Z=37 BSD-3606334073.A5 3606334073	£59.53	£71.44
116 - CROWN GEAR Z=21 BSD-3606333050.A4 3606333050	£59.53	£71.44
118 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A220 2915011009	£2.61	£3.13
119 - O-RING 46.0x1.1 MM BSD-3600210124.A11 3600210124	£2.80	£3.36
650 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A171 160202509T	£3.72	£4.47
650/20 - ROUND NUT BSD-2603340013.A6 2603340013	-
650/30 - PIN-TYPE FACE-WRENCH BSD-1607950052.A633 1607950052	£3.72	£4.47
650/40 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A351 2607950511	£4.26	£5.11
650/50 - FASTENING FLANGE BSD-2605703023.A43 2605703023	-
650/50/20 - O-RING 20.35x1.78 MM BSD-1600210039.A1170 1600210039	£2.16	£2.59
652 - PROTECTIVE COVER BSD-1600A0136N.A33 1600A0136N	£23.86	£28.63
817 - ASSEMBLY OF SERVICE PARTS BSD-3607031284.A7 3607031284	-
