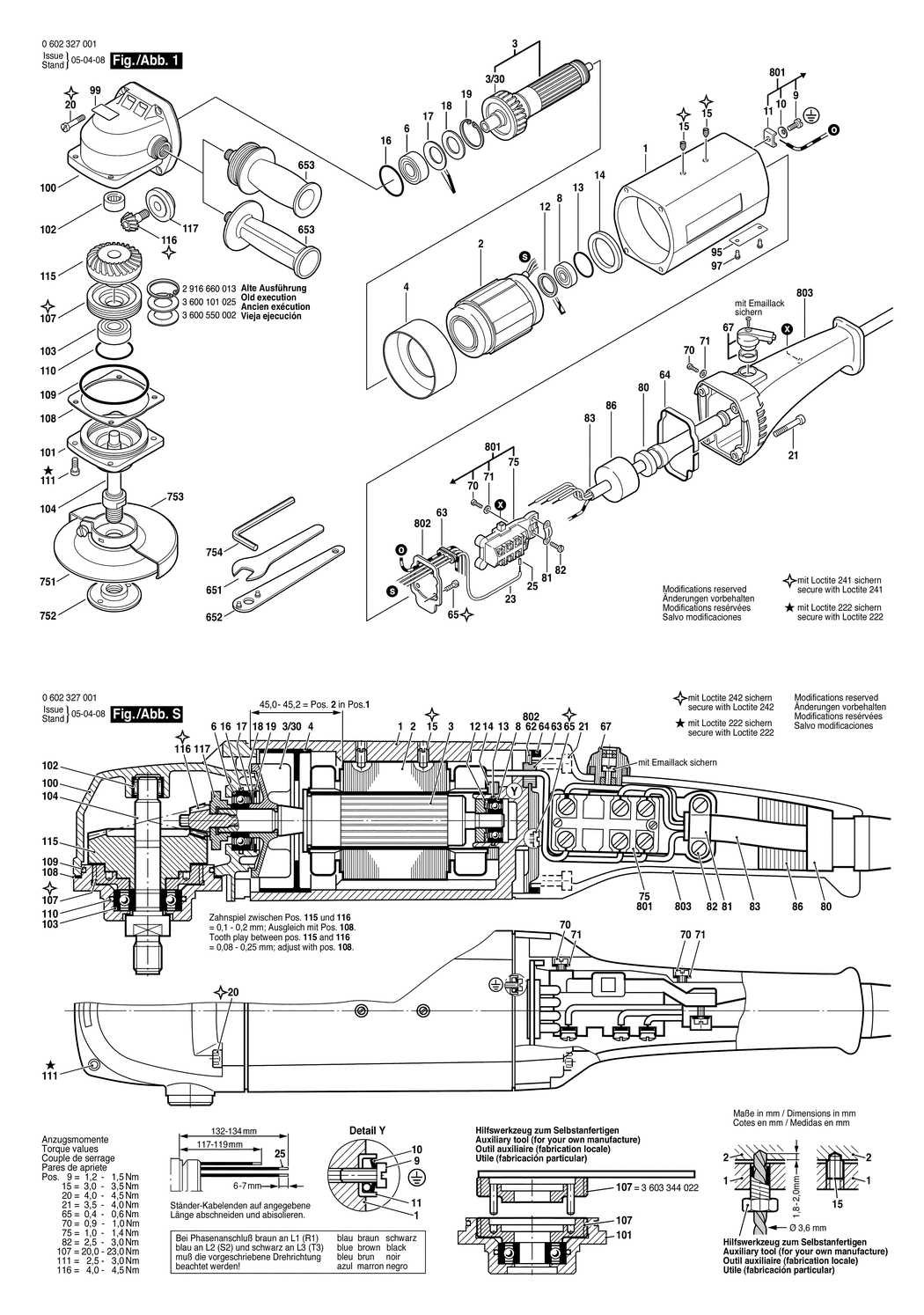

1 - MOTOR HOUSING
BSD-3605102077.A13
3605102077
|
£179.37
|
£215.24
|
|
|
2 - STATOR 265V/200HZ
BSD-1604229088.A2
1604229088
|
£357.27
|
£428.72
|
|
|
3 - ROTOR WITHOUT WINDING
BSD-3604080059.A1
3604080059
|
-
|
|
|
|
3/30 - FAN
BSD-3606610010.A35
3606610010
|
£4.26
|
£5.11
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209003.A119
1600209003
|
£8.13
|
£9.76
|
|
|
6 - GROOVE BALL BEARING
BSD-3600905015.A101
3600905015
|
£16.41
|
£19.69
|
|
|
8 - GROOVE BALL BEARING 7x22x7
BSD-3600905147.A84
3600905147
|
£13.12
|
£15.75
|
|
|
9 - THREAD-FORMING TAP. SCREW
BSD-2914461403.A2
2914461403
|
£2.16
|
£2.59
|
|
|
10 - SPRING WASHER dia4.2 MM
BSD-3600150006.A703
3600150006
|
£2.61
|
£3.13
|
|
|
11 - CLAMPING SADDLE
BSD-3601321001.A380
3601321001
|
£3.72
|
£4.47
|
|
|
13 - O-RING 22.0x1.5 MM
BSD-3600210016.A51
3600210016
|
£1.75
|
£2.10
|
|
|
14 - SEAL RING
BSD-1600209006.A100
1600209006
|
£2.80
|
£3.36
|
|
|
15 - SET SCREW
BSD-1603402002.A119
1603402002
|
£1.75
|
£2.10
|
|
|
16 - O-RING 28x2 MM
BSD-1900210127.A48
1900210127
|
£5.30
|
£6.36
|
|
|
17 - DISC SPRING
BSD-3600550003.A11
3600550003
|
£7.36
|
£8.83
|
|
|
18 - SHIM WASHER
BSD-3600101026.A9
3600101026
|
£13.12
|
£15.75
|
|
|
19 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A40
2916660011
|
£1.75
|
£2.10
|
|
|
20 - THREAD-FORMING TAP. SCREW
BSD-3603435004.A5
3603435004
|
£2.80
|
£3.36
|
|
|
21 - THREAD-FORMING TAP. SCREW
BSD-3603435003.A8
3603435003
|
£2.80
|
£3.36
|
|
|
23 - INSULATION TUBING
BSD-3607030407.A1
3607030407
|
£2.61
|
£3.13
|
|
|
25 - END SPLICE
BSD-3604477011.A3
3604477011
|
£1.75
|
£2.10
|
|
|
61 - HANDLE
BSD-3605132024.A5
3605132024
|
£27.23
|
£32.68
|
|
|
62 - SEALING PLATE
BSD-1602388006.A41
1602388006
|
£5.58
|
£6.70
|
|
|
63 - GROMMET
BSD-1600306001.A231
1600306001
|
£2.61
|
£3.13
|
|
|
64 - SEALING CORD
BSD-1601014000.A17
1601014000
|
£2.80
|
£3.36
|
|
|
65 - SOCKET HEAD CAP SCREW
BSD-3603450008.A25
3603450008
|
£2.16
|
£2.59
|
|
|
67 - CONTROL LEVER
BSD-1602026030.A78
1602026030
|
£10.10
|
£12.12
|
|
|
70 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A631
2910211006
|
£1.75
|
£2.10
|
|
|
71 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A471
2916011005
|
£1.75
|
£2.10
|
|
|
75 - SWITCH
BSD-1607200020.A51
1607200020
|
-
|
|
|
|
80 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A563
1600703009
|
£5.58
|
£6.70
|
|
|
81 - FASTENING CLAMP
BSD-1601303003.A318
1601303003
|
£2.16
|
£2.59
|
|
|
82 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A694
2910021122
|
£2.16
|
£2.59
|
|
|
83 - ELEC. CABLE W/CONNECTION
BSD-3607030236.A33
3607030236
|
£61.98
|
£74.38
|
|
|
86 - SEALING PLATE
BSD-1600113003.A155
1600113003
|
£2.80
|
£3.36
|
|
|
95 - NAMEPLATE
BSD-3601106053.A462
3601106053
|
£5.30
|
£6.36
|
|
|
97 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A433
3603133001
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1088
3601119236
|
£3.72
|
£4.47
|
|
|
100 - GEAR HOUSING
BSD-3605106070.A5
3605106070
|
£251.67
|
£302.00
|
|
|
101 - BEARING FLANGE
BSD-3605805019.A6
3605805019
|
£120.11
|
£144.13
|
|
|
102 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A1027
2600910001
|
£4.26
|
£5.11
|
|
|
103 - GROOVE BALL BEARING
BSD-3600905035.A4
3600905035
|
£21.52
|
£25.83
|
|
|
104 - GRINDING SPINDLE M14
BSD-3603523003.A9
3603523003
|
£102.57
|
£123.08
|
|
|
107 - THREADED RING
BSD-3603344022.A1
3603344022
|
£23.86
|
£28.63
|
|
|
108 - SHIM
BSD-3601015008.A2
3601015008
|
£5.58
|
£6.70
|
|
|
109 - O-RING 57.0x1.5 MM
BSD-1600210031.A26
1600210031
|
£1.75
|
£2.10
|
|
|
111 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A126
2910141122
|
£2.16
|
£2.59
|
|
|
115 - CROWN GEAR Z=44
BSD-3606334027.A0
3606334027
|
-
|
|
|
|
116 - PINION Z=9
BSD-3606333042.A0
3606333042
|
£41.62
|
£49.95
|
|
|
117 - SHIM WASHER
BSD-3600220014.A0
3600220014
|
-
|
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A666
2607950511
|
£4.26
|
£5.11
|
|
|
652 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A105
1607950061
|
£5.42
|
£6.50
|
|
|
653 - AUXILIARY HANDLE M14
BSD-1602025022.A55
1602025022
|
£13.41
|
£16.09
|
|
|
653 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A612
1602025030
|
£18.96
|
£22.75
|
|
|
751 - BACKING PAD
BSD-1608601032.A12
1608601032
|
-
|
|
|
|
752 - ROUND NUT M14
BSD-1603345004.A3
1603345004
|
£7.87
|
£9.44
|
|
|
753 - PROTECTIVE COVER dia 125 MM
BSD-1605510200.A6
1605510200
|
-
|
|
|
|
754 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A453
1907950007
|
£5.30
|
£6.36
|
|
|
801 - SWITCH KIT
BSD-1607000036.A158
1607000036
|
-
|
|
|
|
802 - SEALING PLATE
BSD-1602388007.A224
1602388007
|
£12.04
|
£14.45
|
|
|
803 - HANDLE
BSD-3605132048.A15
3605132048
|
£63.50
|
£76.20
|
|
