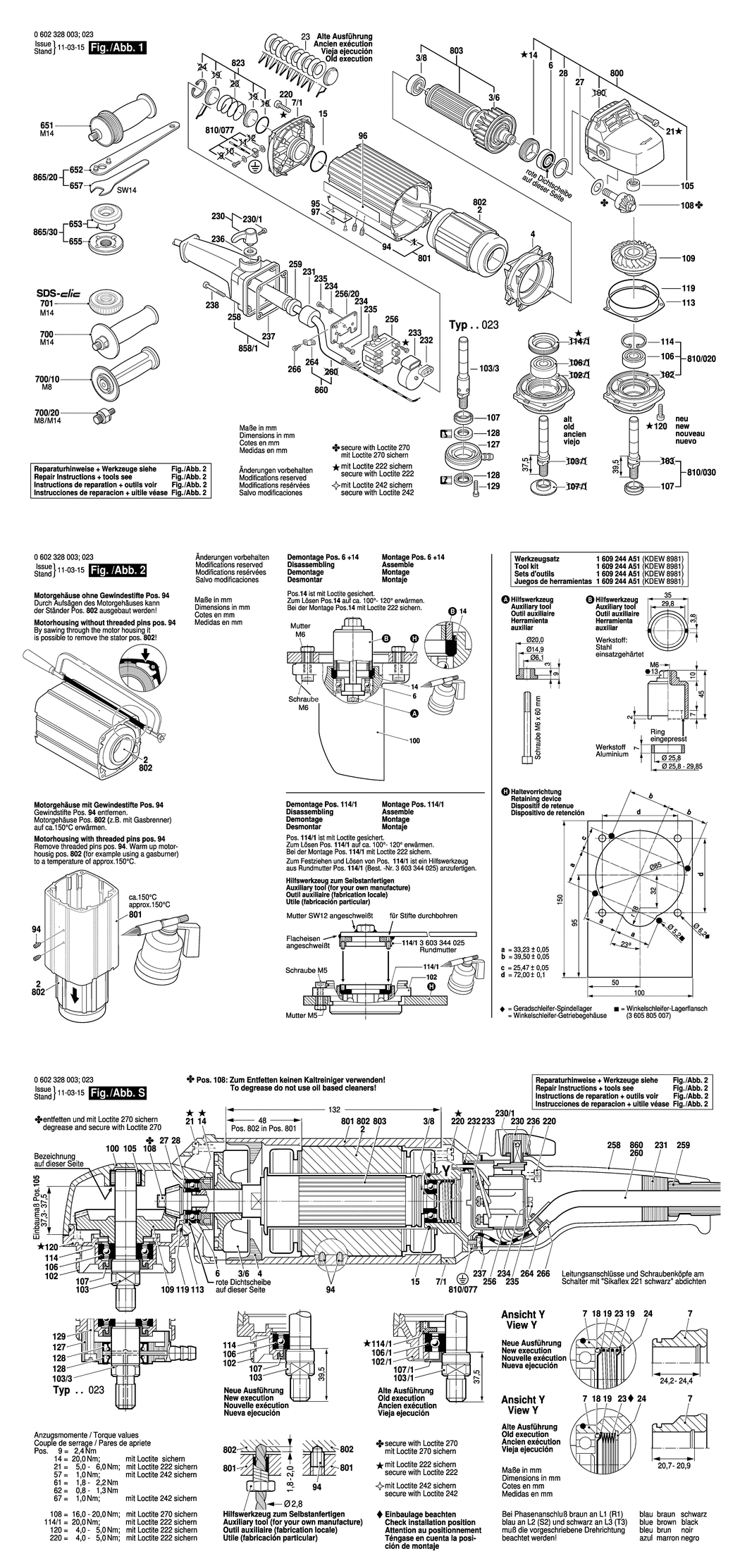

An exploded drawing and listing for the Bosch ---- / 0602328023 / --- 42 Volt
Ex VAT Inc VAT
2 - STATOR 42V/200HZ BSD-3604229097.A0 3604229097 -
3/6 - GROOVE BALL BEARING 12x32x10 BSD-3600905119.A191 3600905119 £27.23 £32.68
4 - AIR-DEFLECTOR RING BSD-3600209008.A100 3600209008 £8.67 £10.41
6 - GROOVE BALL BEARING BSD-3600905095.A16 3600905095 £21.52 £25.83
7/1 - BEARING FLANGE BSD-3605806134.A10 3605806134 £81.81 £98.17
14 - THREADED RING BSD-3603344024.A303 3603344024 £16.41 £19.69
15 - O-RING 38.1x2.2 MM BSD-1600210037.A15 1600210037 £2.61 £3.13
21 - THREAD-FORMING TAP. SCREW BSD-2914451080.A74 2914451080 £3.72 £4.47
23 - COMPRESSION SPRING BSD-3604611019.A62 3604611019 £2.61 £3.13
27 - SEALING DISC BSD-3600100049.A261 3600100049 £3.72 £4.47
28 - SEALING DISC BSD-3600100048.A14 3600100048 £2.80 £3.36
94 - SET SCREW DIN 915-M4x6-45H BSD-2912081116.A141 2912081116 £2.61 £3.13
95 - NAMEPLATE BSD-3601106053.A436 3601106053 £5.30 £6.36
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A239 3601110047 £2.80 £3.36
97 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A449 3603133001 £2.61 £3.13
99 - REFERENCE PLATE BSD-3601119236.A1095 3601119236 £3.72 £4.47
103/3 - GRINDING SPINDLE 5/8 BSD-3607031348.A5 3607031348 £81.81 £98.17
105 - NEEDLE BEARING BSD-2600914018.A135 2600914018 £8.67 £10.41
106 - GROOVE BALL BEARING BSD-3600905025.A86 3600905025 £16.41 £19.69
107 - SEAL RING BSD-1600290020.A179 1600290020 £1.75 £2.10
108 - PINION Z=7 BSD-3606309020.A0 3606309020 -
109 - CROWN GEAR Z=48 BSD-3606334065.A9 3606334065 -
113 - SHIM 0.1 MM BSD-1600190022.A285 1600190022 £1.75 £2.10
113 - SHIM 0.15 MM BSD-1600190020.A266 1600190020 £1.75 £2.10
113 - SHIM 0.3 MM BSD-1600190021.A561 1600190021 £2.61 £3.13
114 - RETAINING CLIP BSD-1600119010.A427 1600119010 £1.75 £2.10
119 - O-RING 79.0x1.78 MM BSD-1600210033.A176 1600210033 £1.75 £2.10
120 - THREAD-FORMING TAP. SCREW BSD-1603435076.A59 1603435076 £2.61 £3.13
127 - CONNECTING FLANGE BSD-1605703061.A24 1605703061 -
128 - ROTARY SHAFT LIP SEAL dia35x22x6/6.5 MM BSD-1600283004.A28 1600283004 £7.36 £8.83
129 - SOCKET HEAD CAP SCREW DIN 84-BM5x30-5.8 BSD-2910011166.A143 2910011166 £1.75 £2.10
220 - THREAD-FORMING TAP. SCREW BSD-2914451079.A189 2914451079 £2.61 £3.13
230 - CONTROL LEVER BSD-1602026038.A147 1602026038 £5.30 £6.36
230/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8 BSD-2910001052.A90 2910001052 £2.16 £2.59
231 - SEALING PLATE BSD-1600113003.A160 1600113003 £2.80 £3.36
232 - GROMMET BSD-1600306000.A14 1600306000 £1.95 £2.34
233 - PROTECTIVE COVER BSD-1600502004.A83 1600502004 £4.26 £5.11
234 - SPRING WASHER DIN 137-A4 BSD-1600150006.A241 1600150006 -
235 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1410 2910021118 £1.75 £2.10
236 - FELT WASHER BSD-1600205027.A75 1600205027 £1.75 £2.10
237 - SEAL BSD-1601015011.A101 1601015011 £3.80 £4.56
238 - SOCKET HEAD CAP SCREW DIN 84-BM6x40-8.8 BSD-2910021209.A35 2910021209 -
256 - ON-OFF SWITCH BSD-1607200017.A32 1607200017 £102.57 £123.08
256/20 - FIXING PLATE BSD-3601023015.A200 3601023015 £21.68 £26.01
258 - HANDLE BSD-3605132035.A55 3605132035 £40.80 £48.96
259 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A552 1600703009 £5.58 £6.70
264 - FASTENING CLAMP BSD-1601303003.A324 1601303003 £2.16 £2.59
266 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1409 2910021118 £1.75 £2.10
651 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A621 1602025030 £18.96 £22.75
652 - PIN-TYPE FACE-WRENCH BSD-1607950061.A108 1607950061 £5.42 £6.50
653 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A678 2605703014 £7.36 £8.83
653/20 - O-RING 20.35x1.78 MM BSD-1600210039.A508 1600210039 £2.16 £2.59
655 - ROUND NUT M14 BSD-1603345043.A450 1603345043 £8.67 £10.41
657 - SINGLE-HEAD ENG. WRENCH SW 14 BSD-1907950508.A134 1907950508 £14.91 £17.89
700 - AUXILIARY HANDLE M14 BSD-1602025022.A43 1602025022 £13.41 £16.09
700/10 - AUXILIARY HANDLE BSD-160202507H.A517 160202507H £11.30 £13.56
700/20 - ADAPTER M8/M14 BSD-3603523013.A95 3603523013 £16.41 £19.69
800 - GEAR HOUSING BSD-3607020075.A127 3607020075 £179.37 £215.24
801 - MOTOR HOUSING GR.85 BSD-3605108159.A68 3605108159 £218.41 £262.09
803 - ROTOR BSD-3604080038.A2 3604080038 £357.27 £428.72
810/020 - BEARING FLANGE BSD-3607031342.A0 3607031342 £63.50 £76.20
810/030 - GRINDING SPINDLE M14 BSD-3607031346.A19 3607031346 £54.42 £65.30
810/077 - SET OF EARTLING MATERIAL BSD-3607031299.A261 3607031299 £8.67 £10.41
823 - SPRING SET BSD-3607031296.A16 3607031296 £16.41 £19.69
858/1 - HANDLE BSD-1605132067.A147 1605132067 -
860 - CABLE BSD-3607030239.A18 3607030239 £68.42 £82.10
865/20 - ASSEMBLY OF SERVICE PARTS BSD-3607030289.A8 3607030289 £12.04 £14.45
865/30 - FASTENING PARTS KIT BSD-3607030290.A109 3607030290 £13.12 £15.75
