Bosch ---- / 0612308090 / --- 220 Volt Spare Parts

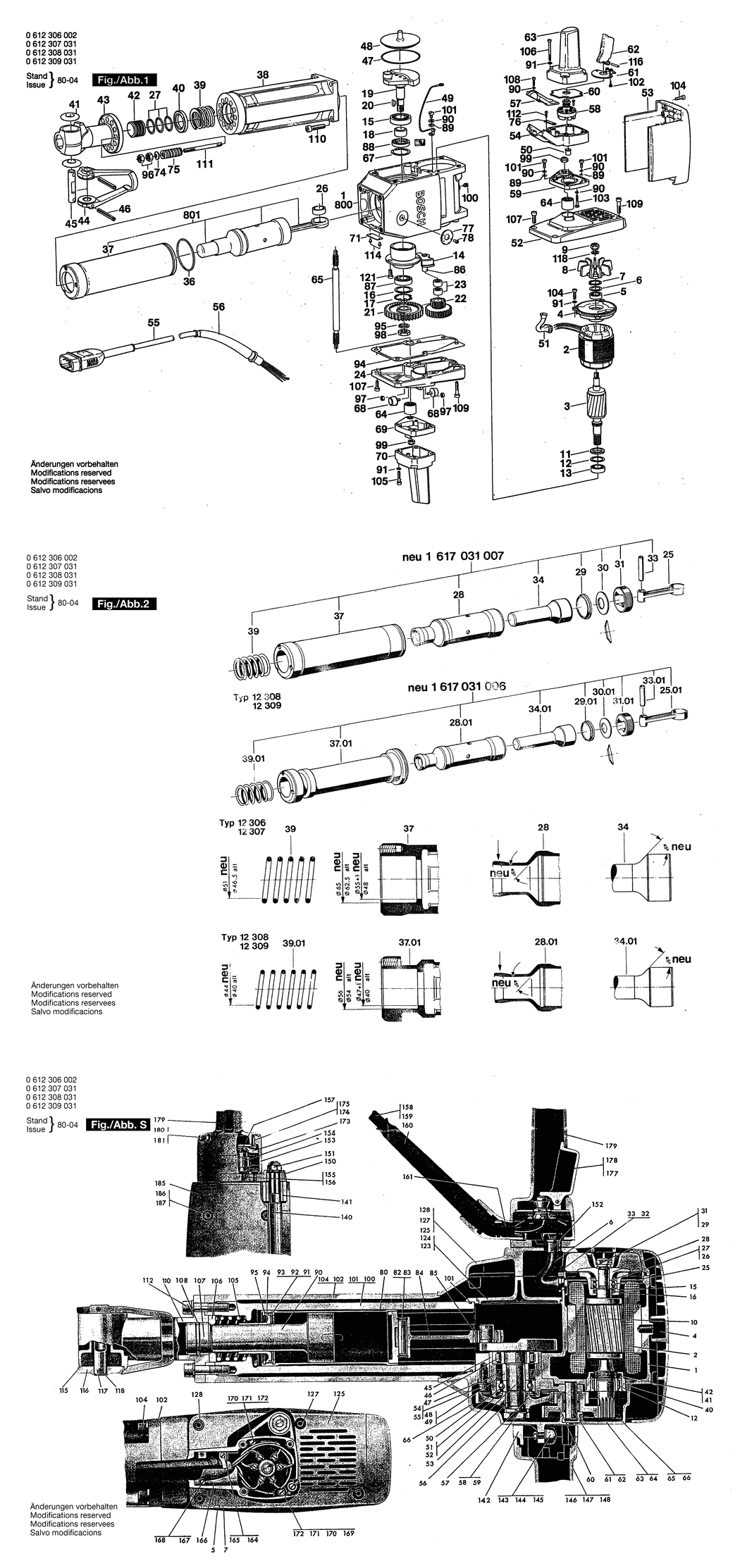

An exploded drawing and listing for the Bosch ---- / 0612308090 / --- 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615106027.A0 1615106027	-
2 - STATOR 200V/400HZ BSD-1614229153.A0 1614229153	-
3 - ROTOR BSD-1614082003.A0 1614082003	-
4 - BEARING FLANGE BSD-1615808028.A10 1615808028	-
5 - GROOVE BALL BEARING 15x35x11 BSD-1900905279.A10 1900905279	£11.30	£13.56
6 - SUPPORTING DISC DIN 988-S25x35x2 BSD-2916280021.A9 2916280021	£1.32	£1.58
7 - SPRING RETAINING RING BSD-1610119005.A4 1610119005	-
8 - FAN BSD-1616610028.A10 1616610028	£51.22	£61.47
9 - HEX NUT DIN 985-M12X1 BSD-1613313000.A13 1613313000	£2.80	£3.36
11 - FELT WASHER BSD-1610108009.A8 1610108009	-
12 - SUPPORTING DISC 2.5 MM BSD-1610103004.A4 1610103004	-
13 - NEEDLE-ROLLER BEARING BSD-1610910034.A10 1610910034	-
14 - FLANGED BEARING BSD-1615805043.A4 1615805043	-
15 - CYL. ROLLER BEARING DIN 5412-62x30x16 BSD-1610910012.A9 1610910012	-
16 - SHIM 2.5 MM BSD-1610102010.A8 1610102010	£2.80	£3.36
17 - SPRING RETAINING RING DIN 472 52x2MM BSD-2916660023.A41 2916660023	£5.30	£6.36
18 - SPACER BUSHING BSD-1610300034.A13 1610300034	£33.74	£40.49
19 - ECCENTRIC SHAFT BSD-1616110011.A3 1616110011	-
20 - WOODRUFF KEY BSD-1610023002.A5 1610023002	-
21 - CYLINDRICAL GEAR Z=46 BSD-1616318006.A4 1616318006	-
22 - CYLINDRICAL GEAR Z=50/18 BSD-1616328021.A4 1616328021	-
23 - NEEDLE-ROLLER BEARING BSD-1610910002.A5 1610910002	-
24 - GEAR COVER BSD-1615500171.A0 1615500171	-
26 - NEEDLE-ROLLER BEARING D20xD37x17 BSD-1610910035.A0 1610910035	£23.86	£28.63
27 - O-RING 30x3 MM BSD-1900210132.A2 1900210132	-
36 - O-RING 80x3 MM BSD-1900210166.A16 1900210166	£5.30	£6.36
37 - GUIDE TUBE BSD-1615806013.A4 1615806013	-
38 - HAMMER PIPE BSD-1615806015.A1 1615806015	-
39 - COMPRESSION SPRING BSD-1614023000.A3 1614023000	-
40 - ADAPTOR PLATE BSD-1610114009.A1 1610114009	-
41 - O-RING 17.3x17.7 MM BSD-1610210008.A6 1610210008	£5.58	£6.70
42 - STRIKER PIN BSD-1613200002.A1 1613200002	-
43 - TOOLHOLDER BSD-1618597012.A5 1618597012	-
44 - RETAINING BRACKET BSD-1618045026.A25 1618045026	£179.37	£215.24
45 - LOCKING BOLT BSD-1613103004.A4 1613103004	£54.42	£65.30
46 - SLOTTED SPRING PIN 8x55 DIN 1481 BSD-2917760187.A3 2917760187	£2.80	£3.36
47 - O-RING 100x3 MM BSD-1900210172.A20 1900210172	£10.10	£12.12
48 - SEALING CAP BSD-1610516007.A23 1610516007	£14.75	£17.70
49 - CONNECTING CABLE BSD-1614441000.A4 1614441000	-
50 - PROTECTION SLEEVE BSD-3600421500.A15 3600421500	£2.61	£3.13
51 - GROMMET BSD-1610703027.A0 1610703027	-
52 - FAN COVER BSD-1615500172.A0 1615500172	-
53 - COVERING HOOD BSD-1600A00C0N.A3 1600A00C0N	£72.18	£86.62
54 - SWITCH HOUSING BSD-1615130014.A0 1615130014	-
55 - POWER SUPPLY CORD BSD-1614462047.A0 1614462047	-
56 - GROMMET BSD-1610703011.A35 1610703011	£14.91	£17.89
57 - SWITCH COVER BSD-1615500095.A10 1615500095	-
58 - ON-OFF SWITCH BSD-1617200018.A0 1617200018	-
59 - INTERMEDIATE PLATE BSD-1612310006.A0 1612310006	-
60 - SEALING PLATE BSD-1611031001.A9 1611031001	-
61 - FIXING PLATE BSD-1610147008.A9 1610147008	-
62 - SWITCH-PAWL BSD-1612026011.A5 1612026011	£6.52	£7.83
63 - HANDLE BSD-1615132010.A3 1615132010	£37.27	£44.72
64 - RUBBER TORSION-BAR BSD-1616334000.A24 1616334000	£27.23	£32.68
65 - TOOTHED SHAFT BSD-1613060005.A5 1613060005	£54.42	£65.30
67 - SPRING RETAINING RING DIN 472 52x2MM BSD-2916660023.A44 2916660023	£5.30	£6.36
68 - RUBBER BUFFER BSD-1613465001.A15 1613465001	£5.58	£6.70
69 - INTERMEDIATE PLATE BSD-1612310007.A0 1612310007	-
70 - HANDLE BSD-1615132011.A9 1615132011	£37.27	£44.72
72 - INSULATION TUBING BSD-1610406006.A2 1610406006	-
74 - DISC SPRING DIN 2093-A25X12.2X1.5 BSD-2916160009.A16 2916160009	£3.72	£4.47
75 - COMPRESSION SPRING BSD-1614640000.A6 1614640000	-
76 - FIXING PLATE BSD-1611034013.A1 1611034013	-
77 - MANUFACTURER'S NAMEPLATE BSD-1610032000.A0 1610032000	-
78 - LUBRIC. HEAD BSD-1617401000.A10 1617401000	-
79 - GROMMET 1.75x0.5x20 MM BSD-1900703001.A0 1900703001	-
80 - PLUG BSD-1610031003.A0 1610031003	-
81 - PROTECTION SLEEVE BSD-1610406005.A0 1610406005	-
82 - SEALING PLATE BSD-1611039004.A0 1611039004	-
83 - SEALING PLATE BSD-1610008000.A0 1610008000	-
84 - SEALING PLATE BSD-1611039005.A0 1611039005	-
85 - SEAL RING BSD-1612381001.A0 1612381001	-
86 - BEARING BOLT BSD-1610300033.A6 1610300033	£21.52	£25.83
87 - GROOVE BALL BEARING 6205 DIN 625 BSD-1900900307.A9 1900900307	-
88 - ROTARY SHAFT LIP SEAL BSD-1610283004.A8 1610283004	-
89 - PLAIN WASHER DIN 46 255-DPG 9 BSD-2916010409.A134 2916010409	-
90 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A918 2916690003	£1.75	£2.10
91 - SPRING LOCK WASHER M6 BSD-2916690005.A157 2916690005	-
94 - SEALING PLATE BSD-1611015021.A15 1611015021	£2.80	£3.36
95 - SPRING LOCK WASHER BSD-2916680015.A3 2916680015	-
96 - HEX NUT BSD-1613302000.A2 1613302000	-
97 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A342 2915011007	-
98 - HEX NUT BSD-1613300005.A8 1613300005	-
99 - HEX NUT DIN 985-10-M10x1 BSD-3613313500.A2 3613313500	£2.80	£3.36
100 - SET SCREW DIN 417-M8x15-5.8 BSD-2912051237.A35 2912051237	-
101 - PAN HEAD SCREW DIN 85-AM4x8-MS BSD-2910110118.A48 2910110118	£1.75	£2.10
102 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A77 2910211025	£1.75	£2.10
103 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-5.8 BSD-2910011132.A7 2910011132	£1.32	£1.58
104 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A193 2910141201	£2.61	£3.13
105 - HEX SOCKET HEAD CAP SCREW DIN 912-M 6x30-8.8 BSD-2910142205.A2 2910142205	-
106 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x55-8.8 BSD-2910141215.A9 2910141215	£3.72	£4.47
107 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A101 2910141242	£1.75	£2.10
108 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A871 2910021125	£1.75	£2.10
109 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x35-8.8 BSD-2910141248.A18 2910141248	£1.75	£2.10
110 - HEX SOCKET HEAD CAP SCREW DIN 912-M 12x40-8.8 BSD-2910141346.A8 2910141346	-
111 - STUD BSD-2613502002.A6 2613502002	-
112 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-5.8 BSD-2910011154.A36 2910011154	£1.75	£2.10
114 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A76 2917721034	£1.75	£2.10
116 - STRAIGHT PIN BSD-1613100005.A9 1613100005	-
118 - PLAIN WASHER DIN 433-A13-ST 50 BSD-2916011019.A16 2916011019	£2.16	£2.59
119 - REFERENCE PLATE BSD-1601110023.A0 1601110023	-
121 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A63 2910141244	£1.75	£2.10
651 - OFFSET SCREWDRIVER DIN 911 SW10 BSD-1907950009.A137 1907950009	£21.68	£26.01
652 - GREASE GUN BSD-1615437500.A12 1615437500	-
653 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A875 1907950006	£4.26	£5.11
700 - POINTED CHISEL 400 MM BSD-1618660000.A2 1618660000	£44.87	£53.84
701 - WIDE CHISEL 400 MM X 80 MM BSD-1618661000.A10 1618661000	£81.62	£97.94
800 - MOTOR HOUSING BSD-1615106029.A0 1615106029	-
801 - PISTON ASSEMBLY BSD-1617031006.A3 1617031006	-
802 - PARTS SET BSD-1617010002.A0 1617010002	-
888 - NAMEPLATE BSD-160111A3H3.A2969 160111A3H3	£2.61	£3.13
