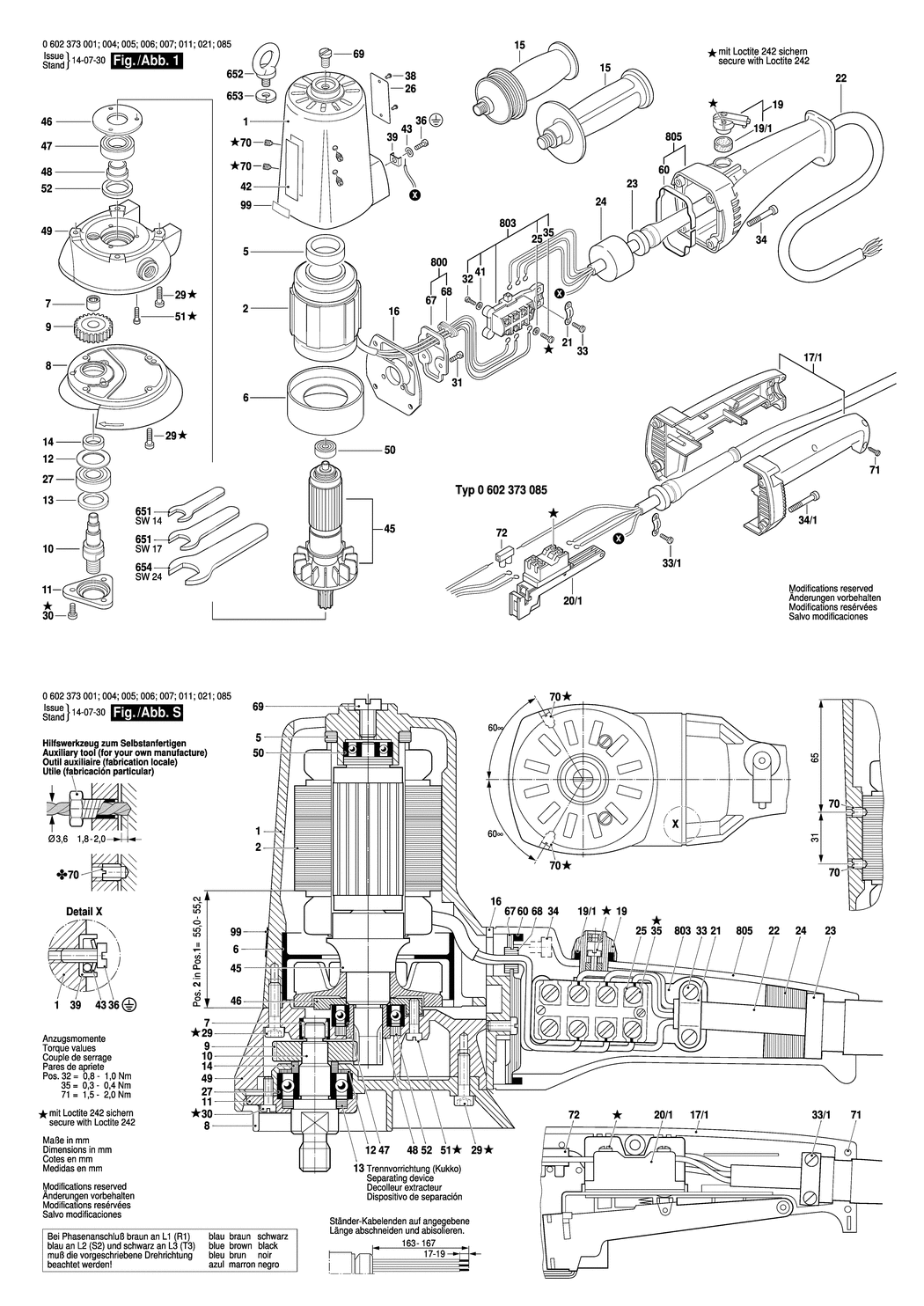

An exploded drawing and listing for the Bosch ---- / 0602373007 / --- 72 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102055.A2 3605102055 £352.76 £423.31
2 - STATOR 72V/200HZ.100V/300HZ BSD-1604229194.A0 1604229194 -
5 - SEAL RING BSD-1600209004.A2 1600209004 £2.80 £3.36
6 - AIR-DEFLECTOR RING BSD-1600209002.A10 1600209002 £5.30 £6.36
7 - NEEDLE BEARING BSD-1600910007.A0 1600910007 £13.12 £15.75
8 - BEARING COVER BSD-3605808006.A3 3605808006 £218.41 £262.09
9 - CYLINDRICAL GEAR BSD-1606320040.A4 1606320040 £102.57 £123.08
11 - BEARING COVER BSD-1605808041.A3 1605808041 £41.62 £49.95
12 - SHIM 0.4 MM BSD-1600102641.A4 1600102641 £5.01 £6.01
13 - FELT WASHER BSD-3600205002.A18 3600205002 £2.61 £3.13
14 - INTERMEDIATE RING BSD-1600202027.A8 1600202027 £10.82 £12.99
15 - AUXILIARY HANDLE M14 BSD-1602025022.A7 1602025022 £13.41 £16.09
15 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A678 1602025030 £18.96 £22.75
16 - SEALING PLATE BSD-3601038010.A7 3601038010 -
19 - CONTROL LEVER BSD-1602026030.A59 1602026030 £10.10 £12.12
19/1 - FELT WASHER BSD-1600205008.A163 1600205008 £1.75 £2.10
21 - FASTENING CLAMP BSD-1601303003.A331 1601303003 £2.16 £2.59
23 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A541 1600703009 £5.58 £6.70
24 - SEALING PLATE BSD-1600113003.A126 1600113003 £2.80 £3.36
25 - SPRING WASHER DIN 137-A4 BSD-1600150006.A230 1600150006 -
26 - NAMEPLATE BSD-3601106053.A401 3601106053 £5.30 £6.36
27 - GROOVE BALL BEARING 15x35x11 BSD-1900905226.A8 1900905226 £27.23 £32.68
29 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x18-8.8 BSD-2910141160.A43 2910141160 £2.16 £2.59
30 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8 BSD-2910021154.A100 2910021154 £1.75 £2.10
31 - SOCKET HEAD CAP SCREW DIN 84-AM5x10-5.8 BSD-2910011152.A17 2910011152 £1.75 £2.10
32 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A617 2910211006 £1.75 £2.10
33 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1374 2910021118 £1.75 £2.10
34 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A5 2910141168 £3.80 £4.56
35 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A390 2910091118 £1.75 £2.10
36 - PAN HEAD SCREW DIN 85-MS-M 4x12 BSD-2910110122.A160 2910110122 £1.75 £2.10
38 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A381 3603133001 £2.61 £3.13
39 - CLAMPING SADDLE BSD-3601321001.A398 3601321001 £3.72 £4.47
41 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A436 2916011005 £1.75 £2.10
42 - MANUFACTURER'S NAMEPLATE BSD-3601110104.A15 3601110104 £5.01 £6.01
43 - SPRING WASHER dia4.2 MM BSD-3600150006.A682 3600150006 £2.61 £3.13
45 - ROTOR WITHOUT WINDING BSD-1604080079.A5 1604080079 £357.27 £428.72
46 - BEARING COVER BSD-1600501019.A503 1600501019 £23.86 £28.63
47 - GROOVE BALL BEARING 17x35x10 BSD-1600900001.A191 1600900001 -
48 - INTERMEDIATE RING BSD-1600420003.A2 1600420003 £36.63 £43.96
49 - BEARING HOUSING BSD-1605820152.A3 1605820152 £216.12 £259.35
50 - GROOVE BALL BEARING 7x22x7 BSD-1610900025.A6 1610900025 £16.41 £19.69
51 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A248 2910021125 £1.75 £2.10
52 - FELT WASHER BSD-3600205002.A21 3600205002 £2.61 £3.13
60 - SEALING CORD BSD-1601014000.A27 1601014000 £2.80 £3.36
67 - SEALING PLATE BSD-1602388006.A47 1602388006 £5.58 £6.70
68 - GROMMET BSD-1600306001.A263 1600306001 £2.61 £3.13
69 - SOCKET HEAD CAP SCREW DIN 84-AM8x10-8.8 BSD-2910021232.A6 2910021232 £1.75 £2.10
70 - SET SCREW BSD-1603402002.A80 1603402002 £1.75 £2.10
71 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A784 2910211021 £1.75 £2.10
99 - REFERENCE PLATE BSD-3601119236.A1021 3601119236 £3.72 £4.47
651 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A618 2607950511 £4.26 £5.11
652 - LIFTING EYE BOLT DIN 580-M 8 BSD-2912521237.A18 2912521237 £11.78 £14.13
653 - SPRING LOCK WASHER DIN 127-B12 BSD-2916680011.A19 2916680011 -
654 - SINGLE-HEAD ENG. WRENCH DIN 894 SW24 BSD-1907950513.A92 1907950513 £16.41 £19.69
800 - SEALING PLATE BSD-1602388007.A214 1602388007 £12.04 £14.45
803 - SWITCH KIT BSD-1607000036.A139 1607000036 -
805 - HANDLE BSD-3605132048.A4 3605132048 £63.50 £76.20
