Bosch 400 WATT-SERIE / 0607461602 / --- Spare Parts

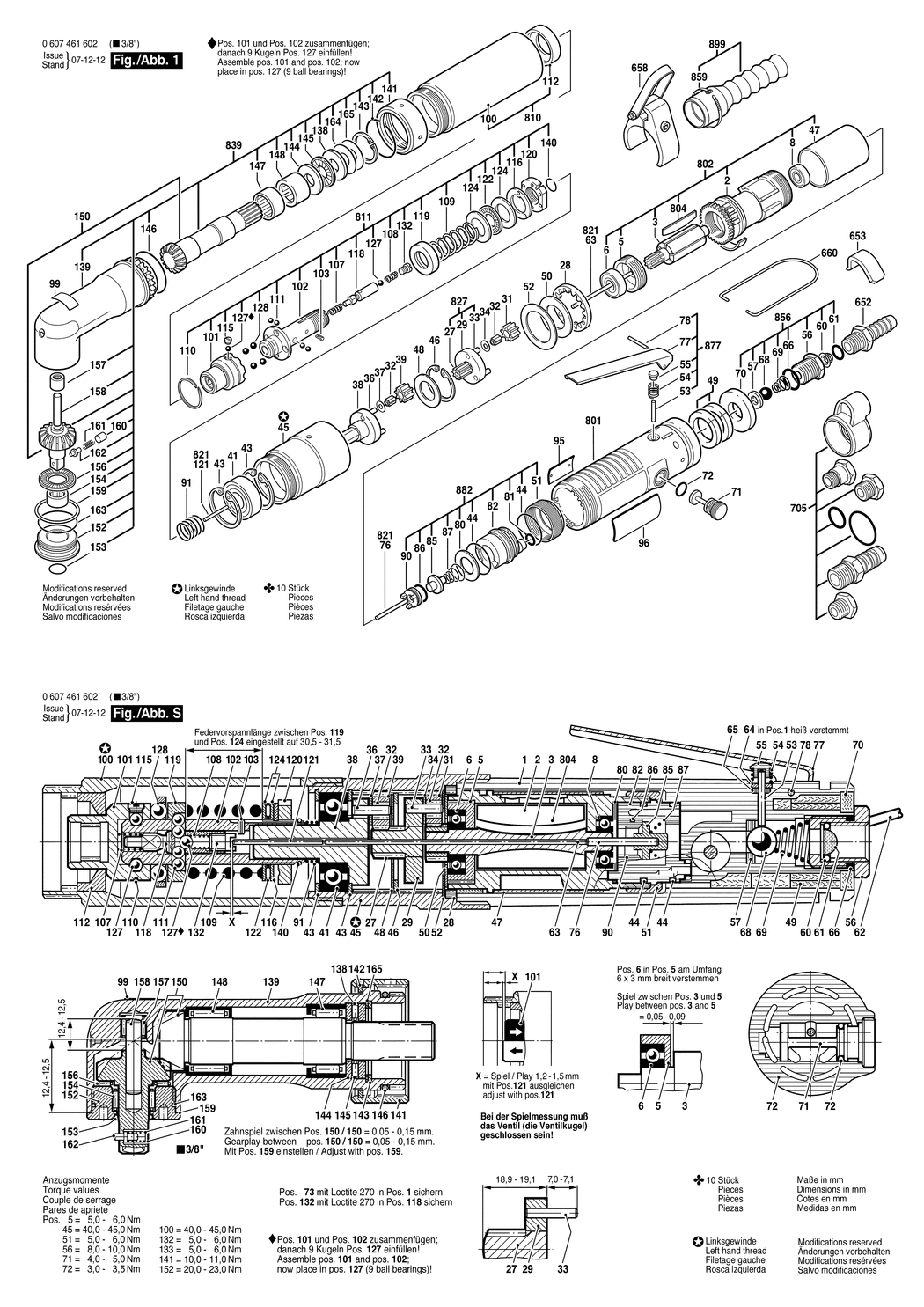

An exploded drawing and listing for the Bosch 400 WATT-SERIE / 0607461602 / ---

	Ex VAT	Inc VAT
2 - STATOR 400W BSD-3604090046.A18 3604090046	£102.57	£123.08
3 - ROTOR BSD-3604220062.A3 3604220062	£135.25	£162.30
5 - BEARING FLANGE BSD-3605700076.A81 3605700076	£48.38	£58.06
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A251 3600905039	£12.04	£14.45
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A105 1900905028	£33.74	£40.49
27 - PINION Z=9 BSD-3606300072.A1 3606300072	£48.38	£58.06
28 - RETAINING SNAP RING BSD-3606334069.A2 3606334069	£21.68	£26.01
29 - CARRIER BSD-3606337116.A1 3606337116	-
31 - CYLINDRICAL GEAR BSD-3606316111.A4 3606316111	£21.52	£25.83
32 - NEEDLE-ROLLER CAGE BSD-3600913006.A58 3600913006	£7.36	£8.83
33 - NEEDLE ROLLER BSD-3603201047.A59 3603201047	£1.75	£2.10
34 - SHIM 0.20 MM BSD-2600100586.A18 2600100586	£1.75	£2.10
36 - NEEDLE ROLLER BSD-3603201058.A1 3603201058	£2.16	£2.59
37 - SHIM BSD-1600A004DT.A12 1600A004DT	£2.16	£2.59
38 - PLANETARY-GEAR CARRIER BSD-3606337146.A0 3606337146	£120.11	£144.13
39 - CYLINDRICAL GEAR Z=16 BSD-3606316075.A50 3606316075	£13.41	£16.09
41 - GROOVE BALL BEARING BSD-3600905045.A6 3600905045	£16.41	£19.69
43 - SPRING RETAINING RING BSD-3600118008.A8 3600118008	£1.75	£2.10
44 - O-RING 26.0x1.5 MM BSD-2600210018.A60 2600210018	£3.72	£4.47
45 - GEAR HOUSING BSD-3605125047.A3 3605125047	£156.22	£187.46
46 - SPRING RETAINING RING DIN 472-34x1.5MM BSD-2916660037.A5 2916660037	£2.33	£2.80
47 - SPIGOT BSD-3600700032.A1 3600700032	£21.68	£26.01
48 - STOP DISC BSD-3600101040.A46 3600101040	£2.16	£2.59
49 - SILENCER BSD-3601010006.A65 3601010006	£1.75	£2.10
50 - RETAINING WASHER BSD-3600101036.A46 3600101036	£4.26	£5.11
51 - UNION NUT BSD-3603313001.A3 3603313001	£14.91	£17.89
52 - SUPPORTING DISC BSD-3600100038.A2 3600100038	£1.75	£2.10
53 - NEEDLE ROLLER BSD-3603201050.A33 3603201050	£1.75	£2.10
54 - COMPRESSION SPRING BSD-3604611006.A14 3604611006	£2.16	£2.59
55 - VALVE CONE BSD-3603132000.A80 3603132000	£2.80	£3.36
56 - FITTING BSD-3603458008.A70 3603458008	£8.67	£10.41
57 - SEALING DISK BSD-3600206006.A20 3600206006	-
60 - STRAINER BSD-3600002000.A262 3600002000	£3.72	£4.47
61 - O-RING 10x2 MM BSD-1900210306.A115 1900210306	£1.75	£2.10
63 - STRAIGHT PIN BSD-3604710055.A17 3604710055	£7.36	£8.83
66 - O-RING 16x1.25 MM BSD-3600210036.A67 3600210036	£2.16	£2.59
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A49 1903230528	£1.75	£2.10
69 - COMPRESSION SPRING BSD-3604616008.A21 3604616008	-
70 - SILENCER BSD-3600105002.A25 3600105002	£10.10	£12.12
71 - VALVE PISTON BSD-3608750028.A8 3608750028	£5.58	£6.70
72 - O-RING BSD-1900210307.A10 1900210307	£4.26	£5.11
76 - STRAIGHT PIN BSD-3604710058.A2 3604710058	£5.58	£6.70
77 - CONTROL LEVER BSD-3601902001.A93 3601902001	£6.52	£7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A68 2917700040	£2.80	£3.36
80 - SEALING PLATE BSD-3600054004.A30 3600054004	£6.52	£7.83
81 - O-RING 8.0x1.5 MM BSD-1900210103.A23 1900210103	£2.80	£3.36
82 - INTERMEDIATE PIECE BSD-3608750027.A16 3608750027	£14.91	£17.89
85 - VALVE CONE BSD-3603203013.A1 3603203013	£21.52	£25.83
86 - O-RING 12.0x2.0 MM BSD-1610210233.A23 1610210233	£2.80	£3.36
87 - COMPRESSION SPRING BSD-3604643014.A4 3604643014	£2.80	£3.36
90 - BACKUP RING BSD-3600221000.A0 3600221000	£10.10	£12.12
91 - COMPRESSION SPRING BSD-3604617000.A34 3604617000	£1.75	£2.10
95 - NAMEPLATE BSD-160111A3HF.A221 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601110039.A1 3601110039	£5.30	£6.36
99 - REFERENCE PLATE BSD-3601119236.A1917 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125046.A1 3605125046	-
101 - CLUTCH ELEMENT BSD-3606445037.A1 3606445037	£81.81	£98.17
102 - DRIVE SHAFT BSD-3606122008.A47 3606122008	£120.11	£144.13
103 - COILED SPRING PIN DIN 7343-2x5 BSD-2917800033.A37 2917800033	£1.75	£2.10
107 - COMPRESSION SPRING BSD-3604610006.A12 3604610006	£2.16	£2.59
108 - COMPRESSION SPRING BSD-3604610002.A114 3604610002	£3.72	£4.47
109 - COMPRESSION SPRING BSD-3604619015.A4 3604619015	£6.52	£7.83
110 - RETAINING RING BSD-3604601001.A99 3604601001	£2.16	£2.59
111 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A189 1903230007	£1.75	£2.10
112 - INTERMEDIATE RING BSD-3600200023.A3 3600200023	-
115 - SEALING PLATE BSD-3609992353.A26 3609992353	£2.80	£3.36
116 - ADJUSTING DISC BSD-3600134000.A4 3600134000	£2.80	£3.36
118 - LOCKING BOLT BSD-3603150203.A116 3603150203	£45.67	£54.80
119 - COUPLING PLATE BSD-3600114001.A3 3600114001	£18.96	£22.75
120 - ROUND NUT BSD-3603301004.A1 3603301004	£21.68	£26.01
121 - STRAIGHT PIN BSD-3603201026.A1 3603201026	£7.36	£8.83
122 - ROLLER THRUST BEARING BSD-3600921000.A79 3600921000	£6.52	£7.83
124 - SUPPORT DISC BSD-3600101002.A125 3600101002	£2.16	£2.59
127 - BALL DIN 5401-5 G28 BSD-1903230009.A203 1903230009	£1.75	£2.10
128 - BALL DIN 5401-6 G28 BSD-1903230011.A113 1903230011	£2.61	£3.13
132 - SET SCREW BSD-3603400001.A10 3603400001	£2.80	£3.36
138 - SUPPORT DISC BSD-3600103004.A45 3600103004	£13.12	£15.75
139 - SPINDLE HOUSING BSD-3608873773.A7 3608873773	£500.46	£600.55
140 - RETAINING RING 14 DIN 9045 BSD-2916600008.A51 2916600008	£2.80	£3.36
141 - UNION NUT BSD-3603340016.A18 3603340016	-
142 - RETAINING RING BSD-1600116004.A20 1600116004	-
143 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A0 2916660011	£1.75	£2.10
144 - SUPPORT DISC 15X28X2.75 BSD-3600150003.A33 3600150003	£12.04	£14.45
145 - THRUST NEEDLE RIM BSD-1610913000.A26 1610913000	£2.80	£3.36
146 - O-RING 30x2.5 MM BSD-1900210131.A9 1900210131	£4.26	£5.11
147 - NEEDLE BEARING BSD-3600917010.A12 3600917010	£27.23	£32.68
148 - NEEDLE-ROLLER BEARING BSD-2000910002.A2 2000910002	£3.72	£4.47
150 - BEVEL GEAR SET BSD-3608871844.A2 3608871844	£410.78	£492.94
151 - CROWN GEAR Z=14 BSD-3606100007.A4 3606100007	£218.41	£262.09
152 - BEARING FLANGE BSD-3603490002.A8 3603490002	£102.57	£123.08
153 - O-RING 12.0x1.5 MM BSD-3600210086.A52 3600210086	£2.80	£3.36
154 - NEEDLE-ROLLER ASSEMBLY BSD-3600915002.A10 3600915002	£14.91	£17.89
156 - THRUST NEEDLE RIM BSD-1610913000.A25 1610913000	£2.80	£3.36
157 - NEEDLE BEARING BSD-2600914004.A95 2600914004	£4.26	£5.11
158 - NEEDLE ROLLER BSD-3603201038.A7 3603201038	£1.95	£2.34
159 - SHIM BSD-3600102007.A10 3600102007	£2.80	£3.36
159 - SHIM BSD-3600102008.A1 3600102008	£2.61	£3.13
160 - GUIDE SLEEVE BSD-3600320016.A45 3600320016	£14.91	£17.89
161 - COMPRESSION SPRING BSD-1604611004.A75 1604611004	£2.80	£3.36
162 - PRESSURE SPINDLE BSD-1603124060.A28 1603124060	£5.58	£6.70
163 - O-RING 26.0x1.5 MM BSD-2600210018.A56 2600210018	£3.72	£4.47
164 - SHIM BSD-3608870173.A13 3608870173	£2.80	£3.36
164 - SHIM BSD-3608870176.A1 3608870176	£2.16	£2.59
165 - SUPPORTING DISC 1.2 MM BSD-1610101627.A7 1610101627	£1.75	£2.10
166 - SLEEVE BSD-3600400033.A3 3600400033	-
167 - O-RING 6.0x1.25 MM BSD-3600210119.A0 3600210119	-
169 - SET SCREW M 5x5-DIN 913-45H BSD-2912041147.A17 2912041147	£2.16	£2.59
652 - HOSE FITTING BSD-2603386002.A135 2603386002	£5.30	£6.36
653 - ANGLE PIECE BSD-3601902010.A3 3601902010	£5.30	£6.36
658 - SUSPENSION LOOP BSD-3604720013.A1 3604720013	£81.81	£98.17
660 - SUSPENSION LOOP BSD-3604720004.A79 3604720004	£2.80	£3.36
705 - AIR HOSE SET BSD-3607030024.A3 3607030024	£37.72	£45.27
801 - MOTOR HOUSING BSD-3607031572.A1 3607031572	£63.50	£76.20
802 - ASSEMBLY OF SERVICE PARTS BSD-3607030146.A0 3607030146	£306.65	£367.98
804 - ROTOR LAMELLA BSD-3607030030.A23 3607030030	£31.64	£37.97
810 - CLUTCH HOUSING BSD-3607030145.A4 3607030145	£154.03	£184.84
811 - UNLOADING VALVE BSD-3607030275.A0 3607030275	£306.65	£367.98
821 - CONTROL PIN BSD-3607030083.A2 3607030083	£33.74	£40.49
827 - PLANETARY-GEAR CARRIER BSD-3606337119.A0 3606337119	£72.18	£86.62
839 - ANGLE SCREWDRIVER HEAD L=1.4 MAX. 45NM BSD-3607020044.A2 3607020044	-
850 - BEVEL GEAR SET BSD-3608871844.A3 3608871844	£410.78	£492.94
856 - ASSEMBLY OF SERVICE PARTS BSD-3607030033.A12 3607030033	£31.64	£37.97
859 - HOLDING BELT BSD-3604710062.A2 3604710062	£1.75	£2.10
877 - CONTROL LEVER BSD-3607030032.A12 3607030032	£13.12	£15.75
882 - INTERMEDIATE PIECE BSD-3607030082.A4 3607030082	£59.53	£71.44
899 - AIR HOSE BSD-3607000027.A21 3607000027	£33.74	£40.49
