Bosch 400 WATT-SERIE / 0607461604 / --- Spare Parts

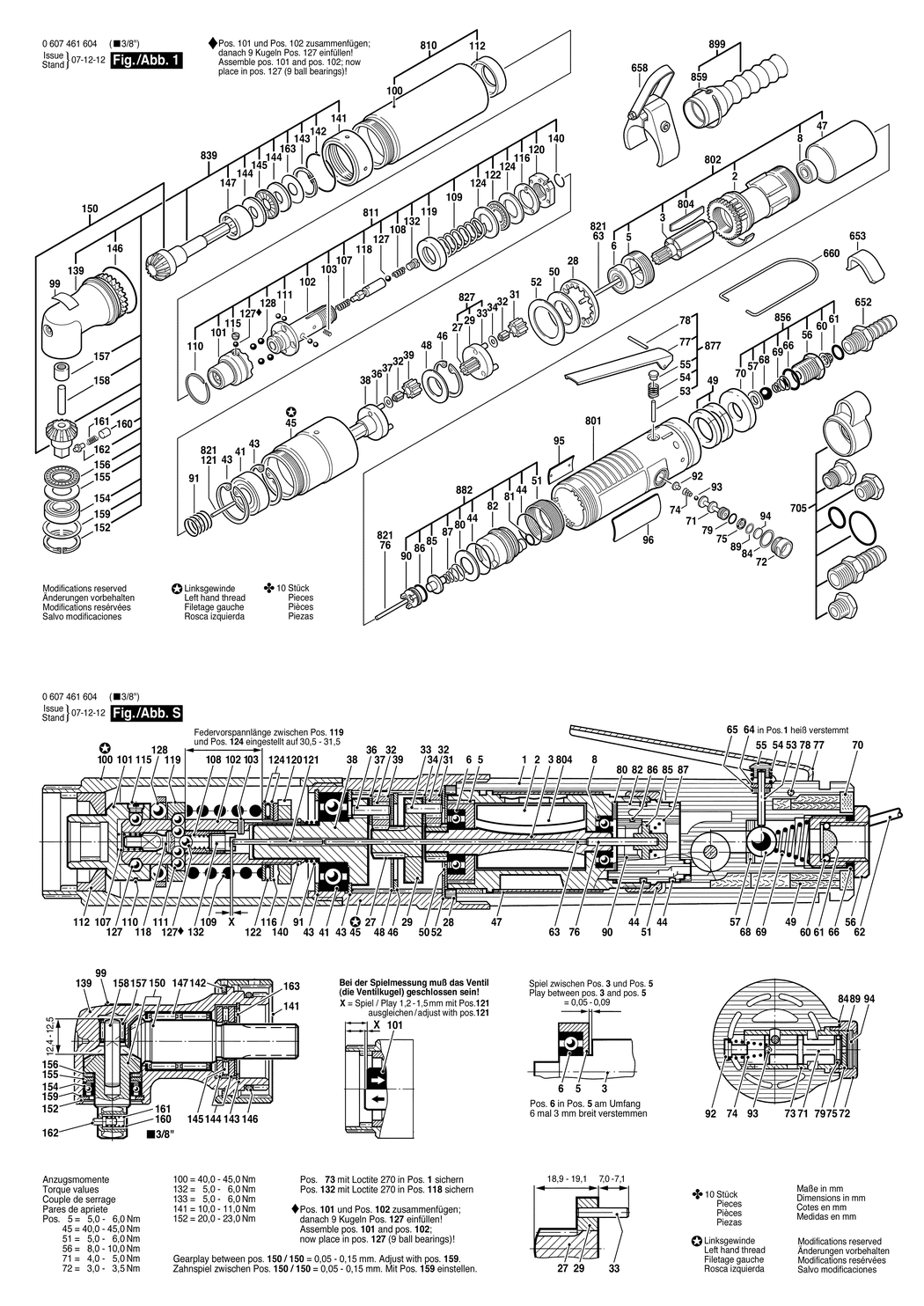

An exploded drawing and listing for the Bosch 400 WATT-SERIE / 0607461604 / ---

	Ex VAT	Inc VAT
2 - STATOR 320-400W BSD-3604090044.A18 3604090044	£81.81	£98.17
3 - ROTOR BSD-3604220063.A1 3604220063	£93.88	£112.65
5 - BEARING FLANGE BSD-3605700076.A82 3605700076	£48.38	£58.06
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A249 3600905039	£12.04	£14.45
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A107 1900905028	£33.74	£40.49
27 - PINION Z=12 BSD-3606300071.A21 3606300071	£33.74	£40.49
28 - RETAINING SNAP RING BSD-3606334069.A0 3606334069	£21.68	£26.01
29 - CARRIER BSD-3606337115.A3 3606337115	£31.64	£37.97
31 - CYLINDRICAL GEAR Z=16 BSD-3606316075.A52 3606316075	£13.41	£16.09
32 - NEEDLE-ROLLER CAGE BSD-3600913006.A56 3600913006	£7.36	£8.83
33 - NEEDLE ROLLER BSD-3603201047.A61 3603201047	£1.75	£2.10
34 - SHIM 0.20 MM BSD-2600100586.A14 2600100586	£1.75	£2.10
36 - NEEDLE ROLLER BSD-3603201047.A62 3603201047	£1.75	£2.10
37 - SHIM 0.20 MM BSD-2600100586.A15 2600100586	£1.75	£2.10
38 - PLANETARY-GEAR CARRIER BSD-3606337118.A13 3606337118	£68.42	£82.10
39 - CYLINDRICAL GEAR BSD-3606316116.A27 3606316116	£21.68	£26.01
41 - GROOVE BALL BEARING BSD-3600905045.A8 3600905045	£16.41	£19.69
43 - SPRING RETAINING RING BSD-3600118008.A10 3600118008	£1.75	£2.10
44 - O-RING 26.0x1.5 MM BSD-2600210018.A55 2600210018	£3.72	£4.47
45 - GEAR HOUSING BSD-3605125047.A2 3605125047	£156.22	£187.46
46 - SPRING RETAINING RING DIN 472-34x1.5MM BSD-2916660037.A8 2916660037	£2.33	£2.80
47 - SPIGOT BSD-3600700032.A2 3600700032	£21.68	£26.01
48 - STOP DISC BSD-3600101040.A47 3600101040	£2.16	£2.59
49 - SILENCER BSD-3601010006.A63 3601010006	£1.75	£2.10
50 - RETAINING WASHER BSD-3600101036.A49 3600101036	£4.26	£5.11
51 - UNION NUT BSD-3603313001.A1 3603313001	£14.91	£17.89
52 - SUPPORTING DISC BSD-3600100038.A0 3600100038	£1.75	£2.10
53 - NEEDLE ROLLER BSD-3603201050.A35 3603201050	£1.75	£2.10
54 - COMPRESSION SPRING BSD-3604611006.A13 3604611006	£2.16	£2.59
55 - VALVE CONE BSD-3603132000.A81 3603132000	£2.80	£3.36
56 - FITTING BSD-3603458008.A72 3603458008	£8.67	£10.41
57 - SEALING DISK BSD-3600206006.A21 3600206006	-
60 - STRAINER BSD-3600002000.A264 3600002000	£3.72	£4.47
61 - O-RING 10x2 MM BSD-1900210306.A113 1900210306	£1.75	£2.10
63 - STRAIGHT PIN BSD-3604710055.A15 3604710055	£7.36	£8.83
66 - O-RING 16x1.25 MM BSD-3600210036.A69 3600210036	£2.16	£2.59
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A47 1903230528	£1.75	£2.10
69 - COMPRESSION SPRING BSD-3604616008.A22 3604616008	-
70 - SILENCER BSD-3600105002.A27 3600105002	£10.10	£12.12
71 - CONTROL PISTON BSD-3608750025.A0 3608750025	£63.50	£76.20
72 - THREADED RING BSD-3603344041.A1 3603344041	£12.04	£14.45
74 - COMPRESSION SPRING BSD-3604611006.A12 3604611006	£2.16	£2.59
75 - VALVE PLATE BSD-3600190017.A1 3600190017	-
76 - STRAIGHT PIN BSD-3604710058.A4 3604710058	£5.58	£6.70
77 - CONTROL LEVER BSD-3601902001.A94 3601902001	£6.52	£7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A66 2917700040	£2.80	£3.36
79 - O-RING 9.0x1.2 MM BSD-3600210038.A0 3600210038	£2.61	£3.13
80 - SEALING PLATE BSD-3600054004.A28 3600054004	£6.52	£7.83
81 - O-RING 8.0x1.5 MM BSD-1900210103.A25 1900210103	£2.80	£3.36
82 - INTERMEDIATE PIECE BSD-3608750027.A18 3608750027	£14.91	£17.89
84 - SHIM BSD-3600100062.A2 3600100062	£3.72	£4.47
85 - VALVE CONE BSD-3603203013.A2 3603203013	£21.52	£25.83
86 - O-RING 12.0x2.0 MM BSD-1610210233.A26 1610210233	£2.80	£3.36
87 - COMPRESSION SPRING BSD-3604643014.A6 3604643014	£2.80	£3.36
89 - PLAIN WASHER BSD-2600101513.A69 2600101513	£1.75	£2.10
90 - BACKUP RING BSD-3600221000.A4 3600221000	£10.10	£12.12
91 - COMPRESSION SPRING BSD-3604617000.A33 3604617000	£1.75	£2.10
92 - STOP BOLT BSD-3603123010.A1 3603123010	£2.80	£3.36
93 - BALL 2 MM III DIN 5401 ST BSD-1903230002.A24 1903230002	£2.16	£2.59
94 - RUBBER PLATE BSD-3600009002.A1 3600009002	£2.16	£2.59
95 - NAMEPLATE BSD-160111A3HF.A222 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601110039.A2 3601110039	£5.30	£6.36
99 - REFERENCE PLATE BSD-3601119236.A1916 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125046.A2 3605125046	-
101 - CLUTCH ELEMENT BSD-3606445037.A2 3606445037	£81.81	£98.17
102 - DRIVE SHAFT BSD-3606122008.A50 3606122008	£120.11	£144.13
103 - COILED SPRING PIN DIN 7343-2x5 BSD-2917800033.A40 2917800033	£1.75	£2.10
107 - COMPRESSION SPRING BSD-3604610006.A13 3604610006	£2.16	£2.59
108 - COMPRESSION SPRING BSD-3604610002.A118 3604610002	£3.72	£4.47
109 - COMPRESSION SPRING BSD-3604619004.A31 3604619004	£6.52	£7.83
110 - RETAINING RING BSD-3604601001.A95 3604601001	£2.16	£2.59
111 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A191 1903230007	£1.75	£2.10
112 - INTERMEDIATE RING BSD-3600200023.A1 3600200023	-
115 - SEALING PLATE BSD-3609992353.A28 3609992353	£2.80	£3.36
116 - ADJUSTING DISC BSD-3600134000.A2 3600134000	£2.80	£3.36
118 - LOCKING BOLT BSD-3603150203.A115 3603150203	£45.67	£54.80
119 - COUPLING PLATE BSD-3600114001.A1 3600114001	£18.96	£22.75
120 - ROUND NUT BSD-3603301004.A4 3603301004	£21.68	£26.01
121 - STRAIGHT PIN BSD-3603201026.A2 3603201026	£7.36	£8.83
122 - ROLLER THRUST BEARING BSD-3600921000.A82 3600921000	£6.52	£7.83
124 - SUPPORT DISC BSD-3600101002.A124 3600101002	£2.16	£2.59
127 - BALL DIN 5401-5 G28 BSD-1903230009.A201 1903230009	£1.75	£2.10
128 - BALL DIN 5401-6 G28 BSD-1903230011.A115 1903230011	£2.61	£3.13
132 - SET SCREW BSD-3603400001.A8 3603400001	£2.80	£3.36
139 - SPINDLE HOUSING BSD-3605106035.A13 3605106035	£218.41	£262.09
140 - RETAINING RING 14 DIN 9045 BSD-2916600008.A49 2916600008	£2.80	£3.36
141 - UNION NUT BSD-3603340016.A21 3603340016	-
142 - RETAINING RING BSD-1600116004.A18 1600116004	-
143 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A267 2916660010	£1.75	£2.10
144 - SUPPORT DISC BSD-3600100020.A13 3600100020	£12.04	£14.45
145 - ROLLER THRUST BEARING BSD-3600929008.A14 3600929008	£10.10	£12.12
146 - O-RING 30x2.5 MM BSD-1900210131.A12 1900210131	£4.26	£5.11
147 - NEEDLE BEARING BSD-1610910088.A47 1610910088	£5.58	£6.70
150 - BEVEL GEAR SET BSD-3608871850.A1 3608871850	£410.78	£492.94
151 - CROWN GEAR Z=14 BSD-3606334046.A6 3606334046	-
152 - SPRING RETAINING RING DIN 472-21x1MM BSD-2916660045.A0 2916660045	£1.75	£2.10
154 - GROOVE BALL BEARING BSD-3600900018.A42 3600900018	£23.86	£28.63
155 - FRICTION WASHER BSD-3600100017.A12 3600100017	-
156 - ROLLER THRUST BEARING BSD-3600929005.A24 3600929005	£18.96	£22.75
157 - NEEDLE BEARING BSD-2600914004.A93 2600914004	£4.26	£5.11
158 - NEEDLE ROLLER BSD-3603100008.A12 3603100008	£2.61	£3.13
159 - SHIM 0.05 MM BSD-1600101650.A80 1600101650	£2.61	£3.13
159 - SHIM 0.1 MM BSD-1600101648.A79 1600101648	£1.75	£2.10
160 - GUIDE SLEEVE BSD-3600320016.A46 3600320016	£14.91	£17.89
161 - COMPRESSION SPRING BSD-1604611004.A76 1604611004	£2.80	£3.36
162 - PRESSURE SPINDLE BSD-1603124060.A27 1603124060	£5.58	£6.70
163 - SHIM BSD-3608870173.A14 3608870173	£2.80	£3.36
163 - SHIM BSD-3608870176.A0 3608870176	£2.16	£2.59
167 - SLEEVE BSD-3600400033.A1 3600400033	-
167 - O-RING 6.0x1.25 MM BSD-3600210119.A2 3600210119	-
169 - SET SCREW M 5x5-DIN 913-45H BSD-2912041147.A18 2912041147	£2.16	£2.59
652 - HOSE FITTING BSD-2603386002.A134 2603386002	£5.30	£6.36
653 - ANGLE PIECE BSD-3601902010.A2 3601902010	£5.30	£6.36
658 - SUSPENSION LOOP BSD-3604720013.A2 3604720013	£81.81	£98.17
660 - SUSPENSION LOOP BSD-3604720004.A78 3604720004	£2.80	£3.36
705 - AIR HOSE SET BSD-3607030024.A2 3607030024	£37.72	£45.27
801 - MOTOR HOUSING BSD-3607031571.A0 3607031571	£195.26	£234.31
802 - MOTOR BSD-3607030075.A3 3607030075	£357.27	£428.72
804 - ROTOR LAMELLA BSD-3607030030.A24 3607030030	£31.64	£37.97
810 - CLUTCH HOUSING BSD-3607030145.A3 3607030145	£154.03	£184.84
811 - CLUTCH BSD-3607030276.A1 3607030276	£263.33	£316.00
821 - CONTROL PIN BSD-3607030083.A3 3607030083	£33.74	£40.49
827 - PLANETARY-GEAR CARRIER BSD-3606337111.A13 3606337111	£68.42	£82.10
839 - ANGLE SCREWDRIVER HEAD 370W GR.48 3/8 BSD-3607020045.A0 3607020045	£905.44	£1086.53
850 - BEVEL GEAR SET BSD-3608871850.A0 3608871850	£410.78	£492.94
856 - ASSEMBLY OF SERVICE PARTS BSD-3607030033.A13 3607030033	£31.64	£37.97
859 - HOLDING BELT BSD-3604710062.A3 3604710062	£1.75	£2.10
877 - CONTROL LEVER BSD-3607030032.A11 3607030032	£13.12	£15.75
882 - INTERMEDIATE PIECE BSD-3607030082.A3 3607030082	£59.53	£71.44
899 - AIR HOSE BSD-3607000027.A20 3607000027	£33.74	£40.49
