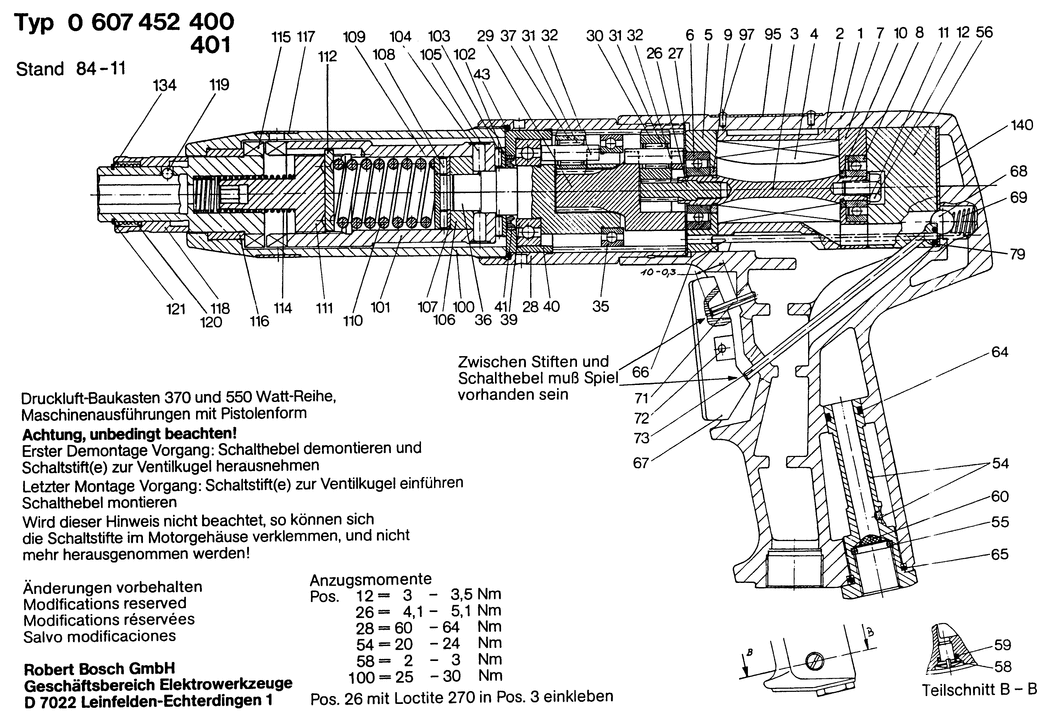

1 - MOTOR HOUSING
BSD-3605108027.A13
3605108027
|
£283.50
|
£340.20
|
|
|
2 - STATOR 550W
BSD-3604090009.A15
3604090009
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220005.A1
3604220005
|
£72.18
|
£86.62
|
|
|
4 - ASSEMBLY OF SERVICE PARTS
BSD-3607030260.A10
3607030260
|
£21.68
|
£26.01
|
|
|
5 - BEARING FLANGE
BSD-3605700014.A23
3605700014
|
£59.53
|
£71.44
|
|
|
6 - GROOVE BALL BEARING 10x26x8
BSD-1900905127.A73
1900905127
|
£27.23
|
£32.68
|
|
|
7 - BEARING FLANGE
BSD-3605700012.A14
3605700012
|
£33.74
|
£40.49
|
|
|
8 - BALL BEARING 8x22x7
BSD-1900905029.A224
1900905029
|
£21.52
|
£25.83
|
|
|
9 - SPACER RING
BSD-2600200007.A33
2600200007
|
£10.10
|
£12.12
|
|
|
10 - SPACER RING
BSD-3600202004.A47
3600202004
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A133
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A126
2911061150
|
£2.61
|
£3.13
|
|
|
26 - PINION
BSD-3606300156.A8
3606300156
|
£31.64
|
£37.97
|
|
|
27 - STOP DISC
BSD-3600101004.A35
3600101004
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=46
BSD-3606334002.A6
3606334002
|
£135.25
|
£162.30
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337010.A11
3606337010
|
£93.88
|
£112.65
|
|
|
30 - CYLINDRICAL GEAR
BSD-3606316102.A6
3606316102
|
£31.64
|
£37.97
|
|
|
31 - NEEDLE-ROLLER ASSEMBLY
BSD-3600910000.A21
3600910000
|
£4.26
|
£5.11
|
|
|
32 - NEEDLE ROLLER
BSD-3603201005.A22
3603201005
|
£2.80
|
£3.36
|
|
|
35 - GROOVE BALL BEARING 25x37x7
BSD-3600905001.A26
3600905001
|
£31.64
|
£37.97
|
|
|
36 - PLANETARY-GEAR CARRIER
BSD-3606337013.A2
3606337013
|
-
|
|
|
|
37 - CYLINDRICAL GEAR
BSD-3606316103.A28
3606316103
|
£21.68
|
£26.01
|
|
|
38 - STOP DISC
BSD-3600101005.A21
3600101005
|
£6.52
|
£7.83
|
|
|
39 - GROOVE BALL BEARING
BSD-3600905025.A47
3600905025
|
£16.41
|
£19.69
|
|
|
43 - O-RING 41.0x1.78 MM
BSD-3600210006.A19
3600210006
|
£2.16
|
£2.59
|
|
|
54 - FITTING
BSD-3603458008.A40
3603458008
|
£8.67
|
£10.41
|
|
|
55 - O-RING 10x2 MM
BSD-1900210306.A157
1900210306
|
£1.75
|
£2.10
|
|
|
56 - VALVE INSERT
BSD-3605190016.A3
3605190016
|
-
|
|
|
|
58 - RAISED COUNTERS HEAD SCRE M 5x6 DIN 964-4.8
BSD-2910811148.A1
2910811148
|
-
|
|
|
|
59 - PARTS SET
BSD-3607010004.A2
3607010004
|
-
|
|
|
|
60 - STRAINER
BSD-3600002000.A218
3600002000
|
£3.72
|
£4.47
|
|
|
64 - O-RING 15.6x1.8 MM
BSD-3600210003.A93
3600210003
|
£1.75
|
£2.10
|
|
|
65 - O-RING 15.6x1.8 MM
BSD-3600210003.A94
3600210003
|
£1.75
|
£2.10
|
|
|
66 - STRAIGHT PIN
BSD-3604710006.A28
3604710006
|
£8.67
|
£10.41
|
|
|
67 - CONTROL LEVER
BSD-3602053001.A55
3602053001
|
£2.80
|
£3.36
|
|
|
68 - BALL dia9 MM
BSD-3603230004.A76
3603230004
|
£3.72
|
£4.47
|
|
|
69 - COMPRESSION SPRING
BSD-3604616002.A1
3604616002
|
£2.16
|
£2.59
|
|
|
71 - STRAIGHT GROOVED PIN 2.5x16 DIN 1473
BSD-2917601059.A13
2917601059
|
£1.75
|
£2.10
|
|
|
72 - STRAIGHT PIN 3 M 6x24 DIN 7
BSD-2917510083.A18
2917510083
|
-
|
|
|
|
73 - STRAIGHT PIN
BSD-3604710003.A17
3604710003
|
£6.52
|
£7.83
|
|
|
79 - O-RING 1.8x1.0 MM
BSD-3600210002.A24
3600210002
|
£2.61
|
£3.13
|
|
|
91 - SILENCER
BSD-3601010001.A45
3601010001
|
£2.16
|
£2.59
|
|
|
94 - HOLDING SPRING
BSD-3601250003.A26
3601250003
|
£2.80
|
£3.36
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A48
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A249
1601110481
|
£2.16
|
£2.59
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A221
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1469
3601119236
|
£3.72
|
£4.47
|
|
|
100 - HOUSING
BSD-3605125004.A3
3605125004
|
-
|
|
|
|
101 - COUPLING HALF
BSD-3606445005.A3
3606445005
|
-
|
|
|
|
102 - SUPPORT DISC
BSD-3600103004.A37
3600103004
|
£13.12
|
£15.75
|
|
|
103 - ROLLER THRUST BEARING
BSD-3600921000.A123
3600921000
|
£6.52
|
£7.83
|
|
|
104 - CYLINDRICAL ROLLER
BSD-3603200000.A0
3603200000
|
-
|
|
|
|
105 - RETAINING SNAP RING
BSD-3600209000.A2
3600209000
|
-
|
|
|
|
106 - COUPLING HALF
BSD-3606445007.A3
3606445007
|
-
|
|
|
|
107 - SUPPORT DISC
BSD-1600103026.A5
1600103026
|
-
|
|
|
|
108 - NEEDLE-ROLLER BEARING
BSD-1600920003.A44
1600920003
|
-
|
|
|
|
109 - SUPPORT DISC
BSD-3600000000.A1
3600000000
|
-
|
|
|
|
110 - COMPRESSION SPRING
BSD-3604619001.A0
3604619001
|
-
|
|
|
|
111 - ADJUSTING BOLT
BSD-3603121000.A0
3603121000
|
-
|
|
|
|
112 - DISC CAM
BSD-3600098000.A1
3600098000
|
-
|
|
|
|
114 - COMPRESSION SPRING
BSD-3604616001.A2
3604616001
|
-
|
|
|
|
115 - COUPLING HALF
BSD-3606445006.A0
3606445006
|
-
|
|
|
|
116 - BUSHING
BSD-3600202003.A5
3600202003
|
-
|
|
|
|
117 - LEAF SPRING
BSD-3601250001.A3
3601250001
|
-
|
|
|
|
118 - CLAMPING SLEEVE
BSD-3600311015.A17
3600311015
|
£31.64
|
£37.97
|
|
|
119 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A354
1903230007
|
£1.75
|
£2.10
|
|
|
120 - COMPRESSION SPRING
BSD-3604615001.A46
3604615001
|
£2.61
|
£3.13
|
|
|
121 - RETAINING RING
BSD-3600224001.A21
3600224001
|
£3.72
|
£4.47
|
|
|
134 - PLAIN WASHER
BSD-3600101055.A62
3600101055
|
£12.04
|
£14.45
|
|
|
140 - SEALING PLATE
BSD-3600031000.A2
3600031000
|
£2.16
|
£2.59
|
|
|
650 - SILENCER
BSD-3607000073.A153
3607000073
|
£18.96
|
£22.75
|
|
|
652 - HOSE FITTING
BSD-2603386002.A279
2603386002
|
£5.30
|
£6.36
|
|
|
703 - HOSE FITTING dia 8 MM
BSD-3603386001.A108
3603386001
|
£16.41
|
£19.69
|
|
|
704 - SUPPORT CLAMP
BSD-3608040002.A9
3608040002
|
£72.18
|
£86.62
|
|
|
705 - AUXILIARY HANDLE M14
BSD-1602025022.A648
1602025022
|
£13.41
|
£16.09
|
|
|
705 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A707
1602025030
|
£18.96
|
£22.75
|
|
|
707 - SPLITTING TOOL
BSD-3607959005.A10
3607959005
|
£21.68
|
£26.01
|
|
