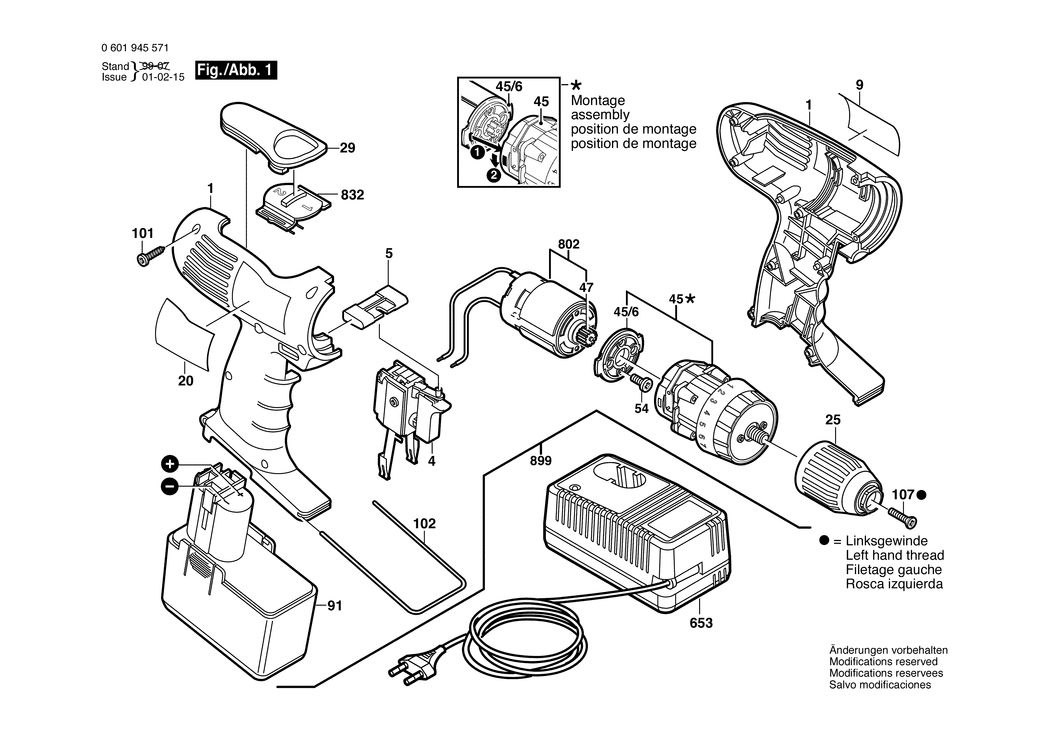

An exploded drawing and listing for the Bosch ABS 12-M 2 / 0601945575 / EU 12 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104555.A0 2605104555 -
4 - ON-OFF SWITCH BSD-2607200378.A0 2607200378 -
5 - ADJUSTING SLIDE BSD-2601099066.A2 2601099066 -
20 - REFERENCE PLATE BSD-2601119386.A3 2601119386 -
25 - KEYLESS CHUCK dia 2-13 MM. 3/8 BSD-2608572096.A1 2608572096 -
29 - INSERT PIECE BSD-2605510158.A3 2605510158 -
45 - PLANETARY GEAR TRAIN BSD-2606200065.A2 2606200065 -
45/6 - FLANGE BSD-2605719019.A0 2605719019 -
47 - PINION Z=12 BSD-2610967116.A20 2610967116 £3.72 £4.47
54 - TORX SH CAP SCREW M4x8-4.8-Z BSD-2603414049.A33 2603414049 -
91 - SLIDE-IN ACCU PACKAGE 12V.1.7Ah.NiCd BSD-2607335172.A0 2607335172 -
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A55 2603490018 £1.75 £2.10
102 - RETAINING BRACKET BSD-2601329041.A294 2601329041 £2.33 £2.80
107 - COUNTERSUNK-HEAD SCREW BSD-2603421227.A25 2603421227 -
653 - FAST CHARGER EU 230/7.2-14.4V. 1h BSD-2607224723.A5 2607224723 -
653 - FAST CHARGER EU 230/4.8-14.4V. 12 MIN. BSD-2607224273.A13 2607224273 -
802 - DC MOTOR 9.6-12V BSD-2607022957.A1 2607022957 -
832 - ADJUSTING SLIDE BSD-2601099119.A3 2601099119 £8.49 £10.19
899 - BATT-OPER SCREWDRIVER BSD-0601945572.A2 0601945572 -
