Bosch GSB 12 VE-2 / 0601913520 / EU 12 Volt Spare Parts

Bosch GSB 12 VE-2 / 0601913520 / EU 12 Volt Spare Parts

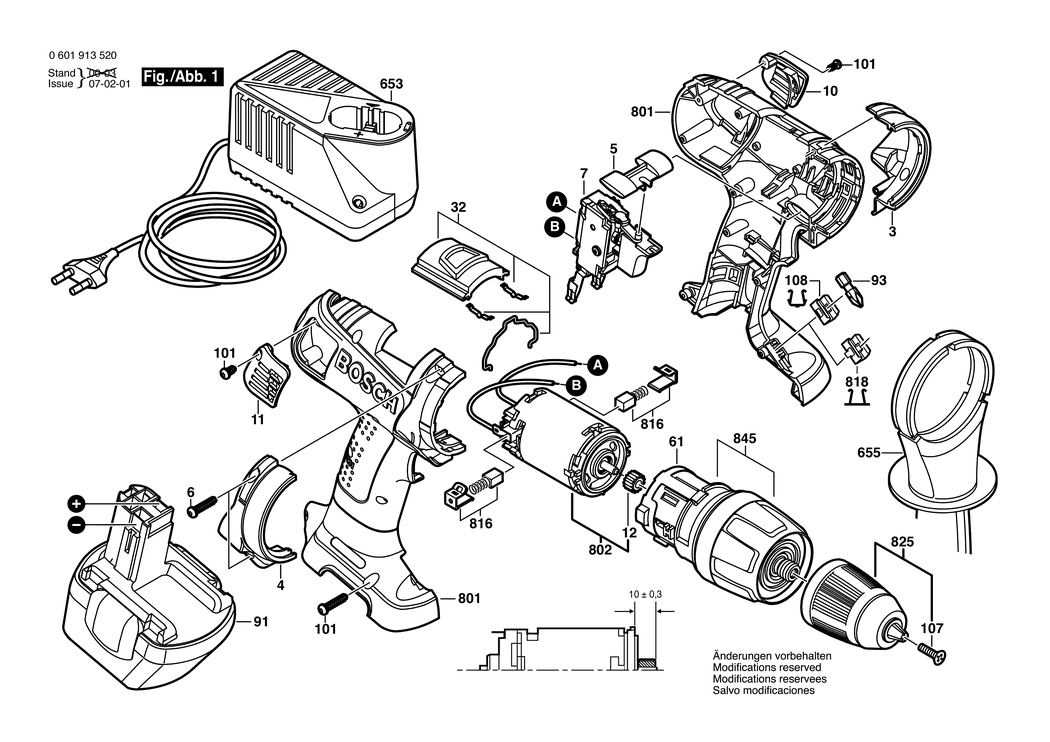

An exploded drawing and listing for the Bosch GSB 12 VE-2 / 0601913520 / EU 12 Volt
Ex VAT Inc VAT
3 - PROTECTIVE CAP BSD-2605500168.A1 2605500168 £10.82 £12.99
4 - PROTECTIVE CAP BSD-2605500169.A4 2605500169 £10.82 £12.99
5 - ADJUSTING SLIDE BSD-2601099112.A1 2601099112 £3.34 £4.01
6 - THREAD-FORMING TAP. SCREW M3x20 BSD-2603410052.A2 2603410052 £1.32 £1.58
7 - ON-OFF SWITCH BSD-2607200456.A0 2607200456 £59.53 £71.44
10 - COVER BSD-2600508051.A6 2600508051 £3.80 £4.56
11 - COVER BSD-2600508052.A5 2600508052 £3.80 £4.56
12 - PINION BSD-2606316224.A4 2606316224 £5.87 £7.04
32 - ADJUSTING SLIDE BSD-2601099127.A6 2601099127 £6.61 £7.93
61 - SUPPORT BSD-2608040190.A9 2608040190 £10.10 £12.12
91 - SLIDE-IN ACCU PACKAGE 12V.2.0Ah.NiMh BSD-2607335697.A5 2607335697 -
91 - SLIDE-IN ACCU PACKAGE 12V.3.0Ah. NiMh BSD-2607335691.A2 2607335691 £167.68 £201.22
91 - SLIDE-IN ACCU PACKAGE 12V.2.6Ah.NiMh BSD-2607335683.A7 2607335683 £154.03 £184.84
93 - SCREWDRIVER BIT BSD-2607000366.A8 2607000366 -
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A27 2603490018 £1.75 £2.10
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A15 2603421229 £1.75 £2.10
108 - SPRING ELEMENT BSD-2604690035.A4 2604690035 £1.75 £2.10
653 - FAST CHARGER USA 120/7.2-24V. 30 MIN. BSD-2607225033.A84 2607225033 -
653 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A9 2607224701 £88.07 £105.68
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A360 2607224425 £88.07 £105.68
653 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN. BSD-2607224703.A202 2607224703 £116.15 £139.38
653 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A85 2607224427 £103.14 £123.77
653 - FAST CHARGER AUS 240/7.2-14.4V. 1h BSD-2607224443.A1 2607224443 -
653 - FAST CHARGER CN 220/7.2-14.4V. 1h BSD-2607224727.A0 2607224727 £88.07 £105.68
655 - AUXILIARY HANDLE BSD-2602025135.A4 2602025135 £21.52 £25.83
801 - HOUSING SECTION BSD-2605105911.A0 2605105911 £57.02 £68.42
802 - DC MOTOR 12V BSD-2607022859.A0 2607022859 -
816 - CARBON-BRUSH SET BSD-2607034904.A31 2607034904 £18.96 £22.75
818 - SPRING ELEMENT BSD-2604690026.A12 2604690026 £1.75 £2.10
825 - KEYLESS CHUCK BSD-2608572900.A9 2608572900 -
845 - PLANETARY GEAR TRAIN BSD-2606200932.A2 2606200932 £179.37 £215.24
