Bosch GSB 12 VE-2 / 0601952552 / GB 12 Volt Spare Parts

Bosch GSB 12 VE-2 / 0601952552 / GB 12 Volt Spare Parts

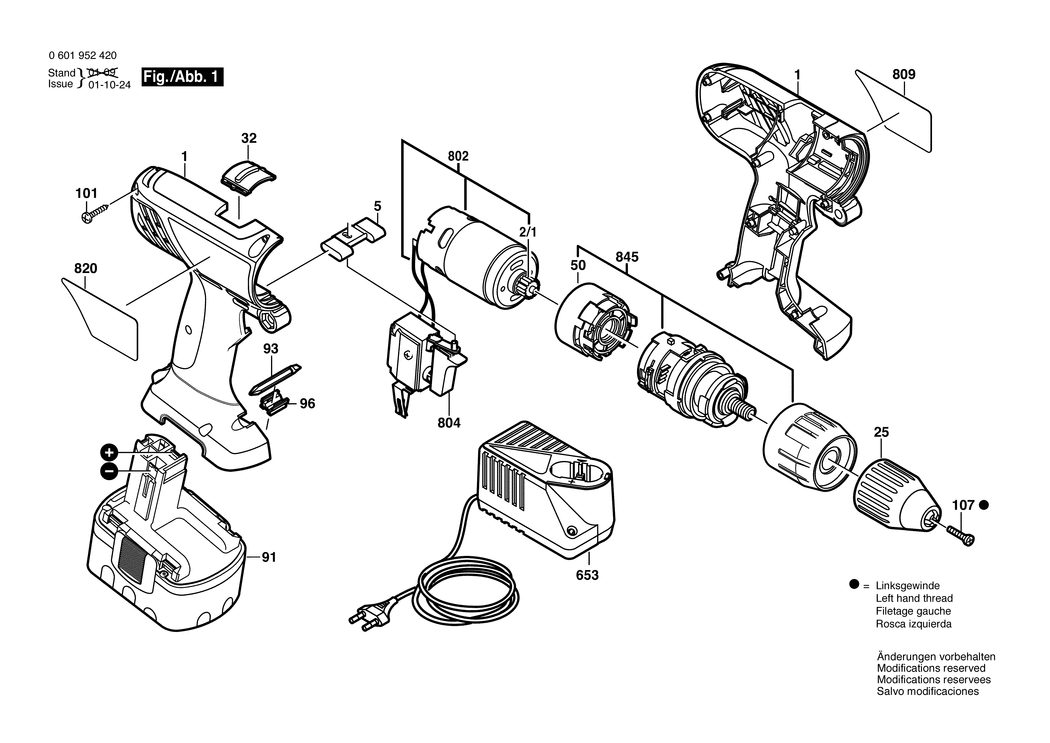

An exploded drawing and listing for the Bosch GSB 12 VE-2 / 0601952552 / GB 12 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605105027.A5 2605105027 £19.45 £23.34
2/1 - PINION Z=19 BSD-2606316180.A11 2606316180 £2.61 £3.13
5 - ADJUSTING SLIDE BSD-2601099085.A62 2601099085 -
25 - KEYLESS CHUCK dia 2-13 MM.1/2 BSD-2608572088.A39 2608572088 £41.62 £49.95
32 - ADJUSTING SLIDE BSD-2601099086.A11 2601099086 £2.16 £2.59
50 - INTERMEDIATE FLANGE BSD-2605719901.A47 2605719901 -
91 - SLIDE-IN ACCU PACKAGE 12V.2.0Ah.NiCd BSD-2607335261.A0 2607335261 -
93 - SCREWDRIVER BLADE BSD-2608521018.A20 2608521018 £5.01 £6.01
96 - SUPPORT BSD-2608040131.A87 2608040131 £1.95 £2.34
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A547 2603490018 £1.75 £2.10
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A352 2603421229 £1.75 £2.10
653 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN. BSD-2607224703.A38 2607224703 £116.15 £139.38
653 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A156 2607224427 £103.14 £123.77
802 - DC MOTOR 12V BSD-2607022875.A4 2607022875 -
804 - ON-OFF SWITCH BSD-2607200421.A17 2607200421 £48.38 £58.06
809 - MANUFACTURER'S NAMEPLATE BSD-2601116140.A4 2601116140 £1.32 £1.58
820 - REFERENCE PLATE BSD-2601116141.A2 2601116141 £1.32 £1.58
845 - PLANETARY GEAR TRAIN BSD-2606200926.A4 2606200926 £80.61 £96.73
899 - CORDLESS IMPACT DRILL BSD-0601952520.A2 0601952520 -
