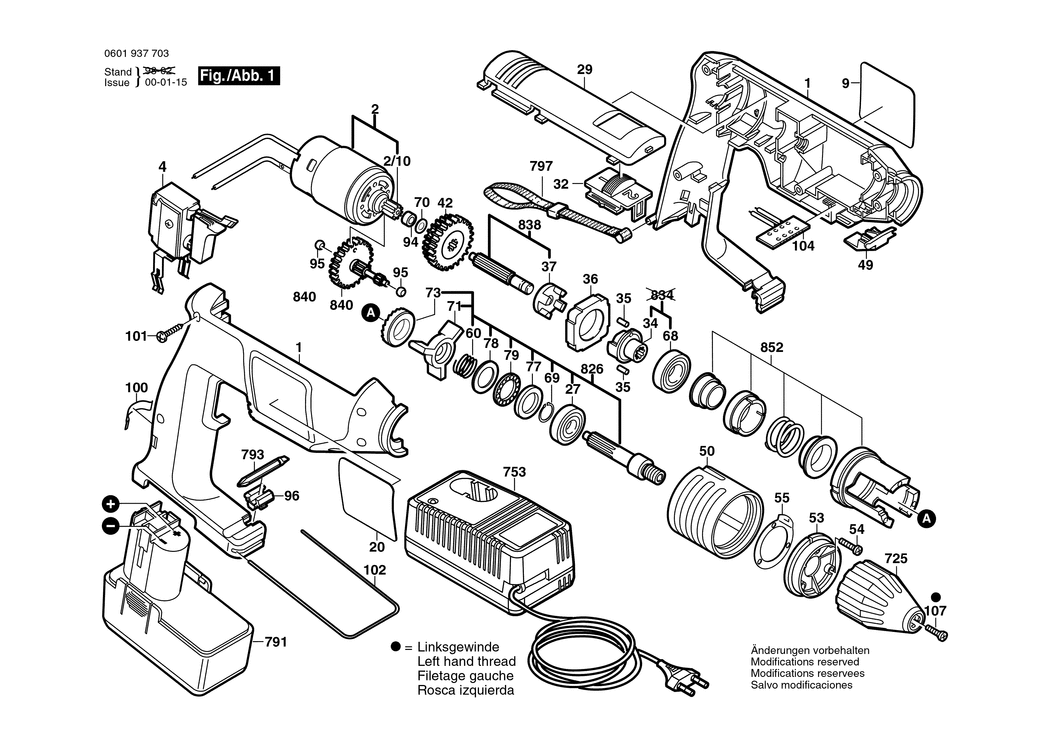

1 - HOUSING SECTION
BSD-2605104424.A19
2605104424
|
-
|
|
|
|
2 - DC MOTOR 9.6V
BSD-2607022929.A3
2607022929
|
-
|
|
|
|
2/10 - PINION Z=14
BSD-2606316144.A3
2606316144
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200393.A26
2607200393
|
£63.50
|
£76.20
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118538.A3
2601118538
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-2601118539.A17
2601118539
|
-
|
|
|
|
27 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A322
1900905120
|
-
|
|
|
|
29 - INSERT PIECE
BSD-2605510136.A39
2605510136
|
-
|
|
|
|
32 - ADJUSTING SLIDE
BSD-2601099056.A38
2601099056
|
-
|
|
|
|
34 - ECCENTRIC
BSD-2602210014.A68
2602210014
|
£12.04
|
£14.45
|
|
|
35 - ROLLER BODY
BSD-2602329024.A129
2602329024
|
-
|
|
|
|
36 - RING
BSD-2600202025.A114
2600202025
|
-
|
|
|
|
37 - CARRIER
BSD-2606440003.A81
2606440003
|
-
|
|
|
|
42 - SET OF GEARS Z=58/67
BSD-1609340007.A13
1609340007
|
£14.91
|
£17.89
|
|
|
49 - INSERT PIECE
BSD-2605510117.A41
2605510117
|
£1.75
|
£2.10
|
|
|
50 - ADJUSTING SCREW
BSD-2605190037.A50
2605190037
|
-
|
|
|
|
53 - CLAMPING SLEEVE
BSD-2608005046.A6
2608005046
|
-
|
|
|
|
54 - THREAD-FORMING TAP. SCREW M4x12 MM
BSD-2603490008.A38
2603490008
|
-
|
|
|
|
55 - LOCATING WASHER
BSD-2600190056.A15
2600190056
|
-
|
|
|
|
60 - COMPRESSION SPRING
BSD-2604618001.A2
2604618001
|
-
|
|
|
|
68 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A245
1900905122
|
£10.10
|
£12.12
|
|
|
69 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A336
2916650001
|
£2.61
|
£3.13
|
|
|
70 - SHIM 1.0 MM
BSD-2600100569.A208
2600100569
|
£1.75
|
£2.10
|
|
|
71 - BACKUP RING
BSD-2600290023.A51
2600290023
|
-
|
|
|
|
73 - CATCH DISK
BSD-2606490060.A16
2606490060
|
-
|
|
|
|
77 - CORRUGATED WASHER
BSD-2600190064.A38
2600190064
|
-
|
|
|
|
78 - THRUST BEARING DISC
BSD-2600101516.A38
2600101516
|
£2.61
|
£3.13
|
|
|
79 - BALL CAGE
BSD-2600923003.A3
2600923003
|
-
|
|
|
|
94 - SINTERED-METAL BUSHING
BSD-2600301011.A120
2600301011
|
£1.75
|
£2.10
|
|
|
95 - SINTERED-METAL BUSHING
BSD-2600302013.A31
2600302013
|
-
|
|
|
|
96 - SUPPORT
BSD-2608040131.A192
2608040131
|
£1.95
|
£2.34
|
|
|
100 - CLAMP SPRING
BSD-2601322016.A209
2601322016
|
£2.52
|
£3.02
|
|
|
101 - SCREW 4x16
BSD-2603490022.A2415
2603490022
|
£1.75
|
£2.10
|
|
|
102 - RETAINING BRACKET
BSD-2601329041.A10
2601329041
|
£2.33
|
£2.80
|
|
|
104 - CONTACT RETAINER
BSD-2608018004.A67
2608018004
|
£5.58
|
£6.70
|
|
|
107 - COUNTERSUNK-HEAD SCREW
BSD-2603421008.A19
2603421008
|
£1.75
|
£2.10
|
|
|
725 - KEYLESS CHUCK dia 1.5-10 MM.1/2
BSD-2608572053.A6
2608572053
|
-
|
|
|
|
753 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A110
2607224425
|
£88.07
|
£105.68
|
|
|
753 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A241
2607224701
|
£88.07
|
£105.68
|
|
|
791 - SLIDE-IN ACCU PACKAGE 9.6V.2.0Ah.NiCd
BSD-2607335149.A18
2607335149
|
-
|
|
|
|
793 - SCREWDRIVER BLADE
BSD-2608521018.A111
2608521018
|
£5.01
|
£6.01
|
|
|
794 - SPIRIT LEVEL
BSD-2607233012.A18
2607233012
|
-
|
|
|
|
797 - CARRYING LOOP
BSD-2601398009.A236
2601398009
|
-
|
|
|
|
826 - DRILLING SPINDLE 1/2. M 6
BSD-2606309928.A38
2606309928
|
-
|
|
|
|
838 - SPLINED SHAFT
BSD-2606309918.A3
2606309918
|
-
|
|
|
|
840 - TOOTHED SHAFT Z= 10/19/63
BSD-2606308914.A40
2606308914
|
-
|
|
|
|
852 - GUIDE SLEEVE
BSD-2600499903.A38
2600499903
|
-
|
|
|
|
899 - BATT-OPER DRILL
BSD-0601937727.A17
0601937727
|
-
|
|
|
