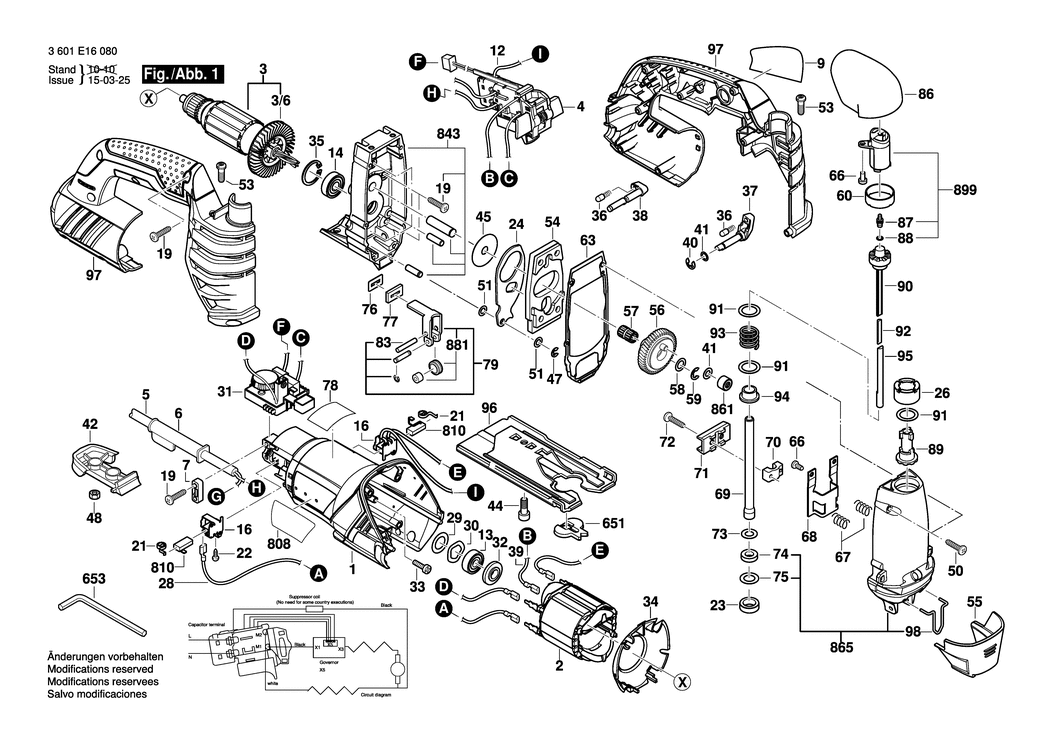

An exploded drawing and listing for the Bosch GST 25 Metal / 3601E16030 / CH 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1619P07202.A1 1619P07202	£14.91	£17.89
2 - FIELD 230V BSD-1619P05382.A1 1619P05382	£18.96	£22.75
3 - ARMATURE 230V BSD-1619P05282.A1 1619P05282	£37.27	£44.72
3/6 - FAN BSD-1619P05243.A2 1619P05243	£1.75	£2.10
4 - SWITCH BSD-1619P07688.A0 1619P07688	£16.41	£19.69
5 - POWER SUPPLY CORD CH 2.65m 2x1 H05 RN-F BSD-1604460475.A0 1604460475	£13.12	£15.75
6 - GROMMET dia 7mm BSD-1619P14642.A5 1619P14642	£1.75	£2.10
7 - CABLE CLIP BSD-2601035001.A773 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1619P31108.A2 1619P31108	£2.61	£3.13
12 - SUPPRESSION FILTER BSD-1619P08938.A1 1619P08938	£2.16	£2.59
13 - BALL BEARING 7x22x7 BSD-1900905018.A936 1900905018	£18.96	£22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905005.A1 1610905005	£14.91	£17.89
16 - BRUSH HOLDER BSD-1600A003G4.A305 1600A003G4	£3.72	£4.47
19 - SCREW 4x16 BSD-2603490022.A656 2603490022	£1.75	£2.10
21 - SPIRAL SPRING BSD-2604652009.A257 2604652009	£1.75	£2.10
22 - TORX OVAL-HEAD SCREW 3x10 BSD-1619P00220.A78 1619P00220	£1.75	£2.10
23 - RETAINING SNAP RING BSD-1619P07541.A2 1619P07541	£1.75	£2.10
24 - FORK LEVER BSD-1619P07190.A1 1619P07190	£2.80	£3.36
26 - SCREW CAP BSD-1619P07542.A1 1619P07542	£3.72	£4.47
28 - CONNECTING CABLE L=88 MM BSD-2604448034.A260 2604448034	£1.75	£2.10
29 - SHIM WASHER 0.3 MM BSD-2600101027.A103 2600101027	£1.75	£2.10
30 - SHIM BSD-2600150004.A249 2600150004	£2.16	£2.59
31 - SPEED GOVERNOR BSD-1619P07418.A0 1619P07418	£27.23	£32.68
32 - MAGNETIC DISK BSD-2600290060.A1 2600290060	£2.80	£3.36
33 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A87 2603435015	£2.16	£2.59
34 - COVER DISC BSD-1619P07186.A1 1619P07186	£1.75	£2.10
35 - SPRING RETAINING RING BSD-1619P00428.A1 1619P00428	£1.75	£2.10
36 - RATCHET CAP BSD-2600590006.A1044 2600590006	£1.75	£2.10
37 - ROTARY KNOB BSD-1619P07193.A1 1619P07193	£4.26	£5.11
38 - ROTARY KNOB BSD-1619P07188.A2 1619P07188	£1.75	£2.10
39 - CONNECTING CABLE BSD-1619P08820.A1 1619P08820	£1.75	£2.10
40 - LOCKING WASHER BSD-1619P00444.A3 1619P00444	£1.75	£2.10
41 - SHIM 0.5 MM BSD-2600100568.A296 2600100568	£1.75	£2.10
42 - FAN COVER BSD-1619P07205.A2 1619P07205	£1.75	£2.10
44 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A108 2910141197	£1.75	£2.10
45 - SHIM BSD-1619P07596.A2 1619P07596	£1.75	£2.10
47 - LOCKING WASHER 4 DIN 6799 BSD-2916080907.A23 2916080907	£2.16	£2.59
48 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1473 2915011007	-
50 - THREAD-FORMING TAP. SCREW BSD-1619P07546.A1 1619P07546	£1.75	£2.10
51 - SHIM 0.3 MM BSD-2600100515.A186 2600100515	£2.61	£3.13
53 - THREAD-FORMING TAP. SCREW BSD-1619P07650.A3 1619P07650	£1.75	£2.10
54 - COUNTERWEIGHT BSD-1619P07191.A2 1619P07191	£14.91	£17.89
55 - COVERING HOOD BSD-1619P08936.A1 1619P08936	£1.75	£2.10
56 - ECCENTRIC COG WHEEL BSD-1619P07192.A1 1619P07192	£21.52	£25.83
57 - NEEDLE-ROLLER ASSEMBLY BSD-2600913040.A33 2600913040	£5.58	£6.70
58 - SHIM 0.3 MM BSD-2600101047.A373 2600101047	£1.75	£2.10
59 - SPRING RETAINING RING 8x0.8 N31A MR7 BSD-2916640905.A58 2916640905	£1.75	£2.10
60 - RING BSD-1619P08926.A2 1619P08926	£1.75	£2.10
63 - SEAL BSD-1619P07194.A1 1619P07194	£1.75	£2.10
66 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A309 2603410048	£1.75	£2.10
67 - COMPRESSION SPRING BSD-2604613000.A147 2604613000	£1.75	£2.10
68 - GUIDE BRACKET BSD-1616B00224.A190 1616B00224	£11.32	£13.58
69 - LIFTING ROD BSD-1619P12765.A4 1619P12765	£16.41	£19.69
70 - CLAMPING SADDLE BSD-1619P06451.A2 1619P06451	£1.75	£2.10
71 - SLIDING PIECE BSD-1619P12767.A9 1619P12767	£9.47	£11.36
72 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A131 2603421040	£1.75	£2.10
73 - SUPPORTING DISC 0.5 MM BSD-2600112031.A1 2600112031	£1.75	£2.10
74 - SEAL RING 0.5 MM BSD-2600290017.A130 2600290017	£1.75	£2.10
75 - SHIM 0.5 MM BSD-2600101612.A98 2600101612	£1.75	£2.10
76 - FIXING PLATE BSD-1619P07544.A0 1619P07544	£1.75	£2.10
77 - SEALING PLATE BSD-1619P07545.A3 1619P07545	£1.75	£2.10
78 - STICKER BSD-1619P07597.A0 1619P07597	£2.61	£3.13
79 - ROLLER LEVER BSD-1619P07318.A2 1619P07318	£16.41	£19.69
83 - STRAIGHT PIN DIN 6325-4M6x24 BSD-2917530101.A37 2917530101	£2.80	£3.36
86 - ROTARY HANDLE BSD-1619P07543.A3 1619P07543	£14.91	£17.89
87 - CARRIER BRACKET BSD-2600423006.A32 2600423006	£1.75	£2.10
88 - O-RING BSD-1619P06265.A2 1619P06265	£1.75	£2.10
89 - RATCHET BSD-2606491011.A33 2606491011	£2.61	£3.13
90 - COUPLING HALF BSD-2606491014.A23 2606491014	£7.36	£8.83
91 - SHIM BSD-1619P00446.A1 1619P00446	£1.75	£2.10
92 - COMPRESSION SPRING BSD-2604610040.A3 2604610040	£1.75	£2.10
93 - COMPRESSION SPRING BSD-2604617004.A31 2604617004	£2.16	£2.59
94 - GUIDE SLEEVE BSD-2600421001.A33 2600421001	£1.75	£2.10
95 - CLAMP SCREW BSD-2603490011.A26 2603490011	£6.52	£7.83
96 - BASE PLATE BSD-1619P07199.A0 1619P07199	£12.04	£14.45
97 - SET OF HANDLES BSD-1619P07200.A3 1619P07200	£18.96	£22.75
98 - PROTECTIVE COVER BSD-1619P07196.A3 1619P07196	£1.75	£2.10
651 - SPLINTERING PROTECTOR BSD-2601016065.A51 2601016065	£5.30	£6.36
653 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A573 1907950006	£4.26	£5.11
808 - NAMEPLATE BSD-1619P08865.A0 1619P08865	£2.33	£2.80
810 - CARBON-BRUSH SET BSD-2604320912.A1 2604320912	£10.10	£12.12
810 - CARBON-BRUSH SET 10 x 2 604 320 912 BSD-1607000486.A16 1607000486	£63.50	£76.20
843 - GEAR HOUSING BSD-1619P09136.A0 1619P09136	£40.80	£48.96
861 - NEEDLE BEARING BSD-2600917900.A305 2600917900	£8.67	£10.41
865 - GEAR COVER BSD-1619P09137.A3 1619P09137	£31.64	£37.97
881 - GUIDE ROLLER SET BSD-1619P09138.A0 1619P09138	£7.36	£8.83
899 - RATCHET BSD-1619P09139.A3 1619P09139	£2.80	£3.36
