Bosch GST 85 PB / 0601587142 / GB 240 Volt Spare Parts

Home Details Reviews Delivery

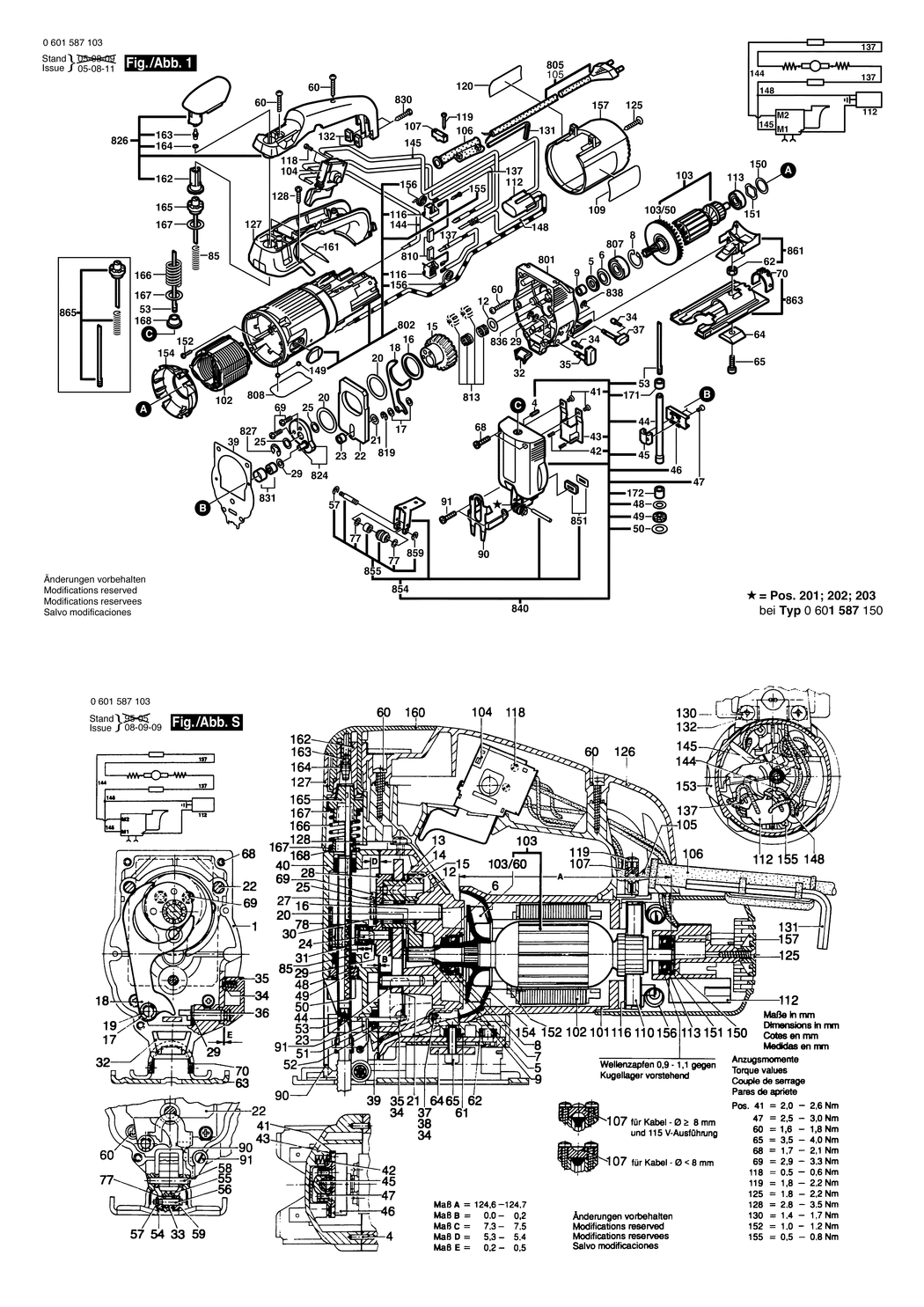

An exploded drawing and listing for the Bosch GST 85 PB / 0601587142 / GB 240 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A343 1903201042	£2.16	£2.59
5 - FELT WASHER BSD-2600108077.A232 2600108077	£1.75	£2.10
6 - CUPPED WASHER BSD-2600500002.A231 2600500002	£1.75	£2.10
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A574 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A11 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A442 2600101616	-
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A50 1619P02581	£21.68	£26.01
16 - SHIM 1.0 MM BSD-2600102653.A148 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A190 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A46 2600100516	£2.16	£2.59
18 - FORK LEVER BSD-2601923004.A64 2601923004	£2.80	£3.36
20 - SHIM 0.5 MM BSD-2600102652.A79 2600102652	£1.75	£2.10
21 - SHIM 0.1 MM BSD-2600100625.A103 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A125 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A131 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A149 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A0 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A73 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A231 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A59 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A233 2600100577	£1.75	£2.10
29 - SHIM 0.5 MM BSD-2600100568.A216 2600100568	£1.75	£2.10
29 - SHIM 1.0 MM BSD-2600100569.A59 2600100569	£1.75	£2.10
29 - SHIM 0.3 MM BSD-2600100607.A680 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A11 2602305042	£1.75	£2.10
34 - RATCHET CAP BSD-2600590006.A836 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A87 2602026036	-
37 - ROTARY KNOB BSD-2602026037.A97 2602026037	£2.80	£3.36
39 - SEAL BSD-2601015050.A46 2601015050	£2.61	£3.13
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A286 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A177 2604613000	£1.75	£2.10
43 - GUIDE BRACKET BSD-1616B00224.A141 1616B00224	£11.32	£13.58
44 - LIFTING ROD BSD-1619P12765.A45 1619P12765	£16.41	£19.69
45 - CLAMPING SADDLE BSD-2602329011.A219 2602329011	£4.75	£5.70
46 - SLIDING PIECE BSD-1619P12767.A12 1619P12767	£9.47	£11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A66 2603421040	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A66 2600112031	£1.75	£2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A68 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A0 2600101612	£1.75	£2.10
53 - CLAMP SCREW BSD-2603490011.A29 2603490011	£6.52	£7.83
57 - LOCKING WASHER BSD-2600116011.A92 2600116011	£2.16	£2.59
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A452 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1143 2915011007	-
64 - PROFILE BEADING BSD-2601030019.A153 2601030019	£2.61	£3.13
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A43 2910141197	£1.75	£2.10
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A148 2603410049	£1.75	£2.10
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A164 2914551176	£1.75	£2.10
70 - SCALE PLATE BSD-2601328044.A145 2601328044	£2.61	£3.13
77 - SHIM 0.2 MM BSD-2600100032.A82 2600100032	£1.75	£2.10
85 - COMPRESSION SPRING BSD-2604610040.A15 2604610040	£1.75	£2.10
90 - SAFETY DEVICE BSD-2601322021.A99 2601322021	£4.26	£5.11
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A297 2910011128	£1.75	£2.10
102 - FIELD 220-240V BSD-2604220709.A6 2604220709	£27.23	£32.68
103 - ARMATURE 230-240V BSD-2604010578.A64 2604010578	£48.38	£58.06
103/50 - FAN BSD-2606610049.A483 2606610049	£2.16	£2.59
104 - SWITCH BSD-2607200260.A32 2607200260	£11.30	£13.56
105 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460168.A22 2604460168	£21.52	£25.83
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A83 2600703027	£1.75	£2.10
107 - CABLE CLIP BSD-2601035001.A216 2601035001	£1.75	£2.10
109 - MANUFACTURER'S NAMEPLATE BSD-2601118485.A1 2601118485	-
112 - SUPPRESSION FILTER BSD-2607329129.A30 2607329129	£9.49	£11.39
113 - BALL BEARING 7x22x7 BSD-1900905018.A845 1900905018	£18.96	£22.75
116 - BRUSH HOLDER BSD-1600A003G4.A303 1600A003G4	£3.72	£4.47
116 - BRUSH HOLDER BSD-2601323022.A78 2601323022	£2.80	£3.36
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A126 2603410001	£1.75	£2.10
119 - SCREW 4x16 BSD-2603490022.A1551 2603490022	£1.75	£2.10
120 - REFERENCE PLATE BSD-2601118526.A13 2601118526	-
125 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A156 2910601321	-
127 - STRAP-SHAPED HANDLE BSD-2602025060.A1 2602025060	£12.04	£14.45
128 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A100 2603410054	£2.61	£3.13
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A416 1907950006	£4.26	£5.11
132 - SQUARE NUT M4 BSD-2603320001.A11 2603320001	£1.75	£2.10
137 - SUPPRESSION FILTER BSD-1619P15513.A40 1619P15513	£4.75	£5.70
144 - CABLE L=233 MM BSD-1614431010.A139 1614431010	£3.72	£4.47
145 - CABLE L = 238 MM BSD-2604448160.A0 2604448160	£2.52	£3.02
148 - INSULATION TUBING BSD-2600409017.A104 2600409017	£1.75	£2.10
149 - PLUG BSD-2603231032.A107 2603231032	-
150 - SHIM WASHER 0.3 MM BSD-2600101027.A53 2600101027	£1.75	£2.10
151 - SHIM BSD-2600150004.A141 2600150004	£2.16	£2.59
152 - TAPPING SCREW BSD-2603435086.A305 2603435086	£1.75	£2.10
154 - COVER DISC BSD-2601328045.A1 2601328045	£2.16	£2.59
155 - SCREW 4x16 BSD-2603490022.A1555 2603490022	£1.75	£2.10
156 - SPIRAL SPRING BSD-2604652009.A251 2604652009	£1.75	£2.10
157 - HOUSING COVER BSD-2600508038.A20 2600508038	-
161 - STICKER BSD-2601118525.A2 2601118525	£2.33	£2.80
162 - RATCHET BSD-2606491011.A34 2606491011	£2.61	£3.13
163 - CARRIER BRACKET BSD-2600423006.A31 2600423006	£1.75	£2.10
164 - O-RING 4.0x1.0 MM BSD-1600210034.A105 1600210034	£1.75	£2.10
165 - COUPLING HALF BSD-2606491014.A22 2606491014	£7.36	£8.83
166 - COMPRESSION SPRING BSD-2604617004.A36 2604617004	£2.16	£2.59
167 - PLAIN WASHER 0.5 MM BSD-1600101603.A38 1600101603	£1.95	£2.34
168 - GUIDE SLEEVE BSD-2600421001.A34 2600421001	£1.75	£2.10
171 - SINTERED-METAL BUSHING BSD-2600301046.A79 2600301046	£3.72	£4.47
172 - BUSHING BSD-2600301045.A148 2600301045	£2.80	£3.36
201 - SAFETY DEVICE BSD-2601322021.A98 2601322021	£4.26	£5.11
801 - GEAR HOUSING BSD-2605808917.A55 2605808917	£63.50	£76.20
802 - MOTOR HOUSING BSD-2605108904.A131 2605108904	£23.86	£28.63
807 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A2 2600905039	£12.04	£14.45
808 - NAMEPLATE BSD-160111A3H3.A991 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2604320912.A68 2604320912	£10.10	£12.12
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A136 2607001130	£5.58	£6.70
819 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A272 2916080007	£2.61	£3.13
824 - ECCENTRIC DISC BSD-2601072901.A58 2601072901	£7.36	£8.83
826 - STRAP-SHAPED HANDLE BSD-2602025901.A3 2602025901	£12.04	£14.45
827 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A357 2916080910	£2.16	£2.59
830 - SCREW AND WASHER ASSEMBLY M 4x20 MM BSD-2914501021.A87 2914501021	£1.75	£2.10
831 - NEEDLE BEARING BSD-2600917900.A247 2600917900	£8.67	£10.41
836 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A123 2916080008	-
838 - SPRING RETAINING RING BSD-2600116009.A27 2600116009	£1.75	£2.10
840 - GEAR COVER BSD-2605808921.A35 2605808921	£81.81	£98.17
851 - SEALING PLATE BSD-2601015901.A74 2601015901	£2.80	£3.36
854 - ROLLER LEVER BSD-2601321902.A52 2601321902	-
855 - ROLLER SET BSD-1619P01375.A84 1619P01375	£11.30	£13.56
859 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A203 2916080005	-
861 - FAN COVER BSD-2605500900.A1 2605500900	£4.26	£5.11
863 - BASE PLATE BSD-2601016903.A124 2601016903	£16.41	£19.69
865 - MODIFICATION SET 100-240V BSD-2606491917.A62 2606491917	£21.52	£25.83

Attribute Name	Value
Brand	Bosch
