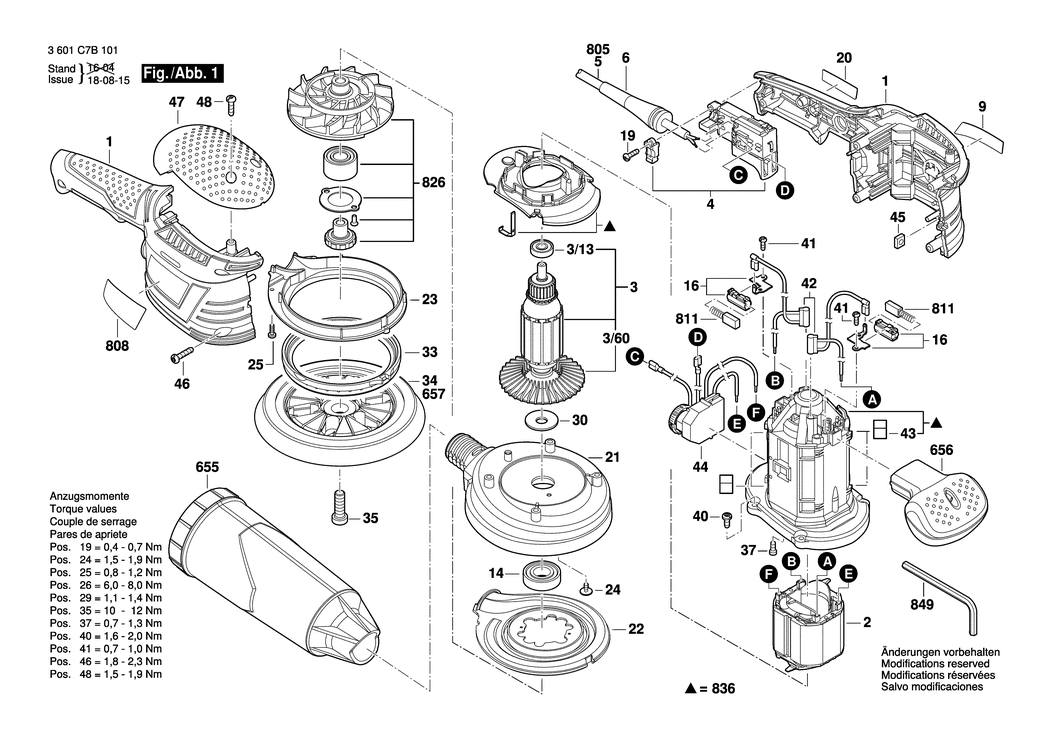

An exploded drawing and listing for the Bosch GEX 125-150 AVE / 3601C7B131 / GB 110 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605105964.A16 2605105964 £37.27 £44.72
2 - FIELD 220-240V BSD-2604220743.A2 2604220743 £37.27 £44.72
3 - ARMATURE 220-240V BSD-2604011434.A2 2604011434 £72.18 £86.62
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A667 1610905025 £6.52 £7.83
3/60 - FAN BSD-2606610076.A14 2606610076 £3.72 £4.47
4 - SWITCH BSD-2607200688.A32 2607200688 £16.41 £19.69
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460401.A23 1604460401 £19.45 £23.34
6 - GROMMET dia6.4-dia7.2x120 MM BSD-2600703069.A10 2600703069 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE GEX 125-150 AVE BSD-2601111850.A6 2601111850 £2.80 £3.36
14 - GROOVE BALL BEARING BSD-2600905034.A73 2600905034 £13.12 £15.75
16 - BRUSH HOLDER BSD-2604337003.A138 2604337003 £2.16 £2.59
19 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A46 2603490017 £2.16 £2.59
20 - REFERENCE PLATE BSD-2601111477.A18 2601111477 £2.61 £3.13
21 - SUCTION HOOD BSD-2600283022.A4 2600283022 £31.64 £37.97
22 - SUCTION PIECE BSD-2601328091.A9 2601328091 £11.30 £13.56
23 - SUCTION PIECE BSD-2601328090.A4 2601328090 £8.67 £10.41
24 - SPECIAL SCREW BSD-1600A00RD6.A6 1600A00RD6 £1.75 £2.10
25 - TORX OVAL-HEAD SCREW M3x10 BSD-2603435096.A4 2603435096 £2.16 £2.59
30 - PLAIN WASHER DIN 315-M8-GT-C BSD-2600100041.A291 2600100041 £1.75 £2.10
33 - FRICTION RING BSD-2600206028.A3 2600206028 £11.30 £13.56
34 - BACKING PAD dia150 BSD-2608601106.A26 2608601106 £33.74 £40.49
35 - HEX SOCKET HEAD CAP SCREW DIN 7984-M8x25-8.8 BSD-1600A015G7.A23 1600A015G7 £1.75 £2.10
37 - TAPPING SCREW BSD-2603435086.A118 2603435086 £1.75 £2.10
40 - THREAD-FORMING TAP. SCREW BSD-2603435042.A55 2603435042 £1.75 £2.10
41 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A47 2603490017 £2.16 £2.59
42 - SUPPRESSOR BOX BSD-2604465115.A5 2604465115 £7.36 £8.83
43 - DAMPING ELEMENT BSD-2603203041.A16 2603203041 £1.75 £2.10
44 - SPEED GOVERNOR 230V BSD-1607233439.A1 1607233439 £54.42 £65.30
45 - SQUARE NUT DIN 562-M6-04 BSD-2915121006.A53 2915121006 £2.61 £3.13
46 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A9 2603490023 £1.75 £2.10
47 - HOUSING COVER BSD-2605500208.A5 2605500208 £12.04 £14.45
48 - SCREW 4x16 BSD-2603490022.A3237 2603490022 £1.75 £2.10
655 - DUST CHAMBER BSD-2605411228.A2 2605411228 £45.67 £54.80
656 - AUXILIARY HANDLE BSD-2602026175.A3 2602026175 £16.41 £19.69
657 - BACKING PAD dia125 BSD-2600120052.A3 2600120052 £40.80 £48.96
808 - NAMEPLATE BSD-160111A34N.A0 160111A34N -
811 - CARBON BRUSH BSD-1607014117.A230 1607014117 £10.10 £12.12
826 - FAN BSD-2606610903.A8 2606610903 £54.42 £65.30
836 - MOTOR HOUSING BSD-2605105966.A7 2605105966 £23.86 £28.63
849 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A921 1907950006 £4.26 £5.11
