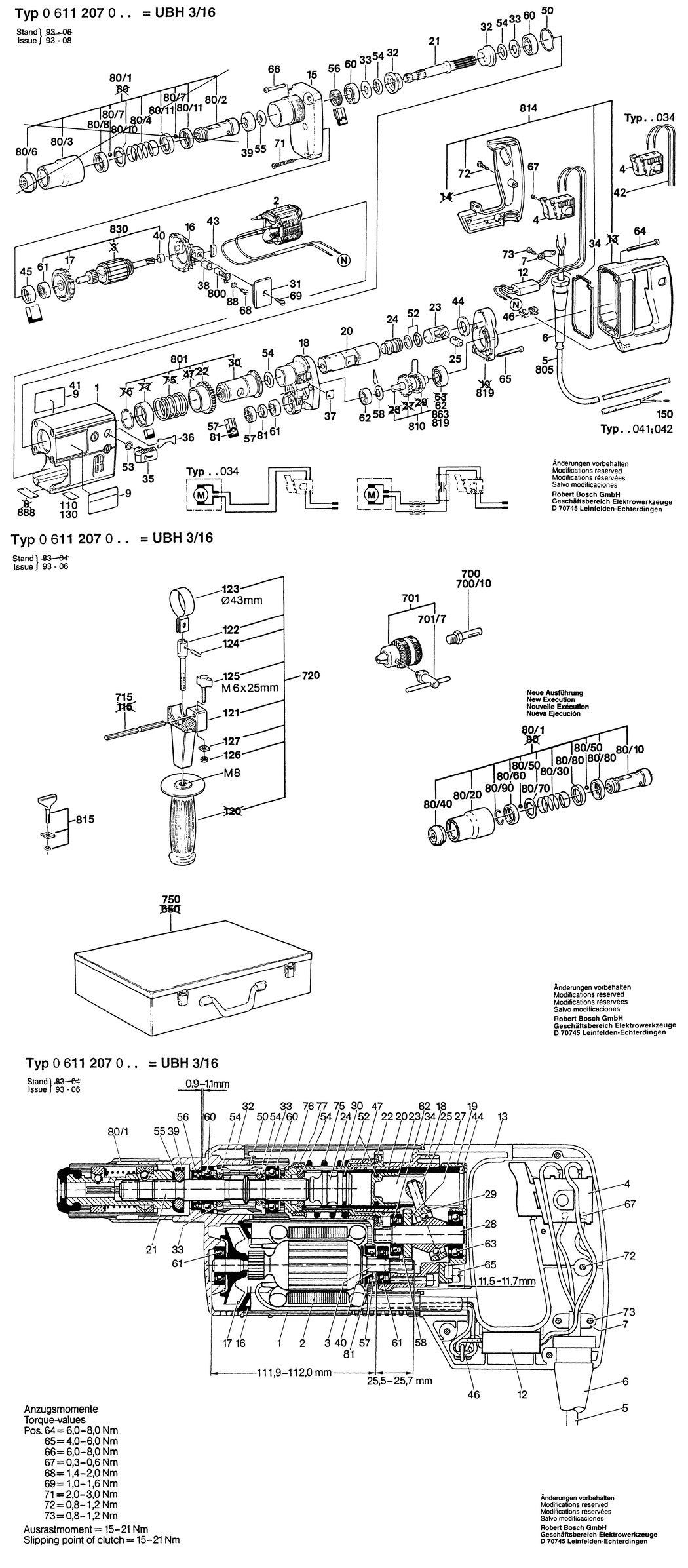

1 - MOTOR HOUSING
BSD-1615108008.A7
1615108008
|
-
|
|
|
|
2 - POLE SHOE 220V
BSD-1614220065.A1
1614220065
|
-
|
|
|
|
4 - SWITCH
BSD-2607200110.A9
2607200110
|
-
|
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1488
3600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A633
1601302014
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110155.A0
1611110155
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1617328020.A18
1617328020
|
-
|
|
|
|
15 - HOUSING COVER
BSD-1615500277.A6
1615500277
|
-
|
|
|
|
16 - AIR-DEFLECTOR RING
BSD-1615820059.A29
1615820059
|
-
|
|
|
|
17 - FAN
BSD-2606610059.A17
2606610059
|
-
|
|
|
|
18 - BEARING PEDESTAL
BSD-1615820058.A0
1615820058
|
-
|
|
|
|
20 - GUIDE TUBE
BSD-1615806031.A0
1615806031
|
-
|
|
|
|
21 - DRILLING SPINDLE
BSD-1618597030.A1
1618597030
|
-
|
|
|
|
23 - HAMMER PISTON
BSD-1618700045.A17
1618700045
|
-
|
|
|
|
24 - STRIKER PIN
BSD-1618710040.A17
1618710040
|
-
|
|
|
|
25 - PISTON PIN
BSD-1613105012.A0
1613105012
|
£3.72
|
£4.47
|
|
|
31 - SEALING CAP
BSD-1615500278.A12
1615500278
|
-
|
|
|
|
32 - SPACER BUSHING
BSD-1610329000.A16
1610329000
|
-
|
|
|
|
33 - SUPPORTING DISC 2.0 MM
BSD-1610101611.A0
1610101611
|
-
|
|
|
|
34 - SEALING FRAME
BSD-1611015022.A0
1611015022
|
-
|
|
|
|
35 - CLAMP HANDLE
BSD-1612026017.A2
1612026017
|
-
|
|
|
|
36 - HOLDING SPRING
BSD-1614680002.A1
1614680002
|
-
|
|
|
|
37 - SEALING PLATE
BSD-1611031004.A27
1611031004
|
-
|
|
|
|
38 - BRUSH HOLDER
BSD-1614336003.A17
1614336003
|
-
|
|
|
|
39 - BACKUP RING
BSD-1610508006.A0
1610508006
|
-
|
|
|
|
40 - INTERMEDIATE RING
BSD-1610200011.A28
1610200011
|
-
|
|
|
|
42 - CONNECTING CABLE
BSD-1614431011.A4
1614431011
|
-
|
|
|
|
43 - RUBBER BUFFER
BSD-1611091004.A8
1611091004
|
-
|
|
|
|
44 - RUBBER RING
BSD-1610109015.A0
1610109015
|
-
|
|
|
|
45 - RUBBER RING
BSD-1610206017.A6
1610206017
|
-
|
|
|
|
46 - CONTACT SPRING
BSD-1611329003.A2
1611329003
|
-
|
|
|
|
50 - O-RING 33.0x3.5 MM
BSD-1610210087.A23
1610210087
|
£1.75
|
£2.10
|
|
|
52 - O-RING 16.0x3.15 MM
BSD-1610210038.A27
1610210038
|
-
|
|
|
|
53 - O-RING 10.5x2.7 MM
BSD-1610210046.A244
1610210046
|
£2.16
|
£2.59
|
|
|
54 - O-RING 16.0x5.0 MM
BSD-1610210040.A2
1610210040
|
-
|
|
|
|
55 - O-RING 11.0x7.0 MM
BSD-1610210035.A2
1610210035
|
£2.52
|
£3.02
|
|
|
56 - ROTARY SHAFT LIP SEAL dia 26x15x7.5 MM
BSD-1610283015.A13
1610283015
|
£4.75
|
£5.70
|
|
|
57 - ROTARY SHAFT LIP SEAL dia13.8xdia26x7.5 MM
BSD-1610283014.A57
1610283014
|
-
|
|
|
|
58 - DISC SPRING
BSD-1610550026.A0
1610550026
|
-
|
|
|
|
60 - GROOVE BALL BEARING 15x32x9
BSD-1900900272.A42
1900900272
|
-
|
|
|
|
61 - BALL BEARING 9x26x8
BSD-1900905025.A125
1900905025
|
£21.52
|
£25.83
|
|
|
62 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A0
1900900287
|
£21.68
|
£26.01
|
|
|
64 - HEX SOCKET HEAD CAP SCREW M 5x50 DIN 912-8.8
BSD-2910141174.A27
2910141174
|
£2.33
|
£2.80
|
|
|
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8
BSD-2910141168.A25
2910141168
|
£3.80
|
£4.56
|
|
|
66 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8
BSD-2910141168.A26
2910141168
|
£3.80
|
£4.56
|
|
|
67 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1352
2603410001
|
£1.75
|
£2.10
|
|
|
68 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1479
2910021118
|
£1.75
|
£2.10
|
|
|
69 - TAPPING SCREW DIN 7972-B3.9x13
BSD-2910601118.A108
2910601118
|
£1.75
|
£2.10
|
|
|
71 - TAPPING SCREW DIN 7971-ST4.8x38-F
BSD-2910211038.A118
2910211038
|
£1.75
|
£2.10
|
|
|
72 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A873
2910211021
|
£1.75
|
£2.10
|
|
|
73 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A20
2910211018
|
£1.75
|
£2.10
|
|
|
80/1 - BIT HOLDER
BSD-1618598131.A42
1618598131
|
-
|
|
|
|
80/20 - PROTECTION SLEEVE
BSD-1610499009.A38
1610499009
|
-
|
|
|
|
80/30 - COMPRESSION SPRING
BSD-1614632000.A2
1614632000
|
-
|
|
|
|
80/40 - PROTECTIVE CAP L=17 MM. SDS-PLUS
BSD-1610508008.A331
1610508008
|
£2.16
|
£2.59
|
|
|
80/50 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A35
1903230013
|
£2.16
|
£2.59
|
|
|
80/60 - THRUST RING
BSD-1610251002.A48
1610251002
|
-
|
|
|
|
80/70 - HOLDING PLATE
BSD-1610190007.A38
1610190007
|
-
|
|
|
|
80/80 - RETAINING SNAP RING
BSD-1610250003.A0
1610250003
|
£5.58
|
£6.70
|
|
|
80/90 - RETAINING RING DIN 7993-A22
BSD-2916540012.A3
2916540012
|
-
|
|
|
|
81 - LUBRICATING FELT
BSD-1610205003.A8
1610205003
|
-
|
|
|
|
121 - SUPPORT CLAMP
BSD-1618040077.A121
1618040077
|
-
|
|
|
|
122 - STUD BOLT M8
BSD-1613521001.A179
1613521001
|
£5.58
|
£6.70
|
|
|
123 - CLAMPING BAND dia43 MM
BSD-1611316003.A160
1611316003
|
£2.61
|
£3.13
|
|
|
124 - STRAIGHT PIN
BSD-1613100012.A179
1613100012
|
£2.61
|
£3.13
|
|
|
125 - WING SCREW M6x25 MM
BSD-1613480009.A122
1613480009
|
£1.88
|
£2.25
|
|
|
126 - HEX NUT M6
BSD-1613300006.A138
1613300006
|
£1.32
|
£1.58
|
|
|
127 - CLAMPING PLATE
BSD-1611030009.A87
1611030009
|
-
|
|
|
|
700 - DRILL CHUCK SHANK
BSD-1617000132.A170
1617000132
|
£16.84
|
£20.21
|
|
|
700/10 - COUNTERSUNK-HEAD SCREW M6x27
BSD-2603421226.A39
2603421226
|
£1.75
|
£2.10
|
|
|
701 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A211
1608571069
|
£23.86
|
£28.63
|
|
|
701/7 - CHUCK WRENCH SG2. SW4
BSD-1607950044.A48
1607950044
|
£6.12
|
£7.34
|
|
|
715 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A659
1613001009
|
£3.72
|
£4.47
|
|
|
720 - AUXILIARY HANDLE
BSD-1612025020.A84
1612025020
|
£26.12
|
£31.35
|
|
|
750 - CARRYING CASE
BSD-1615438075.A3
1615438075
|
-
|
|
|
|
800 - CARBON BRUSH
BSD-1617014118.A10
1617014118
|
-
|
|
|
|
801 - OVERLOAD CLUTCH
BSD-1617031017.A19
1617031017
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A390
1607000227
|
£23.86
|
£28.63
|
|
|
810 - ASSEMBLY OF SERVICE PARTS
BSD-1617000902.A2
1617000902
|
-
|
|
|
|
814 - PARTS SET
BSD-1617000924.A22
1617000924
|
-
|
|
|
|
815 - PARTS SET
BSD-1617000038.A38
1617000038
|
-
|
|
|
|
819 - PARTS SET
BSD-1617000926.A19
1617000926
|
-
|
|
|
|
830 - ARMATURE WITH FAN 220V
BSD-1614010031.A4
1614010031
|
-
|
|
|
|
863 - GROOVE BALL BEARING 12x32x10
BSD-1900900302.A123
1900900302
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2864
160111A3H3
|
£2.61
|
£3.13
|
|
