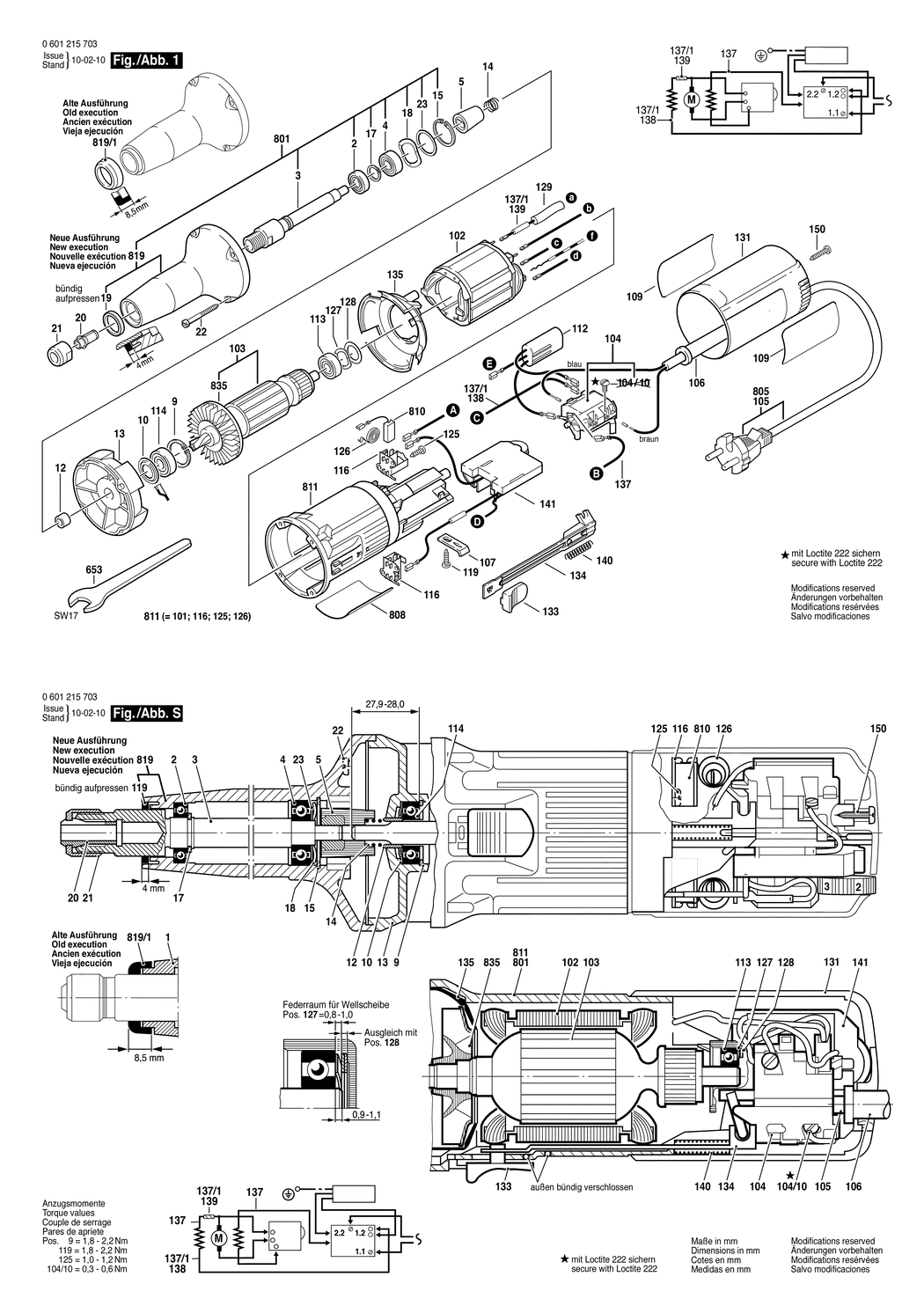

An exploded drawing and listing for the Bosch GGS 27 LC / 0601215742 / GB 240 Volt
Ex VAT Inc VAT
2 - GROOVE BALL BEARING BSD-3600900020.A10 3600900020 £13.12 £15.75
3 - GRINDING SPINDLE M15x1. SW17 BSD-3603523008.A6 3603523008 £81.81 £98.17
4 - GROOVE BALL BEARING BSD-3600900021.A17 3600900021 £21.52 £25.83
5 - COUPLING HALF BSD-2606446002.A26 2606446002 £8.67 £10.41
9 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A305 2916660008 £2.16 £2.59
10 - CUPPED WASHER BSD-2600500002.A577 2600500002 £1.75 £2.10
12 - RECEPTACLE BSD-2600400008.A545 2600400008 £1.75 £2.10
13 - INTERMEDIATE FLANGE BSD-2605700215.A25 2605700215 £45.67 £54.80
14 - COMPRESSION SPRING BSD-2604630001.A11 2604630001 £2.16 £2.59
15 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A149 2916660010 £1.75 £2.10
17 - SPRING RETAINING RING DIN 471-12x1-FSTM BSD-2916650903.A33 2916650903 £1.75 £2.10
18 - SHIM BSD-3600150011.A28 3600150011 £1.75 £2.10
19 - COVER RING BSD-3600300074.A15 3600300074 £14.91 £17.89
20 - COLLET dia 3 MM BSD-2608570077.A12 2608570077 £21.68 £26.01
20 - COLLET dia 6 MM BSD-2608570129.A30 2608570129 £18.96 £22.75
20 - COLLET dia 8 MM BSD-2608570081.A67 2608570081 £21.68 £26.01
20 - COLLET dia 1/8 (3.175 MM) BSD-2608570078.A29 2608570078 £33.74 £40.49
21 - ROUND NUT BSD-3603342009.A107 3603342009 £14.91 £17.89
22 - TAPPING SCREW DIN 7971-3.9x38 BSD-2910215093.A2 2910215093 -
23 - SHIM 0.10 MM BSD-1710102601.A25 1710102601 £1.75 £2.10
102 - FIELD 240V BSD-1604220194.A0 1604220194 £23.86 £28.63
103 - ARMATURE 240V BSD-2604011004.A0 2604011004 £63.50 £76.20
104 - ON-OFF SWITCH BSD-1607200086.A68 1607200086 £11.30 £13.56
105 - POWER SUPPLY CORD GB 240V 2.65m 2 x 1.0mm H05 VV-F BSD-1604460150.A32 1604460150 £16.41 £19.69
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A304 2600703012 £2.80 £3.36
107 - FASTENING CLAMP BSD-1601302017.A341 1601302017 £1.75 £2.10
109 - STICKER BSD-3601110283.A0 3601110283 £3.34 £4.01
112 - SUPPRESSION CAPACITOR BSD-3607328021.A7 3607328021 £10.10 £12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A283 1900905018 £18.96 £22.75
114 - BALL BEARING 9x24x7 BSD-2600905095.A227 2600905095 £12.04 £14.45
116 - BRUSH HOLDER BSD-1600A003G4.A115 1600A003G4 £3.72 £4.47
119 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A438 2910211018 £1.75 £2.10
125 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A542 1613435034 £1.75 £2.10
126 - SPIRAL SPRING BSD-2604652009.A41 2604652009 £1.75 £2.10
127 - SHIM BSD-2600150033.A2 2600150033 £2.16 £2.59
128 - SHIM WASHER 0.3 MM BSD-2600101027.A289 2600101027 £1.75 £2.10
128 - SHIM WASHER 0.2 MM BSD-2600101665.A25 2600101665 £1.75 £2.10
128 - SHIM WASHER 0.5 MM BSD-2600101667.A52 2600101667 £1.75 £2.10
129 - SHRINKABLE TUBE 25-1MM BSD-2600409014.A29 2600409014 £1.75 £2.10
131 - HOUSING COVER BSD-1600508011.A26 1600508011 £8.67 £10.41
133 - SWITCH HANDLE BSD-1602026077.A66 1602026077 £1.75 £2.10
134 - ADJUSTING SLIDE BSD-1602319002.A250 1602319002 £2.61 £3.13
135 - COVER DISC BSD-2601328045.A259 2601328045 £2.16 £2.59
137 - CONNECTING CABLE L=52MM BSD-2604448016.A49 2604448016 £1.75 £2.10
138 - CABLE BSD-2604448149.A4 2604448149 £1.75 £2.10
139 - SUPPRESSION FILTER BSD-2604465096.A21 2604465096 £5.30 £6.36
140 - COMPRESSION SPRING BSD-1604611026.A290 1604611026 £1.75 £2.10
141 - SPEED GOVERNOR 240V BSD-2607230014.A1 2607230014 -
150 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A443 2910211020 £2.16 £2.59
653 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A78 2607950511 £4.26 £5.11
801 - GRINDING SPINDLE BSD-3607031168.A6 3607031168 £218.41 £262.09
808 - NAMEPLATE BSD-160111A3H3.A4934 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-3607031630.A14 3607031630 -
811 - MOTOR HOUSING BSD-2605108908.A13 2605108908 £24.45 £29.34
819 - SPINDLE BEARING BSD-3607030418.A26 3607030418 £59.53 £71.44
819/1 - COVER RING 8.5 mm BSD-2600501001.A9 2600501001 -
835 - FAN BSD-2606610050.A57 2606610050 -
