Bostitch M10-MG/40 Type REV 0 Brad Nailer Spare Parts

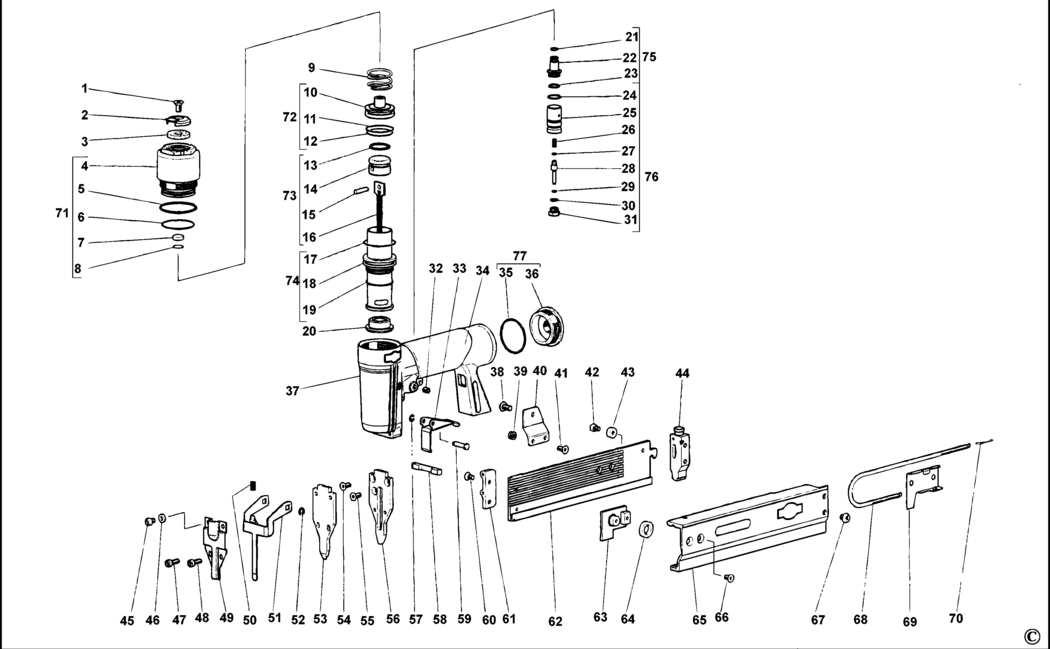

An exploded drawing and spare parts listing for the Bostitch M10-MG/40 Type REV 0 Brad Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-B000028A04.A9 B000028A04	-
2 - DEFLECTOR BDE-C416100A01.A0 C416100A01	-
3 - NO LONGER AVAILABLE BDE-000000-00.A64310 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A64311 000000-00	-
5 - O RING BDE-B000020A59.A0 B000020A59	£3.22	£3.86
6 - O RING BDE-B000020A25.A0 B000020A25	£2.21	£2.65
7 - INSERT BDE-C216160A01.A5 C216160A01	-
8 - O RING BDE-B000020A19.A0 B000020A19	£3.30	£3.96
9 - SPRING BDE-C016200A01.A5 C016200A01	-
10 - NO LONGER AVAILABLE BDE-000000-00.A64312 000000-00	-
11 - O RING BDE-B000020A32.A2 B000020A32	-
12 - O RING BDE-B000020A31.A1 B000020A31	£2.71	£3.25
13 - O RING BDE-B000020A29.A5 B000020A29	-
14 - NO LONGER AVAILABLE BDE-000000-00.A64313 000000-00	-
15 - PIN BDE-B000025A06.A6 B000025A06	-
16 - DRIVER BDE-C710225N01 C710225N01	£94.12	£112.94
17 - O RING BDE-B000020A35.A0 B000020A35	£2.21	£2.65
18 - NO LONGER AVAILABLE BDE-000000-00.A64314 000000-00	-
19 - O RING BDE-B000020A22.A0 B000020A22	£2.71	£3.25
20 - BUMPER BDE-C016244A01.A1 C016244A01	-
21 - O RING BDE-B000020A17.A1 B000020A17	£3.30	£3.96
22 - NO LONGER AVAILABLE BDE-000000-00.A64315 000000-00	-
23 - O RING BDE-B000020A01.A4 B000020A01	-
24 - O RING BDE-B000020A03.A8 B000020A03	£3.22	£3.86
25 - NO LONGER AVAILABLE BDE-000000-00.A64316 000000-00	-
26 - SPRING BDE-C216340A01.A1 C216340A01	£7.85	£9.42
27 - O RING BDE-B000020A14.A4 B000020A14	-
28 - NO LONGER AVAILABLE BDE-000000-00.A64321 000000-00	-
29 - O RING BDE-B000020A14.A5 B000020A14	-
30 - O RING BDE-B000020A18.A6 B000020A18	£3.22	£3.86
31 - NO LONGER AVAILABLE BDE-000000-00.A64317 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A64318 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A64319 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A64320 000000-00	-
35 - O RING BDE-B000020A36.A11 B000020A36	-
36 - BUSHING BDE-D216283A01.A11 D216283A01	-
37 - NO LONGER AVAILABLE BDE-000000-00.A64322 000000-00	-
38 - NO LONGER AVAILABLE BDE-000000-00.A64323 000000-00	-
39 - LOCK NUT BDE-B000023B01.A4 B000023B01	£7.18	£8.62
40 - NO LONGER AVAILABLE BDE-000000-00.A64324 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A64325 000000-00	-
42 - SCREW BDE-B000028B01.A6 B000028B01	£10.85	£13.02
43 - CLIP BDE-C710990N01.A0 C710990N01	£19.40	£23.28
44 - NO LONGER AVAILABLE BDE-000000-00.A64326 000000-00	-
45 - SCREW BDE-B000028B01.A7 B000028B01	£10.85	£13.02
46 - BUSHING BDE-C016562B01.A0 C016562B01	£11.87	£14.24
47 - SCREW BDE-B000028B06.A3 B000028B06	-
48 - SCREW BDE-B000028B03.A3 B000028B03	-
49 - NO LONGER AVAILABLE BDE-000000-00.A64327 000000-00	-
50 - SPRING BDE-C216661B01.A0 C216661B01	-
51 - NO LONGER AVAILABLE BDE-000000-00.A64328 000000-00	-
52 - RING BDE-B000021C01.A20 B000021C01	£1.50	£1.80
53 - PLATE BDE-C710542N03 C710542N03	£170.23	£204.28
54 - SCREW BDE-B000028A02.A1 B000028A02	£3.30	£3.96
55 - SCREW BDE-B000028A01.A1 B000028A01	-
56 - HOLDER BDE-C710500N03 C710500N03	£123.43	£148.12
57 - RING BDE-B000021C01.A21 B000021C01	£1.50	£1.80
58 - PLATE BDE-C016483B01.A4 C016483B01	-
59 - PIN BDE-C216424A01.A7 C216424A01	-
60 - SCREW BDE-B000028A20.A2 B000028A20	£3.22	£3.86
61 - HOLDER BDE-C710911N03 C710911N03	£112.86	£135.43
62 - NO LONGER AVAILABLE BDE-000000-00.A64329 000000-00	-
63 - NO LONGER AVAILABLE BDE-000000-00.A64330 000000-00	-
64 - NO LONGER AVAILABLE BDE-000000-00.A64331 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A64332 000000-00	-
66 - SCREW BDE-B000028A20.A3 B000028A20	£3.22	£3.86
67 - NO LONGER AVAILABLE BDE-000000-00.A64333 000000-00	-
68 - SPRING BDE-C230842A02.A0 C230842A02	£17.03	£20.44
69 - NO LONGER AVAILABLE BDE-000000-00.A64334 000000-00	-
70 - HOOK BDE-C710884N01 C710884N01	£23.75	£28.50
71 - NO LONGER AVAILABLE BDE-000000-00.A64335 000000-00	-
72 - PISTON SA BDE-D416202C01.A2 D416202C01	-
73 - DRIVER SA BDE-D710226N01 D710226N01	£128.18	£153.81
75 - TUBE SA BDE-D416302A01.A9 D416302A01	-
76 - NO LONGER AVAILABLE BDE-000000-00.A64336 000000-00	-
77 - BUSHING BDE-D216283A01.A12 D216283A01	-

Attribute Name	Value
Brand	Bostitch
