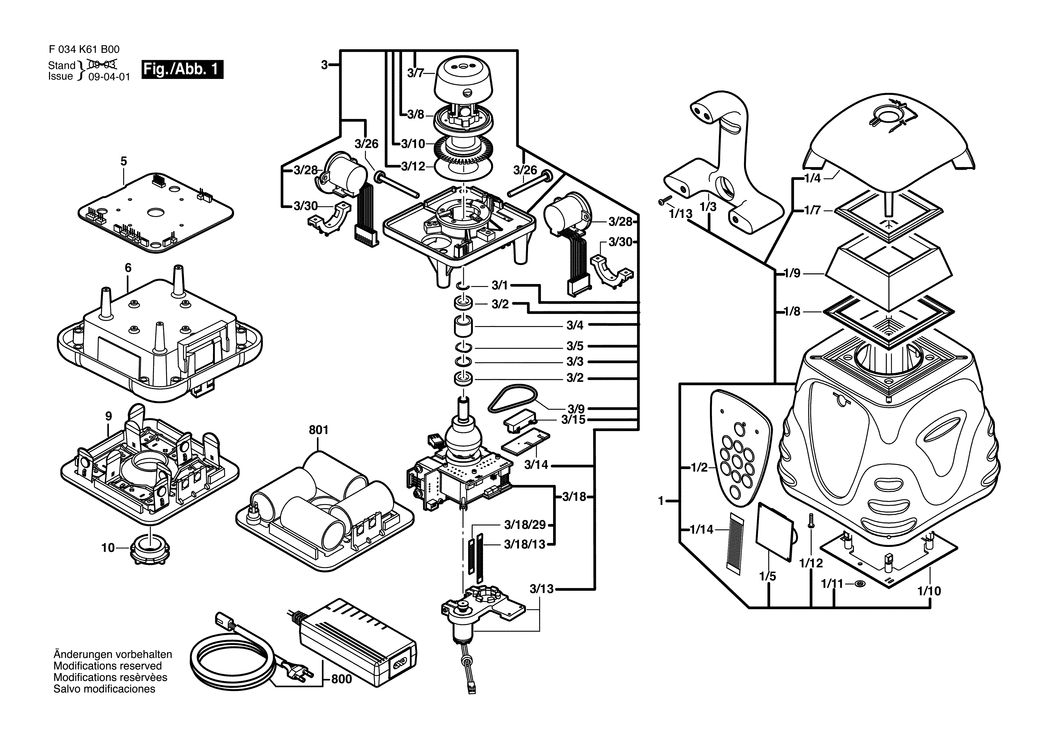

1 - HOUSING
BSD-2610A07726.A0
2610A07726
|
£702.95
|
£843.54
|
|
|
1/2 - KEYBOARD
BSD-2610A07751.A0
2610A07751
|
-
|
|
|
|
1/3 - HANDLE
BSD-2610A07742.A1
2610A07742
|
-
|
|
|
|
1/4 - UPPER HOUSING
BSD-2610A07738.A2
2610A07738
|
-
|
|
|
|
1/5 - PRINTED CIRCUIT BOARD
BSD-2610A07755.A0
2610A07755
|
£27.23
|
£32.68
|
|
|
1/7 - RUBBER GASKET
BSD-2610A07740.A1
2610A07740
|
-
|
|
|
|
1/8 - RUBBER GASKET
BSD-2610A07741.A3
2610A07741
|
£7.36
|
£8.83
|
|
|
1/9 - WINDOW
BSD-2610A06622.A7
2610A06622
|
£68.42
|
£82.10
|
|
|
1/10 - PRINTED CIRCUIT BOARD
BSD-2610A07462.A3
2610A07462
|
£27.23
|
£32.68
|
|
|
1/11 - SET RING
BSD-2610A07446.A2
2610A07446
|
-
|
|
|
|
1/12 - SCREW
BSD-2610A07053.A2
2610A07053
|
£1.75
|
£2.10
|
|
|
1/13 - SCREW
BSD-2610A07763.A3
2610A07763
|
£1.75
|
£2.10
|
|
|
1/14 - CABLE
BSD-2610A06535.A1
2610A06535
|
£3.72
|
£4.47
|
|
|
3 - ASSEMBLY
BSD-2610A07354.A1
2610A07354
|
£1083.37
|
£1300.04
|
|
|
3/1 - RETAINING SNAP RING
BSD-2610A07314.A3
2610A07314
|
£1.75
|
£2.10
|
|
|
3/2 - SPINDLE
BSD-2610A07305.A2
2610A07305
|
£12.04
|
£14.45
|
|
|
3/3 - WASHER
BSD-2610A07313.A2
2610A07313
|
£1.75
|
£2.10
|
|
|
3/4 - SPACER
BSD-2610A07454.A4
2610A07454
|
£3.72
|
£4.47
|
|
|
3/5 - SPRING WASHER
BSD-2610A07312.A3
2610A07312
|
£1.75
|
£2.10
|
|
|
3/7 - CAP
BSD-2610A07662.A13
2610A07662
|
£11.30
|
£13.56
|
|
|
3/8 - PRISM
BSD-2610A07338.A0
2610A07338
|
£306.65
|
£367.98
|
|
|
3/9 - O-RING
BSD-2610A06435.A2
2610A06435
|
£3.72
|
£4.47
|
|
|
3/10 - PULLEY WHEEL
BSD-2610A07605.A1
2610A07605
|
£21.52
|
£25.83
|
|
|
3/12 - DISC
BSD-2610A07641.A2
2610A07641
|
£2.16
|
£2.59
|
|
|
3/13 - MOTOR
BSD-2610A07198.A2
2610A07198
|
£70.24
|
£84.29
|
|
|
3/14 - SENSOR
BSD-2610A07596.A1
2610A07596
|
£45.67
|
£54.80
|
|
|
3/15 - MOTHERBOARD
BSD-2610A07597.A4
2610A07597
|
-
|
|
|
|
3/18 - LASER MODULE
BSD-2610A07345.A1
2610A07345
|
-
|
|
|
|
3/18/13 - CONNECTING CABLE
BSD-2610A06534.A15
2610A06534
|
£6.52
|
£7.83
|
|
|
3/18/29 - CONNECTING CABLE
BSD-2610A06532.A8
2610A06532
|
£5.58
|
£6.70
|
|
|
3/26 - BEARING
BSD-2610A07490.A3
2610A07490
|
£16.41
|
£19.69
|
|
|
3/28 - MOTOR
BSD-2610A07457.A4
2610A07457
|
£57.02
|
£68.42
|
|
|
3/30 - CLAMP
BSD-2610A07294.A7
2610A07294
|
£2.52
|
£3.02
|
|
|
5 - MOTHERBOARD
BSD-2610A07444.A8
2610A07444
|
£243.45
|
£292.14
|
|
|
6 - BATTERY HOUSING
BSD-2610A06988.A5
2610A06988
|
£120.11
|
£144.13
|
|
|
9 - BATTERY HOUSING
BSD-2610A06898.A5
2610A06898
|
£45.67
|
£54.80
|
|
|
10 - SCREW PLUG
BSD-2610A06843.A11
2610A06843
|
£7.78
|
£9.33
|
|
|
800 - CHARGER 110V; USA
BSD-2610A15129.A11
2610A15129
|
£57.02
|
£68.42
|
|
|
800 - CHARGER 230V; EU
BSD-2610A15131.A11
2610A15131
|
-
|
|
|
|
800 - CHARGER 110V; GB
BSD-2610A15132.A7
2610A15132
|
-
|
|
|
|
800 - CHARGER 230V; AUS
BSD-2610A15130.A7
2610A15130
|
-
|
|
|
|
801 - BATTERY PACK NiMH
BSD-2610A01249.A7
2610A01249
|
-
|
|
|
