Festool CTL 36 E AC HD FL / 203033 Spare Parts

Festool CTL 36 E AC HD FL / 203033 Spare Parts
Home Details Reviews Delivery

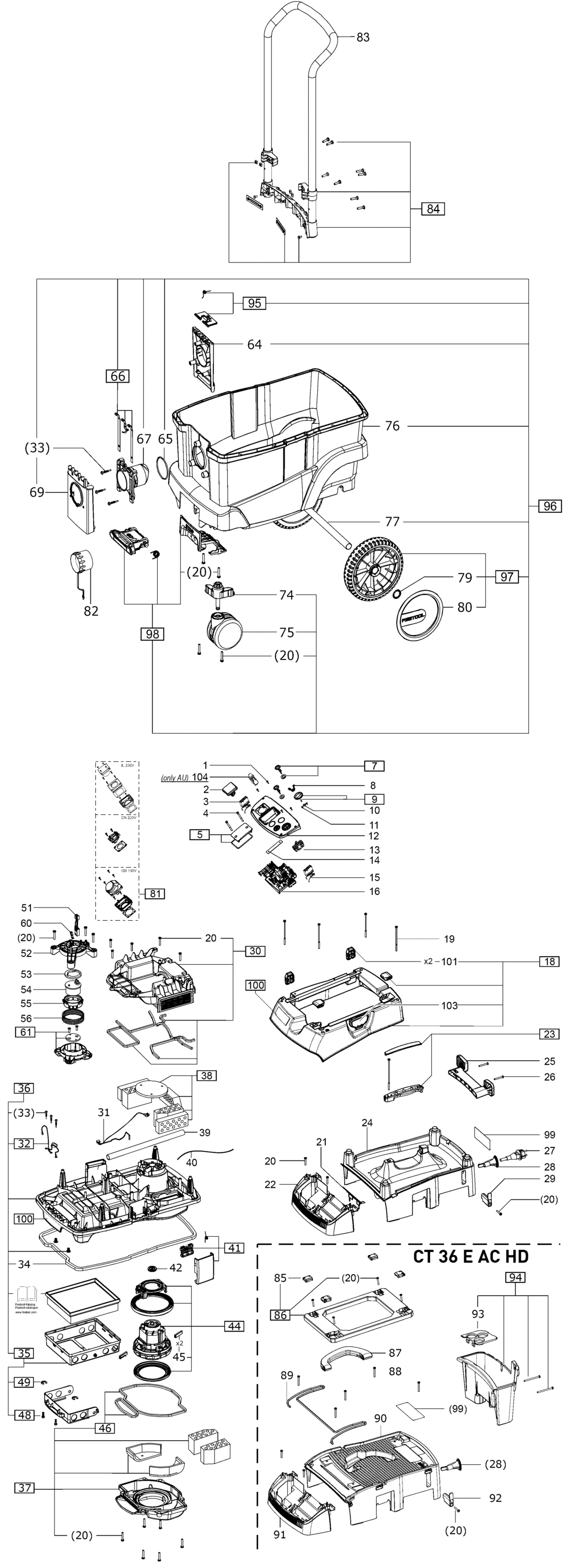

An exploded diagram and spare parts listing for the Festool CTL 36 E AC HD FL / 203033
Ex VAT Inc VAT
1 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-452450.A189 452450 £2.00 £2.40
2 - SOCKET FSP-200531.A98 200531 £24.33 £29.20
3 - CABLE HARNESS FSP-201717.A113 201717 £7.37 £8.84
4 - CHEESE HEAD SCREW FSP-10737236.A8 10737236 £2.00 £2.40
5 - COVER FSP-496234.A70 496234 £21.08 £25.30
7 - ROTARY KNOB CT/CTL/CTM/CTH FSP-496249.A83 496249 £20.22 £24.26
9 - ROTARY KNOB AUTO/MAN/OFF FSP-496247.A79 496247 £18.84 £22.61
10 - O-RING FSP-10737044.A99 10737044 £2.00 £2.40
11 - FLAT HEAD SCREW M4 X 8 FSP-10737121.A113 10737121 £2.00 £2.40
12 - SCREEN FSP-203973.A1 203973 £29.95 £35.94
13 - SWITCH AC FSP-498082.A68 498082 £21.53 £25.84
14 - BOARD SEGMENT FSP-200599.A88 200599 £4.24 £5.09
15 - CABLE HARNESS FSP-200628.A2 200628 £9.42 £11.31
16 - ELECTRONIC FSP-203975.A1 203975 £196.44 £235.73
17 - CLAMP FSP-496236.A81 496236 £21.97 £26.36
20 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A11 452447 £2.00 £2.40
20 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A12 452447 £2.00 £2.40
27 - CABLE WITH PLUG FSP-200639.A10 200639 £64.02 £76.83
27 - NO LONGER AVAILABLE FSP-00000.A4570 00000 -
28 - INLET BUSH FSP-205776.A0 205776 £8.12 £9.74
30 - HOOD FSP-205777.A11 205777 £42.45 £50.94
31 - CABLE HARNESS CT/CTL FSP-496252.A33 496252 £22.58 £27.10
32 - FLEXIBLE LEAD PACK AUS / USA FSP-496773.A80 496773 £23.08 £27.70
33 - RAISED-HEAD SCREW FSP-467456.A150 467456 £2.00 £2.40
34 - CONTAINER SEAL FSP-201007.A21 201007 £26.55 £31.86
35 - FILTER HOLDER FSP-496255.A105 496255 £27.65 £33.18
36 - FILTER HOUSING FSP-201806.A45 201806 £105.38 £126.46
37 - COVER FSP-201975.A140 201975 £45.25 £54.30
38 - NOISE INSULATION FSP-496258.A43 496258 £39.34 £47.21
39 - CABLE BUSHING FSP-200584.A46 200584 £15.60 £18.72
40 - CABLE HARNESS FSP-200890.A40 200890 £28.75 £34.50
41 - CLAMP FSP-496262.A130 496262 £20.09 £24.11
44 - TURBINE 220-240V FSP-10494016.A104 10494016 £172.12 £206.55
45 - CARBON SET 220-240V FSP-496268.A99 496268 £38.81 £46.57
46 - SEAL KIT FSP-496256.A68 496256 £22.58 £27.10
51 - CABLE HARNESS FSP-200889.A73 200889 £24.95 £29.94
52 - HOLDER FSP-200855.A27 200855 £14.72 £17.67
52 - HOLDER FSP-200887.A26 200887 £40.42 £48.50
53 - DAMPENING RING FSP-200854.A125 200854 £19.35 £23.22
54 - SOLENOID FSP-200852.A112 200852 £55.30 £66.36
55 - MAGNETIC HOLDER FSP-200853.A27 200853 £12.42 £14.90
55 - NO LONGER AVAILABLE FSP-00000.A6422 00000 -
56 - SPRING FSP-201004.A11 201004 £18.57 £22.28
60 - SPRING PLATE FSP-200528.A45 200528 £17.98 £21.57
61 - VALVE COLLAR FSP-498827.A112 498827 £32.74 £39.29
64 - HOLDER FSP-200591.A117 200591 £7.87 £9.44
65 - GASKET FSP-200574.A20 200574 £4.06 £4.87
66 - CONTACT FSP-496221.A113 496221 £24.46 £29.35
67 - SLEEVE FSP-200568.A104 200568 £12.42 £14.90
69 - SCREEN CT36 FSP-496267.A35 496267 £20.09 £24.11
74 - SUPPORT FSP-200593.A39 200593 £9.80 £11.76
75 - ROLLER FSP-452840.A204 452840 £19.35 £23.22
76 - CONTAINER CT36 FSP-496232.A15 496232 £68.04 £81.65
77 - PIPE FSP-200571.A32 200571 £17.35 £20.82
79 - TOOTH RING FSP-202484.A17 202484 £2.87 £3.44
80 - WHEEL COVER FSP-200570.A113 200570 £9.49 £11.39
82 - BLANKING PLUG FSP-452899.A155 452899 £12.72 £15.27
83 - DESCRIPTION UNAVAILABLE FSP-000000.A189 000000 -
84 - HANDLE FSP-500253.A105 500253 £58.72 £70.47
85 - LOCKING LATCH FSP-200873.A129 200873 £11.92 £14.30
86 - DESCRIPTION UNAVAILABLE FSP-000000.A190 000000 -
87 - GRIP FSP-500318.A96 500318 £16.84 £20.21
88 - RAISED-HEAD SCREW 5.0 X 40 MM FSP-452449.A11 452449 £1.75 £2.10
89 - BRACKET FSP-35000546.A25 35000546 -
90 - HOUSING FSP-500320.A115 500320 £81.14 £97.37
91 - HOUSING INSERT FSP-496238.A192 496238 £36.42 £43.71
92 - CABLE CLAMP FSP-201023.A57 201023 £11.73 £14.08
93 - CONTAINER FSP-500321.A16 500321 £34.93 £41.92
94 - CONTAINER FSP-35000553.A102 35000553 -
95 - BRACKET FSP-500314.A170 500314 £17.98 £21.57
96 - CONTAINER FSP-500315.A0 500315 £128.52 £154.22
97 - WHEEL FSP-500316.A117 500316 £36.93 £44.32
98 - PEDAL FSP-500317.A25 500317 £26.82 £32.19
99 - WARNING PLATE FSP-10737100.A24 10737100 £2.00 £2.40
100 - NAMEPLATE FSP-705487.A0 705487 £2.00 £2.40
