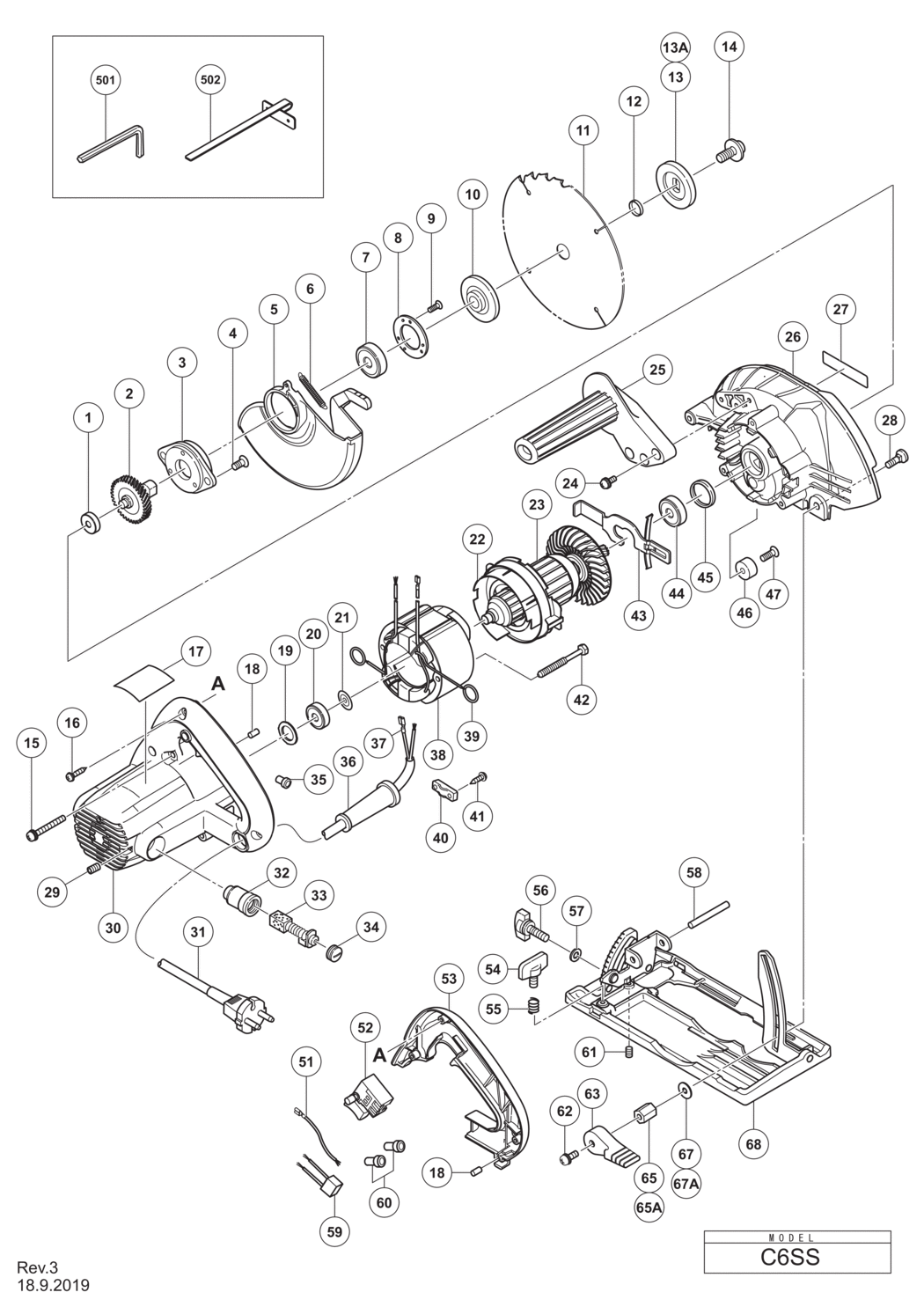

1 - METAL
HIT-963803.A0
963803
|
-
|
|
|
|
*2 - SPINDLE AND GEAR SET
HIT-322088.A2
322088
|
-
|
|
|
|
3 - BEARING HOLDER
HIT-308361.A4
308361
|
£4.33
|
£5.20
|
|
|
4 - SEAL LOCK FLAT HD. SCREW M5X12
HIT-305568.A6
305568
|
£1.67
|
£2.00
|
|
|
5 - PROTECTIVE COVER
HIT-331266.A0
331266
|
-
|
|
|
|
6 - RETURN SPRING
HIT-331268.A1
331268
|
£1.67
|
£2.00
|
|
|
7 - BALL BEARING 6002VVCMPS2L
HIT-6002VV.A8
6002VV
|
£9.32
|
£11.19
|
|
|
8 - BEARING COVER
HIT-308362.A0
308362
|
£3.02
|
£3.63
|
|
|
9 - SEAL LOCK FLAT HD. SCREW M3X12
HIT-308773.A1
308773
|
£1.67
|
£2.00
|
|
|
*10 - WASHER (A)
HIT-323928.A1
323928
|
£4.86
|
£5.83
|
|
|
*11 - TCT SAW BLADE 165MM-D30 HOLE-NT16
HIT-324678.A1
324678
|
-
|
|
|
|
*13A - WASHER (B)
HIT-375604.A1
375604
|
-
|
|
|
|
14 - HEX. SOCKET HD. BOLT (W/WASHER) M7X17.5
HIT-325541.A0
325541
|
£5.23
|
£6.28
|
|
|
15 - MACHINE SCREW (W/WASHERS) M5X45 (BLACK)
HIT-302434.A2
302434
|
£1.67
|
£2.00
|
|
|
16 - TAPPING SCREW (W/FLANGE) D4X23 (BLACK)
HIT-328643.A4
328643
|
£1.67
|
£2.00
|
|
|
17 - NAME PLATE
HIT-000000.A5267
000000
|
-
|
|
|
|
18 - BEARING LOCK
HIT-931701.A27
931701
|
£1.67
|
£2.00
|
|
|
19 - THRUST WASHER
HIT-331264.A0
331264
|
-
|
|
|
|
20 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A117
608VVM
|
£5.70
|
£6.84
|
|
|
21 - WASHER (A)
HIT-982631.A53
982631
|
£1.67
|
£2.00
|
|
|
22 - FAN GUIDE
HIT-322002.A0
322002
|
£1.67
|
£2.00
|
|
|
*23 - ARMATURE 110V
HIT-360883C.A0
360883C
|
£85.04
|
£102.05
|
|
|
*23 - ARMATURE 220V-230V
HIT-360883E.A1
360883E
|
£52.73
|
£63.28
|
|
|
*24 - SCREW (W/WASHERS) M5X16 (BLACK) EXCEPT FOR VEN
HIT-791045.A11
791045
|
£2.71
|
£3.25
|
|
|
*25 - SIDE HANDLE EXCEPT FOR VEN
HIT-330973.A1
330973
|
£6.45
|
£7.74
|
|
|
26 - GEAR COVER ASS'Y INCLUD.45-47
HIT-331265.A0
331265
|
-
|
|
|
|
27 - BRAND LABEL
HIT-000000.A5268
000000
|
-
|
|
|
|
28 - BOLT (SQUARE) M6X20
HIT-942808.A3
942808
|
£1.67
|
£2.00
|
|
|
29 - HEX. SOCKET SET SCREW M5X8
HIT-938477.A96
938477
|
£1.67
|
£2.00
|
|
|
30 - HOUSING ASS'Y INCLUD.29
HIT-331260.A1
331260
|
-
|
|
|
|
*31 - CORD (CORD ARMOR D8.8) FOR GBR (230V)
HIT-500435Z.A71
500435Z
|
£14.14
|
£16.97
|
|
|
*31 - CORD (CORD ARMOR D8.8) FOR GBR (110V)
HIT-500461Z.A41
500461Z
|
£15.56
|
£18.67
|
|
|
32 - BRUSH HOLDER
HIT-957051.A4
957051
|
£7.57
|
£9.08
|
|
|
33 - CARBON BRUSH (1 PAIR)
HIT-999043.A49
999043
|
£5.54
|
£6.65
|
|
|
34 - BRUSH CAP
HIT-935829.A15
935829
|
£1.67
|
£2.00
|
|
|
36 - CORD ARMOR D8.8
HIT-953327.A31
953327
|
£1.67
|
£2.00
|
|
|
37 - FASTON
HIT-331707.A2
331707
|
£1.67
|
£2.00
|
|
|
*38 - STATOR ASS'Y 110V INCLUD.39
HIT-340614C.A1
340614C
|
£23.70
|
£28.44
|
|
|
*38 - STATOR ASS'Y 230V INCLUD.39
HIT-340614E.A1
340614E
|
£23.70
|
£28.44
|
|
|
39 - BRUSH TERMINAL
HIT-930703.A55
930703
|
£3.28
|
£3.93
|
|
|
40 - CORD CLIP
HIT-937631.A105
937631
|
£1.67
|
£2.00
|
|
|
41 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A60
984750
|
£1.67
|
£2.00
|
|
|
42 - HEX. HD. TAPPING SCREW D5X55
HIT-953174.A7
953174
|
£1.67
|
£2.00
|
|
|
43 - LOCK LEVER
HIT-307918.A3
307918
|
-
|
|
|
|
44 - BALL BEARING 6000VVCMPS2L
HIT-6000VV.A60
6000VV
|
£7.62
|
£9.15
|
|
|
45 - RUBBER RING
HIT-318647.A1
318647
|
-
|
|
|
|
46 - CUSHION
HIT-961729.A14
961729
|
£1.67
|
£2.00
|
|
|
47 - FLAT HD. SCREW M6X20 (10 PCS.)
HIT-949794.A21
949794
|
£1.67
|
£2.00
|
|
|
*51 - INTERNAL WIRE EXCEPT FOR VEN
HIT-331269.A0
331269
|
-
|
|
|
|
*52 - SWITCH
HIT-331259.A0
331259
|
£19.52
|
£23.42
|
|
|
53 - HANDLE COVER
HIT-331261.A0
331261
|
-
|
|
|
|
54 - WING BOLT M6X18
HIT-307898.A10
307898
|
£2.71
|
£3.25
|
|
|
55 - SPRING
HIT-941056.A3
941056
|
£1.67
|
£2.00
|
|
|
*56 - WING BOLT (A)
HIT-307937.A4
307937
|
£1.67
|
£2.00
|
|
|
57 - SUPER LOCK WASHER M6
HIT-948167.A3
948167
|
£1.67
|
£2.00
|
|
|
58 - ROLL PIN D6X50 (10 PCS.)
HIT-949750.A0
949750
|
£8.72
|
£10.47
|
|
|
*59 - NOISE SUPPRESSOR FOR GBR
HIT-930039.A85
930039
|
£3.85
|
£4.62
|
|
|
*60 - CONNECTOR 50092 (10 PCS.) FOR NOISE SUPPRESSOR
HIT-959141.A55
959141
|
£7.12
|
£8.54
|
|
|
*61 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X8 EXCEPT FOR VEN
HIT-308109.A2
308109
|
£1.67
|
£2.00
|
|
|
62 - SEAL LOCK SCREW (W/SP. WASHERS) M6X14
HIT-322260.A3
322260
|
£1.67
|
£2.00
|
|
|
63 - LEVER (A)
HIT-323923.A1
323923
|
£1.67
|
£2.00
|
|
|
65 - LOCK NUT TILL 10.2009
HIT-328048.A4
328048
|
£1.67
|
£2.00
|
|
|
65A - LOCK NUT SINCE 11.2009
HIT-331267.A0
331267
|
£3.28
|
£3.93
|
|
|
67 - WASHER (C) TILL 10.2009
HIT-329933.A0
329933
|
£2.71
|
£3.25
|
|
|
67A - WASHER SINCE 11.2009
HIT-320975.A10
320975
|
£1.67
|
£2.00
|
|
|
*68 - BASE ASS'Y INCLUD.54-57
HIT-331262.A0
331262
|
-
|
|
|
|
501 - HEX. BAR WRENCH 5MM
HIT-944459.A21
944459
|
£1.67
|
£2.00
|
|
|
502 - GUIDE
HIT-302756.A4
302756
|
£7.02
|
£8.42
|
|
|
601 - DUST COLLECTOR SET (D)
HIT-302981.A1
302981
|
£12.38
|
£14.85
|
|
|
602 - WASHER (A)
HIT-322099.A0
322099
|
-
|
|
|
