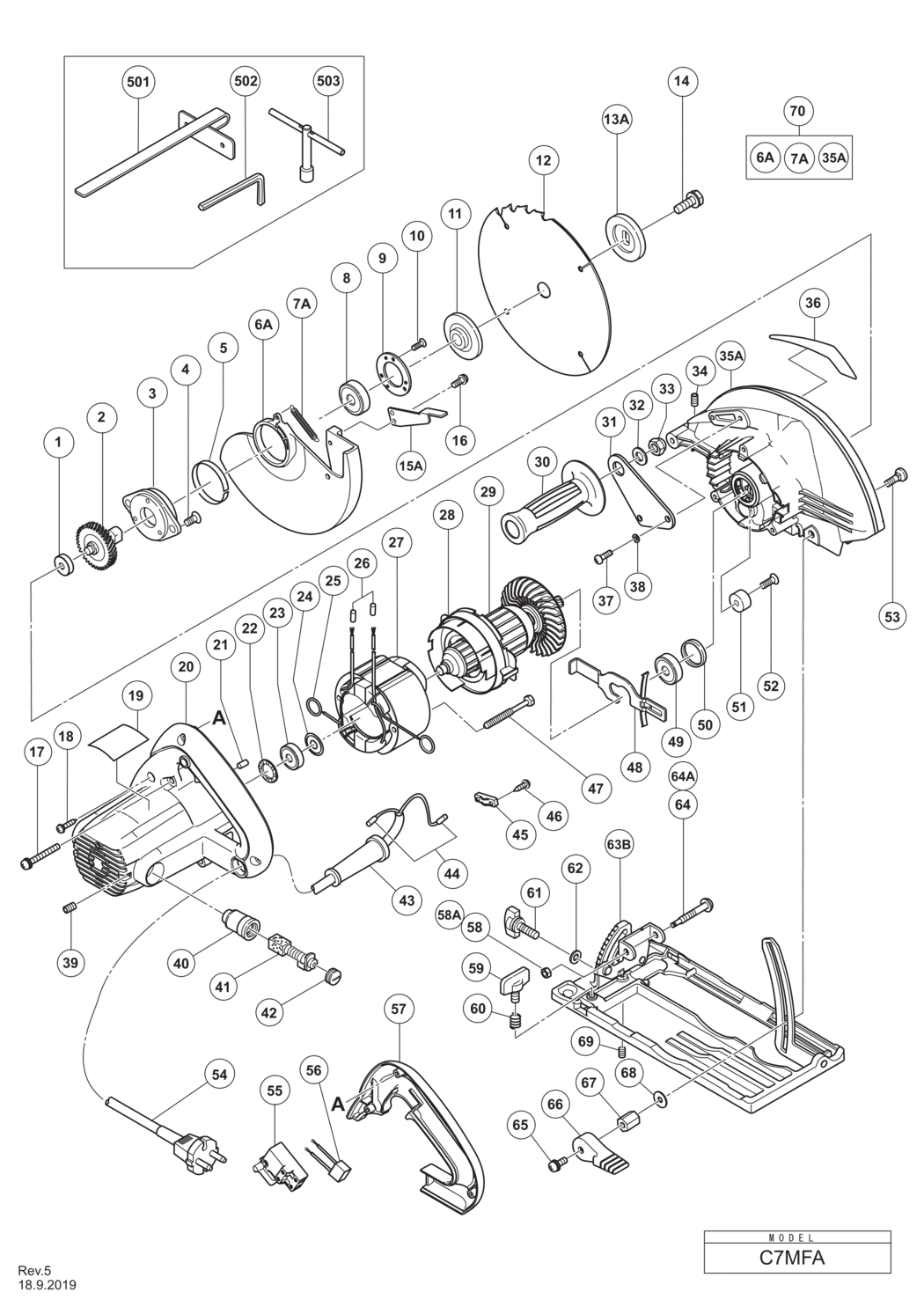

1 - METAL
HIT-963803.A1
963803
|
-
|
|
|
|
2 - SPINDLE AND GEAR SET
HIT-322088.A1
322088
|
-
|
|
|
|
3 - BEARING HOLDER
HIT-308361.A3
308361
|
£4.33
|
£5.20
|
|
|
4 - SEAL LOCK FLAT HD. SCREW M5X12
HIT-305568.A5
305568
|
£1.67
|
£2.00
|
|
|
5 - BUSHING
HIT-318192.A2
318192
|
£1.67
|
£2.00
|
|
|
*6A - LOWER GUARD SINCE 12.2013 EXCEPT FOR RUS
HIT-336976.A0
336976
|
-
|
|
|
|
*7A - RETURN SPRING SINCE 12.2013 EXCEPT FOR RUS
HIT-336975.A0
336975
|
£1.67
|
£2.00
|
|
|
8 - BALL BEARING 6002VVCMPS2L
HIT-6002VV.A9
6002VV
|
£9.32
|
£11.19
|
|
|
9 - BEARING COVER
HIT-308362.A1
308362
|
£3.02
|
£3.63
|
|
|
10 - SEAL LOCK FLAT HD. SCREW M3X12
HIT-308773.A0
308773
|
£1.67
|
£2.00
|
|
|
*11 - WASHER (A)
HIT-323928.A0
323928
|
£4.86
|
£5.83
|
|
|
*12 - TCT SAW BLADE 190MM-D30 HOLE-NT40
HIT-323894.A0
323894
|
-
|
|
|
|
13A - WASHER (B)
HIT-375604.A0
375604
|
-
|
|
|
|
14 - BOLT (W/WASHER) M7X17.5
HIT-957749.A4
957749
|
£1.67
|
£2.00
|
|
|
15A - LEVER
HIT-370542.A11
370542
|
£1.67
|
£2.00
|
|
|
16 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK)
HIT-304043.A1
304043
|
£1.67
|
£2.00
|
|
|
17 - MACHINE SCREW (W/WASHERS) M5X45 (BLACK)
HIT-302434.A1
302434
|
£1.67
|
£2.00
|
|
|
18 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A17
301653
|
£1.67
|
£2.00
|
|
|
19 - NAME PLATE
HIT-000000.A5311
000000
|
-
|
|
|
|
*20 - HOUSING ASS'Y (GREEN) INCLUD.39
HIT-323929.A0
323929
|
£33.18
|
£39.81
|
|
|
21 - BEARING LOCK
HIT-931701.A25
931701
|
£1.67
|
£2.00
|
|
|
22 - THRUST WASHER
HIT-316394.A1
316394
|
£5.23
|
£6.28
|
|
|
23 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A115
608VVM
|
£5.70
|
£6.84
|
|
|
24 - WASHER (A)
HIT-982631.A55
982631
|
£1.67
|
£2.00
|
|
|
25 - BRUSH TERMINAL
HIT-930703.A59
930703
|
£3.28
|
£3.93
|
|
|
26 - TUBE (D) FOR CORD
HIT-981373.A82
981373
|
£1.67
|
£2.00
|
|
|
*27 - STATOR ASS'Y 110V INCLUD.25
HIT-340614C.A0
340614C
|
£23.70
|
£28.44
|
|
|
*27 - STATOR ASS'Y 230V INCLUD.25
HIT-340614E.A2
340614E
|
£23.70
|
£28.44
|
|
|
28 - FAN GUIDE
HIT-322002.A1
322002
|
£1.67
|
£2.00
|
|
|
*29 - ARMATURE 110V
HIT-360694C.A0
360694C
|
-
|
|
|
|
*29 - ARMATURE 230V
HIT-360694E.A0
360694E
|
£39.31
|
£47.17
|
|
|
30 - SIDE HANDLE ASS'Y INCLUD.31-33
HIT-323925.A0
323925
|
-
|
|
|
|
31 - PLATE
HIT-323926.A0
323926
|
-
|
|
|
|
32 - SPRING WASHER M10 (10 PCS.)
HIT-949458.A2
949458
|
£1.67
|
£2.00
|
|
|
33 - CAP NUT M10
HIT-323927.A0
323927
|
-
|
|
|
|
34 - HEX. SOCKET SET SCREW M5X6
HIT-962782.A1
962782
|
£1.67
|
£2.00
|
|
|
*35A - GEAR COVER ASS'Y INCLUD.50-52 SINCE 12.2013 EXCEPT FOR
HIT-336974.A0
336974
|
-
|
|
|
|
36 - BRAND LABEL
HIT-000000.A5313
000000
|
-
|
|
|
|
37 - MACHINE SCREW M5X12 (10 PCS.)
HIT-949237.A15
949237
|
£1.67
|
£2.00
|
|
|
38 - SPRING WASHER M5 (10 PCS.)
HIT-949454.A136
949454
|
£1.67
|
£2.00
|
|
|
39 - HEX. SOCKET SET SCREW M5X8
HIT-938477.A94
938477
|
£1.67
|
£2.00
|
|
|
40 - BRUSH HOLDER
HIT-957051.A1
957051
|
£7.57
|
£9.08
|
|
|
41 - CARBON BRUSH (1 PAIR)
HIT-999043.A52
999043
|
£5.54
|
£6.65
|
|
|
42 - BRUSH CAP
HIT-935829.A12
935829
|
£1.67
|
£2.00
|
|
|
43 - CORD ARMOR D8.8
HIT-953327.A28
953327
|
£1.67
|
£2.00
|
|
|
44 - TUBE (D)
HIT-981373.A83
981373
|
£1.67
|
£2.00
|
|
|
45 - CORD CLIP
HIT-937631.A109
937631
|
£1.67
|
£2.00
|
|
|
46 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A57
984750
|
£1.67
|
£2.00
|
|
|
47 - HEX. HD. TAPPING SCREW D5X55
HIT-953174.A9
953174
|
£1.67
|
£2.00
|
|
|
48 - LOCK LEVER
HIT-307918.A2
307918
|
-
|
|
|
|
49 - BALL BEARING 6000VVCMPS2L
HIT-6000VV.A59
6000VV
|
£7.62
|
£9.15
|
|
|
50 - RUBBER RING
HIT-318647.A0
318647
|
-
|
|
|
|
51 - CUSHION
HIT-961729.A13
961729
|
£1.67
|
£2.00
|
|
|
52 - FLAT HD. SCREW M6X20 (10 PCS.)
HIT-949794.A24
949794
|
£1.67
|
£2.00
|
|
|
53 - BOLT (SQUARE) M6X20
HIT-942808.A1
942808
|
£1.67
|
£2.00
|
|
|
*54 - CORD (CORD ARMOR D8.8) FOR GBR (230V)
HIT-500435Z.A69
500435Z
|
£14.14
|
£16.97
|
|
|
*54 - CORD (CORD ARMOR D8.8) FOR GBR (110V)
HIT-500237Z.A18
500237Z
|
£14.33
|
£17.20
|
|
|
55 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK
HIT-963756Z.A2
963756Z
|
£20.44
|
£24.53
|
|
|
56 - NOISE SUPPRESSOR
HIT-930039.A89
930039
|
£3.85
|
£4.62
|
|
|
*57 - HANDLE COVER (GREEN)
HIT-323931.A0
323931
|
-
|
|
|
|
58 - SLEEVE (TILL 09.2008)
HIT-315253.A0
315253
|
-
|
|
|
|
58A - U-NUT M5 (SINCE 10.2008)
HIT-308387.A3
308387
|
£1.67
|
£2.00
|
|
|
59 - WING BOLT M6X18
HIT-307898.A11
307898
|
£2.71
|
£3.25
|
|
|
60 - SPRING
HIT-941056.A4
941056
|
£1.67
|
£2.00
|
|
|
61 - WING BOLT (A)
HIT-307937.A5
307937
|
£1.67
|
£2.00
|
|
|
62 - SUPER LOCK WASHER M6
HIT-948167.A4
948167
|
£1.67
|
£2.00
|
|
|
63B - BASE ASS'Y INCLUD.58-64
HIT-330840.A0
330840
|
-
|
|
|
|
64 - ADJUSTING SCREW (A) (TILL 09.2008)
HIT-315183.A0
315183
|
-
|
|
|
|
64A - ADJUSTING SCREW (A) (SINCE 10.2008)
HIT-322096.A1
322096
|
£1.67
|
£2.00
|
|
|
65 - SEAL LOCK SCREW (W/SP. WASHERS) M6X14
HIT-322260.A1
322260
|
£1.67
|
£2.00
|
|
|
66 - LEVER (A)
HIT-323923.A0
323923
|
£1.67
|
£2.00
|
|
|
67 - LOCK NUT
HIT-323922.A0
323922
|
-
|
|
|
|
68 - WASHER
HIT-320975.A8
320975
|
£1.67
|
£2.00
|
|
|
69 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X8
HIT-308109.A3
308109
|
£1.67
|
£2.00
|
|
|
*70 - GEAR COVER SET INCLUD.6A
HIT-336977.A0
336977
|
-
|
|
|
|
501 - GUIDE
HIT-302756.A6
302756
|
£7.02
|
£8.42
|
|
|
502 - HEX. BAR WRENCH 2.5MM
HIT-990666.A7
990666
|
£5.98
|
£7.18
|
|
|
503 - BOX WRENCH 10MM
HIT-940543.A11
940543
|
£7.34
|
£8.81
|
|
|
601 - DUST COLLECTOR SET (D)
HIT-302981.A0
302981
|
£12.38
|
£14.85
|
|
|
602 - CORD HANGER
HIT-954619.A0
954619
|
-
|
|
|
