Hitachi / Hikoki C7SB3 Circular Saw Spare Parts

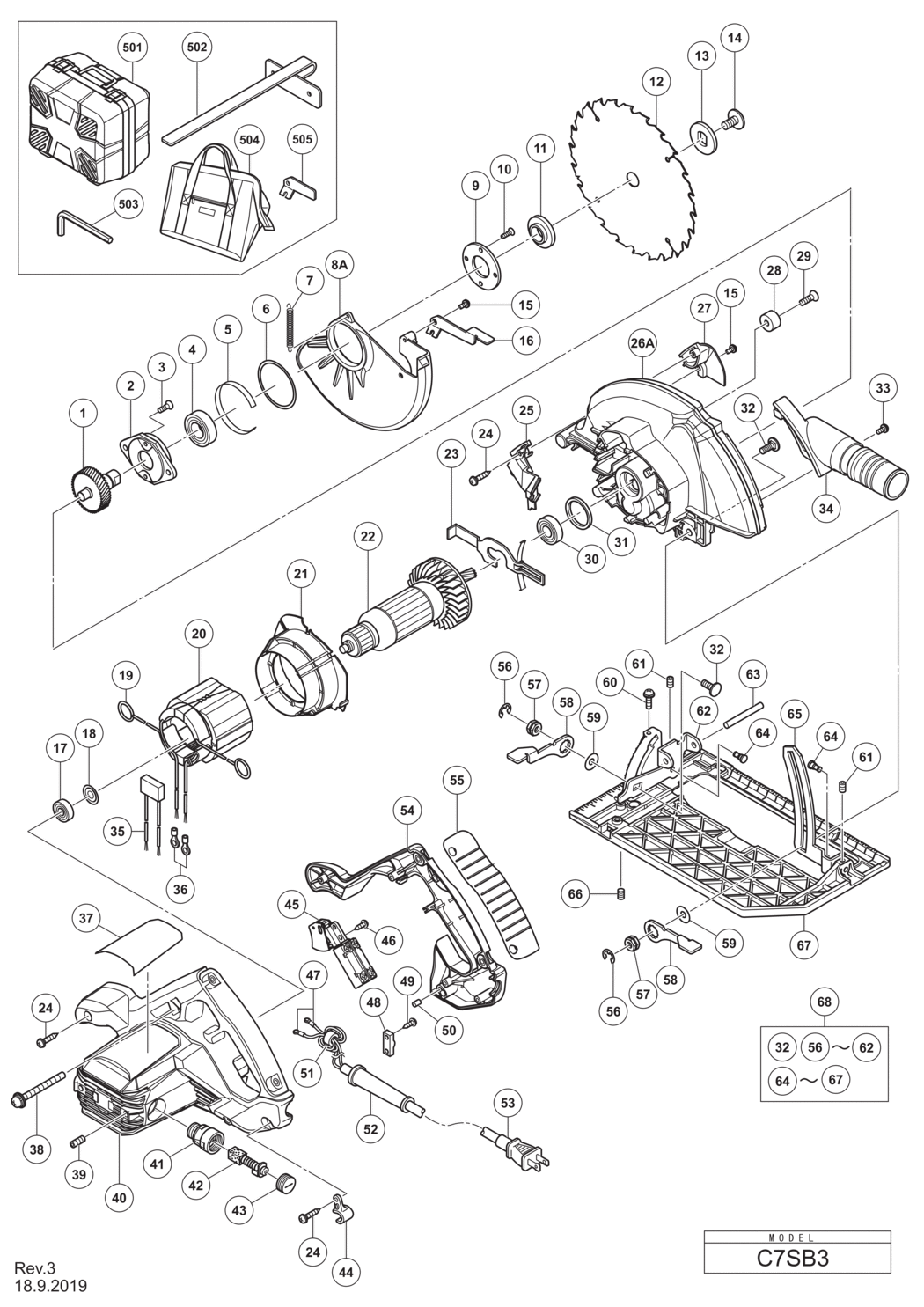

An exploded diagram and spare parts listing for the Hitachi / Hikoki C7SB3 Circular Saw

	Ex VAT	Inc VAT
1 - SPINDLE AND GEAR SET HIT-372751.A1 372751	-
2 - BEARING HOLDER HIT-373810.A0 373810	-
3 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A4 992013	£1.67	£2.00
4 - BALL BEARING 6003VVCMPS2L HIT-6003VV.A7 6003VV	£9.03	£10.84
5 - BUSH HIT-373811.A3 373811	-
6 - WASHER HIT-370591.A0 370591	-
7 - RETURN SPRING HIT-373011.A2 373011	£1.67	£2.00
8A - LOWER GUARD HIT-373812.A0 373812	£17.40	£20.88
9 - BEARING COVER HIT-302435.A10 302435	£2.78	£3.34
10 - SEAL LOCK FLAT HD. SCREW M4X10 HIT-990430.A9 990430	£1.67	£2.00
*11 - WASHER (A) FOR GBR HIT-324597.A4 324597	£4.99	£5.99
*12 - TCT SAW BLADE 185MM-D30 HOLE-NT18 FOR GBR HIT-302412.A4 302412	-
*13 - WASHER (B) FOR GBR HIT-333556.A2 333556	£1.67	£2.00
14 - HEX. SOCKET HD. BOLT M8X15.5 HIT-324662.A12 324662	£3.02	£3.63
15 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A30 935196	£1.67	£2.00
16 - LEVER HIT-328045.A1 328045	£1.67	£2.00
17 - BALL BEARING 608VVC2PS2L HIT-608VVM.A114 608VVM	£5.70	£6.84
18 - WASHER (A) HIT-982631.A54 982631	£1.67	£2.00
19 - BRUSH TERMINAL HIT-930703.A58 930703	£3.28	£3.93
*20 - STATOR ASS'Y 110V (W/NOISE SUPPRESSOR) INCLUD.19 HIT-340982B.A0 340982B	£27.49	£32.99
*20 - STATOR ASS'Y 230-240V(W/NOISE SUPPRESSOR INCLUD.19 HIT-340982E.A0 340982E	£27.49	£32.99
21 - FAN GUIDE HIT-372743.A1 372743	-
*22 - ARMATURE ASS'Y 110V-120V INCLUD.17 HIT-361073U.A0 361073U	£41.60	£49.92
*22 - ARMATURE 230V-240V HIT-361073E.A0 361073E	£32.83	£39.40
23 - LOCK LEVER HIT-333568.A1 333568	-
24 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A16 301653	£1.67	£2.00
25 - FLOW GUIDE (B) HIT-333570.A1 333570	-
*26A - GEAR COVER EXCEPT FOR USA HIT-375922.A0 375922	-
27 - FLOW GUIDE (A) HIT-333569.A0 333569	£3.66	£4.39
28 - CUSHION HIT-337080.A7 337080	£1.67	£2.00
29 - FLAT HD. SCREW M6X20 (10 PCS.) HIT-949794.A19 949794	£1.67	£2.00
30 - BALL BEARING 6001VV HIT-6001VV.A40 6001VV	£8.68	£10.42
31 - RUBBER RING HIT-333566.A1 333566	£1.67	£2.00
32 - BOLT (SQUARE) M6 HIT-372747.A1 372747	-
*33 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) EXCEPT FOR USA HIT-935196.A31 935196	£1.67	£2.00
*34 - DUST COLLECTOR SET INCLUD.33 HIT-372757.A0 372757	£5.25	£6.30
*35 - NOISE SUPPRESSOR FOR AUS HIT-930039.A84 930039	£3.85	£4.62
*36 - TERMINAL FOR AUS HIT-311741.A20 311741	-
37 - NAME PLATE HIT-000000.A5317 000000	-
38 - MACHINE SCREW (W/WASHERS) M5X50 (BLACK) HIT-997841.A8 997841	£1.67	£2.00
39 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A98 938477	£1.67	£2.00
40 - HOUSING ASS'Y INCLUD.39 HIT-372738.A0 372738	-
41 - BRUSH HOLDER HIT-958900.A21 958900	£8.24	£9.89
42 - CARBON BRUSH (1 PAIR) HIT-999043.A53 999043	£5.54	£6.65
43 - BRUSH CAP HIT-945161.A44 945161	£1.67	£2.00
44 - CORD HOLDER HIT-370269.A5 370269	-
45 - SWITCH HIT-372781.A1 372781	-
46 - TAPPING SCREW (W/FLANGE) D4X12 HIT-305720.A29 305720	£1.67	£2.00
*47 - TERMINAL FOR AUS HIT-980063.A111 980063	£1.67	£2.00
48 - CORD CLIP HIT-937631.A111 937631	£1.67	£2.00
49 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A56 984750	£1.67	£2.00
50 - BEARING LOCK HIT-931701.A24 931701	£1.67	£2.00
*51 - FERRITE CORE FOR AUS HIT-334379.A31 334379	-
*52 - CORD ARMOR D8.8 HIT-953327.A27 953327	£1.67	£2.00
*53 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A73 500435Z	£14.14	£16.97
*53 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500463Z.A17 500463Z	£21.37	£25.64
54 - HANDLE COVER HIT-372739.A0 372739	-
55 - GRIP COVER HIT-333782.A0 333782	£5.52	£6.63
56 - RETAINING RING (E-TYPE) FOR D10 SHAFT HIT-670514.A2 670514	£1.67	£2.00
57 - LOCK NUT HIT-372746.A0 372746	-
58 - LEVER HIT-372745.A2 372745	-
59 - WASHER HIT-320975.A5 320975	£1.67	£2.00
*60 - SEAL LOCK SCREW (W/SP. WASHER) M4X14 FOR GBR HIT-373010.A0 373010	-
61 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 HIT-319541.A1 319541	£1.67	£2.00
62 - BEVEL PLATE HIT-372744.A0 372744	£1.67	£2.00
63 - ROLL PIN D6X50 (10 PCS.) HIT-949750.A2 949750	£8.72	£10.47
64 - STEP PIN D6X13 HIT-320163.A7 320163	£1.67	£2.00
65 - LINK HIT-372754.A0 372754	-
66 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X8 HIT-308109.A5 308109	£1.67	£2.00
*67 - BASE FOR GBR HIT-372742.A0 372742	£21.34	£25.61
*68 - BASE ASS'Y INCLUD.32 HIT-372753.A0 372753	-
*501 - CASE EXCEPT FOR USA HIT-372756.A0 372756	£33.88	£40.65
*502 - GUIDE EXCEPT FOR USA HIT-302691.A6 302691	£19.02	£22.83
503 - HEX. BAR WRENCH 6MM HIT-872422.A22 872422	£1.67	£2.00
*505 - LEVER HIT-000000.A5319 000000	-

Attribute Name	Value
Brand	Hikoki
