Hitachi / Hikoki C7ST Circular Saw Spare Parts

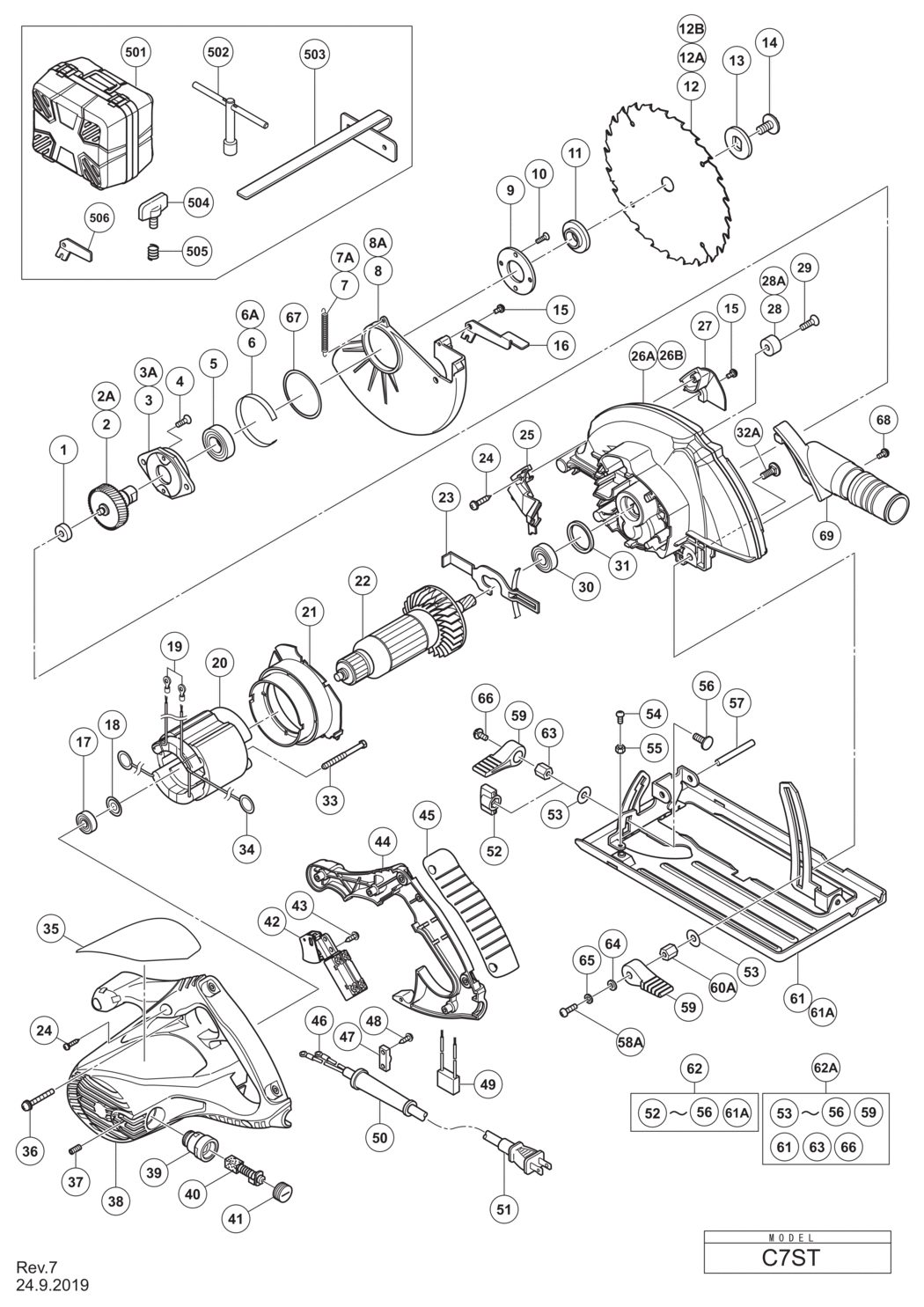

An exploded diagram and spare parts listing for the Hitachi / Hikoki C7ST Circular Saw

	Ex VAT	Inc VAT
1 - METAL TILL 5.2019 HIT-963803.A2 963803	-
2 - SPINDLE AND GEAR SET TILL 5.2019 HIT-333564.A0 333564	£14.69	£17.63
2A - SPINDLE AND GEAR SET SINCE 6.2019 HIT-372751.A0 372751	-
3 - BEARING HOLDER TILL 5.2019 HIT-302433.A5 302433	£5.27	£6.32
3A - BEARING HOLDER SINCE 6.2019 HIT-373810.A1 373810	-
4 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A5 992013	£1.67	£2.00
5 - BALL BEARING 6003VVCMPS2L HIT-6003VV.A6 6003VV	£9.03	£10.84
6 - BUSHING TILL 5.2019 HIT-961807.A5 961807	£2.77	£3.32
6A - BUSH SINCE 6.2019 HIT-373811.A2 373811	-
7 - RETURN SPRING TILL 5.2019 HIT-333567.A0 333567	£1.67	£2.00
7A - RETURN SPRING SINCE 6.2019 HIT-373011.A1 373011	£1.67	£2.00
8 - LOWER GUARD TILL 5.2019 HIT-333572.A0 333572	£15.61	£18.73
8A - LOWER GUARD SINCE 6.2019 HIT-373812.A1 373812	£17.40	£20.88
9 - BEARING COVER HIT-302435.A4 302435	£2.78	£3.34
10 - SEAL LOCK FLAT HD. SCREW M4X10 HIT-990430.A2 990430	£1.67	£2.00
*11 - WASHER (A) HIT-324597.A1 324597	£4.99	£5.99
*12A - TCT SAW BLADE 185MM-D30 HOLE-NT18 HIT-302412.A2 302412	-
*13 - WASHER (B) FOR SAF HIT-333556.A0 333556	£1.67	£2.00
14 - BOLT (W/FLANGE) M8X15.5 HIT-320971.A2 320971	£1.67	£2.00
15 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A61 935196	£1.67	£2.00
16 - LEVER HIT-328045.A2 328045	£1.67	£2.00
17 - BALL BEARING 608VVC2PS2L HIT-608VVM.A230 608VVM	£5.70	£6.84
18 - WASHER (A) HIT-982631.A5 982631	£1.67	£2.00
*19 - TERMINAL M4.0 (10 PCS.) FOR NOISE SUPPRESSOR HIT-930804.A5 930804	£3.64	£4.37
*20 - STATOR ASS'Y 110V INCLUD.34 HIT-340807B.A0 340807B	£30.61	£36.73
*20 - STATOR ASS'Y 220V-240V INCLUD.34 HIT-340807E.A0 340807E	£32.13	£38.56
21 - FAN GUIDE HIT-333565.A0 333565	£1.67	£2.00
*22 - ARMATURE ASS'Y 110V-127V INCLUD.17 HIT-360907U.A0 360907U	£54.91	£65.89
*22 - ARMATURE 220V-240V HIT-360907E.A0 360907E	£42.27	£50.72
23 - LOCK LEVER HIT-333568.A0 333568	-
24 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A247 301653	£1.67	£2.00
25 - FLOW GUIDE (B) HIT-333570.A0 333570	-
*26A - GEAR COVER TILL 5.2019 HIT-333571.A0 333571	£40.59	£48.71
*26B - GEAR COVER SINCE 6.2019 HIT-375922.A1 375922	-
27 - FLOW GUIDE (A) HIT-333569.A1 333569	£3.66	£4.39
28 - CUSHION TILL 5.2019 HIT-961729.A1 961729	£1.67	£2.00
28A - CUSHION SINCE 6.2019 HIT-337080.A1 337080	£1.67	£2.00
29 - FLAT HD. SCREW M6X20 (10 PCS.) HIT-949794.A2 949794	£1.67	£2.00
30 - BALL BEARING 6001VV HIT-6001VV.A6 6001VV	£8.68	£10.42
31 - RUBBER RING HIT-333566.A0 333566	£1.67	£2.00
32A - BOLT (SQUARE) M6 HIT-333920.A0 333920	£1.67	£2.00
33 - HEX. HD. TAPPING SCREW D5X65 HIT-960251.A10 960251	£1.67	£2.00
34 - BRUSH TERMINAL HIT-930703.A29 930703	£3.28	£3.93
35 - NAME PLATE HIT-000000.A2090 000000	-
36 - MACHINE SCREW (W/WASHERS) M5X50 (BLACK) HIT-997841.A3 997841	£1.67	£2.00
37 - HEX. SOCKET SET SCREW M5X12 HIT-982169.A1 982169	-
38 - HOUSING ASS'Y INCLUD.37 HIT-333558.A0 333558	-
39 - BRUSH HOLDER HIT-958900.A6 958900	£8.24	£9.89
40 - CARBON BRUSH (1 PAIR) HIT-999043.A25 999043	£5.54	£6.65
41 - BRUSH CAP HIT-945161.A17 945161	£1.67	£2.00
42 - SWITCH (2P SCREW TYPE) HIT-333554.A0 333554	£16.28	£19.54
43 - TAPPING SCREW (W/FLANGE) D4X12 HIT-305720.A11 305720	£1.67	£2.00
44 - HANDLE COVER HIT-333559.A0 333559	-
45 - GRIP COVER HIT-333782.A1 333782	£5.52	£6.63
*46 - TERMINAL HIT-980063.A56 980063	£1.67	£2.00
47 - CORD CLIP HIT-937631.A29 937631	£1.67	£2.00
48 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A227 984750	£1.67	£2.00
*49 - NOISE SUPPRESSOR FOR NZL HIT-930039.A37 930039	£3.85	£4.62
*50 - CORD ARMOR D8.8 HIT-953327.A107 953327	£1.67	£2.00
*51 - CORD (CORD ARMOR D8.8) FOR HKG HIT-500435Z.A45 500435Z	£14.14	£16.97
*51 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500463Z.A8 500463Z	£21.37	£25.64
53 - WASHER HIT-320975.A11 320975	£1.67	£2.00
54 - MACHINE SCREW M4X12 (BLACK) HIT-333783.A0 333783	-
55 - NUT M4 (BLACK) HIT-322709.A4 322709	£1.67	£2.00
56 - BOLT (SQUARE) M6 HIT-333562.A0 333562	£1.67	£2.00
57 - ROLL PIN D6X50 (10 PCS.) HIT-949750.A6 949750	£8.72	£10.47
58A - MACHINE SCREW M6X14 HIT-333922.A0 333922	£1.67	£2.00
*59 - LEVER (A) EXCEPT FOR USA HIT-323923.A5 323923	£1.67	£2.00
60A - LOCK NUT HIT-333921.A0 333921	£7.30	£8.76
*61 - BASE (A) EXCEPT FOR USA HIT-333561.A0 333561	£17.55	£21.06
*62A - BASE ASS'Y INCLUD.33-56 HIT-335000.A0 335000	-
*63 - LOCK NUT EXCEPT FOR USA HIT-331267.A2 331267	£3.28	£3.93
64 - WASHER M6 (10 PCS.) HIT-949425.A15 949425	£1.67	£2.00
65 - SPRING WASHER M6 (10 PCS.) HIT-949455.A88 949455	£1.67	£2.00
*66 - SEAL LOCK SCREW (W/SP. WASHERS) M6X14 EXCEPT FOR USA HIT-322260.A7 322260	£1.67	£2.00
67 - WASHER SINCE 6.2019 HIT-370591.A4 370591	-
*68 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) SINCE 6.2019 FOR EUROPE HIT-935196.A60 935196	£1.67	£2.00
*69 - DUST COLLECTOR SET INCLUD.68 HIT-372757.A4 372757	£5.25	£6.30
501 - CASE HIT-333557.A0 333557	£24.82	£29.78
502 - BOX WRENCH 10MM HIT-940543.A25 940543	£7.34	£8.81
*503 - GUIDE EXCEPT FOR USA HIT-302691.A2 302691	£19.02	£22.83
*504 - WING BOLT M6X18 EXCEPT FOR USA HIT-307898.A3 307898	£2.71	£3.25
*505 - SPRING EXCEPT FOR USA HIT-941056.A7 941056	£1.67	£2.00
*506 - LEVER HIT-000000.A2093 000000	-
*601 - DUST COLLECTOR SET TILL 5.2019 EXCEPT FOR USA HIT-333842.A0 333842	£22.79	£27.35
*601A - DUST COLLECTOR SET INCLUD.68 HIT-372757.A3 372757	£5.25	£6.30
