Hitachi / Hikoki C7U2 Circular Saw Spare Parts

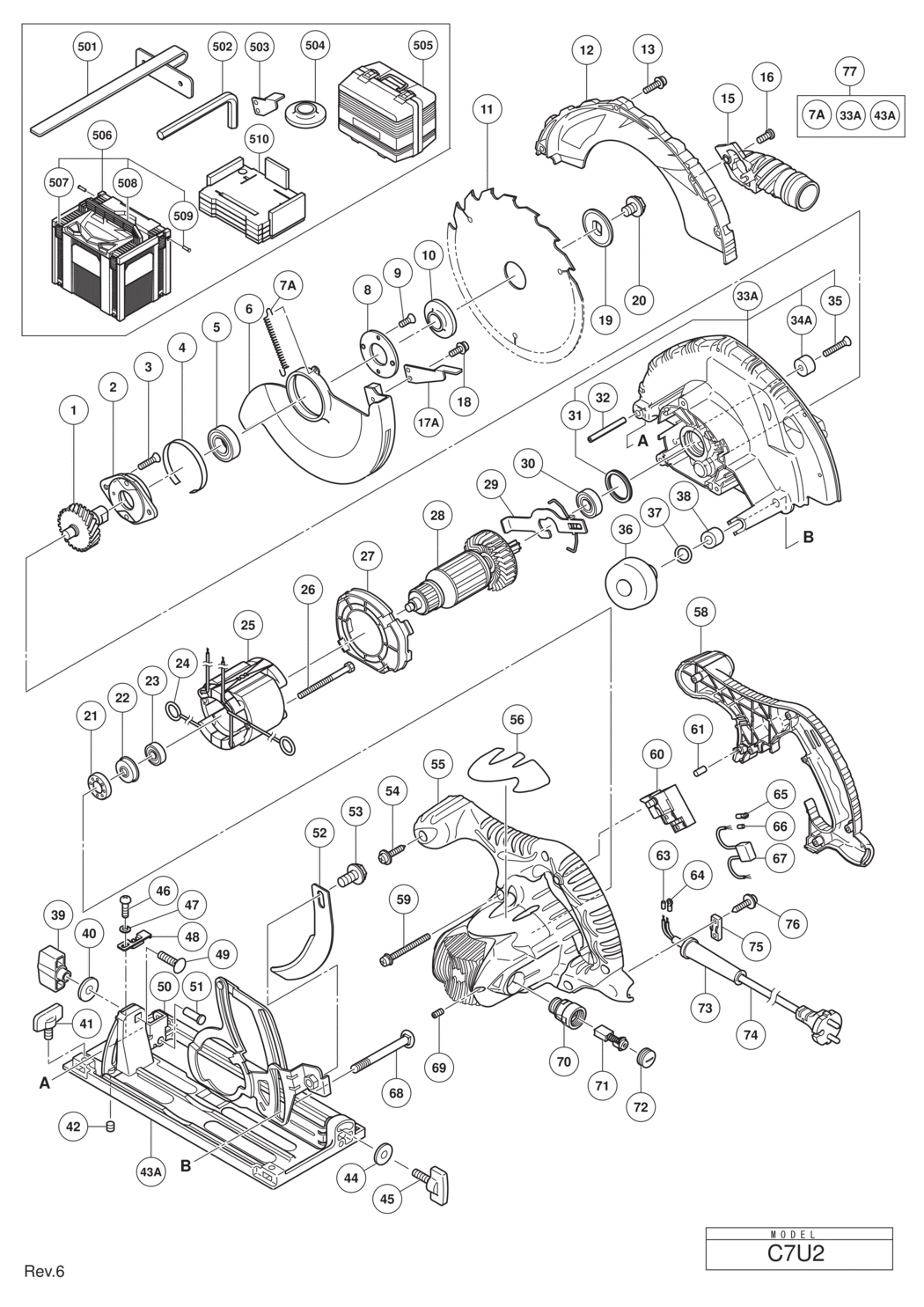

An exploded diagram and spare parts listing for the Hitachi / Hikoki C7U2 Circular Saw

	Ex VAT	Inc VAT
1 - SPINDLE AND GEAR SET HIT-302988.A1 302988	£20.42	£24.50
2 - BEARING HOLDER HIT-302433.A1 302433	£5.27	£6.32
3 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A18 992013	£1.67	£2.00
4 - BUSHING HIT-961807.A0 961807	£2.77	£3.32
5 - BALL BEARING 6003VVCMPS2L HIT-6003VV.A10 6003VV	£9.03	£10.84
6 - SAFETY COVER HIT-324661.A1 324661	£14.97	£17.96
7A - RETURN SPRING SINCE 12.2013 HIT-337101.A1 337101	£1.67	£2.00
8 - BEARING COVER HIT-302435.A1 302435	£2.78	£3.34
9 - SEAL LOCK FLAT HD. SCREW M4X10 HIT-990430.A4 990430	£1.67	£2.00
10 - WASHER (A) HIT-302476.A0 302476	£5.09	£6.11
11 - TCT SAW BLADE 190MM-D30 HOLE-NT18 HIT-324668.A0 324668	-
12 - SAW COVER HIT-324654.A0 324654	£8.66	£10.39
13 - MACHINE SCREW (W/WASHERS) M4X14 (BLACK) HIT-305691.A11 305691	£1.67	£2.00
15 - DUST COLLECTOR HIT-324669.A3 324669	£2.89	£3.47
16 - SPECIAL BOLT HIT-324139.A4 324139	£1.67	£2.00
17A - LEVER HIT-370542.A6 370542	£1.67	£2.00
18 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A23 304043	£1.67	£2.00
19 - WASHER (B) HIT-302423.A6 302423	£4.31	£5.17
20 - HEX. SOCKET HD. BOLT M8X15.5 HIT-324662.A0 324662	£3.02	£3.63
21 - RUBBER BUSHING HIT-325060.A2 325060	£1.67	£2.00
22 - BEARING BUSHING HIT-322089.A6 322089	£6.50	£7.80
23 - BALL BEARING 608VVC2PS2L HIT-608VVM.A227 608VVM	£5.70	£6.84
24 - BRUSH TERMINAL HIT-930703.A31 930703	£3.28	£3.93
*25 - STATOR ASS'Y 110V INCLUD.24 HIT-340640C.A0 340640C	£29.97	£35.96
*25 - STATOR ASS'Y 230V INCLUD.24 HIT-340640E.A0 340640E	£29.97	£35.96
26 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A27 953174	£1.67	£2.00
27 - FAN GUIDE HIT-324656.A1 324656	£3.02	£3.63
*28 - ARMATURE 110V HIT-360727C.A0 360727C	£48.08	£57.69
*28 - ARMATURE 230V HIT-360727E.A0 360727E	£49.74	£59.69
29 - LOCK LEVER HIT-324655.A1 324655	£3.02	£3.63
30 - BALL BEARING 6001VV HIT-6001VV.A4 6001VV	£8.68	£10.42
31 - RUBBER RING HIT-958130.A3 958130	£1.67	£2.00
32 - ROLL PIN D6X40 (10 PCS.) HIT-949686.A7 949686	£8.48	£10.18
33A - GEAR COVER ASS'Y INCLUD.31 HIT-337095.A0 337095	£34.50	£41.40
34A - CUSHION SINCE 12.2013 HIT-337097.A2 337097	£1.67	£2.00
35 - FLAT HD. SCREW M6X20 (10 PCS.) HIT-949794.A10 949794	£1.67	£2.00
36 - KNOB HIT-324660.A0 324660	£6.82	£8.18
37 - O-RING (P-7) HIT-676531.A2 676531	£1.67	£2.00
38 - SLEEVE HIT-303801.A5 303801	£4.28	£5.13
39 - WING NUT M8 HIT-324658.A0 324658	£4.57	£5.48
40 - BOLT WASHER M8 (10 PCS.) HIT-949433.A47 949433	£1.67	£2.00
41 - WING BOLT M6X15 HIT-301806.A21 301806	£1.67	£2.00
42 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X6 HIT-302469.A0 302469	£1.67	£2.00
43A - BASE ASS'Y INCLUD.39 HIT-337098.A0 337098	£61.34	£73.61
44 - WASHER M6 (10 PCS.) HIT-949425.A20 949425	£1.67	£2.00
45 - WING BOLT M6X17 HIT-302459.A15 302459	£1.67	£2.00
46 - MACHINE SCREW M4X6 (10 PCS.) HIT-949214.A4 949214	£1.67	£2.00
47 - SPRING WASHER M4 (10 PCS.) HIT-949453.A51 949453	£1.67	£2.00
48 - GUIDE PIECE HIT-324659.A14 324659	£3.02	£3.63
49 - BOLT (SQUARE) M8X30 HIT-302457.A3 302457	£1.67	£2.00
50 - BEVEL PLATE HIT-308479.A1 308479	£5.59	£6.71
51 - RIVET D6X17 HIT-308480.A2 308480	£1.67	£2.00
52 - RIVING KNIFE HIT-324663.A1 324663	£8.66	£10.39
53 - HEX. SOCKET HD. BOLT M8X10 HIT-324664.A0 324664	£5.52	£6.63
54 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A251 301653	£1.67	£2.00
*55 - HOUSING ASS'Y INCLUD.69 HIT-324665.A0 324665	£28.74	£34.49
*55 - HOUSING ASS'Y INCLUD.69 HIT-324666.A0 324666	-
56 - NAME PLATE HIT-000000.A2076 000000	-
58 - HANDLE COVER HIT-324667.A0 324667	£7.99	£9.59
59 - MACHINE SCREW (W/WASHERS) M5X45 (BLACK) HIT-302434.A5 302434	£1.67	£2.00
*60 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK HIT-963756Z.A7 963756Z	£20.44	£24.53
*60 - SWITCH (C) (1P SCREW TYPE) W/O LOCK FOR SAF HIT-302470.A1 302470	£12.81	£15.37
61 - BEARING LOCK HIT-946362.A21 946362	£1.67	£2.00
63 - TUBE (D) FOR CORD HIT-981373.A42 981373	£1.67	£2.00
64 - TERMINAL FOR CORD HIT-980063.A47 980063	£1.67	£2.00
65 - TERMINAL M4.0 (10 PCS.) FOR SAF HIT-930804.A1 930804	£3.64	£4.37
66 - TUBE (D) EXCEPT FOR SAF HIT-981373.A43 981373	£1.67	£2.00
67 - NOISE SUPPRESSOR HIT-930039.A34 930039	£3.85	£4.62
68 - DIAGONAL BOLT M8X105 HIT-316444.A1 316444	£4.57	£5.48
69 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A41 938477	£1.67	£2.00
70 - BRUSH HOLDER HIT-958900.A5 958900	£8.24	£9.89
71 - CARBON BRUSH (1 PAIR) HIT-999043.A26 999043	£5.54	£6.65
72 - BRUSH CAP HIT-945161.A14 945161	£1.67	£2.00
73 - CORD ARMOR D8.8 HIT-953327.A108 953327	£1.67	£2.00
*74 - CORD (CORD ARMOR D8.8) HIT-500234Z.A15 500234Z	-
*74 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A40 500435Z	£14.14	£16.97
*74 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A36 500461Z	£15.56	£18.67
75 - CORD CLIP HIT-937631.A23 937631	£1.67	£2.00
76 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A222 984750	£1.67	£2.00
77 - GEAR COVER SET INCLUD.7A HIT-337103.A0 337103	£90.57	£108.68
501 - GUIDE HIT-302756.A12 302756	£7.02	£8.42
502 - HEX. BAR WRENCH 6MM HIT-872422.A13 872422	£1.67	£2.00
503 - KNOB HIT-303338.A1 303338	£1.67	£2.00
504 - WASHER (A) FOR FRA HIT-302443.A2 302443	£5.02	£6.02
505 - CASE HIT-325318.A0 325318	£44.46	£53.35
506 - CASE ASS'Y (STACKABLE 4) INCLUD.507-509 HIT-337528.A14 337528	-
507 - LATCH HIT-336472.A32 336472	£1.67	£2.00
508 - HANDLE HIT-336473.A42 336473	£6.43	£7.72
509 - HINGE HIT-336474.A32 336474	£1.67	£2.00
510 - BOTTOM CUSHION HIT-337659.A1 337659	-
601 - GUIDE RAIL ADAPTER ASS'Y INCLUD.602-607 HIT-317848.A1 317848	£66.61	£79.93
602 - RAIL BAR HIT-317849.A1 317849	-
603 - BAR HIT-317850.A1 317850	-
604 - BAR HIT-317851.A1 317851	-
605 - WING BOLT M6X15 HIT-301806.A23 301806	£1.67	£2.00
606 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A7 949237	£1.67	£2.00
607 - SPRING WASHER M5 (10 PCS.) HIT-949454.A60 949454	£1.67	£2.00
