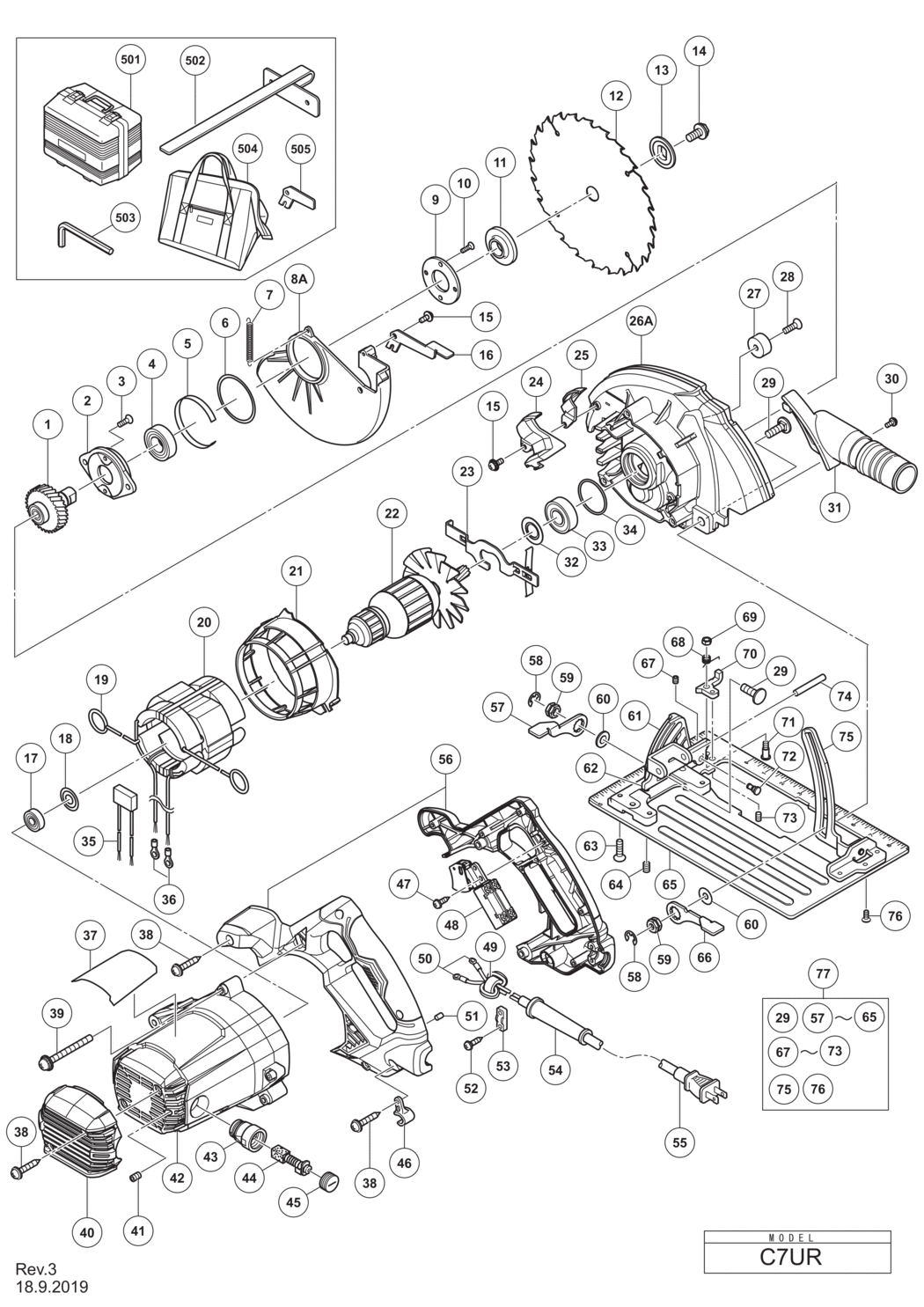

1 - SPINDLE AND GEAR SET
HIT-372782.A0
372782
|
-
|
|
|
|
2 - BEARING HOLDER
HIT-372765.A0
372765
|
-
|
|
|
|
3 - SEAL LOCK FLAT HD. SCREW M5X14
HIT-992013.A15
992013
|
£1.67
|
£2.00
|
|
|
4 - BALL BEARING 6003VVCMPS2L
HIT-6003VV.A8
6003VV
|
£9.03
|
£10.84
|
|
|
5 - BUSH
HIT-373811.A1
373811
|
-
|
|
|
|
6 - WASHER
HIT-370591.A2
370591
|
-
|
|
|
|
7 - RETURN SPRING
HIT-373026.A0
373026
|
£1.67
|
£2.00
|
|
|
8A - LOWER GUARD
HIT-373812.A2
373812
|
£17.40
|
£20.88
|
|
|
9 - BEARING COVER
HIT-302435.A2
302435
|
£2.78
|
£3.34
|
|
|
10 - SEAL LOCK FLAT HD. SCREW M4X10
HIT-990430.A0
990430
|
£1.67
|
£2.00
|
|
|
*11 - WASHER (A)
HIT-324597.A2
324597
|
£4.99
|
£5.99
|
|
|
*12 - TCT SAW BLADE 185MM-D30 HOLE-NT18
HIT-302412.A1
302412
|
-
|
|
|
|
*13 - WASHER (B)
HIT-324598.A0
324598
|
£4.99
|
£5.99
|
|
|
14 - HEX. SOCKET HD. BOLT M8X15.5
HIT-324662.A7
324662
|
£3.02
|
£3.63
|
|
|
15 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK)
HIT-935196.A57
935196
|
£1.67
|
£2.00
|
|
|
16 - LEVER
HIT-328045.A3
328045
|
£1.67
|
£2.00
|
|
|
17 - BALL BEARING 6000VVCMPS2L
HIT-6000VV.A13
6000VV
|
£7.62
|
£9.15
|
|
|
18 - WASHER (A)
HIT-302428.A1
302428
|
£1.67
|
£2.00
|
|
|
19 - BRUSH TERMINAL
HIT-937623.A14
937623
|
£1.67
|
£2.00
|
|
|
*20 - STATOR ASS'Y 110V (W/NOISE SUPPRESSOR) INCLUD.19
HIT-340983B.A0
340983B
|
-
|
|
|
|
*20 - STATOR ASS'Y 230-240V(W/NOISE SUPPRESSOR INCLUD.19
HIT-340983F.A0
340983F
|
-
|
|
|
|
21 - FAN GUIDE
HIT-372743.A0
372743
|
-
|
|
|
|
*22 - ARMATURE ASS'Y 110V-120V INCLUD.17
HIT-361074U.A0
361074U
|
-
|
|
|
|
*22 - ARMATURE 230V-240V
HIT-361074F.A0
361074F
|
-
|
|
|
|
23 - LOCK LEVER
HIT-320959.A1
320959
|
£4.33
|
£5.20
|
|
|
24 - FLOW GUIDE (B)
HIT-372768.A0
372768
|
-
|
|
|
|
25 - FLOW GUIDE (A)
HIT-372767.A0
372767
|
-
|
|
|
|
*26A - GEAR COVER EXCEPT FOR USA
HIT-375923.A0
375923
|
-
|
|
|
|
27 - CUSHION
HIT-337080.A0
337080
|
£1.67
|
£2.00
|
|
|
28 - FLAT HD. SCREW M6X20 (10 PCS.)
HIT-949794.A7
949794
|
£1.67
|
£2.00
|
|
|
29 - BOLT (SQUARE) M8
HIT-372774.A0
372774
|
-
|
|
|
|
*30 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) EXCEPT FOR USA
HIT-935196.A56
935196
|
£1.67
|
£2.00
|
|
|
*31 - DUST COLLECTOR SET INCLUD.30
HIT-372757.A2
372757
|
£5.25
|
£6.30
|
|
|
32 - DUST WASHER (B)
HIT-980700.A11
980700
|
£1.67
|
£2.00
|
|
|
33 - BALL BEARING 6202VVCMPS2L
HIT-6202VV.A13
6202VV
|
£7.02
|
£8.42
|
|
|
34 - O-RING (I.D. 34.5)
HIT-372783.A0
372783
|
-
|
|
|
|
*35 - NOISE SUPPRESSOR FOR EUROPE
HIT-930039.A42
930039
|
£3.85
|
£4.62
|
|
|
*36 - TERMINAL
HIT-311741.A10
311741
|
-
|
|
|
|
37 - NAME PLATE
HIT-000000.A2101
000000
|
-
|
|
|
|
38 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A245
301653
|
£1.67
|
£2.00
|
|
|
39 - MACHINE SCREW (W/WASHERS) M5X50 (BLACK)
HIT-997841.A1
997841
|
£1.67
|
£2.00
|
|
|
40 - TAIL COVER
HIT-372762.A0
372762
|
-
|
|
|
|
41 - HEX. SOCKET SET SCREW M5X8
HIT-938477.A37
938477
|
£1.67
|
£2.00
|
|
|
42 - HOUSING ASS'Y INCLUD.41
HIT-372759.A0
372759
|
-
|
|
|
|
43 - BRUSH HOLDER
HIT-938241.A21
938241
|
£8.28
|
£9.94
|
|
|
44 - CARBON BRUSH (1 PAIR)
HIT-999038.A19
999038
|
£5.54
|
£6.65
|
|
|
45 - BRUSH CAP
HIT-945161.A15
945161
|
£1.67
|
£2.00
|
|
|
46 - CORD HOLDER
HIT-370269.A3
370269
|
-
|
|
|
|
47 - SCREW (PLASTIC TIE) D4X10
HIT-373166.A0
373166
|
-
|
|
|
|
48 - SWITCH
HIT-372781.A0
372781
|
-
|
|
|
|
*49 - FERRITE CORE FOR GBR (110V)
HIT-334379.A14
334379
|
-
|
|
|
|
*50 - TERMINAL
HIT-980063.A51
980063
|
£1.67
|
£2.00
|
|
|
51 - BEARING LOCK
HIT-931701.A7
931701
|
£1.67
|
£2.00
|
|
|
52 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A229
984750
|
£1.67
|
£2.00
|
|
|
53 - CORD CLIP
HIT-937631.A32
937631
|
£1.67
|
£2.00
|
|
|
*54 - CORD ARMOR D8.8
HIT-953327.A105
953327
|
£1.67
|
£2.00
|
|
|
*55 - CORD (CORD ARMOR D8.8) FOR GBR (230V)
HIT-500435Z.A46
500435Z
|
£14.14
|
£16.97
|
|
|
*55 - CORD (CORD ARMOR D8.8) FOR GBR (110V)
HIT-500463Z.A7
500463Z
|
£21.37
|
£25.64
|
|
|
56 - HANDLE (A).(B) SET
HIT-373027.A0
373027
|
-
|
|
|
|
57 - LEVER (A)
HIT-372773.A0
372773
|
-
|
|
|
|
58 - RETAINING RING (E-TYPE) FOR D10 SHAFT
HIT-670514.A3
670514
|
£1.67
|
£2.00
|
|
|
59 - LOCK NUT
HIT-372772.A0
372772
|
-
|
|
|
|
60 - BOLT WASHER M8 (10 PCS.)
HIT-949433.A42
949433
|
£1.67
|
£2.00
|
|
|
61 - BEVEL STAND
HIT-372764.A0
372764
|
-
|
|
|
|
62 - BEVEL PLATE
HIT-372770.A0
372770
|
-
|
|
|
|
63 - SEAL LOCK FLAT HD. SCREW M5X14
HIT-992013.A13
992013
|
£1.67
|
£2.00
|
|
|
64 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X8
HIT-308109.A0
308109
|
£1.67
|
£2.00
|
|
|
65 - BASE PLATE
HIT-372769.A0
372769
|
-
|
|
|
|
66 - LEVER
HIT-372745.A1
372745
|
-
|
|
|
|
67 - SEAL LOCK HEX. SOCKET SET SCREW M5X6
HIT-319541.A15
319541
|
£1.67
|
£2.00
|
|
|
68 - SPRING (B)
HIT-372778.A0
372778
|
-
|
|
|
|
69 - U-NUT M5
HIT-308387.A6
308387
|
£1.67
|
£2.00
|
|
|
70 - STOPPER LEVER
HIT-372776.A0
372776
|
-
|
|
|
|
71 - SPECIAL BOLT
HIT-372777.A0
372777
|
-
|
|
|
|
72 - STEP PIN
HIT-372775.A0
372775
|
-
|
|
|
|
73 - SEAL LOCK HEX. SOCKET SET SCREW M5X8
HIT-372779.A0
372779
|
-
|
|
|
|
74 - ROLL PIN D6X40 (10 PCS.)
HIT-949686.A6
949686
|
£8.48
|
£10.18
|
|
|
75 - LINK
HIT-372771.A0
372771
|
-
|
|
|
|
76 - SEAL LOCK FLAT HD. SCREW M4X8
HIT-328604.A0
328604
|
-
|
|
|
|
77 - BASE ASS'Y INCLUD.29
HIT-372785.A0
372785
|
-
|
|
|
|
*501 - CASE EXCEPT FOR USA
HIT-372784.A0
372784
|
-
|
|
|
|
*502 - GUIDE EXCEPT FOR USA
HIT-302691.A3
302691
|
£19.02
|
£22.83
|
|
|
503 - HEX. BAR WRENCH 6MM
HIT-872422.A9
872422
|
£1.67
|
£2.00
|
|
|
*505 - LEVER
HIT-000000.A2103
000000
|
-
|
|
|
