Hitachi / Hikoki C9BA2 Circular Saw Spare Parts

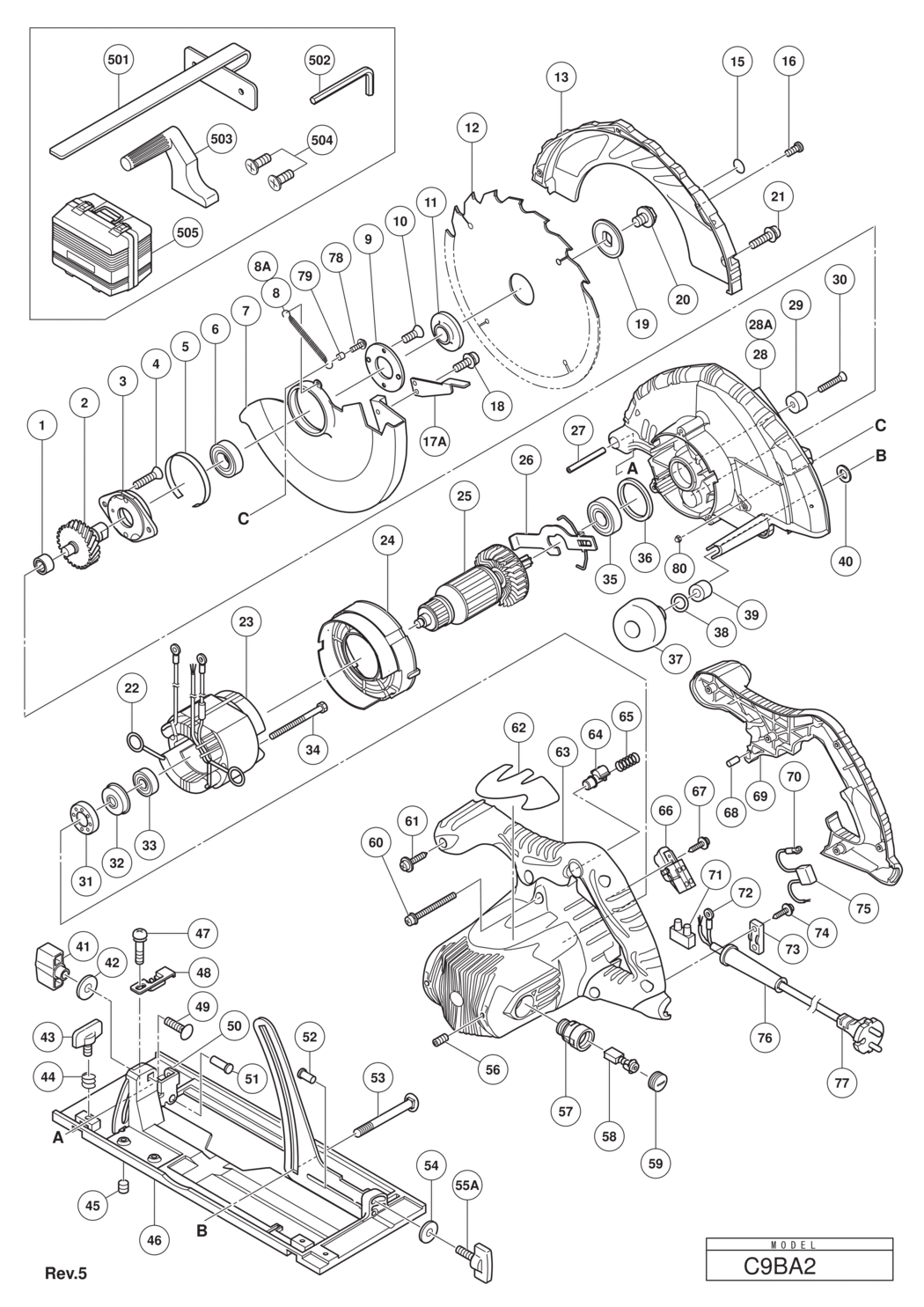

An exploded diagram and spare parts listing for the Hitachi / Hikoki C9BA2 Circular Saw

	Ex VAT	Inc VAT
1 - NEEDLE BEARING (HK1212) HIT-673002.A2 673002	£6.73	£8.08
2 - SPINDLE AND GEAR SET HIT-303789.A0 303789	£41.02	£49.22
3 - BEARING HOLDER HIT-303790.A3 303790	£16.47	£19.76
4 - SEAL LOCK FLAT HD. SCREW M6X14 HIT-303797.A3 303797	£1.67	£2.00
5 - LINER HIT-998887.A7 998887	£10.39	£12.47
6 - BALL BEARING 6203VVCMPS2L HIT-6203VV.A7 6203VV	£9.32	£11.19
7 - SAFETY COVER HIT-326803.A1 326803	-
8 - RETURN SPRING TILL 1.2007 FOR AUS HIT-303906.A2 303906	-
*8 - RETURN SPRING TILL 3.2007 EXCEPT FOR AUS HIT-303906.A3 303906	-
8A - RETURN SPRING SINCE 2.2007 FOR AUS HIT-328626.A2 328626	-
*8A - RETURN SPRING SINCE 4.2007 EXCEPT FOR AUS HIT-328626.A3 328626	-
9 - BEARING COVER HIT-303804.A0 303804	£4.28	£5.13
10 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A19 992013	£1.67	£2.00
*11 - WASHER (A) HIT-326802.A0 326802	-
*11 - WASHER (A) FOR AUS HIT-303365.A1 303365	£4.78	£5.73
*12 - TCT SAW BLADE 235MM-D25.4 HOLE-NT40 HIT-326830.A1 326830	-
*12 - TCT SAW BLADE 235MM-D25 HOLE-NT40 FOR AUS HIT-326829.A0 326829	-
13 - SAW COVER HIT-325354.A1 325354	£19.98	£23.98
15 - NAME PLATE(BRAKE) HIT-000000.A2079 000000	-
16 - SPECIAL BOLT HIT-324139.A5 324139	£1.67	£2.00
17A - LEVER HIT-370542.A7 370542	£1.67	£2.00
18 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A22 304043	£1.67	£2.00
19 - WASHER (B) HIT-302423.A5 302423	£4.31	£5.17
20 - HEX. SOCKET HD. BOLT M8X15.5 HIT-324662.A1 324662	£3.02	£3.63
21 - MACHINE SCREW (W/WASHERS) M4X14 (BLACK) HIT-305691.A12 305691	£1.67	£2.00
22 - BRUSH TERMINAL HIT-937623.A19 937623	£1.67	£2.00
*23 - STATOR ASS'Y 110V INCLUD.22 HIT-340692C.A0 340692C	-
*23 - STATOR ASS'Y 110V INCLUD.22 FOR TPE HIT-340661C.A0 340661C	-
*23 - STATOR ASS'Y 220V-230V INCLUD.22 HIT-340692E.A0 340692E	-
*23 - STATOR ASS'Y 240V INCLUD.22 HIT-340692F.A0 340692F	-
*23 - STATOR ASS'Y 240V INCLUD.22 FOR AUS HIT-340661F.A0 340661F	-
24 - FAN GUIDE HIT-325352.A0 325352	£1.67	£2.00
*25 - ARMATURE 110V HIT-360778C.A0 360778C	-
*25 - ARMATURE 230V HIT-360778E.A1 360778E	-
*25 - ARMATURE 240V HIT-360778F.A0 360778F	-
26 - LOCK LEVER HIT-303793.A2 303793	£8.42	£10.10
27 - ROLL PIN D8X50 (10 PCS.) HIT-949884.A2 949884	£11.82	£14.18
28 - GEAR COVER ASS'Y INCLUD.1 HIT-325350.A1 325350	£71.58	£85.90
*28 - GEAR COVER ASS'Y TILL 3.2007 EXCEPT FOR AUS HIT-325350.A2 325350	£71.58	£85.90
28A - GEAR COVER SINCE 2.2007 FOR AUS HIT-328627.A0 328627	-
*28A - GEAR COVER SINCE 4.2007 EXCEPT FOR AUS HIT-328627.A1 328627	-
29 - CUSHION SINCE 2.2007 FOR AUS HIT-961729.A5 961729	£1.67	£2.00
30 - FLAT HD. SCREW M6X20 (10 PCS.) HIT-949794.A12 949794	£1.67	£2.00
31 - RUBBER BUSHING HIT-325356.A1 325356	£1.67	£2.00
32 - BEARING BUSHING HIT-325355.A2 325355	£4.57	£5.48
33 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A17 6000VV	£7.62	£9.15
34 - HEX. HD. TAPPING SCREW D5X65 HIT-960251.A7 960251	£1.67	£2.00
35 - BALL BEARING 6202VVCMPS2L HIT-6202VV.A16 6202VV	£7.02	£8.42
36 - RUBBER RING HIT-303792.A1 303792	£1.67	£2.00
37 - KNOB HIT-324660.A2 324660	£6.82	£8.18
38 - O-RING (P-7) HIT-676531.A1 676531	£1.67	£2.00
39 - SLEEVE HIT-303801.A3 303801	£4.28	£5.13
40 - WASHER (B) HIT-961436.A0 961436	£1.67	£2.00
41 - WING NUT M8 HIT-324658.A2 324658	£4.57	£5.48
42 - BOLT WASHER M8 (10 PCS.) HIT-949433.A48 949433	£1.67	£2.00
43 - WING BOLT M6X15 HIT-301806.A24 301806	£1.67	£2.00
44 - LOCK SPRING HIT-947859.A7 947859	£1.67	£2.00
45 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X6 HIT-302469.A1 302469	£1.67	£2.00
46 - BASE ASS'Y INCLUD.41 HIT-326805.A0 326805	-
47 - MACHINE SCREW (W/SP. WASHER) M4X6 HIT-317333.A16 317333	£1.67	£2.00
48 - GUIDE PIECE HIT-324659.A12 324659	£3.02	£3.63
49 - BOLT (SQUARE) M8X30 HIT-302457.A5 302457	£1.67	£2.00
50 - BEVEL PLATE HIT-308481.A4 308481	£10.10	£12.12
51 - RIVET D6X24 HIT-308482.A1 308482	£1.67	£2.00
52 - RIVET D6X17 HIT-308480.A3 308480	£1.67	£2.00
53 - DIAGONAL BOLT M8 HIT-303800.A1 303800	£4.28	£5.13
54 - WASHER M6 (10 PCS.) HIT-949425.A19 949425	£1.67	£2.00
55A - WING BOLT M6X20 HIT-328923.A2 328923	£1.67	£2.00
56 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A40 938477	£1.67	£2.00
57 - BRUSH HOLDER HIT-983362.A5 983362	£7.02	£8.42
58 - CARBON BRUSH (1 PAIR) HIT-999038.A15 999038	£5.54	£6.65
59 - BRUSH CAP HIT-961781.A8 961781	£3.15	£3.78
60 - MACHINE SCREW (W/WASHERS) M5X40 (BLACK) HIT-303796.A0 303796	£1.67	£2.00
61 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A250 301653	£1.67	£2.00
62 - NAME PLATE HIT-000000.A2080 000000	-
*63 - HOUSING ASS'Y INCLUD.56 HIT-325363.A2 325363	-
*63 - HOUSING ASS'Y INCLUD.56 HIT-325362.A1 325362	£38.23	£45.88
64 - SAFETY LOCK BUTTON FOR AUS HIT-325358.A1 325358	£1.67	£2.00
65 - SPRING FOR AUS HIT-325359.A2 325359	£1.67	£2.00
66 - SWITCH (1P SCREW TYPE) HIT-325357.A2 325357	£28.74	£34.49
67 - TAPPING SCREW (W/FLANGE) D4X12 HIT-305720.A7 305720	£1.67	£2.00
68 - BEARING LOCK HIT-946362.A22 946362	£1.67	£2.00
69 - HANDLE COVER HIT-325351.A2 325351	£13.81	£16.57
70 - TERMINAL FOR AUS HIT-980063.A49 980063	£1.67	£2.00
71 - PILLAR TERMINAL HIT-938307.A12 938307	£3.28	£3.93
*72 - TERMINAL FOR CORD HIT-980063.A48 980063	£1.67	£2.00
*72 - TERMINAL M4.0 (10 PCS.) FOR CORD FOR TPE HIT-930804.A2 930804	£3.64	£4.37
73 - CORD CLIP HIT-937631.A24 937631	£1.67	£2.00
74 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A221 984750	£1.67	£2.00
75 - NOISE SUPPRESSOR FOR AUS HIT-930039.A33 930039	£3.85	£4.62
*76 - CORD ARMOR D8.2 HIT-958049.A29 958049	£1.67	£2.00
*76 - CORD ARMOR D10.7 HIT-940778.A14 940778	£3.15	£3.78
*77 - CORD (CORD ARMOR D8.2) HIT-500234Z.A14 500234Z	-
*77 - CORD (CORD ARMOR D8.2) FOR SIN HIT-500423Z.A24 500423Z	-
*77 - CORD (CORD ARMOR D8.2) FOR AUS HIT-500439Z.A42 500439Z	-
*77 - CORD (CORD ARMOR D8.2) FOR SYR HIT-500447Z.A6 500447Z	£7.92	£9.51
*77 - CORD (CORD ARMOR D8.2) FOR HKG HIT-500461Z.A35 500461Z	£15.56	£18.67
*77 - CORD (CORD ARMOR D10.7) FOR TPE HIT-500474Z.A2 500474Z	-
*77 - CORD (CORD ARMOR D10.7) FOR VEN HIT-500214Z.A2 500214Z	-
78 - TP-SCREW M4X14 HIT-311836.A1 311836	£1.67	£2.00
79 - SPACER M4 HIT-311837.A2 311837	£1.67	£2.00
80 - HEX. CAP NUT M4 HIT-311839.A1 311839	-
501 - GUIDE HIT-303888.A1 303888	£15.41	£18.49
502 - HEX. BAR WRENCH 6MM HIT-872422.A14 872422	£1.67	£2.00
503 - SIDE HANDLE HIT-303811.A4 303811	£6.61	£7.93
504 - FLAT HD. SCREW M6X16 (10 PCS.) HIT-949340.A3 949340	£1.67	£2.00
505 - CASE FOR AUS HIT-325364.A1 325364	£47.64	£57.17
601 - LONG GUIDE HIT-325365.A2 325365	£23.45	£28.14
602 - DUST COLLECTOR HIT-324669.A5 324669	£2.89	£3.47
603 - KNOB HIT-303338.A2 303338	£1.67	£2.00
