Hitachi / Hikoki C9BU3 Circular Saw Spare Parts

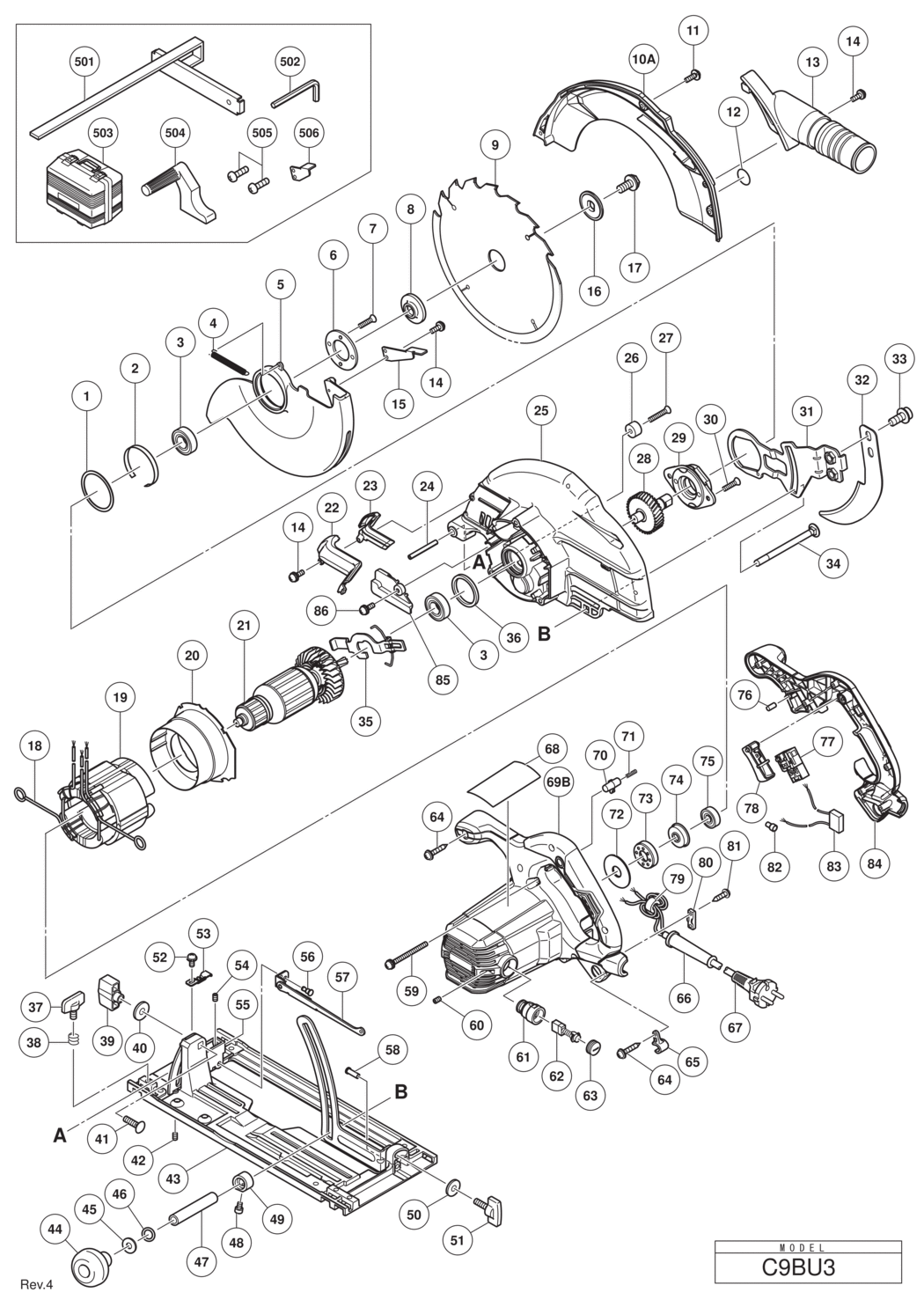

An exploded diagram and spare parts listing for the Hitachi / Hikoki C9BU3 Circular Saw

	Ex VAT	Inc VAT
1 - WASHER HIT-370540.A0 370540	-
2 - LINER HIT-998887.A2 998887	£10.39	£12.47
3 - BALL BEARING 6202VVCMPS2L HIT-6202VV.A11 6202VV	£7.02	£8.42
4 - RETURN SPRING HIT-370543.A0 370543	£2.67	£3.20
5 - LOWER GUARD HIT-370283.A0 370283	£19.46	£23.35
6 - BEARING COVER HIT-370277.A0 370277	-
7 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A22 992013	£1.67	£2.00
8 - WASHER (A) HIT-370272.A3 370272	£4.01	£4.81
9 - TCT SAW BLADE 235MM-D30 HOLE-NT20 HIT-303810.A2 303810	-
10A - SAW COVER HIT-370280.A0 370280	£15.56	£18.67
11 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-951039.A9 951039	£1.67	£2.00
12 - NAME PLATE (BRAKE) HIT-000000.A2122 000000	-
13 - DUST COLLECTOR HIT-997247.A1 997247	£8.28	£9.94
14 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A66 935196	£1.67	£2.00
15 - LEVER HIT-370542.A1 370542	£1.67	£2.00
16 - WASHER (B) HIT-370279.A3 370279	£3.92	£4.70
17 - HEX. SOCKET HD. BOLT M8X15.5 HIT-324662.A9 324662	£3.02	£3.63
18 - BRUSH TERMINAL HIT-937623.A20 937623	£1.67	£2.00
*19 - STATOR ASS'Y 110V INCLUD.18 HIT-340941C.A0 340941C	-
*19 - STATOR ASS'Y 220V-230V INCLUD.18 HIT-340941G.A0 340941G	-
20 - FAN GUIDE HIT-370292.A0 370292	£1.67	£2.00
*21 - ARMATURE 110V HIT-361033C.A1 361033C	£48.83	£58.60
*21 - ARMATURE 220V-230V HIT-361033E.A0 361033E	-
22 - FLOW GUIDE (B) HIT-370282.A1 370282	£1.67	£2.00
23 - FLOW GUIDE (A) HIT-370281.A0 370281	£1.67	£2.00
24 - ROLL PIN D8X50 (10 PCS.) HIT-949884.A0 949884	£11.82	£14.18
25 - GEAR COVER HIT-370544.A0 370544	£38.61	£46.33
26 - CUSHION HIT-337080.A2 337080	£1.67	£2.00
27 - FLAT HD. SCREW M6X20 (10 PCS.) HIT-949794.A14 949794	£1.67	£2.00
28 - SPINDLE AND GEAR SET HIT-370276.A1 370276	£16.13	£19.36
29 - BEARING HOLDER HIT-370275.A0 370275	-
30 - SEAL LOCK FLAT HD. SCREW M6X14 HIT-303797.A5 303797	£1.67	£2.00
31 - ARM HIT-370297.A1 370297	-
32 - RIVING KNIFE HIT-370298.A0 370298	£7.39	£8.87
33 - HEX. SOCKET HD. BOLT M8 HIT-370287.A0 370287	£1.67	£2.00
34 - DIAGONAL BOLT M8 HIT-370266.A1 370266	£10.10	£12.12
35 - LOCK LEVER HIT-370291.A0 370291	£4.72	£5.67
36 - RUBBER RING HIT-303792.A4 303792	£1.67	£2.00
37 - WING BOLT M6X15 HIT-301806.A28 301806	£1.67	£2.00
38 - LOCK SPRING HIT-947859.A13 947859	£1.67	£2.00
39 - WING NUT M8 HIT-324658.A7 324658	£4.57	£5.48
40 - BOLT WASHER M8 (10 PCS.) HIT-949433.A36 949433	£1.67	£2.00
41 - BOLT (SQUARE) M8X30 HIT-302457.A10 302457	£1.67	£2.00
42 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X6 HIT-302469.A7 302469	£1.67	£2.00
43 - BASE ASS'Y INCLUD.58 HIT-370294.A0 370294	£36.66	£43.99
44 - KNOB HIT-324660.A8 324660	£6.82	£8.18
45 - BOLT WASHER M8 (10 PCS.) HIT-949433.A35 949433	£1.67	£2.00
46 - O-RING (P-7) HIT-676531.A7 676531	£1.67	£2.00
47 - SLEEVE (A) HIT-370267.A0 370267	-
48 - SEAL LOCK HEX. SOCKET HD. BOLT M4X6 HIT-370278.A0 370278	-
49 - SLEEVE (B) HIT-370268.A3 370268	£5.07	£6.08
50 - WASHER M6 (10 PCS.) HIT-949425.A24 949425	£1.67	£2.00
51 - WING BOLT M6X22 HIT-322959.A2 322959	£1.67	£2.00
52 - MACHINE SCREW (W/SP. WASHER) M4(BLACK) HIT-331003.A5 331003	-
53 - GUIDE PIECE HIT-324659.A6 324659	£3.02	£3.63
54 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 HIT-319541.A12 319541	£1.67	£2.00
55 - BEVEL PLATE HIT-308481.A2 308481	£10.10	£12.12
56 - STEP PIN HIT-370295.A1 370295	£1.67	£2.00
57 - PLATE HIT-370296.A0 370296	£3.02	£3.63
58 - RIVET D6X17 HIT-308480.A8 308480	£1.67	£2.00
59 - MACHINE SCREW (W/WASHERS) M5X50 (BLACK) HIT-997841.A4 997841	£1.67	£2.00
60 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A34 938477	£1.67	£2.00
61 - BRUSH HOLDER HIT-983362.A2 983362	£7.02	£8.42
*62 - CARBON BRUSH (1 PAIR) HIT-999065.A3 999065	£12.43	£14.92
*62 - CARBON BRUSH (1 PAIR) FOR GBR (110V) HIT-999038.A13 999038	£5.54	£6.65
63 - BRUSH CAP HIT-961781.A12 961781	£3.15	£3.78
64 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A238 301653	£1.67	£2.00
65 - CORD HOLDER HIT-370269.A0 370269	-
66 - CORD ARMOR D8.8 HIT-953327.A110 953327	£1.67	£2.00
*67 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500440Z.A7 500440Z	£22.75	£27.30
*67 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500517Z.A4 500517Z	-
68 - NAME PLATE HIT-000000.A2123 000000	-
69B - HOUSING HIT-373924.A1 373924	-
70 - OFF LOCK BUTTON HIT-370262.A1 370262	£1.67	£2.00
71 - SPRING (A) HIT-335465.A4 335465	£1.67	£2.00
72 - SPRING PLATE TILL 5.2018 HIT-992926.A4 992926	£1.67	£2.00
73 - RUBBER BUSHING HIT-370628.A0 370628	-
74 - BEARING BUSHING HIT-325355.A3 325355	£4.57	£5.48
75 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A10 6000VV	£7.62	£9.15
76 - BEARING LOCK HIT-931701.A8 931701	£1.67	£2.00
77 - SWITCH HIT-370260.A1 370260	£16.35	£19.62
78 - TRIGGER HIT-370261.A0 370261	£1.67	£2.00
79 - FERRITE CORE HIT-334379.A20 334379	-
80 - CORD CLIP HIT-937631.A21 937631	£1.67	£2.00
81 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A219 984750	£1.67	£2.00
82 - CONNECTOR 50092 (10 PCS.) HIT-959141.A62 959141	£7.12	£8.54
*83 - NOISE SUPPRESSOR HIT-930039.A44 930039	£3.85	£4.62
*83 - NOISE SUPPRESSOR FOR GBR (110V) HIT-370672.A0 370672	-
84 - HANDLE COVER HIT-370290.A1 370290	£16.62	£19.94
85 - PLATE (C) HIT-371211.A0 371211	-
86 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A64 935196	£1.67	£2.00
501 - GUIDE HIT-303888.A5 303888	£15.41	£18.49
502 - HEX. BAR WRENCH 6MM HIT-872422.A7 872422	£1.67	£2.00
*503 - CASE FOR EUROPE HIT-370627.A1 370627	£70.16	£84.19
504 - SIDE HANDLE HIT-303811.A0 303811	£6.61	£7.93
505 - MACHINE SCREW (W/WASHERS) M6X20 (BLACK) HIT-323208.A10 323208	£1.67	£2.00
506 - LEVER HIT-370264.A0 370264	£1.67	£2.00
