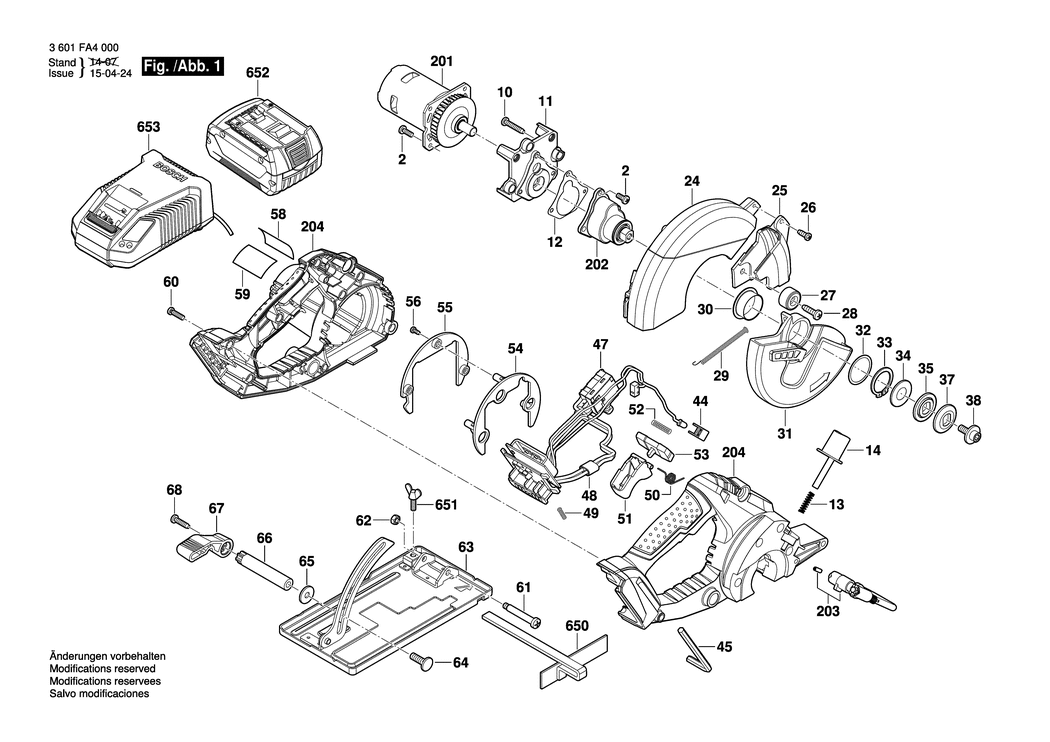

An exploded drawing and listing for the Bosch GKM 18 V-LI / 3601FA4000 / EU 18 Volt
Ex VAT Inc VAT
2 - SCREW BSD-2610034094.A0 2610034094 £1.75 £2.10
10 - SCREW BSD-2610034144.A0 2610034144 £1.75 £2.10
11 - BEARING HOUSING BSD-2610033566.A0 2610033566 £11.30 £13.56
12 - GASKET BSD-2610034143.A0 2610034143 £1.75 £2.10
13 - COMPRESSION SPRING BSD-2610034157.A0 2610034157 £1.75 £2.10
14 - KNOB BSD-2610034095.A0 2610034095 £1.75 £2.10
24 - UPPER GUARD BSD-2610033557.A0 2610033557 £16.41 £19.69
25 - WINDOW BSD-2610033558.A0 2610033558 -
26 - SCREW BSD-2610034145.A0 2610034145 £1.75 £2.10
27 - BUMPER BSD-2610033564.A0 2610033564 £1.75 £2.10
28 - SCREW BSD-2610034140.A0 2610034140 £1.75 £2.10
29 - EXTENSION SPRING BSD-2610031712.A0 2610031712 £3.72 £4.47
30 - BUSHING BSD-2610033580.A0 2610033580 £1.75 £2.10
31 - FLAP GUARD BSD-2610033559.A0 2610033559 £14.91 £17.89
32 - PLAIN WASHER BSD-2610034151.A0 2610034151 £1.75 £2.10
33 - RETAINING RING BSD-2610034153.A0 2610034153 £1.75 £2.10
34 - SEAL BSD-2610033579.A0 2610033579 £1.75 £2.10
35 - INTERMEDIATE FLANGE BSD-2610033571.A0 2610033571 £2.80 £3.36
37 - WASHER BSD-2610033572.A0 2610033572 £2.61 £3.13
38 - LOCKING BOLT BSD-2610033581.A0 2610033581 £2.16 £2.59
44 - LENS BSD-2610034142.A0 2610034142 £1.75 £2.10
45 - HEXAGON SOCKET WRENCH BSD-2610034161.A0 2610034161 £1.75 £2.10
47 - ELECTRONIC ASSEMBLY BSD-2610029995.A0 2610029995 £116.15 £139.38
48 - FERRITE BSD-2610035267.A0 2610035267 £6.52 £7.83
49 - COMPRESSION SPRING BSD-2610013564.A0 2610013564 £1.75 £2.10
50 - TORSION SPRING BSD-2610034103.A0 2610034103 £1.75 £2.10
51 - TRIGGER BSD-2610033560.A0 2610033560 £1.75 £2.10
52 - COMPRESSION SPRING BSD-2610034156.A0 2610034156 £1.75 £2.10
53 - LOCKING LEVER BSD-2610033561.A0 2610033561 £1.75 £2.10
54 - BAFFLE BSD-2610033576.A0 2610033576 £1.75 £2.10
55 - BAFFLE BSD-2610033577.A0 2610033577 £1.75 £2.10
56 - SCREW BSD-2610034158.A0 2610034158 £1.75 £2.10
58 - NAMEPLATE BSD-2610035070.A0 2610035070 -
59 - MANUFACTURER'S NAMEPLATE BSD-2610035071.A0 2610035071 £2.61 £3.13
60 - SCREW BSD-2610034146.A0 2610034146 £1.75 £2.10
61 - LOCKING BOLT BSD-2610034148.A0 2610034148 £2.16 £2.59
62 - HEX NUT BSD-2610034147.A0 2610034147 £1.75 £2.10
63 - BASE PLATE BSD-2610033555.A0 2610033555 £40.80 £48.96
64 - LOCKING BOLT BSD-2610034141.A0 2610034141 £1.75 £2.10
65 - WASHER BSD-2610034150.A0 2610034150 £1.75 £2.10
66 - FASTENING ROD BSD-2610033578.A0 2610033578 £2.80 £3.36
67 - ADJUSTING LEVER BSD-2610033563.A0 2610033563 £1.75 £2.10
68 - SCREW BSD-2610034159.A0 2610034159 £1.75 £2.10
201 - DC MOTOR BSD-2610034087.A0 2610034087 £179.37 £215.24
202 - GEAR BSD-2610034090.A0 2610034090 £45.67 £54.80
203 - ASSEMBLY HOOK BSD-2610034096.A0 2610034096 £10.10 £12.12
204 - HOUSING ASSEMBLY BSD-2610033552.A0 2610033552 £33.74 £40.49
650 - EDGE GUIDE BSD-2610955166.A4 2610955166 £6.52 £7.83
651 - WING SCREW BSD-2610917057.A0 2610917057 £5.30 £6.36
652 - SLIDE-IN ACCU PACKAGE BBS MR 18V. 4.0Ah. 47 S BSD-1607A350M0.A42 1607A350M0 £93.88 £112.65
653 - CHARGER EU 230/14.4-18V. 30 40 S BSD-2607225321.A91 2607225321 £51.22 £61.47
