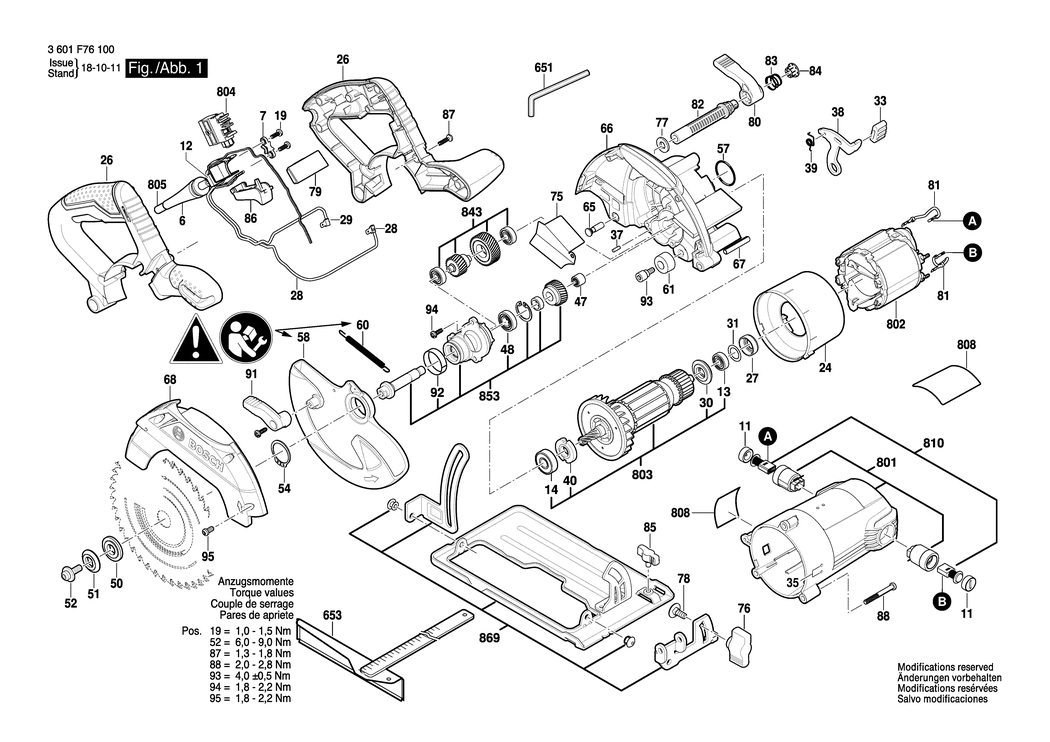

An exploded drawing and listing for the Bosch GKS 165 / 3601F76170 / GB 230 Volt
Ex VAT Inc VAT
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A112 2600703018 £2.61 £3.13
7 - CABLE CLIP BSD-1619P06313.A3 1619P06313 £1.75 £2.10
11 - INSULATING CAP BSD-1619P06286.A3 1619P06286 £2.16 £2.59
12 - SUPPRESSION FILTER BSD-2610917620.A24 2610917620 £3.72 £4.47
13 - BALL BEARING 7x19x6 MM BSD-1619P00456.A88 1619P00456 £2.80 £3.36
14 - BALL BEARING BSD-1619P10481.A0 1619P10481 £3.72 £4.47
19 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A471 2603490021 £1.75 £2.10
24 - BAFFLE BSD-1619P09797.A3 1619P09797 £2.80 £3.36
26 - SET OF HANDLES BSD-1619P10804.A0 1619P10804 £16.41 £19.69
27 - RUBBER RING BSD-1619P06227.A11 1619P06227 £1.75 £2.10
28 - CONNECTING CABLE BSD-1619P10806.A1 1619P10806 £2.16 £2.59
29 - CONNECTING CABLE BSD-1619P10807.A1 1619P10807 £2.16 £2.59
30 - SEALING DISK BSD-1619P04476.A0 1619P04476 £1.75 £2.10
31 - SHIM PLATE BSD-1619P10795.A2 1619P10795 £1.75 £2.10
33 - CAP BSD-1619P06225.A7 1619P06225 £1.75 £2.10
35 - BALL BSD-1619P00291.A19 1619P00291 -
37 - BEARING BOLT BSD-2603201020.A58 2603201020 £1.75 £2.10
38 - GUIDE BRACKET BSD-1619P10138.A4 1619P10138 £2.61 £3.13
39 - CONTACT STRAP BSD-1619P10139.A1 1619P10139 £1.75 £2.10
40 - LOCK NUT BSD-1619P06319.A0 1619P06319 £2.16 £2.59
47 - NEEDLE BEARING BSD-1619P06310.A0 1619P06310 £2.61 £3.13
48 - BALL BEARING BSD-1619P10132.A1 1619P10132 £3.72 £4.47
50 - WASHER BSD-1619P10784.A1 1619P10784 £5.30 £6.36
51 - LOCKING WASHER BSD-1619P10785.A4 1619P10785 £2.61 £3.13
52 - CLAMP SCREW BSD-1619P10786.A1 1619P10786 £1.75 £2.10
54 - SPRING RETAINING RING DIN 471 25x1.2 BSD-2916650014.A144 2916650014 £1.75 £2.10
57 - O-RING BSD-F000640007.A5 F000640007 £1.75 £2.10
58 - SAFETY GUARD BSD-1619P10134.A4 1619P10134 £18.96 £22.75
60 - EXTENSION SPRING BSD-1619P10136.A1 1619P10136 £2.16 £2.59
61 - BUMPER BSD-1619P06236.A12 1619P06236 £2.16 £2.59
65 - KNURLED BOLT BSD-1619P06325.A5 1619P06325 £2.16 £2.59
66 - PROTECTIVE GUARD BSD-1619P10116.A0 1619P10116 £11.30 £13.56
67 - SLOTTED SPRING PIN BSD-1619P10608.A5 1619P10608 £1.75 £2.10
68 - PROTECTIVE COVER BSD-1619P10148.A4 1619P10148 £16.41 £19.69
75 - GUIDE COVER BSD-1619P10801.A5 1619P10801 £2.33 £2.80
76 - WING NUT BSD-1619P01636.A10 1619P01636 £1.75 £2.10
77 - PLAIN WASHER 8-ST BSD-2916021013.A28 2916021013 £1.75 £2.10
78 - ROUND-HEAD BOLT BSD-1619P06211.A7 1619P06211 £1.75 £2.10
79 - SWITCH BUTTON BSD-1619P10788.A1 1619P10788 £2.16 £2.59
80 - LEVER BSD-1619P10037.A2 1619P10037 £2.16 £2.59
81 - CONNECTING CABLE BSD-1619P07060.A0 1619P07060 £1.75 £2.10
82 - ADJUSTMENT ROD BSD-1619P07620.A15 1619P07620 £2.48 £2.97
83 - SPRING BSD-1619X01792.A28 1619X01792 £1.75 £2.10
84 - COVER BSD-1619P17212.A23 1619P17212 £2.61 £3.13
85 - WING SCREW BSD-1619P01618.A5 1619P01618 £2.29 £2.75
86 - TRIGGER BSD-1619P10787.A4 1619P10787 £2.61 £3.13
87 - SCREW 4x16 BSD-2603490022.A526 2603490022 £1.75 £2.10
88 - SCREW BSD-2610925864.A25 2610925864 £1.75 £2.10
91 - LEVER BSD-1619P10150.A4 1619P10150 £1.75 £2.10
92 - FLANGE BUSHING BSD-1619P10802.A0 1619P10802 £2.16 £2.59
93 - SCREW BSD-1619P06246.A7 1619P06246 £2.16 £2.59
94 - SCREW BSD-1619P01678.A19 1619P01678 £1.75 £2.10
95 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2 BSD-1603435068.A57 1603435068 £1.75 £2.10
651 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A584 1907950006 £4.26 £5.11
653 - MITRE FENCE BSD-1619X01612.A23 1619X01612 £11.30 £13.56
801 - MOTOR HOUSING BSD-1619P10061.A0 1619P10061 £21.52 £25.83
802 - FIELD BSD-1619P13568.A0 1619P13568 £33.74 £40.49
803 - ARMATURE SET BSD-1619P13569.A1 1619P13569 £48.38 £58.06
804 - SWITCH BSD-1619P13570.A0 1619P13570 £6.52 £7.83
805 - POWER SUPPLY CORD BSD-1619P11945.A0 1619P11945 £16.41 £19.69
808 - NAMEPLATE BSD-1619P31496.A0 1619P31496 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1619P10063.A2 1619P10063 £6.52 £7.83
843 - GEAR SHAFT BSD-1619P13571.A1 1619P13571 £27.23 £32.68
853 - BEARING FLANGE BSD-1619P11495.A4 1619P11495 £31.64 £37.97
869 - BASEPLATE BSD-1619P11862.A0 1619P11862 £18.96 £22.75
