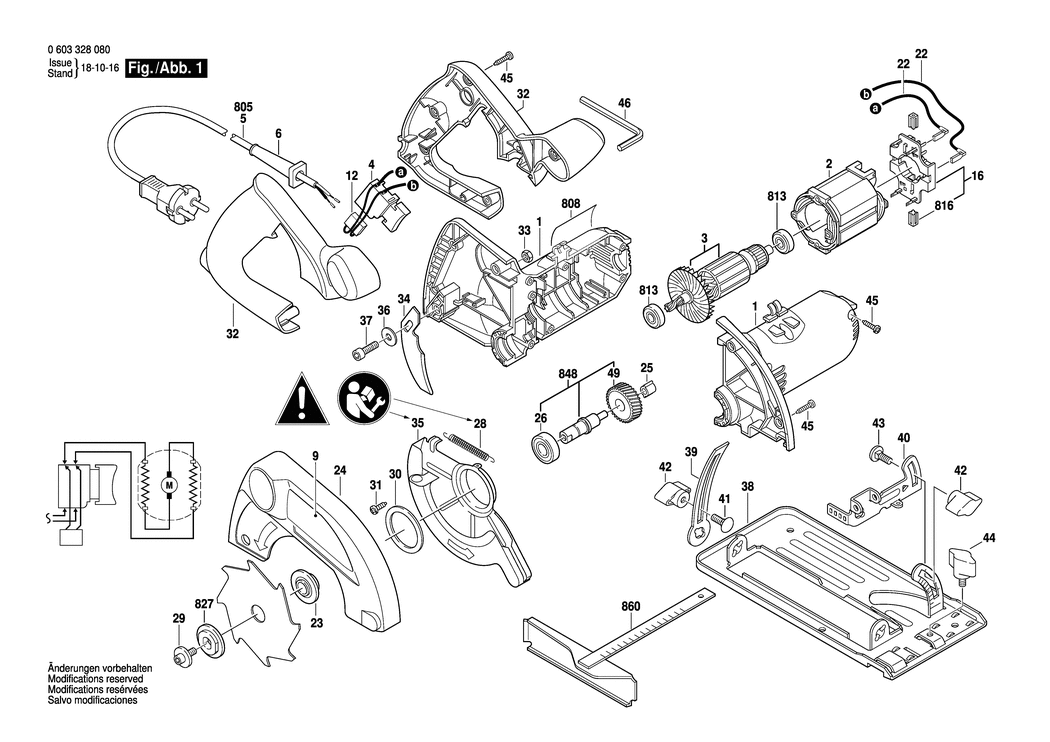

An exploded drawing and listing for the Bosch KS 5500 / 3603C28075 / CH 230 Volt
Ex VAT Inc VAT
1 - HOUSING SET BSD-2610386619.A6 2610386619 -
2 - FIELD 230V BSD-2610387123.A22 2610387123 £10.10 £12.12
3 - ARMATURE 230V BSD-2610386657.A17 2610386657 -
4 - SWITCH BSD-1607503101.A0 1607503101 £7.36 £8.83
5 - POWER SUPPLY CORD CH 2.75m 2 x 1.0mm H05 VV-F BSD-2610371799.A42 2610371799 £7.78 £9.33
6 - GROMMET BSD-2610360176.A493 2610360176 -
9 - MANUFACTURER'S NAMEPLATE KS 5500 PLUS BSD-1601118850.A0 1601118850 -
12 - SUPPRESSION CAPACITOR BSD-2609004538.A86 2609004538 £3.72 £4.47
16 - BRUSH PLATE BSD-2610391898.A89 2610391898 -
23 - WASHER BSD-2610386555.A32 2610386555 £2.80 £3.36
24 - PROTECTIVE COVER BSD-2610388311.A4 2610388311 £6.61 £7.93
25 - BEARING BSD-2610386569.A33 2610386569 £2.61 £3.13
26 - BALL BEARING BSD-2610366402.A9 2610366402 £7.36 £8.83
28 - EXTENSION SPRING BSD-2610386609.A29 2610386609 £2.61 £3.13
29 - HEX SOCKET HEAD CAP SCREW M6x14 MM BSD-1603414007.A380 1603414007 £2.29 £2.75
30 - WASHER BSD-2610386556.A6 2610386556 £1.75 £2.10
31 - TORX OVAL-HEAD SCREW 8x13 BSD-2610374913.A19 2610374913 £1.75 £2.10
32 - SET OF HANDLES BSD-2610386620.A2 2610386620 £10.10 £12.12
33 - NUT M6 BSD-2610061550.A16 2610061550 £1.32 £1.58
34 - RIVING KNIFE BSD-2610386554.A5 2610386554 £2.80 £3.36
35 - PROTECTIVE GUARD BSD-2610386551.A22 2610386551 £10.10 £12.12
36 - WASHER DIN 9021-6.4x18x1.6 BSD-2610386712.A53 2610386712 £2.61 £3.13
37 - SCREW M6x22 MM BSD-2610386933.A6 2610386933 £1.75 £2.10
38 - BASE BSD-2610386840.A21 2610386840 £13.12 £15.75
39 - SUPPORT BSD-2610386841.A10 2610386841 £2.16 £2.59
40 - HINGE BSD-2610386842.A27 2610386842 £2.61 £3.13
41 - CARRYING BOLT M6x20 MM BSD-2610386847.A10 2610386847 £1.75 £2.10
42 - HEX NUT BSD-2610387875.A49 2610387875 £2.61 £3.13
43 - CARRYING BOLT BSD-2609003647.A7 2609003647 £1.75 £2.10
44 - WING SCREW BSD-2610387876.A4 2610387876 £1.75 £2.10
45 - TORX OVAL-HEAD SCREW T20-8x19 MM BSD-2610374919.A63 2610374919 £1.75 £2.10
46 - HEXAGON SOCKET SCREW KEY 5 MM BSD-2610364015.A15 2610364015 £3.72 £4.47
49 - TOOTHED GEAR BSD-2610388427.A16 2610388427 £13.12 £15.75
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A240 1607000227 £23.86 £28.63
808 - NAMEPLATE BSD-2609000974.A0 2609000974 -
813 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A78 2600905052 £7.36 £8.83
816 - CARBON-BRUSH SET BSD-2610386546.A82 2610386546 -
827 - CONICAL SPRING WASHER BSD-1605703108.A41 1605703108 £2.80 £3.36
848 - GEAR SHAFT BSD-2610387048.A31 2610387048 £21.68 £26.01
860 - PARALLEL-GUIDE BSD-2608005036.A119 2608005036 £8.67 £10.41
