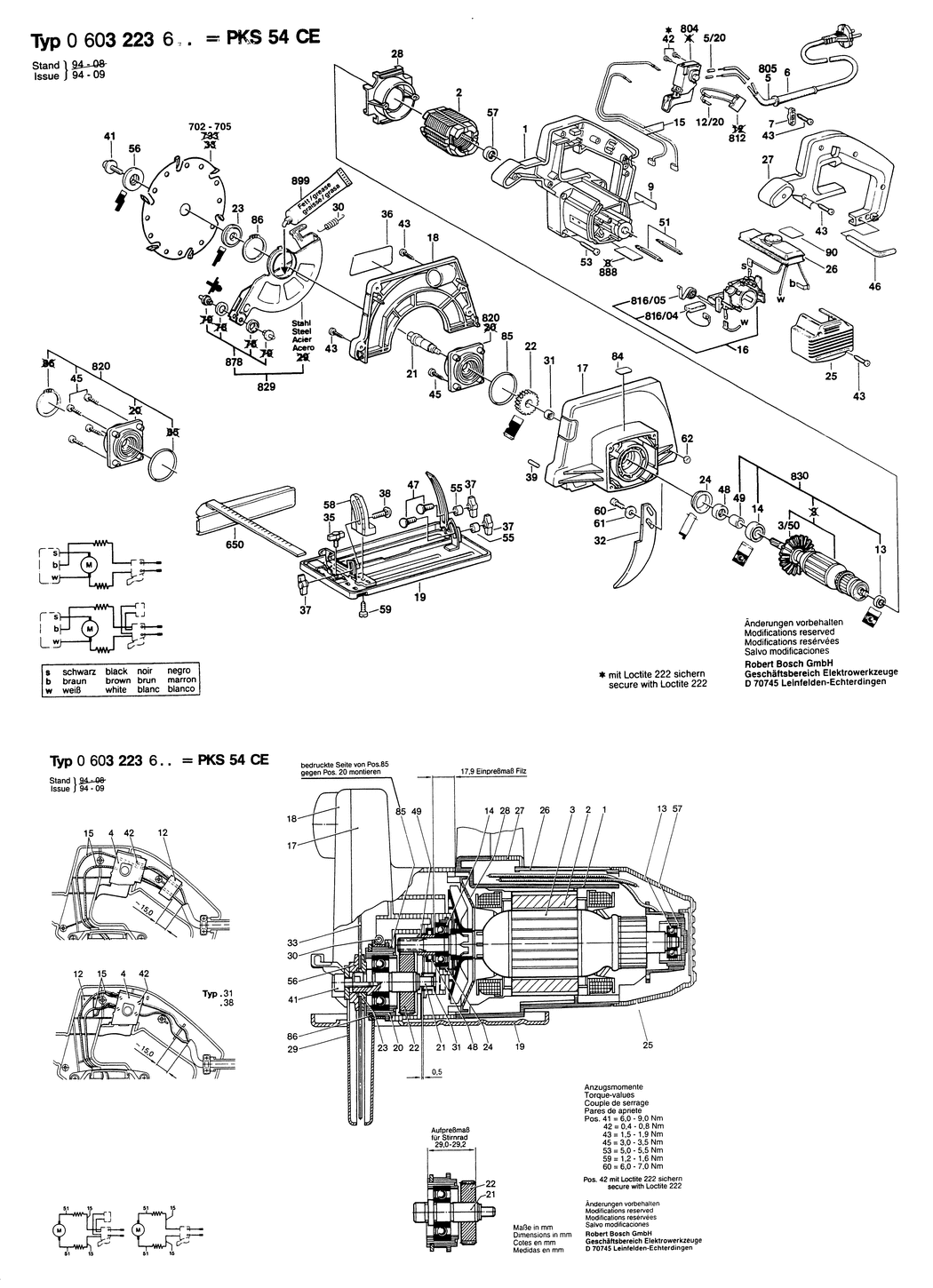

1 - MOTOR HOUSING
BSD-1605108135.A1
1605108135
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220353.A5
1604220353
|
-
|
|
|
|
3/50 - FAN
BSD-3606610002.A33
3606610002
|
£2.33
|
£2.80
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460110.A20
1604460110
|
-
|
|
|
|
5/20 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A455
1900452012
|
£1.75
|
£2.10
|
|
|
6 - GROMMET dia8.8-dia9.0x70 MM
BSD-1600703024.A50
1600703024
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A674
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601110601.A61
2601110601
|
-
|
|
|
|
12/20 - BLADE TERMINAL
BSD-2601355007.A165
2601355007
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A9
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 9x26x8
BSD-1610905009.A70
1610905009
|
£14.72
|
£17.67
|
|
|
15 - CONNECTING CABLE L=330 MM
BSD-1604449012.A5
1604449012
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-1604336024.A26
1604336024
|
£14.75
|
£17.70
|
|
|
17 - GEAR HOUSING
BSD-1605806440.A2
1605806440
|
-
|
|
|
|
18 - COVERING HOOD
BSD-1605510206.A8
1605510206
|
-
|
|
|
|
19 - BASE PLATE 145x290 MM
BSD-1608000106.A2
1608000106
|
-
|
|
|
|
21 - DRIVE SHAFT M6. dia12 MM
BSD-1603124114.A20
1603124114
|
£8.49
|
£10.19
|
|
|
22 - CYLINDRICAL GEAR Z=35
BSD-1606320079.A12
1606320079
|
-
|
|
|
|
23 - CLAMPING-FLANGE
BSD-1605703097.A6
1605703097
|
-
|
|
|
|
24 - INTERMEDIATE RING
BSD-1600221003.A8
1600221003
|
£2.61
|
£3.13
|
|
|
25 - SEALING CAP
BSD-1605500156.A19
1605500156
|
-
|
|
|
|
26 - SPEED GOVERNOR 230-240V
BSD-1607233034.A8
1607233034
|
£58.76
|
£70.51
|
|
|
27 - HANDLE COVER
BSD-1605500137.A16
1605500137
|
-
|
|
|
|
28 - AIR-DEFLECTOR RING
BSD-3600591002.A1
3600591002
|
-
|
|
|
|
30 - EXTENSION SPRING
BSD-1604650010.A45
1604650010
|
£1.75
|
£2.10
|
|
|
31 - NEEDLE BEARING
BSD-1600910020.A21
1600910020
|
-
|
|
|
|
32 - RIVING KNIFE
BSD-1600025017.A13
1600025017
|
£3.80
|
£4.56
|
|
|
34 - INTERFERENCE SUPPR.CHOKE
BSD-1607328045.A5
1607328045
|
-
|
|
|
|
35 - WING SCREW M6
BSD-1603480018.A38
1603480018
|
£2.16
|
£2.59
|
|
|
36 - MANUFACTURER'S NAMEPLATE
BSD-1601110717.A2
1601110717
|
-
|
|
|
|
37 - WING NUT M6
BSD-1603339006.A51
1603339006
|
£2.52
|
£3.02
|
|
|
38 - ROUND-HEAD BOLT DIN 603-M6x20
BSD-2910281201.A126
2910281201
|
£1.75
|
£2.10
|
|
|
39 - STRAIGHT PIN DIN 7-5m6x36-C35K
BSD-2917610130.A3
2917610130
|
-
|
|
|
|
41 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A232
1603414007
|
£2.29
|
£2.75
|
|
|
42 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A580
2603410001
|
£1.75
|
£2.10
|
|
|
43 - TAPPING SCREW DIN7981-ST3.9x16-C-Z
BSD-2912401019.A48
2912401019
|
£1.75
|
£2.10
|
|
|
45 - THREAD-FORMING TAP. SCREW
BSD-1603435032.A20
1603435032
|
£1.75
|
£2.10
|
|
|
46 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A318
1907950006
|
£4.26
|
£5.11
|
|
|
47 - ROUND-HEAD BOLT DIN 603-M6x25
BSD-2910281203.A64
2910281203
|
£2.61
|
£3.13
|
|
|
48 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A458
1600290016
|
£2.61
|
£3.13
|
|
|
49 - INTERMEDIATE RING
BSD-1600300092.A16
1600300092
|
£1.32
|
£1.58
|
|
|
51 - BLADE TERMINAL
BSD-1604477005.A87
1604477005
|
£2.61
|
£3.13
|
|
|
53 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A200
2912401038
|
£1.75
|
£2.10
|
|
|
55 - SPACER BUSHING
BSD-1600309010.A16
1600309010
|
£2.61
|
£3.13
|
|
|
56 - CONICAL SPRING WASHER
BSD-1605703108.A59
1605703108
|
£2.80
|
£3.36
|
|
|
57 - INTERMEDIATE RING
BSD-1600502011.A104
1600502011
|
£2.61
|
£3.13
|
|
|
58 - MITER SQUARE
BSD-1608190010.A15
1608190010
|
£2.52
|
£3.02
|
|
|
59 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A285
2910211017
|
-
|
|
|
|
60 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x12-8.8
BSD-2910141193.A27
2910141193
|
-
|
|
|
|
61 - PLAIN WASHER DIN 433-6.4-ST 50
BSD-2916011013.A93
2916011013
|
£1.75
|
£2.10
|
|
|
62 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1312
2915011007
|
-
|
|
|
|
85 - O-RING 38.0x1.5 MM
BSD-1600210038.A33
1600210038
|
£2.61
|
£3.13
|
|
|
86 - SPRING RETAINING RING DIN 471-40x1.75-FST
BSD-2916650020.A32
2916650020
|
-
|
|
|
|
90 - REFERENCE PLATE
BSD-1601110656.A17
1601110656
|
-
|
|
|
|
650 - PARALLEL-GUIDE
BSD-2608005036.A107
2608005036
|
£8.67
|
£10.41
|
|
|
804 - ON-OFF SWITCH
BSD-1607000231.A79
1607000231
|
£18.96
|
£22.75
|
|
|
812 - SUPPRESSION FILTER
BSD-1607328028.A639
1607328028
|
£5.30
|
£6.36
|
|
|
816/04 - CARBON-BRUSH SET
BSD-1607014133.A5
1607014133
|
£8.49
|
£10.19
|
|
|
816/05 - SPIRAL SPRING
BSD-2604652008.A24
2604652008
|
-
|
|
|
|
820 - PARTS SET
BSD-1607000243.A11
1607000243
|
£14.72
|
£17.67
|
|
|
829 - PIVOTING BLADE GUARD
BSD-1605510170.A19
1605510170
|
-
|
|
|
|
830 - ARMATURE 230V
BSD-1604010348.A7
1604010348
|
-
|
|
|
|
878 - PARTS SET
BSD-1607000205.A72
1607000205
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1459
160111A3H3
|
£2.61
|
£3.13
|
|
|
899 - GREASE TUBE 225 ML
BSD-1605430003.A186
1605430003
|
£33.74
|
£40.49
|
|
