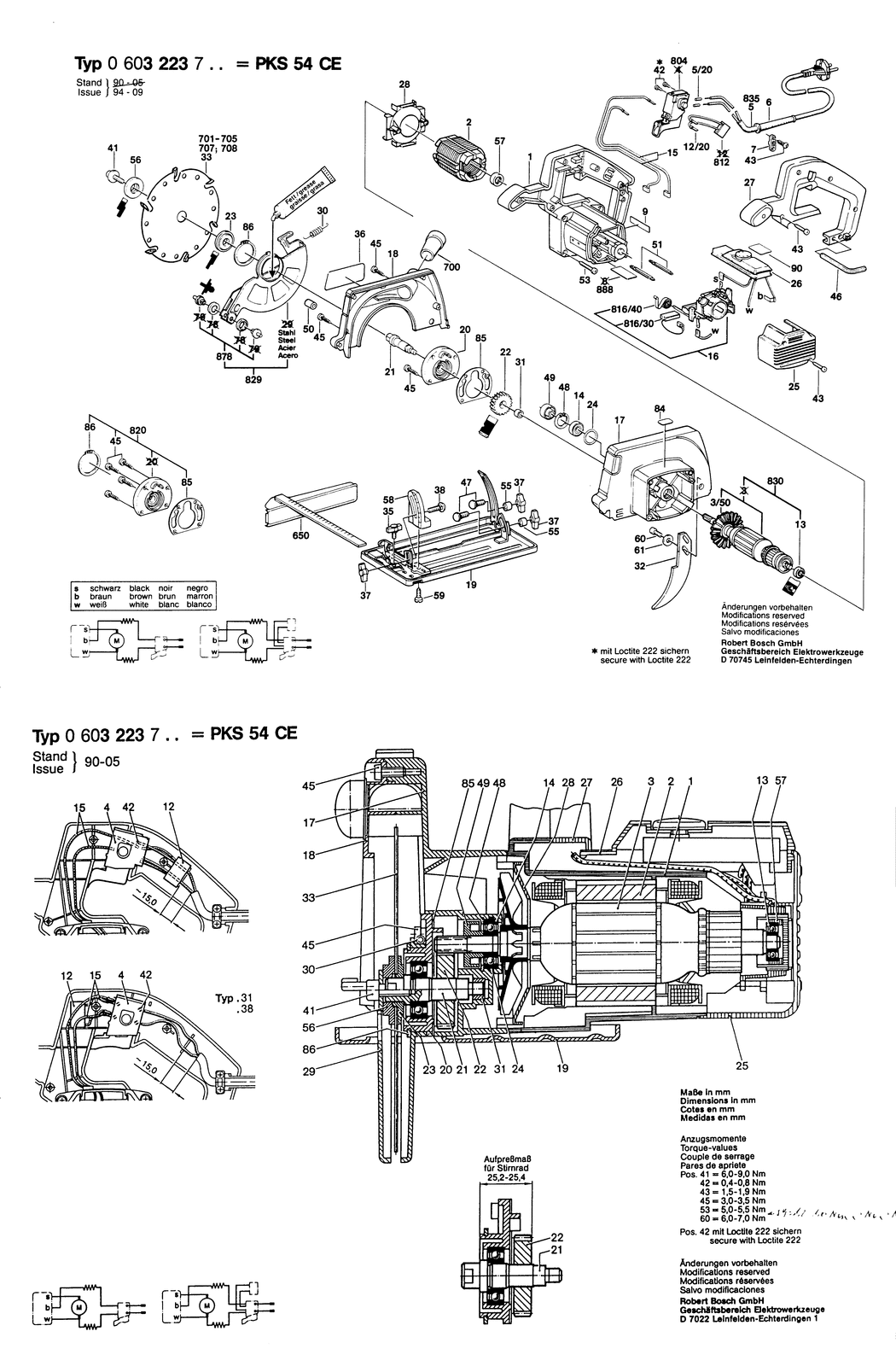

An exploded drawing and listing for the Bosch PKS 54 CE / 0603223742 / GB 240 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108135.A5 1605108135 -
2 - FIELD 220-240V BSD-1604220353.A3 1604220353 -
3/50 - FAN BSD-3606610002.A30 3606610002 £2.33 £2.80
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-1604460124.A114 1604460124 -
5/20 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A451 1900452012 £1.75 £2.10
6 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A345 2600703013 £2.61 £3.13
7 - CABLE CLIP BSD-2601035001.A673 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601110601.A62 2601110601 -
12/20 - BLADE TERMINAL BSD-2601355007.A164 2601355007 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A4 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 9x26x8 BSD-1610905009.A67 1610905009 £14.72 £17.67
15 - SUPPRESSOR BOX BSD-1604503014.A35 1604503014 -
16 - BRUSH HOLDER BSD-1604336024.A28 1604336024 £14.75 £17.70
17 - GEAR HOUSING BSD-1605806418.A7 1605806418 -
18 - COVERING HOOD BSD-1605510161.A2 1605510161 -
19 - BASE PLATE 145x290 MM BSD-1608000106.A6 1608000106 -
20 - PARTS SET BSD-1607000218.A2 1607000218 -
21 - DRIVE SHAFT M6. dia12 MM BSD-1603124114.A23 1603124114 £8.49 £10.19
22 - CYLINDRICAL GEAR Z=35 BSD-1606320079.A17 1606320079 -
23 - CLAMPING-FLANGE BSD-1605703097.A2 1605703097 -
24 - O-RING 24.0x1.5 MM BSD-1610210013.A9 1610210013 £2.16 £2.59
25 - SEALING CAP BSD-1605500156.A15 1605500156 -
26 - SPEED GOVERNOR 230-240V BSD-1607233034.A9 1607233034 £58.76 £70.51
27 - HANDLE COVER BSD-1605500137.A20 1605500137 -
28 - AIR-DEFLECTOR RING BSD-3600591002.A4 3600591002 -
30 - EXTENSION SPRING BSD-1604650010.A41 1604650010 £1.75 £2.10
31 - SINTERED-METAL BUSHING J6G7x10R6x6DIN1850 BSD-1900301007.A33 1900301007 £3.72 £4.47
32 - RIVING KNIFE BSD-1600025017.A12 1600025017 £3.80 £4.56
35 - WING SCREW M6 BSD-1603480018.A43 1603480018 £2.16 £2.59
36 - MANUFACTURER'S NAMEPLATE BSD-1601110717.A5 1601110717 -
37 - WING NUT M6 BSD-1603339006.A48 1603339006 £2.52 £3.02
38 - ROUND-HEAD BOLT DIN 603-M6x20 BSD-2910281201.A125 2910281201 £1.75 £2.10
41 - HEX SOCKET HEAD CAP SCREW M6x14 MM BSD-1603414007.A235 1603414007 £2.29 £2.75
42 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A581 2603410001 £1.75 £2.10
43 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A46 2912401019 £1.75 £2.10
45 - THREAD-FORMING TAP. SCREW DIN 7500-M 4x12 BSD-2914491409.A63 2914491409 £1.66 £1.99
46 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A322 1907950006 £4.26 £5.11
47 - ROUND-HEAD BOLT DIN 603-M6x25 BSD-2910281203.A65 2910281203 £2.61 £3.13
48 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A732 2916660008 £2.16 £2.59
49 - SEAL BUSHING BSD-1600328029.A7 1600328029 -
50 - RUBBER BUFFER BSD-1600305001.A49 1600305001 £1.75 £2.10
51 - BLADE TERMINAL BSD-1604477005.A82 1604477005 £2.61 £3.13
53 - THREAD-FORMING TAP. SCREW TT M5x30 MM BSD-1603435022.A1 1603435022 £1.75 £2.10
55 - SPACER BUSHING BSD-1600309010.A11 1600309010 £2.61 £3.13
56 - CONICAL SPRING WASHER BSD-1605703108.A62 1605703108 £2.80 £3.36
57 - INTERMEDIATE RING BSD-1600502011.A98 1600502011 £2.61 £3.13
58 - MITER SQUARE BSD-1608190010.A11 1608190010 £2.52 £3.02
59 - TAPPING SCREW DIN 7971-BZ3.9x9.5 BSD-2910211017.A287 2910211017 -
60 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x12-8.8 BSD-2910141193.A25 2910141193 -
61 - PLAIN WASHER DIN 433-6.4-ST 50 BSD-2916011013.A100 2916011013 £1.75 £2.10
85 - SEALING DISK BSD-1600139008.A9 1600139008 -
86 - SPRING RETAINING RING DIN 471-40x1.75-FST BSD-2916650020.A26 2916650020 -
90 - REFERENCE PLATE BSD-1601110656.A14 1601110656 -
650 - PARALLEL-GUIDE BSD-2608005036.A103 2608005036 £8.67 £10.41
700 - FITTING dia 25x35 MM BSD-1600499005.A75 1600499005 £3.49 £4.19
701 - CIRCULAR SAW BLADE dia 16 x dia 160 MM. Z=20 BSD-2608640140.A2 2608640140 -
705 - CIRCULAR SAW BLADE BSD-2608640597.A1 2608640597 £20.22 £24.26
707 - CIRCULAR SAW BLADE dia 16 x dia 160 MM. Z=32 BSD-2608640145.A2 2608640145 -
708 - CIRCULAR SAW BLADE dia 16 x dia 160 MM. Z=60 BSD-2608640144.A1 2608640144 -
804 - ON-OFF SWITCH BSD-1607000231.A83 1607000231 £18.96 £22.75
812 - SUPPRESSION FILTER BSD-1607328028.A633 1607328028 £5.30 £6.36
816/30 - CARBON-BRUSH SET BSD-1607014133.A1 1607014133 £8.49 £10.19
816/40 - SPIRAL SPRING BSD-2604652008.A20 2604652008 -
820 - PARTS SET BSD-1607000218.A5 1607000218 -
829 - PIVOTING BLADE GUARD BSD-1605510170.A14 1605510170 -
830 - ARMATURE 230V BSD-1604010348.A1 1604010348 -
878 - PARTS SET BSD-1607000205.A67 1607000205 -
888 - NAMEPLATE BSD-160111A3H3.A1455 160111A3H3 £2.61 £3.13
899 - GREASE TUBE 225 ML BSD-1605430003.A180 1605430003 £33.74 £40.49
