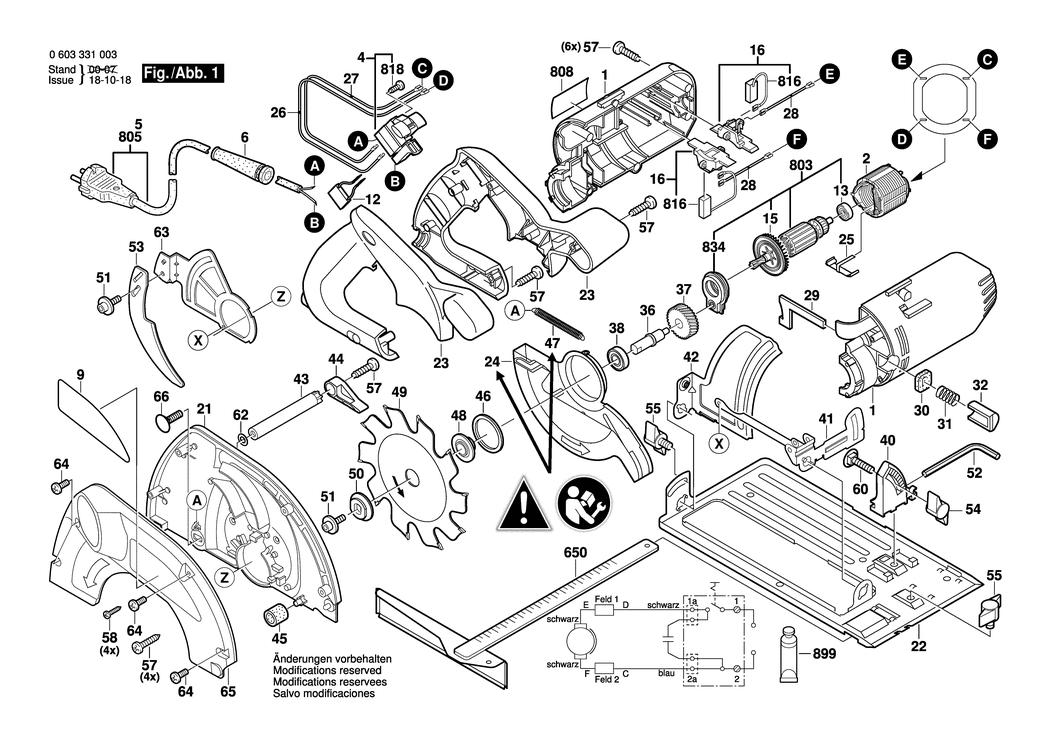

An exploded drawing and listing for the Bosch PKS 66 / 0603331042 / GB 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108218.A2 1605108218 -
2 - FIELD 230V BSD-1619P08345.A13 1619P08345 £27.23 £32.68
4 - SWITCH BSD-1607200198.A12 1607200198 £16.41 £19.69
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460140.A5 2604460140 £21.68 £26.01
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A765 2600703017 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1601118B09.A1 1601118B09 -
12 - SUPPRESSION FILTER BSD-1607328028.A677 1607328028 £5.30 £6.36
13 - BALL BEARING 7x19x6 BSD-2600905032.A104 2600905032 £5.30 £6.36
15 - FAN BSD-1606610145.A25 1606610145 £2.80 £3.36
16 - BRUSH PLATE BSD-1604336040.A0 1604336040 £7.36 £8.83
21 - PROTECTIVE COVER BSD-1605510300.A2 1605510300 £36.63 £43.96
22 - BASE PLATE BSD-1608000119.A1 1608000119 £14.91 £17.89
23 - HANDLE BSD-1605500217.A2 1605500217 -
24 - PIVOTING BLADE GUARD BSD-1605510271.A4 1605510271 £14.91 £17.89
25 - CONTACT SPRING BSD-1601290010.A11 1601290010 £1.75 £2.10
26 - CONNECTING PIPING BSD-1604449018.A16 1604449018 £2.16 £2.59
27 - CONNECTING PIPING BSD-1604449015.A22 1604449015 £2.16 £2.59
28 - CONNECTING CABLE BSD-1604449013.A10 1604449013 £1.75 £2.10
29 - SAFETY CATCH BSD-1601900005.A9 1601900005 £1.95 £2.34
30 - FELT SEAL BSD-1601015033.A1 1601015033 £1.75 £2.10
31 - COMPRESSION SPRING BSD-1604610018.A1 1604610018 £1.75 £2.10
32 - PUSH-BUTTON BSD-1603231019.A47 1603231019 -
36 - DRIVE SHAFT BSD-1603124133.A9 1603124133 £10.10 £12.12
37 - CYLINDRICAL GEAR BSD-1606320600.A14 1606320600 £5.87 £7.04
38 - GROOVE BALL BEARING 12x28x8 BSD-1600905031.A65 1600905031 £6.52 £7.83
40 - MITER SQUARE BSD-1608190024.A4 1608190024 £2.33 £2.80
41 - BOW BSD-1601329034.A4 1601329034 £7.78 £9.33
42 - GUIDE BRACKET BSD-1601329035.A1 1601329035 £6.61 £7.93
43 - SPACER TUBE BSD-1600360003.A2 1600360003 £5.58 £6.70
44 - TENSIONING LEVER BSD-1602002006.A51 1602002006 £1.75 £2.10
45 - RUBBER BUFFER BSD-1600305001.A30 1600305001 £1.75 £2.10
46 - CLAMP RING BSD-1600102025.A2 1600102025 £1.32 £1.58
47 - EXTENSION SPRING BSD-1604650015.A2 1604650015 -
48 - CLAMPING-FLANGE BSD-1605703126.A2 1605703126 -
49 - CIRCULAR SAW BLADE BSD-1608640086.A0 1608640086 -
50 - CONICAL SPRING WASHER BSD-1605703107.A25 1605703107 £3.72 £4.47
51 - HEX SOCKET HEAD CAP SCREW M6x14 MM BSD-1603414007.A303 1603414007 £2.29 £2.75
52 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A257 1907950006 £4.26 £5.11
53 - RIVING KNIFE BSD-1600025021.A2 1600025021 -
54 - WING NUT M6 BSD-1603339006.A122 1603339006 £2.52 £3.02
55 - WING SCREW M6 BSD-1603480018.A58 1603480018 £2.16 £2.59
57 - SCREW 4x16 BSD-2603490022.A1324 2603490022 £1.75 £2.10
58 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A362 1613435034 £1.75 £2.10
60 - ROUND-HEAD BOLT DIN 603-M6x20 BSD-2910281201.A153 2910281201 £1.75 £2.10
62 - PLAIN WASHER BSD-2916011894.A48 2916011894 £1.75 £2.10
63 - CARRYING PLATE BSD-1600098006.A2 1600098006 -
64 - THREAD-FORMING TAP. SCREW DIN 7500-M 4x12 BSD-2914491409.A55 2914491409 £1.66 £1.99
65 - COVER BSD-1605510301.A3 1605510301 £21.42 £25.71
66 - ROUND-HEAD BOLT M6x2-P1x20 BSD-1603434009.A4 1603434009 £1.32 £1.58
650 - PARALLEL-GUIDE BSD-2608005036.A52 2608005036 £8.67 £10.41
803 - ARMATURE WITH FAN 230V BSD-1604010772.A0 1604010772 £61.98 £74.38
808 - NAMEPLATE BSD-160111A3H3.A1293 160111A3H3 £2.61 £3.13
816 - CARBON-BRUSH SET BSD-1607014176.A296 1607014176 £13.12 £15.75
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A362 2603410001 £1.75 £2.10
834 - BEARING BRACKET BSD-1605808070.A3 1605808070 £12.04 £14.45
899 - GREASE TUBE 225 ML BSD-1605430003.A199 1605430003 £33.74 £40.49
