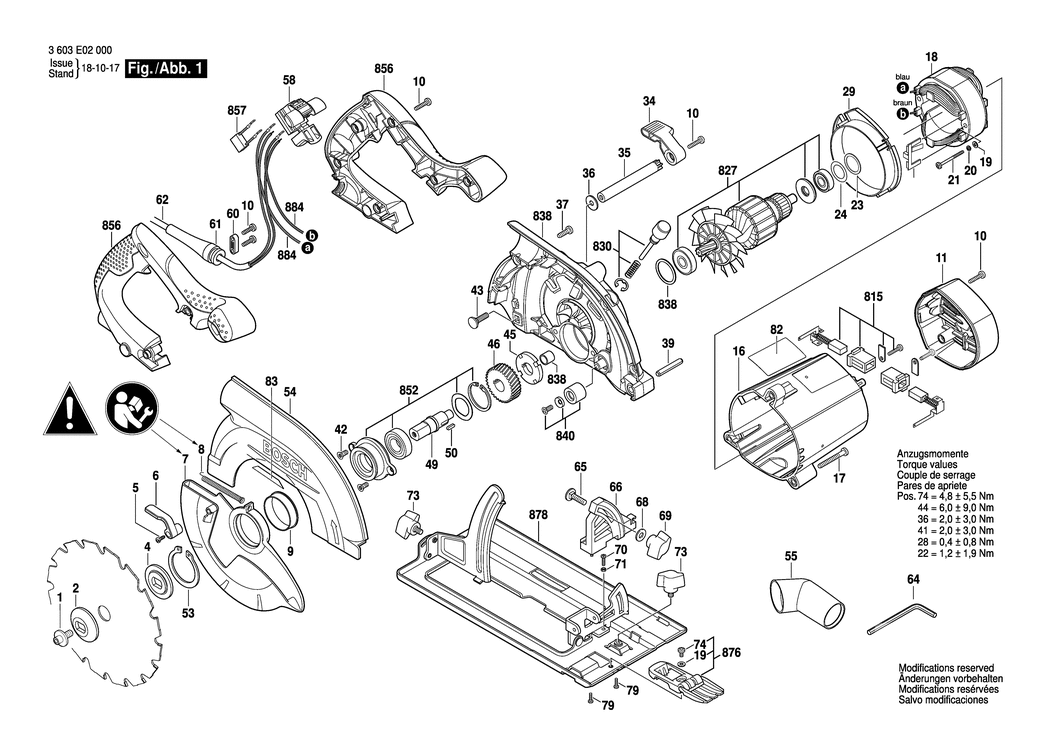

An exploded drawing and listing for the Bosch PKS 66AF / 3603E02000 / EU 230 Volt
Ex VAT Inc VAT
1 - SCREW BSD-1609203Y19.A0 1609203Y19 £2.16 £2.59
2 - CONICAL SPRING WASHER BSD-1609203Y20.A1 1609203Y20 £5.58 £6.70
4 - CLAMPING-FLANGE BSD-1609203Y22.A0 1609203Y22 -
5 - SCREW BSD-1609203Y76.A0 1609203Y76 £1.75 £2.10
6 - LEVER BSD-1609203Y23.A1 1609203Y23 £1.75 £2.10
7 - PIVOTING BLADE GUARD BSD-1609203Y24.A0 1609203Y24 £18.96 £22.75
8 - EXTENSION SPRING BSD-1609203Y25.A1 1609203Y25 £1.32 £1.58
9 - FLANGE BUSHING BSD-1609203Y26.A0 1609203Y26 £1.75 £2.10
10 - TAPPING SCREW BSD-1609203Y27.A1 1609203Y27 £1.75 £2.10
11 - END CAP BSD-1609203Y28.A0 1609203Y28 £11.30 £13.56
16 - MOTOR HOUSING BSD-1609203Y29.A1 1609203Y29 £27.23 £32.68
17 - SCREW BSD-1609203Y30.A0 1609203Y30 £1.75 £2.10
18 - FIELD 230V BSD-1609203Y31.A1 1609203Y31 £37.27 £44.72
19 - PLAIN WASHER BSD-1609203Y32.A0 1609203Y32 £1.75 £2.10
20 - SPRING WASHER BSD-1609203Y33.A1 1609203Y33 £1.75 £2.10
21 - SCREW 08.12.08 BSD-1609203Y34.A0 1609203Y34 £1.75 £2.10
23 - EXTENSION SPRING BSD-1609203Y35.A1 1609203Y35 £1.75 £2.10
24 - SPRING WASHER BSD-1609203Y36.A0 1609203Y36 £1.75 £2.10
29 - BAFFLE BSD-1609203Y37.A1 1609203Y37 £1.75 £2.10
34 - LEVER BSD-1609203Y38.A0 1609203Y38 £1.75 £2.10
35 - ROD BSD-1609203Y39.A7 1609203Y39 £1.75 £2.10
36 - PLAIN WASHER BSD-1609203Y40.A0 1609203Y40 £1.75 £2.10
37 - SCREW BSD-1609203Y41.A1 1609203Y41 £1.75 £2.10
39 - SPRING PIN BSD-1609203Y42.A0 1609203Y42 £1.75 £2.10
42 - SCREW BSD-1609203Y43.A1 1609203Y43 £1.75 £2.10
43 - BOLT BSD-1609203Y44.A0 1609203Y44 £1.75 £2.10
45 - LOCKING RING BSD-1609203Y45.A1 1609203Y45 £1.75 £2.10
46 - GEAR BSD-1609203Y46.A0 1609203Y46 £13.12 £15.75
49 - GEAR SHAFT BSD-1609203Y47.A1 1609203Y47 £7.36 £8.83
50 - FLAT KEY BSD-1609203Y48.A0 1609203Y48 £1.75 £2.10
53 - RETAINING RING BSD-1609203Y49.A1 1609203Y49 £1.75 £2.10
54 - PROTECTIVE COVER BSD-1609203Y50.A0 1609203Y50 £16.41 £19.69
55 - VACUUM ADAPTER BSD-1609203X86.A0 1609203X86 £5.30 £6.36
58 - SWITCH BSD-1607200234.A1 1607200234 £21.52 £25.83
60 - CABLE CLIP BSD-1609203Y53.A1 1609203Y53 £1.32 £1.58
61 - GROMMET BSD-1609203Y54.A6 1609203Y54 £1.75 £2.10
62 - POWER SUPPLY CORD BSD-1609203Y55.A1 1609203Y55 £14.91 £17.89
64 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A649 1907950006 £4.26 £5.11
65 - BOLT BSD-1609203Y77.A6 1609203Y77 £2.61 £3.13
66 - ANGLE SUPPORT BSD-1609203Y57.A5 1609203Y57 £2.80 £3.36
68 - PLAIN WASHER BSD-1609203Y58.A2 1609203Y58 £1.75 £2.10
69 - WING NUT BSD-1609203Y59.A5 1609203Y59 £2.16 £2.59
70 - SCREW BSD-1609203Y78.A1 1609203Y78 £1.75 £2.10
71 - HEX NUT BSD-1609203Y60.A2 1609203Y60 £1.75 £2.10
73 - WING SCREW BSD-1609203Y61.A5 1609203Y61 £2.80 £3.36
74 - SCREW BSD-1609203Y79.A6 1609203Y79 £1.75 £2.10
79 - SCREW BSD-1609203Y63.A1 1609203Y63 £1.75 £2.10
82 - NAMEPLATE BSD-1601118R79.A0 1601118R79 £2.61 £3.13
83 - MANUFACTURER'S NAMEPLATE PKS 66 A BSD-1601118R69.A0 1601118R69 £2.61 £3.13
83 - MANUFACTURER'S NAMEPLATE PKS 66 AF BSD-1601118R70.A0 1601118R70 -
815 - CARBON-BRUSH SET BSD-1609203Y64.A1 1609203Y64 £16.41 £19.69
827 - ARMATURE 230V BSD-1609203Y65.A0 1609203Y65 £63.50 £76.20
830 - STOPPING DEVICE BSD-1609203Y66.A1 1609203Y66 £4.26 £5.11
838 - GEAR HOUSING BSD-1609203Y67.A0 1609203Y67 £37.27 £44.72
840 - STOPPER BSD-1609203Y68.A1 1609203Y68 £1.75 £2.10
852 - BEARING FLANGE BSD-1609203Y69.A0 1609203Y69 £16.41 £19.69
856 - SET OF HANDLES BSD-1609203Y70.A1 1609203Y70 £21.68 £26.01
857 - SUPPRESSION CAPACITOR BSD-1609203Y71.A0 1609203Y71 £2.16 £2.59
876 - GUIDE PIECE BSD-1609203Y73.A5 1609203Y73 £3.72 £4.47
878 - BASE PLATE BSD-1609203Y74.A0 1609203Y74 £31.64 £37.97
884 - CONNECTING CABLE BSD-1609203Y75.A1 1609203Y75 £5.30 £6.36
