Festool AP 55 EB / 487093 Spare Parts

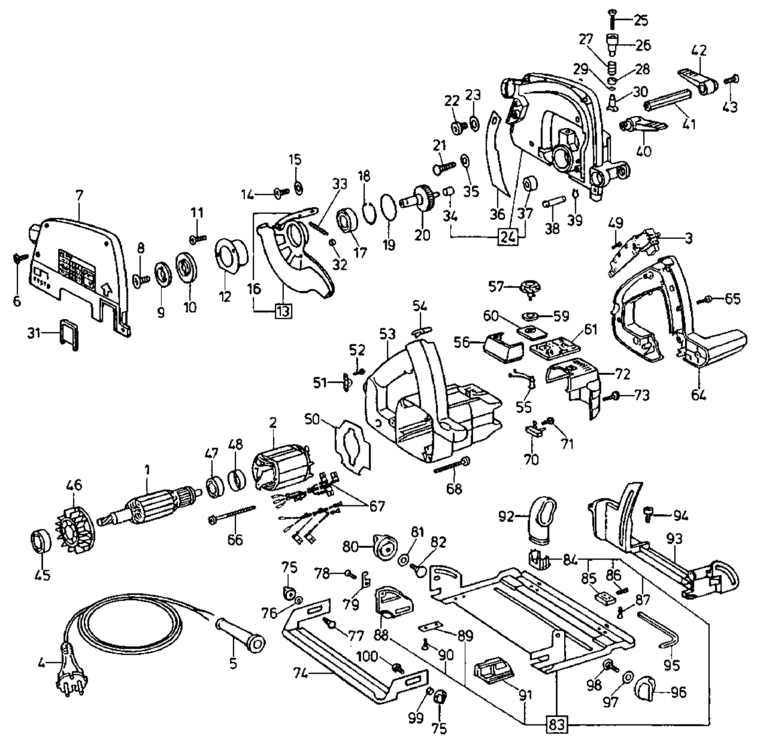

An exploded diagram and spare parts listing for the Festool AP 55 EB / 487093

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-493218.A1 493218	£107.33	£128.80
2 - FIELD ASSEMBLY 230 V FSP-493221.A14 493221	£63.43	£76.12
3 - BRAKE MODULE FSP-489830.A4 489830	£69.05	£82.86
4 - CABLE EU FSP-457408.A0 457408	£28.95	£34.74
5 - CABLE CONDUIT FSP-432436.A69 432436	£2.00	£2.40
6 - FLAT HEAD SCREW M4 X 10 FSP-228736.A23 228736	£2.00	£2.40
7 - NO LONGER AVAILABLE FSP-00000.A926 00000	-
8 - FLAT HEAD SCREW FSP-439269.A22 439269	£2.00	£2.40
9 - COUNTER FLANGE FSP-440089.A23 440089	£5.12	£6.15
10 - NO LONGER AVAILABLE FSP-00000.A925 00000	-
11 - FLAT HEAD SCREW M4 X 10 FSP-228736.A24 228736	£2.00	£2.40
12 - NO LONGER AVAILABLE FSP-00000.A924 00000	-
13 - PENDULUM GUARD FSP-488077.A1 488077	£56.25	£67.50
14 - FLAT HEAD SCREW M4 X 10 FSP-228736.A22 228736	£2.00	£2.40
15 - NO LONGER AVAILABLE FSP-00000.A928 00000	-
16 - NO LONGER AVAILABLE FSP-00000.A929 00000	-
17 - BALL BEARING FSP-228659.A15 228659	£7.68	£9.21
18 - SNAP RING FSP-401246.A17 401246	£2.00	£2.40
19 - O-RING FSP-215499.A0 215499	£2.00	£2.40
20 - GEAR SHAFT FSP-441034.A3 441034	£45.98	£55.18
21 - ROUND-HEAD SCREW FSP-444362.A9 444362	£2.00	£2.40
22 - NO LONGER AVAILABLE FSP-00000.A927 00000	-
23 - WASHER 6.4 MM FSP-228546.A61 228546	£2.00	£2.40
24 - PROTECTIVE COVER FSP-487572.A5 487572	£93.68	£112.41
25 - RAISED-HEAD SCREW M4 X 40 FSP-228591.A6 228591	£2.00	£2.40
26 - KNOB FSP-440441.A36 440441	£2.87	£3.44
27 - PRESSURE SPRING FSP-201134.A55 201134	£2.00	£2.40
28 - SUPPORTING RING FSP-444142.A35 444142	£2.00	£2.40
29 - O-RING FSP-444234.A27 444234	£2.00	£2.40
30 - BOLT FSP-444114.A8 444114	£8.56	£10.27
31 - LENS FSP-438943.A28 438943	£3.50	£4.20
32 - NO LONGER AVAILABLE FSP-00000.A923 00000	-
33 - DRAW SPRING FSP-440723.A5 440723	£2.00	£2.40
34 - CYLINDER BEARING FSP-439042.A0 439042	£2.00	£2.40
35 - WASHER FSP-402935.A71 402935	£2.00	£2.40
36 - SPACER WEDGE FSP-440035.A4 440035	£6.19	£7.43
37 - BUFFER FSP-714434.A18 714434	£4.24	£5.09
38 - NO LONGER AVAILABLE FSP-00000.A921 00000	-
39 - NO LONGER AVAILABLE FSP-00000.A922 00000	-
40 - LEVER FSP-486639.A4 486639	£7.86	£9.43
41 - CLAMPING NUT FSP-438950.A5 438950	£14.69	£17.63
42 - LEVER FSP-438944.A8 438944	£2.00	£2.40
43 - FLAT HEAD SCREW M6 X 10 FSP-402365.A4 402365	£2.00	£2.40
45 - BALL BEARING FSP-228798.A55 228798	£5.38	£6.45
46 - FAN FSP-715024.A14 715024	£2.00	£2.40
47 - BALL BEARING FSP-228559.A63 228559	£4.06	£4.87
48 - BEARING RING FSP-438613.A34 438613	£2.00	£2.40
49 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A28 228718	£2.00	£2.40
50 - AIR GUIDE WASHER FSP-457606.A17 457606	£12.78	£15.33
51 - CABLE CLAMP FSP-439288.A117 439288	£2.00	£2.40
52 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A117 228663	£2.00	£2.40
53 - MOTOR HOUSING FSP-446281.A1 446281	£25.45	£30.54
54 - NO LONGER AVAILABLE FSP-00000.A905 00000	-
55 - COIL SHELL FSP-486744.A27 486744	£16.95	£20.34
56 - COVER FSP-438607.A9 438607	£3.68	£4.42
57 - ADJUSTING KNOB FSP-440991.A31 440991	£5.24	£6.29
59 - SEALING RING FSP-438509.A40 438509	£2.00	£2.40
60 - LENS FSP-438198.A17 438198	£2.00	£2.40
61 - CONTROL ELECTRONICS FSP-488598.A11 488598	£65.58	£78.70
64 - COVER FSP-438637.A11 438637	£13.03	£15.64
65 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A95 228580	£2.00	£2.40
66 - RAISED-HEAD SCREW 4.0 X 60 MM FSP-228708.A46 228708	£2.00	£2.40
67 - CABLE HARNESS EU FSP-487126.A0 487126	£8.56	£10.27
67 - CABLE HARNESS EU FSP-487128.A5 487128	£26.86	£32.23
68 - CHEESE HEAD SCREW FSP-203780.A47 203780	£2.00	£2.40
70 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A45 488915	£19.04	£22.85
71 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A78 219047	£2.00	£2.40
72 - CAP FSP-439824.A28 439824	£8.68	£10.42
73 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A94 228580	£2.00	£2.40
74 - EXTENSION TABLE FSP-438857.A4 438857	£19.03	£22.84
75 - ROTARY KNOB M6 FSP-440712.A21 440712	£2.00	£2.40
76 - WASHER FSP-402935.A68 402935	£2.00	£2.40
77 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A42 228592	£2.00	£2.40
78 - FLAT HEAD SCREW M4 X 10 FSP-228727.A1 228727	£2.00	£2.40
79 - INDICATOR FSP-439275.A24 439275	£2.00	£2.40
80 - ROTARY KNOB FSP-440713.A40 440713	£2.64	£3.17
81 - WASHER 6.4 MM FSP-228546.A62 228546	£2.00	£2.40
82 - ROUND-HEAD SCREW M6 X 25 FSP-228603.A11 228603	£2.00	£2.40
83 - PLATE FSP-484685.A17 484685	£42.35	£50.82
84 - ADJUSTING PIECE FSP-442809.A41 442809	£2.00	£2.40
85 - ADJUSTING PIECE FSP-443971.A30 443971	£2.00	£2.40
86 - THREADED PIN M6 X 12 FSP-442597.A30 442597	£2.00	£2.40
87 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A29 400014	£2.00	£2.40
88 - SWIVELING SEGMENT FSP-438855.A23 438855	£2.00	£2.40
89 - THREADED RAIL FSP-439789.A17 439789	£2.00	£2.40
90 - FLAT HEAD SCREW M4 X 10 FSP-228727.A2 228727	£2.00	£2.40
91 - SWIVELING SEGMENT FSP-438856.A3 438856	£2.00	£2.40
92 - CHIP DEFLECTOR FSP-439696.A7 439696	£8.94	£10.73
93 - SUPPORT FSP-439012.A2 439012	£63.67	£76.40
94 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A45 228617	£2.00	£2.40
95 - PIN KEY FSP-439236.A2 439236	£3.50	£4.20
96 - ROTARY KNOB FSP-440713.A41 440713	£2.64	£3.17
97 - WASHER 6.4 MM FSP-228546.A63 228546	£2.00	£2.40
98 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A43 228592	£2.00	£2.40
99 - SPACER BUSH FSP-439715.A3 439715	£2.00	£2.40
100 - ROUND-HEAD SCREW M6 X 20 FSP-228661.A6 228661	£2.00	£2.40
