Dewalt D27107XPS Type 1 Combination Saw Spare Parts

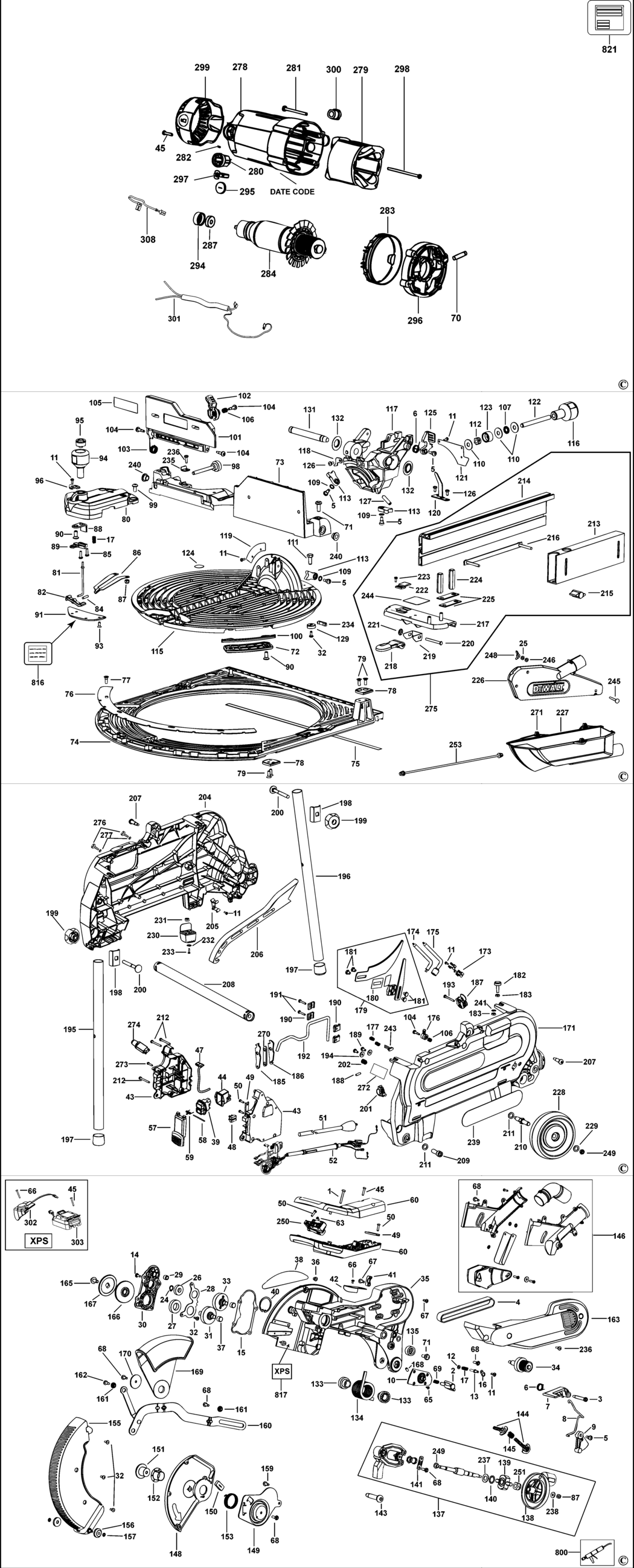

An exploded drawing and spare parts listing for the Dewalt D27107XPS Type 1 Combination Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-98094-35.A11 98094-35	£1.50	£1.80
2 - KNOB BDE-147107-06.A20 147107-06	£3.80	£4.56
3 - BOLT BDE-152852-00.A26 152852-00	£1.82	£2.19
4 - BELT BDE-N453995.A9 N453995	£18.91	£22.69
5 - SCREW BDE-153639-00.A17 153639-00	£1.50	£1.80
6 - SPRING TORSION BDE-398472-00.A0 398472-00	£2.26	£2.71
7 - LEVER BDE-605603-00.A2 605603-00	£1.50	£1.80
8 - LINKAGE SA BDE-606278-00.A10 606278-00	£1.50	£1.80
9 - PLATE BDE-606279-00.A3 606279-00	£1.50	£1.80
10 - PLATE BDE-607221-00.A5 607221-00	£7.85	£9.42
11 - SCREW BDE-330045-05.A56 330045-05	£1.50	£1.80
12 - WASHER FELT BDE-618480-00.A2 618480-00	£1.50	£1.80
13 - LOCKING PIN BDE-153561-00.A26 153561-00	£1.50	£1.80
14 - SCREW BDE-385915-01.A5 385915-01	£1.50	£1.80
15 - GASKET BDE-391315-00.A7 391315-00	£2.78	£3.34
16 - PLATE BDE-393071-00.A14 393071-00	£1.50	£1.80
17 - SPRING BDE-868082-00.A3 868082-00	£1.50	£1.80
24 - CIRCLIP BDE-860079-03.A26 860079-03	£1.50	£1.80
25 - WASHER M8 BDE-860073-03.A673 860073-03	£1.50	£1.80
26 - BEARING BDE-605040-59.A15 605040-59	£3.30	£3.96
27 - BEARING BALL BDE-330003-66.A41 330003-66	£14.57	£17.48
28 - BEARING PLATE BDE-627904-00.A1 627904-00	£3.30	£3.96
29 - BEARING NEEDLE BDE-391616-00.A37 391616-00	£4.69	£5.63
30 - GEARCASE COVER + 29 BDE-621759-00.A8 621759-00	£41.24	£49.49
31 - SPINDLE & GEAR SA BDE-869219-06.A6 869219-06	£41.24	£49.49
32 - SCREW BDE-330045-49.A68 330045-49	£1.50	£1.80
33 - SPINDLE & GEAR SA BDE-869219-07.A7 869219-07	£41.24	£49.49
34 - PINION SA BDE-N027131SV.A13 N027131SV	£115.77	£138.92
35 - ARM BDE-N139375.A1 N139375	£283.82	£340.58
36 - INSERT BDE-148608-00.A32 148608-00	£1.50	£1.80
37 - BEARING BDE-386780-00.A9 386780-00	£2.26	£2.71
38 - IDENTITY LABEL BDE-621329-00.A6 621329-00	£3.30	£3.96
39 - SWITCH GB BDE-637691-00.A0 637691-00	£41.24	£49.49
40 - RETAINER BDE-616726-00.A6 616726-00	£1.50	£1.80
41 - CORD CLAMP BDE-612350-00.A7 612350-00	£1.50	£1.80
42 - COVER BDE-613781-00.A1 613781-00	£1.50	£1.80
43 - HOUSING SWITCH GB BDE-605786-01.A0 605786-01	£34.00	£40.80
44 - BOOT BDE-638634-00.A13 638634-00	£9.41	£11.29
45 - SCREW BDE-330019-13.A148 330019-13	£1.50	£1.80
47 - CONNECTING WIRE BDE-652121-00.A5 652121-00	£1.50	£1.80
48 - TERMINAL BLOCK BDE-326057-00.A40 326057-00	£1.50	£1.80
49 - CORD CLAMP BDE-607858-00.A0 607858-00	£1.50	£1.80
50 - SCREW BDE-330013-22.A4 330013-22	-
51 - CORDSET GB BDE-330060-85.A18 330060-85	£19.90	£23.88
52 - SET OF LEAD WIRES BDE-639912-01.A6 639912-01	-
57 - SWITCH COVER BDE-N377629.A6 N377629	£3.30	£3.96
58 - PIN BDE-607854-00.A0 607854-00	£1.50	£1.80
59 - SPRING TORSION BDE-613782-01.A12 613782-01	£1.50	£1.80
60 - HANDLE SA BDE-607855-00.A13 607855-00	£19.90	£23.88
63 - SCREW BDE-384127-01.A92 384127-01	£1.50	£1.80
65 - SCREW BDE-860091-04.A5 860091-04	£1.50	£1.80
66 - SCREW BDE-860094-03.A220 860094-03	£1.50	£1.80
67 - SCREW BDE-330045-15.A137 330045-15	£1.50	£1.80
68 - SCREW.SPECIAL BDE-330045-23.A126 330045-23	£1.50	£1.80
69 - SPRING BDE-606014-00.A9 606014-00	£1.50	£1.80
70 - SCREW BDE-394034-00.A43 394034-00	£1.50	£1.80
71 - SCREW BDE-330045-32.A51 330045-32	£1.50	£1.80
72 - PLATE BDE-621647-00.A9 621647-00	£3.30	£3.96
73 - FENCE BDE-N162216.A12 N162216	£125.16	£150.19
74 - TABLE BDE-869233-00.A1 869233-00	£245.11	£294.13
75 - SCALE BDE-614822-00.A7 614822-00	£5.88	£7.06
76 - DETENT BDE-398999-00.A8 398999-00	£25.70	£30.84
77 - SCREW BDE-615876-00.A6 615876-00	£1.50	£1.80
78 - PLATE BDE-607103-00.A6 607103-00	£4.69	£5.63
79 - SCREW BDE-98104-16.A3 98104-16	£1.50	£1.80
80 - NOSE BDE-N162168.A1 N162168	£55.30	£66.36
81 - ROD BDE-605799-00.A12 605799-00	£1.50	£1.80
82 - ACTUATOR BDE-399162-00.A13 399162-00	£1.50	£1.80
84 - PIN BDE-399009-00.A5 399009-00	£1.50	£1.80
85 - SCREW.TEMP BDE-860094-00.A38 860094-00	£1.50	£1.80
86 - DETENT BDE-606898-00.A12 606898-00	£3.80	£4.56
87 - NUT BDE-860092-02.A21 860092-02	£1.50	£1.80
88 - PLATE BDE-606900-00.A6 606900-00	£1.50	£1.80
89 - PAD BDE-606896-00.A12 606896-00	£1.50	£1.80
90 - SCREW BDE-617561-00.A2 617561-00	£1.50	£1.80
91 - COVER BDE-606897-00.A1 606897-00	£3.80	£4.56
93 - SCREW BDE-860205-01.A5 860205-01	£1.50	£1.80
94 - KNOB BDE-399004-00.A5 399004-00	£7.18	£8.62
95 - BUTTON BDE-605785-00.A13 605785-00	£1.50	£1.80
96 - POINTER BDE-611991-00.A6 611991-00	£1.50	£1.80
98 - KNOB BDE-606198-00.A8 606198-00	£2.26	£2.71
99 - SCREW BDE-N409486.A0 N409486	£1.50	£1.80
100 - PAD BDE-607129-00.A7 607129-00	£3.30	£3.96
101 - BACK FENCE BDE-N190890.A7 N190890	£51.90	£62.28
102 - KNOB BDE-610251-00.A7 610251-00	£1.50	£1.80
103 - SPRING BDE-610250-00.A6 610250-00	£1.50	£1.80
104 - SCREW BDE-N399933.A8 N399933	£1.50	£1.80
105 - WARNING LABEL BDE-610710-00.A13 610710-00	£1.50	£1.80
106 - SPRING BDE-941586-00.A31 941586-00	£1.50	£1.80
107 - BEARING THRUST BDE-153451-00.A10 153451-00	£1.82	£2.19
109 - WASHER BDE-153655-00.A39 153655-00	£1.50	£1.80
110 - WASHER BDE-153781-00.A15 153781-00	£1.50	£1.80
111 - SCREW BDE-153797-03.A1 153797-03	£1.50	£1.80
112 - NUT BDE-330021-10.A6 330021-10	£1.50	£1.80
113 - PAWL BDE-391347-00.A10 391347-00	£1.50	£1.80
115 - ROTARY TABLE + 122 124 BDE-869233-02.A12 869233-02	£301.55	£361.86
116 - KNOB BDE-399004-01.A8 399004-01	£7.18	£8.62
117 - TRUNNION BDE-605653-00.A1 605653-00	£84.42	£101.30
118 - POINTER BDE-606152-00.A1 606152-00	£1.82	£2.19
119 - BEVEL SCALE BDE-618660-00.A1 618660-00	£3.30	£3.96
120 - POINTER BDE-606192-00.A8 606192-00	£2.78	£3.34
121 - BEVEL SCALE BDE-606193-00.A5 606193-00	£3.80	£4.56
122 - STUD BDE-606359-00.A11 606359-00	£3.30	£3.96
123 - SPACER BDE-606362-00.A7 606362-00	£1.50	£1.80
124 - WARNING LABEL BDE-610707-00.A12 610707-00	£1.50	£1.80
125 - LATCH BDE-613709-00.A8 613709-00	£1.50	£1.80
126 - SCREW BDE-860094-06.A22 860094-06	£1.50	£1.80
127 - SCREW BDE-153576-03.A14 153576-03	£1.50	£1.80
129 - ADJUSTER BDE-615589-00.A7 615589-00	£2.26	£2.71
131 - PIVOT SHAFT BDE-615777-00.A12 615777-00	£5.88	£7.06
132 - WASHER BDE-148296-00.A64 148296-00	£1.50	£1.80
133 - SPACER BDE-146732-00.A21 146732-00	£1.50	£1.80
134 - SPRING BDE-619571-00.A5 619571-00	£17.48	£20.97
135 - BUSHING BDE-146753-00.A23 146753-00	£1.50	£1.80
137 - ADJUSTER HEIGHT BDE-609837-00.A2 609837-00	£84.42	£101.30
138 - CRANK BDE-606689-00.A7 606689-00	£12.17	£14.60
139 - CARRIER BDE-607754-00.A2 607754-00	£3.80	£4.56
140 - BALL STEEL BDE-604107-00.A15 604107-00	£1.50	£1.80
141 - CLAMP BDE-609840-00.A11 609840-00	£1.50	£1.80
143 - BOLT BDE-610254-00.A6 610254-00	£7.85	£9.42
144 - PIN BDE-614072-00.A1 614072-00	£1.50	£1.80
145 - SPRING BDE-606688-00.A6 606688-00	£1.50	£1.80
146 - DUST PORT BDE-N166053.A7 N166053	£37.35	£44.82
148 - PLATE BDE-615459-00.A8 615459-00	£18.91	£22.69
149 - BACKPLATE BDE-N041976.A7 N041976	£12.17	£14.60
150 - BUMPER BDE-609514-00.A0 609514-00	£1.50	£1.80
151 - RETAINING PLATE BDE-146750-03.A16 146750-03	£2.78	£3.34
152 - SLEEVE BDE-609314-00.A12 609314-00	£1.50	£1.80
153 - SPRING TORSION BDE-609496-00.A1 609496-00	£1.50	£1.80
155 - GUARD BDE-N298999.A1 N298999	£19.90	£23.88
156 - ROLLER BDE-146774-00.A49 146774-00	£1.82	£2.19
157 - LOCKING RING BDE-604728-00.A27 604728-00	£1.66	£1.99
159 - SCREW BDE-394589-01.A42 394589-01	£1.50	£1.80
160 - LEVER SA BDE-N225776.A9 N225776	-
161 - SLEEVE BDE-146740-02.A14 146740-02	£1.50	£1.80
162 - SCREW BDE-605590-00.A10 605590-00	£1.50	£1.80
163 - BELT COVER BDE-610556-01.A6 610556-01	£16.03	£19.24
165 - BLADE BOLT BDE-869245-00.A84 869245-00	£3.54	£4.25
166 - WASHER INNER CLAMP BDE-616319-00.A7 616319-00	£16.03	£19.24
167 - CLAMP OUTER BDE-604765-00.A33 604765-00	£5.88	£7.06
168 - SCREW BDE-150075-00.A54 150075-00	£1.50	£1.80
169 - GUARD BDE-605593-00.A1 605593-00	-
170 - WASHER BDE-607536-00.A0 607536-00	£4.69	£5.63
171 - FSO KIT BDE-656421-00.A1 656421-00	£245.11	£294.13
173 - HOLDER BDE-391358-01.A45 391358-01	£1.50	£1.80
174 - WRENCH SPECIAL BDE-385567-01.A15 385567-01	-
175 - WRENCH SPECIAL BDE-608563-01.A1 608563-01	£7.18	£8.62
176 - RETAINER BDE-615993-00.A8 615993-00	£1.50	£1.80
177 - SPRING BDE-946866-00.A4 946866-00	£1.50	£1.80
179 - GUARD KIT GB BDE-N181532.A18 N181532	£110.62	£132.74
180 - SHIM BDE-609497-00.A11 609497-00	£1.50	£1.80
181 - SCREW BDE-607181-00.A4 607181-00	£1.50	£1.80
182 - BUMPER BDE-616634-00.A6 616634-00	£4.16	£4.99
183 - NUT BDE-860083-15.A66 860083-15	£1.50	£1.80
185 - LOCK BDE-606233-00.A8 606233-00	£4.69	£5.63
186 - LOCK BDE-606232-00.A5 606232-00	£4.69	£5.63
187 - CORD CLAMP BDE-605601-00.A16 605601-00	£1.50	£1.80
188 - PIN BDE-607132-00.A5 607132-00	£1.50	£1.80
189 - SCREW BDE-330045-55.A84 330045-55	£1.50	£1.80
190 - BEARING BLOCK BDE-153379-00.A13 153379-00	£1.82	£2.19
191 - SCREW BDE-610574-00.A7 610574-00	£1.50	£1.80
192 - ROD BDE-611094-00.A8 611094-00	£7.85	£9.42
193 - SCREW BDE-861090-00.A6 861090-00	£1.50	£1.80
194 - WASHER BDE-860073-14.A96 860073-14	£1.50	£1.80
195 - FRONT LEG BDE-613233-00.A7 613233-00	£18.91	£22.69
196 - REAR LEG BDE-655033-00.A5 655033-00	£16.03	£19.24
197 - FOOT BDE-861073-00.A9 861073-00	£10.85	£13.02
198 - CLAMP BDE-N013623.A7 N013623	£5.88	£7.06
199 - KNOB BDE-618362-00.A0 618362-00	£5.88	£7.06
200 - CARRIAGE BOLT BDE-98131-90.A8 98131-90	£1.50	£1.80
201 - CABLE CLAMP BDE-861091-00.A26 861091-00	£1.50	£1.80
202 - SPRING BDE-860112-11.A19 860112-11	£1.50	£1.80
204 - FSO KIT BDE-656421-01.A6 656421-01	£165.92	£199.11
205 - CLIP BDE-615994-00.A6 615994-00	£1.50	£1.80
206 - PUSHROD BDE-860610-01.A91 860610-01	£7.85	£9.42
207 - BOLT BDE-616592-00.A11 616592-00	£7.85	£9.42
208 - TUBE BDE-604537-00.A1 604537-00	£17.48	£20.97
209 - SCREW BDE-942447-00.A36 942447-00	£1.50	£1.80
210 - AXLE STUB BDE-611623-00.A12 611623-00	£12.17	£14.60
211 - WASHER BDE-98197-08.A14 98197-08	£1.50	£1.80
212 - SCREW BDE-330045-50.A7 330045-50	£1.50	£1.80
213 - FENCE BDE-605789-00.A13 605789-00	£14.57	£17.48
214 - FENCE BDE-386616-00.A10 386616-00	£18.91	£22.69
215 - KNOB BDE-147107-00.A23 147107-00	£1.82	£2.19
216 - PLATE BDE-611712-00.A13 611712-00	£2.78	£3.34
217 - BRACKET BDE-611921-00.A13 611921-00	£18.91	£22.69
218 - LEVER LOCK BDE-605794-00.A16 605794-00	£17.48	£20.97
219 - BRACKET BDE-605796-00.A16 605796-00	£1.50	£1.80
220 - CLEVIS PIN BDE-605795-00.A4 605795-00	£1.50	£1.80
221 - WASHER CLAMP BDE-392948-00.A3 392948-00	£1.50	£1.80
222 - POINTER BDE-605798-00.A4 605798-00	£1.50	£1.80
223 - SCREW BDE-330045-05.A57 330045-05	£1.50	£1.80
224 - NUT BDE-612284-00.A1 612284-00	£1.50	£1.80
225 - WASHER BDE-605790-00.A0 605790-00	£1.50	£1.80
226 - GUARD KIT GB BDE-N181532.A19 N181532	£110.62	£132.74
227 - GUARD BDE-N060425.A3 N060425	£19.90	£23.88
228 - WHEEL BDE-612441-00.A5 612441-00	£30.08	£36.10
229 - WASHER BDE-941602-00.A81 941602-00	£1.50	£1.80
230 - FOOT BDE-N219072.A5 N219072	£3.30	£3.96
231 - NUT BDE-860083-14.A62 860083-14	£1.50	£1.80
232 - WASHER M8 BDE-860073-03.A674 860073-03	£1.50	£1.80
233 - SCREW BDE-860085-20.A14 860085-20	£1.50	£1.80
234 - SHOE BDE-621653-00.A4 621653-00	£2.26	£2.71
235 - CLAMP BDE-610252-00.A5 610252-00	£2.26	£2.71
236 - SCREW BDE-330045-14.A43 330045-14	£1.50	£1.80
237 - WASHER BDE-623499-00.A8 623499-00	£2.26	£2.71
238 - WASHER BDE-860075-00.A226 860075-00	£1.50	£1.80
239 - IDENTITY LABEL BDE-617108-00.A8 617108-00	£9.41	£11.29
240 - BUSHING BDE-607182-00.A9 607182-00	£1.50	£1.80
241 - WASHER BDE-860078-02.A7 860078-02	£1.50	£1.80
243 - SPRING CLIP BDE-620327-00.A13 620327-00	£1.50	£1.80
244 - IDENTITY LABEL BDE-624373-00.A13 624373-00	£1.50	£1.80
245 - SCREW BDE-931997-00.A21 931997-00	£1.50	£1.80
246 - WASHER BDE-720959-00.A83 720959-00	£1.50	£1.80
248 - WING NUT BDE-720929-00.A5 720929-00	£1.50	£1.80
249 - NUT BDE-860092-05.A41 860092-05	£1.50	£1.80
250 - SWITCH GB BDE-394375-02P.A20 394375-02P	£14.57	£17.48
251 - NUT BDE-330021-08.A0 330021-08	£1.50	£1.80
253 - CORD BDE-N060144.A1 N060144	£3.80	£4.56
270 - SPACER BDE-626334-00.A13 626334-00	£1.50	£1.80
271 - FASTENER BDE-868303-00.A9 868303-00	£3.80	£4.56
272 - LABEL BDE-626191-00.A17 626191-00	£1.50	£1.80
273 - SCREW BDE-146679-00.A12 146679-00	£1.50	£1.80
275 - FENCE BDE-611713-01.A0 611713-01	£99.47	£119.36
276 - SCREW BDE-949701-05.A22 949701-05	£1.50	£1.80
277 - NUT BDE-860083-15.A65 860083-15	£1.50	£1.80
278 - FIELD CASE BDE-N025823.A5 N025823	£17.48	£20.97
279 - FIELD 230V GB BDE-N071929.A1 N071929	£74.15	£88.98
280 - BRUSH HOLDER GB BDE-622440-00.A6 622440-00	£3.80	£4.56
281 - SCREW BDE-98094-55.A17 98094-55	£1.50	£1.80
282 - SCREW BDE-330022-16.A0 330022-16	£1.50	£1.80
283 - BAFFLE FAN BDE-391375-00.A35 391375-00	-
284 - ARMATURE 230V GB BDE-N158403.A0 N158403	£144.10	£172.92
287 - BEARING BDE-N110359.A151 N110359	£3.75	£4.50
294 - SLEEVE INSULATING BDE-650234-00.A5 650234-00	£1.50	£1.80
295 - BRUSH CAP BDE-622441-00.A12 622441-00	£1.50	£1.80
296 - MOUNTING BRACKET BDE-391282-00.A4 391282-00	£16.03	£19.24
297 - BRUSH GB BDE-N013883.A6 N013883	£2.26	£2.71
298 - SCREW BDE-330019-34.A34 330019-34	£1.50	£1.80
299 - END CAP BDE-660498-00.A4 660498-00	£1.50	£1.80
300 - BUSHING BDE-605155-00.A25 605155-00	£1.66	£1.99
301 - LEADWIRE BDE-N025819.A5 N025819	£12.17	£14.60
302 - LED LIGHT GB BDE-N172058.A1 N172058	£74.15	£88.98
303 - SA POWER SUPPLY GB BDE-N172059.A2 N172059	£96.55	£115.86
308 - BRUSH LEAD GB BDE-N025820.A5 N025820	£1.50	£1.80
400 - MOTOR SA 230V GB BDE-N158402.A6 N158402	£301.55	£361.86
800 - GREASE BDE-5140061-28.A50 5140061-28	£51.90	£62.28
816 - WARNING LABEL BDE-N045702.A1 N045702	£2.78	£3.34
817 - WARNING LABEL BDE-N174417.A0 N174417	£1.50	£1.80
821 - RATING PLATE GB BDE-N139013 N139013	£9.41	£11.29

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D27107XPS Type 1 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt D27107XPS Type 1 Combination Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt D27107XPS Type 1 Combination Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
