Fein WSG 12-125 P (50/60Hz 220/230V) / 72220524230 Spare Parts

Fein WSG 12-125 P ⡐/60Hz 220/230V) / 72220524230 Spare Parts

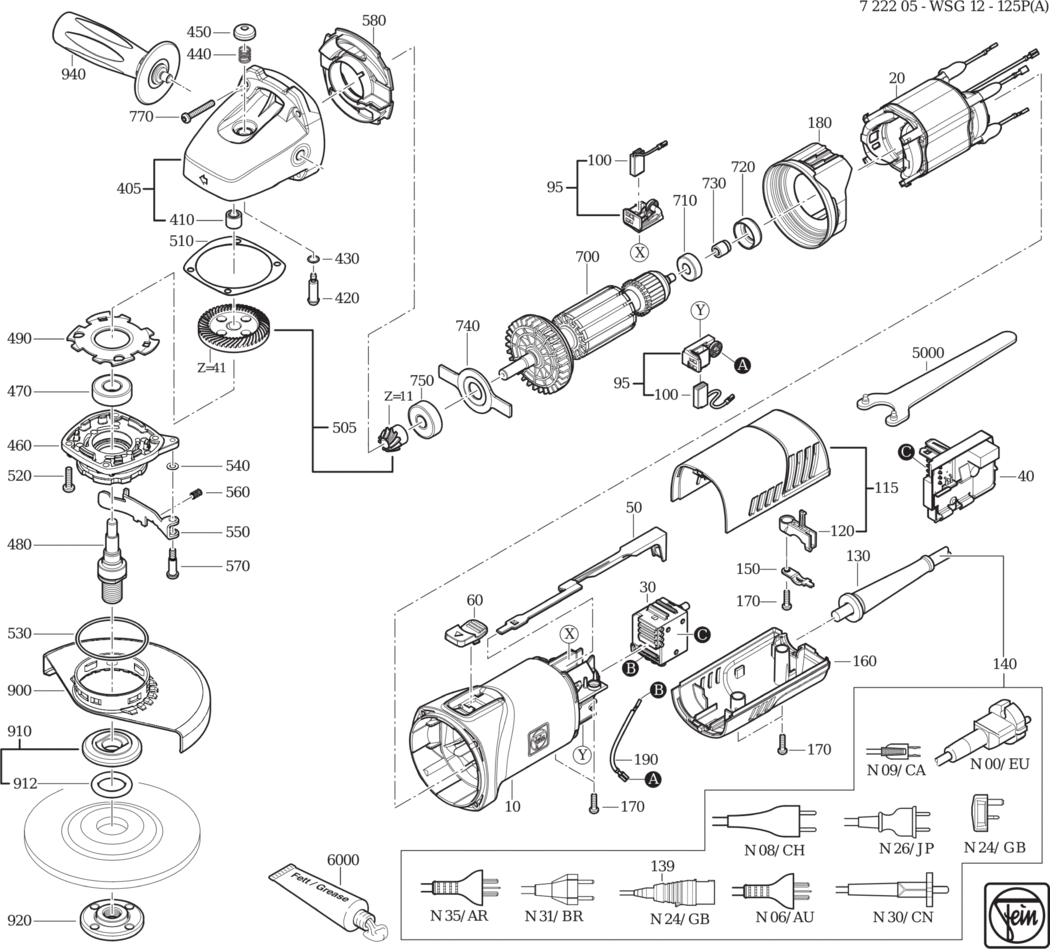

An exploded diagram and spare parts listing for the Fein WSG 12-125 P (50/60Hz 220/230V) / 72220524230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901174000.A12 31901174000	£37.51	£45.01
20 - STATOR 50HZ230V FEI-51281003230.A0 51281003230	£52.48	£62.97
30 - SWITCH FEI-30701299000.A34 30701299000	£28.81	£34.57
40 - ELECTRONICS 50/60H 220-230V FEI-30762531990.A6 30762531990	£65.31	£78.37
50 - CONTROL ROD FEI-32816079000.A28 32816079000	£2.43	£2.92
60 - SLIDE SWITCH FEI-32805306000.A47 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A3 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A42 30711158000	£8.15	£9.78
115 - COVER OT FEI-32427150010.A36 32427150010	£15.07	£18.08
120 - CABLE CLAMPING PIECE FEI-32431047000.A4 32431047000	-
130 - CABLE GROMMET FEI-31413282000.A93 31413282000	£2.55	£3.06
140 - CABLE WITH PLUG FEI-30707547010.A18 30707547010	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A60 32431043002	£1.60	£1.92
160 - COVER FEI-32427148000.A28 32427148000	£5.49	£6.59
170 - SCREW FEI-43072000000.A72 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A55 31428179000	£7.46	£8.95
405 - GEARBOX HOUSING FEI-31206146030.A47 31206146030	-
410 - NEEDLE SLEEVE FEI-41705006006.A44 41705006006	£7.31	£8.77
420 - BOLT FEI-30217335005.A69 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A11 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A161 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A153 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419153000.A16 32419153000	£27.18	£32.61
470 - GROOVED BALL BEARING FEI-41701010054.A251 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406299001.A24 33406299001	£26.04	£31.25
490 - PLATE FEI-32416115000.A30 32416115000	-
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A7 33809238020	£40.91	£49.09
510 - WASHER 0.1 FEI-32624122020.A46 32624122020	£1.60	£1.92
520 - FILLISTER HEAD SCREW FEI-43064024043.A180 43064024043	-
530 - SEALING RING FEI-40612000003.A59 40612000003	£1.60	£1.92
540 - DISC FEI-32408450000.A6 32408450000	£1.60	£1.92
550 - LEVER FEI-30240331000.A6 30240331000	£7.99	£9.59
560 - SPRING FEI-30901403000.A19 30901403000	£1.60	£1.92
570 - SCREW FEI-33024077000.A4 33024077000	£1.60	£1.92
580 - AIR GUIDE RING FEI-31428180000.A82 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ230V FEI-53281001230.A1 53281001230	£84.94	£101.93
710 - GROOVED BALL BEARING FEI-41701001260.A189 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A48 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A3 32172014010	£8.85	£10.62
740 - PLATE FEI-32416117000.A82 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A86 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A12 43074012000	£1.60	£1.92
900 - WHEEL GUARD FEI-31810300000.A10 31810300000	£19.05	£22.86
910 - INNER FLANGE FEI-63801182010.A208 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A14 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A212 63802052000	£14.88	£17.86
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A6 32119124010	£17.68	£21.22
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A28 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A298 32160003014	-
