Fein WSG 17-70 Inox (50/60Hz 220/230V) / 72221300230 Spare Parts

Fein WSG 17-70 Inox ⡐/60Hz 220/230V) / 72221300230 Spare Parts

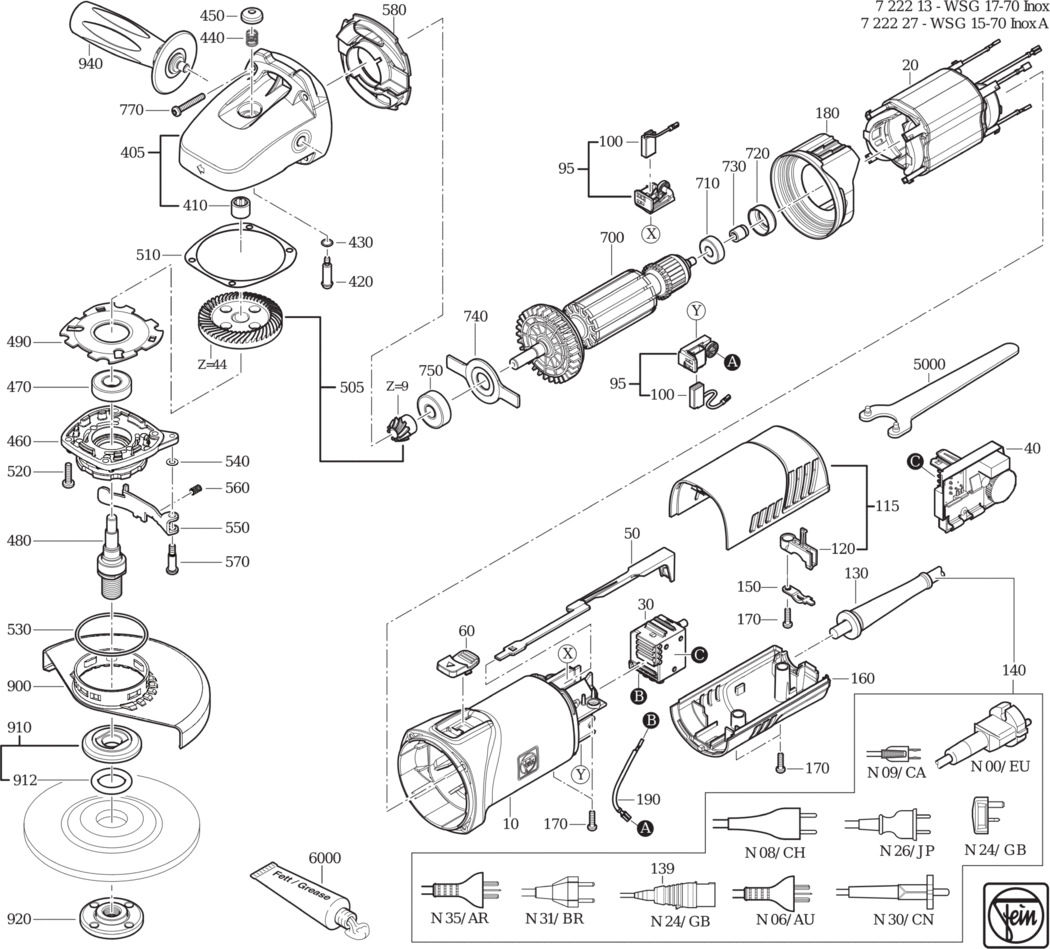

An exploded diagram and spare parts listing for the Fein WSG 17-70 Inox (50/60Hz 220/230V) / 72221300230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901175000.A39 31901175000	£36.82	£44.19
20 - STATOR 50HZ230V FEI-51279004230.A28 51279004230	£57.22	£68.67
30 - SWITCH FEI-30701299000.A58 30701299000	£28.81	£34.57
40 - SPEED SETTING SWITCH 50/60H 220-230V FEI-30762557990.A0 30762557990	-
50 - CONTROL ROD FEI-32816080000.A12 32816080000	£2.55	£3.06
60 - SLIDE SWITCH FEI-32805306000.A99 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A47 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A16 30711158000	£8.15	£9.78
115 - COVER OT FEI-32427153010.A3 32427153010	£16.59	£19.91
120 - CABLE CLAMPING PIECE FEI-32431047000.A56 32431047000	-
130 - CABLE GROMMET FEI-31413282000.A26 31413282000	£2.55	£3.06
140 - CABLE WITH PLUG FEI-30707544010.A44 30707544010	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A92 32431043002	£1.60	£1.92
160 - COVER UT FEI-32427151000.A0 32427151000	£7.13	£8.56
170 - SCREW FEI-43072000000.A28 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A88 31428179000	£7.46	£8.95
405 - GEARBOX HOUSING FEI-31206147030.A1 31206147030	-
410 - NEEDLE SLEEVE FEI-41705019001.A46 41705019001	£9.49	£11.39
420 - BOLT FEI-30217335005.A110 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A33 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A133 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A174 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419154000.A7 32419154000	-
470 - GROOVED BALL BEARING FEI-41701010054.A282 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406284009.A25 33406284009	£33.58	£40.29
490 - PLATE FEI-32416116000.A21 32416116000	-
505 - BEVEL GEAR Z=9/44 FEI-33809247010.A27 33809247010	-
510 - WASHER FEI-32624123020.A15 32624123020	-
520 - FILLISTER HEAD SCREW FEI-43064024043.A216 43064024043	-
530 - SEALING RING FEI-40612000003.A45 40612000003	£1.60	£1.92
540 - DISC FEI-32408450000.A12 32408450000	£1.60	£1.92
550 - LEVER FEI-30240332000.A20 30240332000	£7.46	£8.95
560 - SPRING FEI-30901403000.A10 30901403000	£1.60	£1.92
570 - SCREW FEI-33024077000.A15 33024077000	£1.60	£1.92
580 - AIR GUIDE RING FEI-31428180000.A57 31428180000	£4.28	£5.14
700 - ARMATURE 50H230V FEI-53279006230.A11 53279006230	£90.61	£108.73
710 - GROOVED BALL BEARING FEI-41701001260.A146 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A18 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A26 32172014010	£8.85	£10.62
740 - PLATE FEI-32416117000.A64 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A102 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A35 43074012000	£1.60	£1.92
900 - WHEEL GUARD FEI-31810300000.A16 31810300000	£19.05	£22.86
910 - INNER FLANGE FEI-63801182010.A176 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A33 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A171 63802052000	£14.88	£17.86
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A22 32119124010	£17.68	£21.22
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A52 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A353 32160003014	-
