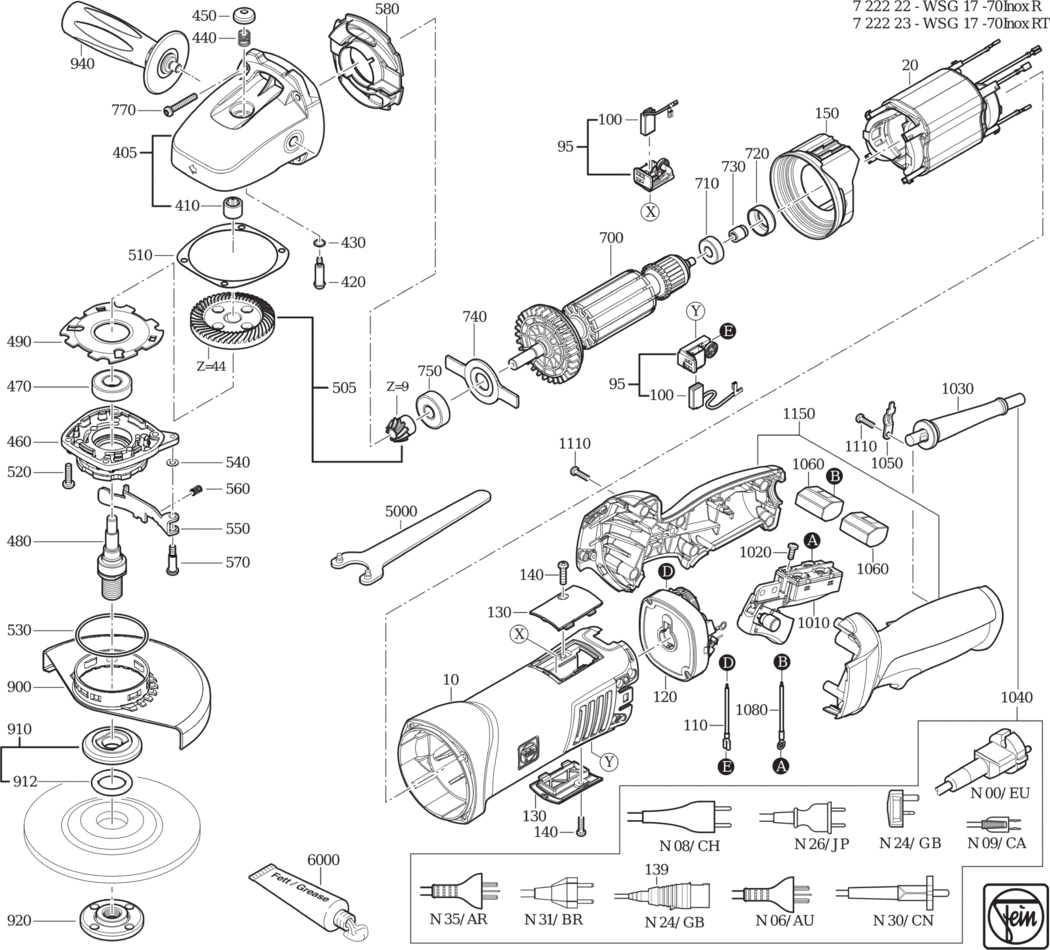

An exploded diagram and spare parts listing for the Fein WSG 17-70 Inox RT (50/60Hz 220/230V) / 72222300230
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31903225000.A15 31903225000 £40.71 £48.85
20 - STATOR 50HZ230V FEI-51279004230.A16 51279004230 £57.22 £68.67
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A88 30712096010 £11.45 £13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A110 30711158000 £8.15 £9.78
120 - SPEED SETTING SWITCH 50/60H 220-230V FEI-30762551990.A2 30762551990 -
130 - COVER FEI-32427157000.A1 32427157000 £4.97 £5.96
140 - SCREW FEI-43072000000.A182 43072000000 £1.60 £1.92
150 - AIR GUIDE RING FEI-31428179000.A47 31428179000 £7.46 £8.95
405 - GEARBOX HOUSING FEI-31206147030.A32 31206147030 -
410 - NEEDLE SLEEVE FEI-41705019001.A103 41705019001 £9.49 £11.39
420 - BOLT FEI-30217335005.A179 30217335005 £7.39 £8.87
430 - SEALING RING FEI-40612137008.A192 40612137008 £1.60 £1.92
440 - SPIRAL SPRING FEI-30901357005.A26 30901357005 £2.38 £2.86
450 - PUSHBUTTON FEI-32805200008.A56 32805200008 £2.58 £3.09
460 - BEARING PLATE FEI-32419154000.A3 32419154000 -
470 - GROOVED BALL BEARING FEI-41701010054.A63 41701010054 £8.25 £9.90
480 - SHAFT FEI-33406284009.A51 33406284009 £33.58 £40.29
490 - PLATE FEI-32416116000.A32 32416116000 -
505 - BEVEL GEAR Z=9/44 FEI-33809247010.A40 33809247010 -
510 - WASHER FEI-32624123020.A7 32624123020 -
520 - FILLISTER HEAD SCREW FEI-43064024043.A85 43064024043 -
530 - SEALING RING FEI-40612000003.A31 40612000003 £1.60 £1.92
540 - DISC FEI-32408450000.A71 32408450000 £1.60 £1.92
550 - LEVER FEI-30240332000.A2 30240332000 £7.46 £8.95
560 - SPRING FEI-30901403000.A72 30901403000 £1.60 £1.92
570 - SCREW FEI-33024077000.A62 33024077000 £1.60 £1.92
580 - AIR GUIDE RING FEI-31428180000.A93 31428180000 £4.28 £5.14
700 - ARMATURE 50H230V FEI-53279006230.A26 53279006230 £90.61 £108.73
710 - GROOVED BALL BEARING FEI-41701001260.A282 41701001260 £7.11 £8.53
720 - BEARING BUSH FEI-30507236000.A166 30507236000 £3.19 £3.83
730 - MAGNET FEI-32172014010.A90 32172014010 £8.85 £10.62
740 - PLATE FEI-32416117000.A8 32416117000 £1.60 £1.92
750 - GROOVED BALL BEARING FEI-41701207260.A28 41701207260 £7.41 £8.89
770 - SCREW FEI-43074012000.A153 43074012000 £1.60 £1.92
900 - WHEEL GUARD FEI-31810300000.A36 31810300000 £19.05 £22.86
910 - INNER FLANGE FEI-63801182010.A30 63801182010 £14.88 £17.86
912 - SEALING RING FEI-40612000007.A186 40612000007 £1.60 £1.92
920 - THREADED FLANGE FEI-63802052000.A10 63802052000 £14.88 £17.86
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A107 32119124010 £17.68 £21.22
1010 - SWITCH FEI-30701305010.A16 30701305010 £31.19 £37.43
1020 - FILLISTER HEAD SCREW FEI-43041039999.A46 43041039999 £1.60 £1.92
1030 - CABLE GROMMET FEI-31413282000.A125 31413282000 £2.55 £3.06
1040 - CABLE WITH PLUG FEI-30707544010.A75 30707544010 -
1050 - CABLE CLAMPING PIECE FEI-32431043002.A151 32431043002 £1.60 £1.92
1060 - TERMINAL FEI-31412063000.A147 31412063000 £3.93 £4.72
1080 - CABLE FEI-30719886010.A6 30719886010 -
1110 - SCREW FEI-43072000000.A158 43072000000 £1.60 £1.92
1150 - HANDLE FEI-31204193010.A3 31204193010 -
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A258 62910022002 £7.22 £8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A224 32160003014 -
