Fein WSG 8-115 (50Hz 110V) / 72220124110 Spare Parts

Fein WSG 8-115 ⡐Hz 110V) / 72220124110 Spare Parts

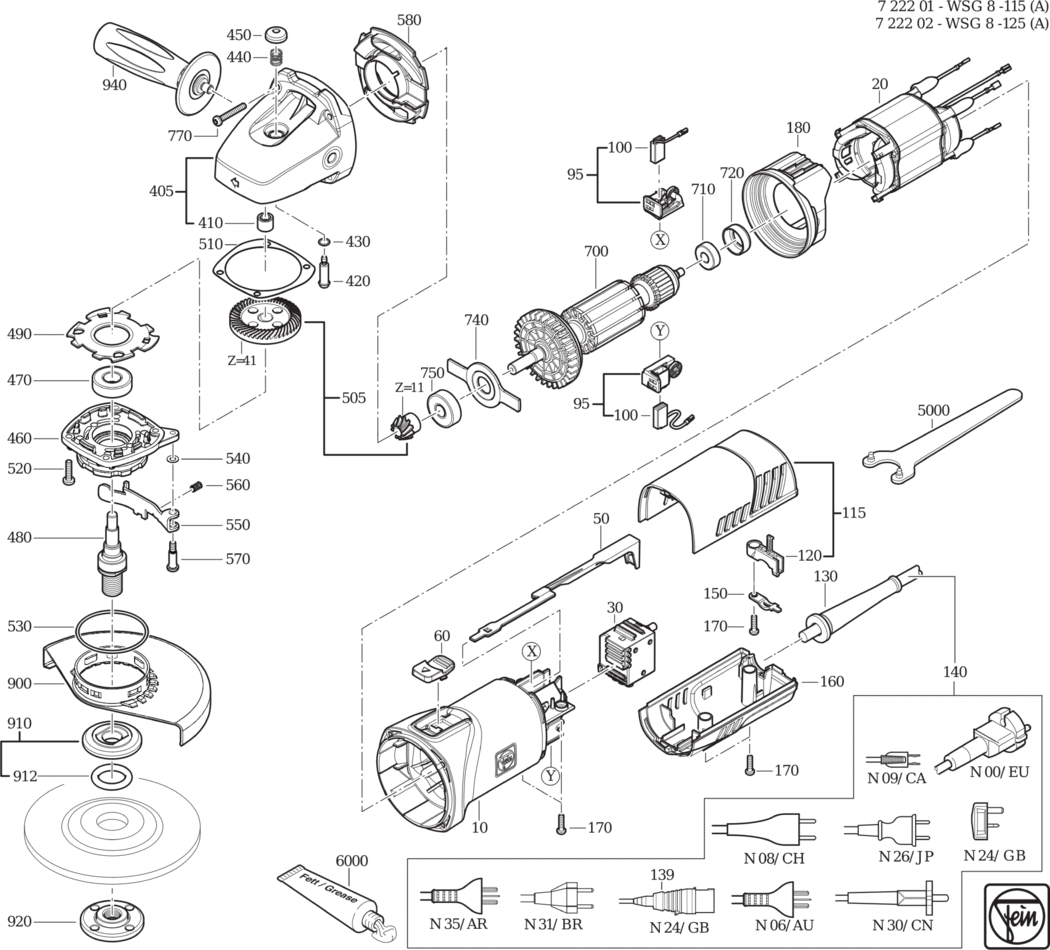

An exploded diagram and spare parts listing for the Fein WSG 8-115 (50Hz 110V) / 72220124110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901174000.A16 31901174000	£37.51	£45.01
20 - STATOR 110-120V 50/60HZ FEI-51281004110.A9 51281004110	£50.78	£60.93
30 - SWITCH FEI-30701300000.A7 30701300000	£19.80	£23.76
50 - CONTROL ROD FEI-32816079000.A37 32816079000	£2.43	£2.92
60 - SLIDE SWITCH FEI-32805306000.A55 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 100-120V 50/60HZ FEI-30712096040.A37 30712096040	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 110-120V 50/60HZ FEI-30711160000.A29 30711160000	£8.15	£9.78
115 - COVER OT FEI-32427150010.A30 32427150010	£15.07	£18.08
120 - CABLE CLAMPING PIECE FEI-32431047000.A21 32431047000	-
130 - PROTECTIVE HOSE FEI-31413237000.A2 31413237000	£2.74	£3.29
139 - PLUG CEE 16A/110V FEI-30728288004.A6 30728288004	£14.25	£17.10
140 - CABLE WITH PLUG FEI-30707545010.A11 30707545010	£26.50	£31.80
150 - CABLE CLAMPING PIECE FEI-32431043002.A36 32431043002	£1.60	£1.92
160 - COVER FEI-32427148000.A20 32427148000	£5.49	£6.59
170 - SCREW FEI-43072000000.A97 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A82 31428179000	£7.46	£8.95
405 - GEARBOX HOUSING FEI-31206146030.A36 31206146030	-
410 - NEEDLE SLEEVE FEI-41705006006.A69 41705006006	£7.31	£8.77
420 - BOLT FEI-30217335005.A99 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A42 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A122 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A167 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419153000.A12 32419153000	£27.18	£32.61
470 - GROOVED BALL BEARING FEI-41701010054.A266 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406299001.A39 33406299001	£26.04	£31.25
490 - PLATE FEI-32416115000.A24 32416115000	-
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A20 33809238020	£40.91	£49.09
510 - WASHER 0.1 FEI-32624122020.A33 32624122020	£1.60	£1.92
520 - FILLISTER HEAD SCREW FEI-43064024043.A217 43064024043	-
530 - SEALING RING FEI-40612000003.A53 40612000003	£1.60	£1.92
540 - DISC FEI-32408450000.A25 32408450000	£1.60	£1.92
550 - LEVER FEI-30240331000.A9 30240331000	£7.99	£9.59
560 - SPRING FEI-30901403000.A0 30901403000	£1.60	£1.92
570 - SCREW FEI-33024077000.A11 33024077000	£1.60	£1.92
580 - AIR GUIDE RING FEI-31428180000.A62 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ110V FEI-53281002110.A4 53281002110	£81.98	£98.37
710 - GROOVED BALL BEARING FEI-41701001260.A137 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A7 30507236000	£3.19	£3.83
750 - GROOVED BALL BEARING FEI-41701207260.A97 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A40 43074012000	£1.60	£1.92
910 - INNER FLANGE FEI-63801182010.A159 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A18 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A188 63802052000	£14.88	£17.86
940 - HANDLE FEI-32119107016.A109 32119107016	£10.15	£12.18
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A49 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A371 32160003014	-
