Bostitch BTFP02043 Type Rev 1 Compressor Spare Parts

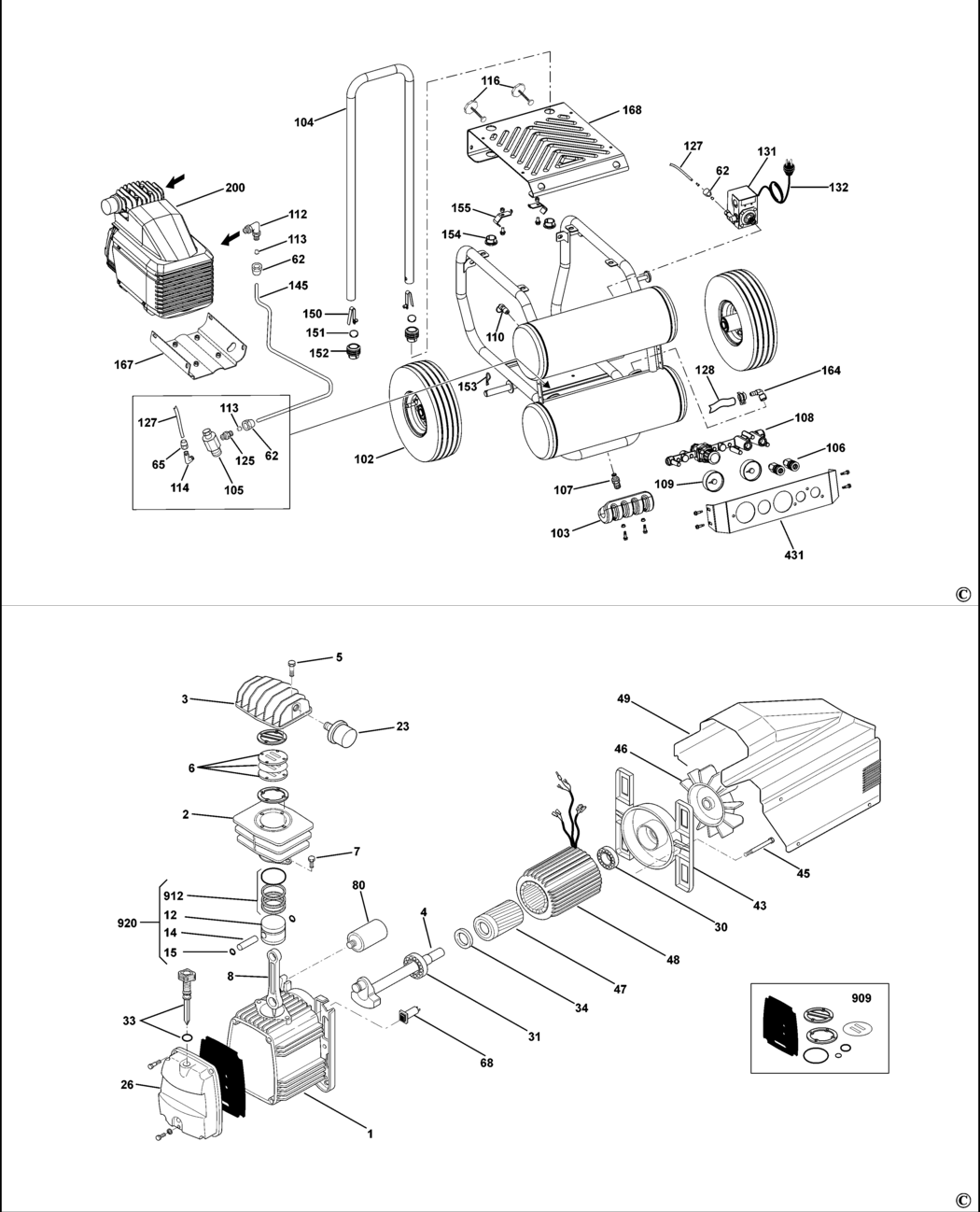

An exploded drawing and spare parts listing for the Bostitch BTFP02043 Type Rev 1 Compressor

	Ex VAT	Inc VAT
1 - CRANKCASE BDE-4105370.A0 4105370	£165.92	£199.11
2 - CYLINDER BDE-4105576.A0 4105576	£65.52	£78.62
3 - HEAD BDE-4105436.A0 4105436	£58.69	£70.43
4 - CRANKSHAFT BDE-4106533.A1 4106533	£131.46	£157.75
5 - SCREW BDE-14002021.A1 14002021	£2.26	£2.71
6 - PLATE BDE-4105451.A0 4105451	£17.48	£20.97
7 - SCREW BDE-14011064.A1 14011064	£2.26	£2.71
8 - CON ROD BDE-4105009.A0 4105009	£12.17	£14.60
12 - PISTON BDE-4105062.A0 4105062	£108.20	£129.84
14 - PIN BDE-4105066.A1 4105066	£2.78	£3.34
15 - CIRCLIP BDE-4105006.A1 4105006	£2.26	£2.71
23 - FILTER BDE-4105461.A1 4105461	£2.78	£3.34
26 - COVER BDE-4105371.A1 4105371	£34.00	£40.80
30 - BEARING BDE-9170116.A1 9170116	-
31 - BEARING BDE-4105002.A0 4105002	£5.88	£7.06
33 - DIPSTICK BDE-4105028.A1 4105028	£2.78	£3.34
34 - SEAL BDE-4105360.A1 4105360	£9.41	£11.29
43 - COVER BDE-4106660.A1 4106660	£37.35	£44.82
45 - SCREW BDE-116011038.A1 116011038	£2.26	£2.71
46 - FAN BDE-4105447.A1 4105447	£17.48	£20.97
47 - ROTOR BDE-4105183.A0 4105183	£74.15	£88.98
48 - STATOR BDE-9067526.A1 9067526	£371.62	£445.95
49 - SHROUD BDE-4106535.A0 4106535	£78.12	£93.74
62 - LOCK NUT BDE-127HQ0110.A0 127HQ0110	£9.41	£11.29
65 - LOCK NUT BDE-127HQ0111.A2 127HQ0111	£7.18	£8.62
68 - CUT OUT SA BDE-4105169 4105169	£19.90	£23.88
80 - CAPACITOR BDE-4105131.A0 4105131	£17.48	£20.97
103 - FOOT BDE-127QC4002 127QC4002	£34.00	£40.80
104 - HANDLE BDE-SM001852V94 SM001852V94	-
105 - VALVE BDE-127HQ0551 127HQ0551	£119.32	£143.19
106 - COUPLER (SPLASH) BDE-22050000.A1 22050000	£14.57	£17.48
107 - VALVE BDE-9047062.A6 9047062	£10.85	£13.02
109 - GAUGE BDE-330007001 330007001	£144.10	£172.92
110 - VALVE BDE-47206000.A0 47206000	-
113 - PISTON RING BDE-127HQ0560.A0 127HQ0560	£3.30	£3.96
114 - JOINT BDE-127HQ0125 127HQ0125	£2.78	£3.34
116 - KNOB BDE-127QC4037 127QC4037	£14.57	£17.48
125 - JOINT BDE-127HQ0549.A1 127HQ0549	£47.08	£56.49
127 - TUBE BDE-127QC4034 127QC4034	£10.85	£13.02
128 - PIPE BDE-127QC4044 127QC4044	£18.91	£22.69
131 - SWITCH BDE-127HQ0082.A1 127HQ0082	-
145 - PIPE BDE-127QC4001 127QC4001	£17.48	£20.97
150 - BUTTON RELEASE BDE-127QC4020.A0 127QC4020	£9.41	£11.29
151 - STOP BDE-SM001906 SM001906	-
152 - GUIDE BDE-127QC4017 127QC4017	£2.78	£3.34
153 - LOCK PIN BDE-127QC4018 127QC4018	£17.48	£20.97
154 - SLEEVE BDE-127QC4021 127QC4021	£1.50	£1.80
155 - PLATE BDE-127QC4010.A1 127QC4010	£7.18	£8.62
164 - JOINT BDE-127QC0181.A1 127QC0181	£10.85	£13.02
167 - BASEPLATE BDE-4105729022.A2 4105729022	£23.75	£28.50
168 - COVER BDE-4105858021.A1 4105858021	£87.82	£105.39
431 - FRONT BRACKET BDE-127QC0244.A1 127QC0244	£37.35	£44.82
912 - PISTON RING BDE-4105069 4105069	£74.15	£88.98
920 - PISTON KIT BDE-416022004 416022004	-
